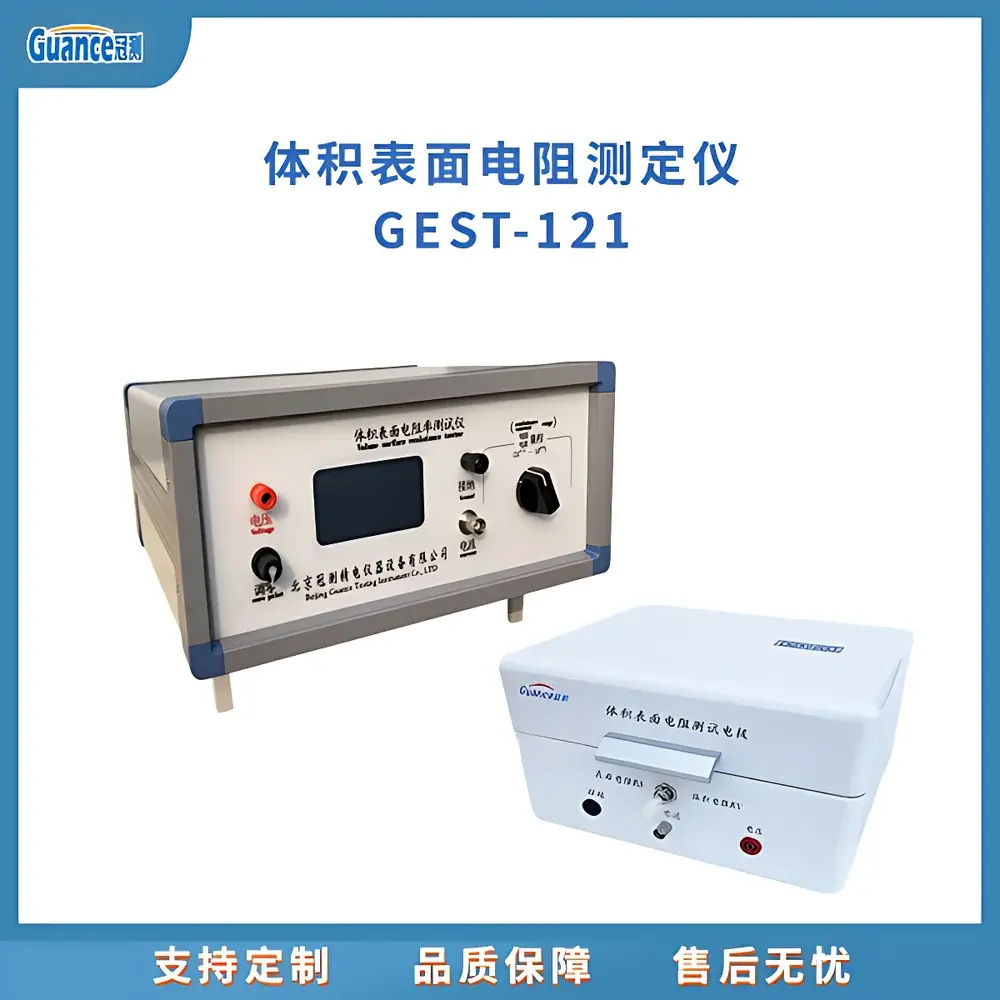

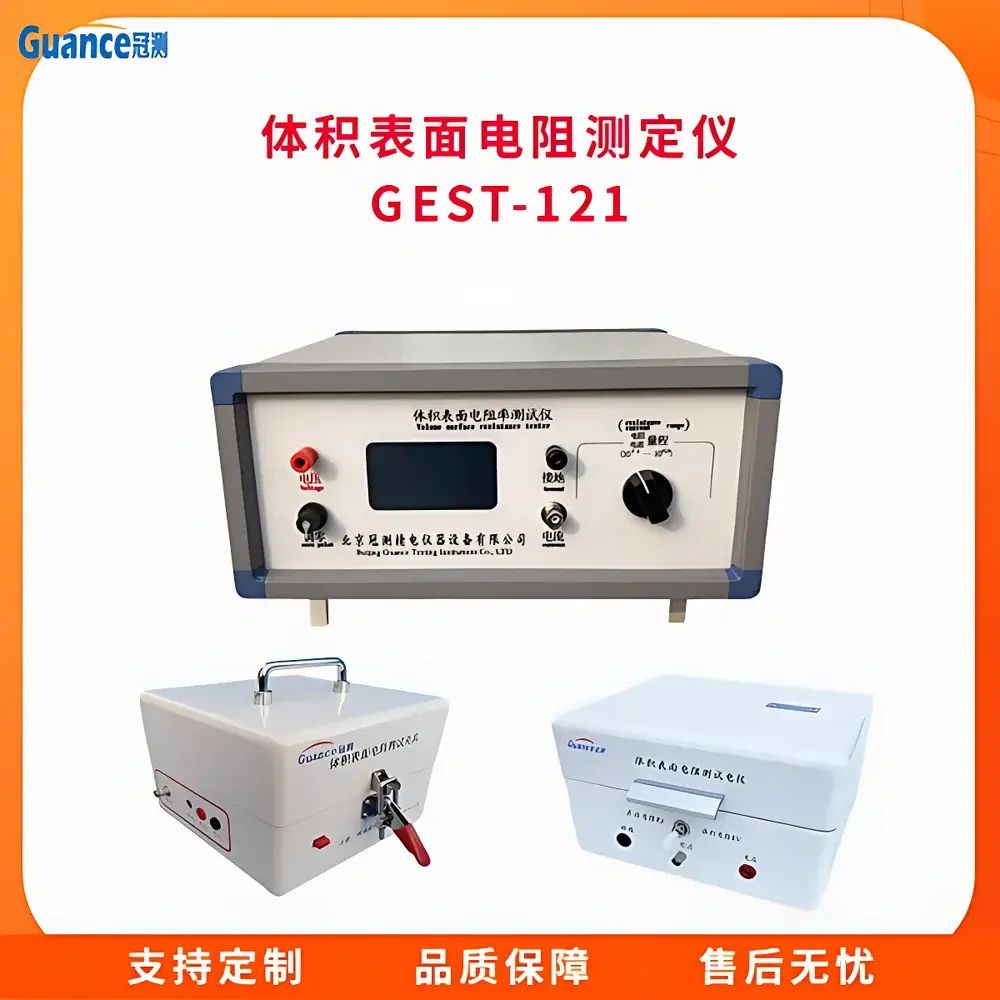

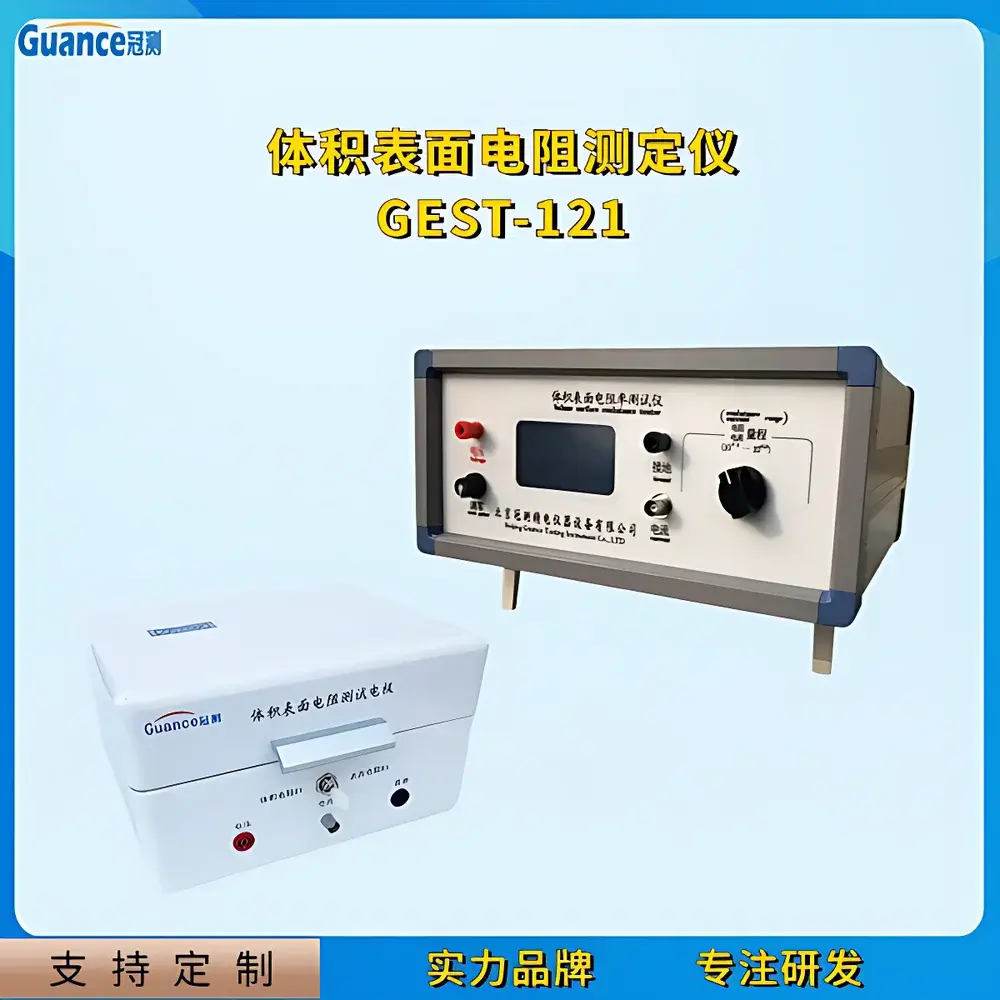

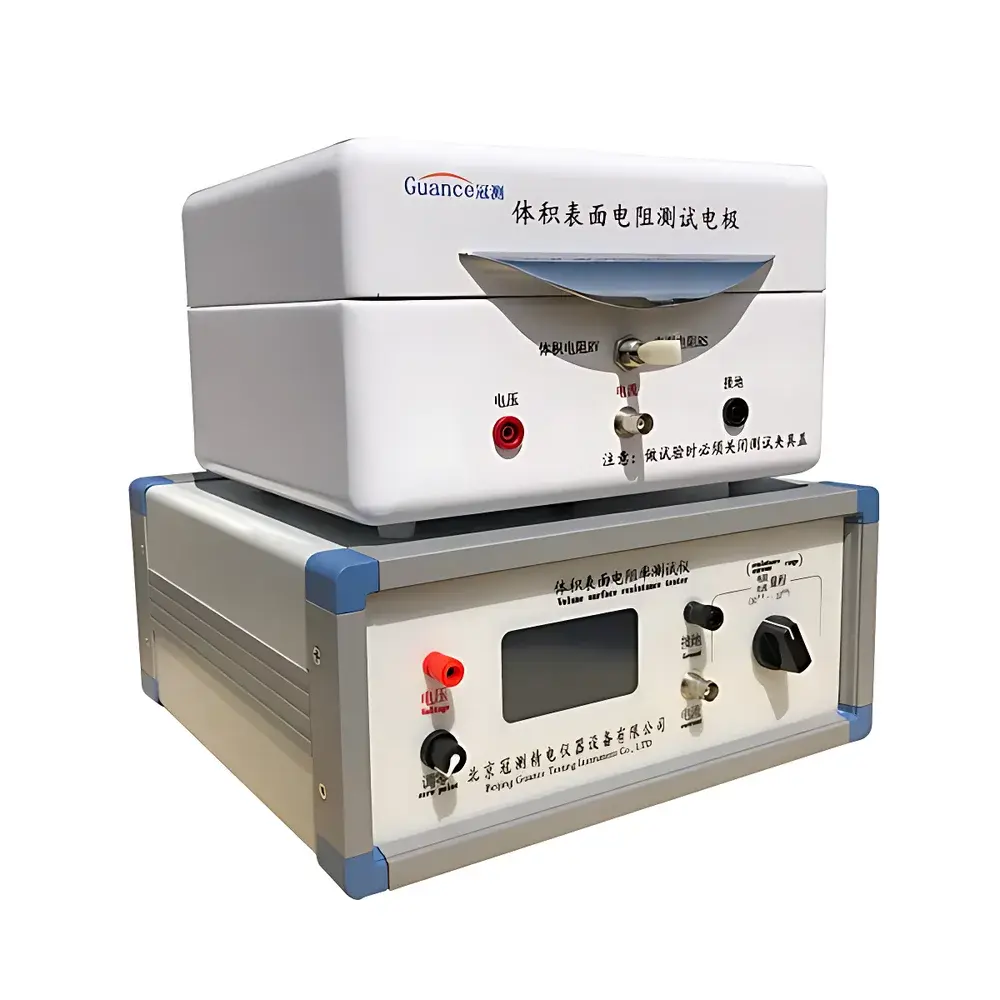

GuanCe Instruments GEST-121Ac Temperature-Controlled Resistivity & Dielectric Characterization Test Station

Overview

The GuanCe Instruments GEST-121Ac is a precision-engineered temperature-controlled test station designed for fundamental electrical property characterization of solid-state materials across wide thermal ranges. It operates on the principle of four-terminal (Kelvin) resistivity measurement when integrated with compatible resistivity analyzers or LCR bridges—enabling accurate determination of volume resistivity (ρ), surface resistivity (σₛ), and dielectric response (ε′, ε″, tan δ) as functions of temperature and frequency. Unlike ambient-only test fixtures, the GEST-121Ac provides active thermal conditioning via dual-mode thermal control: resistive heating for elevated-temperature studies up to 400 °C and liquid nitrogen–based cryogenic cooling down to −50 °C. Its closed-loop PID temperature regulation system achieves ±0.5 °C stability over extended dwell periods—critical for reproducible measurement of thermally activated conduction mechanisms, phase transitions, glass transitions, and dielectric relaxation phenomena in conductors, semiconductors, and insulators.

Key Features

• Wide thermal operating range: −50 °C to +400 °C, enabling comprehensive Arrhenius and WLF modeling of charge transport and polarization dynamics
• High-stability PID temperature controller with real-time digital feedback and programmable ramp/soak profiles
• Dual-interface design: compatible with both domestic and international LCR meters (e.g., Keysight E4980A, Wayne Kerr 6500B) and dedicated resistivity measurement systems (e.g., Keithley 6430, Jandel RM3000)
• Four-terminal sample holder with gold-plated electrodes and low-thermal-EMF cabling to minimize contact resistance and thermoelectric offset errors
• Integrated thermal shielding and vacuum-compatible flange options (optional) to suppress convective heat loss and enable controlled-atmosphere testing
• Modular construction supporting interchangeable sample stages—including disc, bar, and thin-film configurations—for ASTM D257, IEC 60093, and GB/T 1410 compliant setups

Sample Compatibility & Compliance

The GEST-121Ac accommodates solid samples in disk (diameter: 10–50 mm), rectangular bar (up to 25 × 10 mm cross-section), and thin-film (thickness ≥10 µm) geometries. Electrode configuration supports both two-probe (for preliminary screening) and guarded four-probe (for high-resistivity insulation testing per ASTM D257) arrangements. The station meets mechanical and thermal safety requirements outlined in IEC 61010-1 for laboratory electrical equipment. When used with validated instrumentation and documented SOPs, it supports GLP-compliant data acquisition for quality control laboratories operating under ISO/IEC 17025 accreditation. Temperature calibration traceability is maintained through optional NIST-traceable Pt100 sensor verification kits.

Software & Data Management

While the GEST-121Ac operates as a hardware platform without embedded firmware, its analog temperature output (0–10 V) and digital RS-232/USB interface enable seamless integration with third-party data acquisition software including LabVIEW, MATLAB Data Acquisition Toolbox, and custom Python-based control scripts using PySerial. Users may synchronize temperature setpoints with impedance sweeps (frequency or bias) to generate 3D datasets: Z*(f,T), ε*(f,T), or ρ(T). Audit trails—including timestamped temperature logs, ramp rates, and soak durations—are exportable in CSV or HDF5 formats. For regulated environments, integration with validated LIMS or ELN platforms satisfies FDA 21 CFR Part 11 requirements when paired with electronic signature-enabled acquisition software.

Applications

• Temperature-dependent resistivity mapping of polymer composites, ceramic varistors, and doped semiconductor wafers
• Dielectric spectroscopy of ferroelectric thin films (e.g., PZT, BaTiO₃) across Curie transitions
• Thermal aging studies of insulating materials per IEC 60216 for lifetime prediction modeling
• Characterization of ionic conductivity in solid electrolytes for battery R&D (e.g., LLZO, NASICON)
• Validation of theoretical models—such as variable-range hopping (VRH) in disordered systems or small-polaron conduction in transition metal oxides
• Quality assurance testing of ESD-safe packaging materials and antistatic coatings per ANSI/ESD S20.20

FAQ

Is the GEST-121Ac compatible with Keysight B1500A Semiconductor Parameter Analyzer?

Yes—via standard triaxial cabling and external trigger synchronization; full bias-sweep temperature correlation requires LabVIEW driver customization.
Does the system include a vacuum chamber option?

Vacuum-ready flanges and O-ring grooves are standard; optional stainless-steel vacuum chamber (10⁻³ mbar base pressure) is available upon request.
Can the liquid nitrogen cooling be replaced with a mechanical cryocooler?

Mechanical cryocooler integration is supported as a factory-configured option (minimum T = −60 °C, vibration-isolated mount required).
What calibration documentation is provided?

Each unit ships with a factory temperature verification report (at 25 °C, 100 °C, 200 °C, and 300 °C) referenced to a calibrated Fluke 1523 thermometer.
Is remote operation possible over Ethernet?

RS-232-to-Ethernet converters (e.g., Moxa NPort) are verified for networked control; native Ethernet is not built-in but fully interoperable.
