GuanCe Instruments YHT-RC100a Universal Arc Resistance Tester for Wire Insulation (Dry & Wet Conditions)

Overview

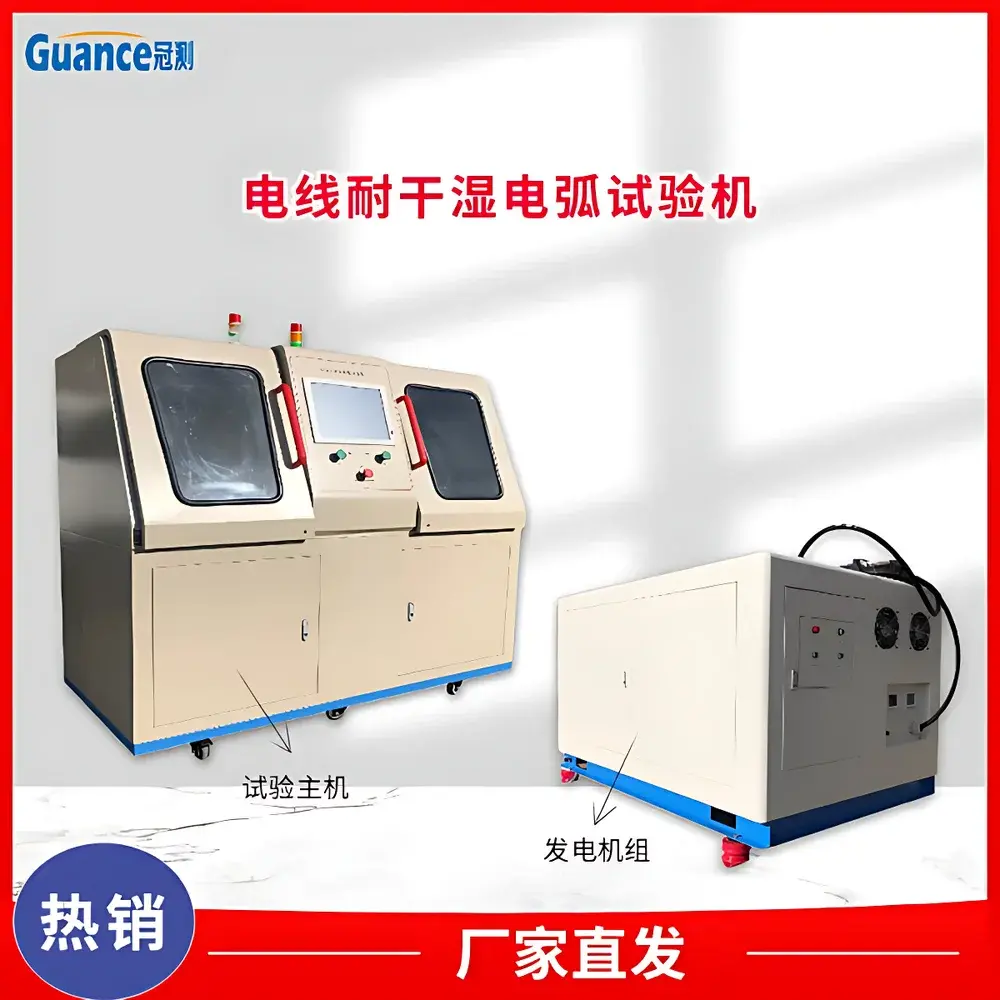

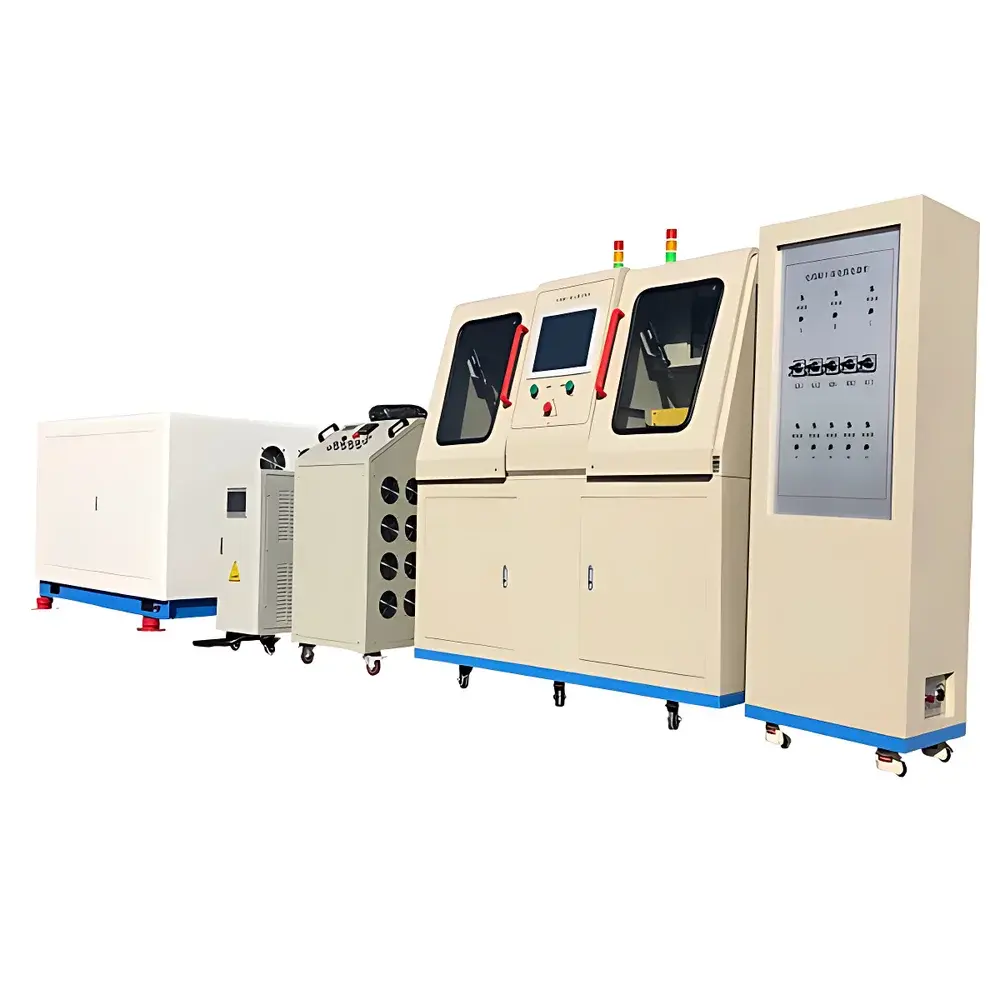

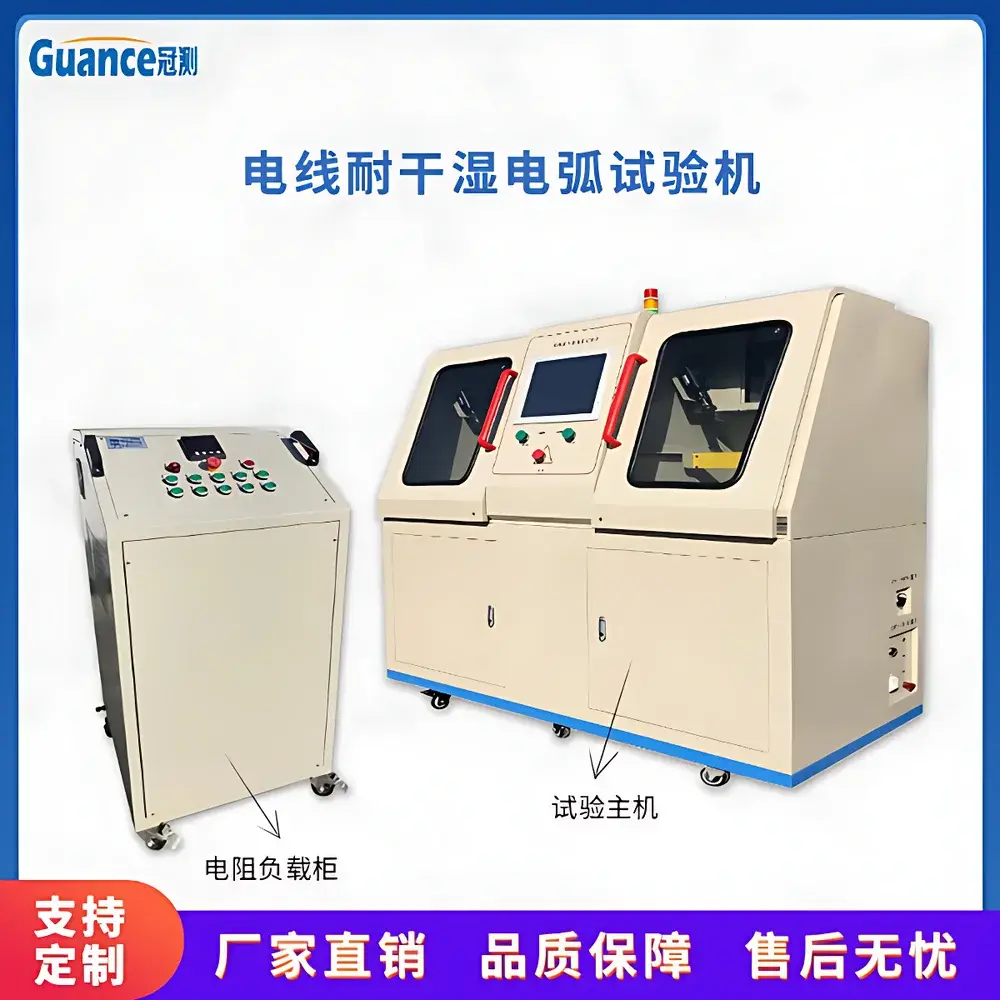

The GuanCe Instruments YHT-RC100a Universal Arc Resistance Tester is an electromechanical test system engineered specifically for evaluating the arc resistance performance of aerospace-grade wire insulation under both dry and wet environmental conditions. It operates on the principle of controlled electrical arcing combined with mechanical abrasion and electrolytic contamination—mimicking real-world failure mechanisms such as tracking, carbonization, and surface degradation induced by high-voltage discharge in humid or contaminated environments. The system integrates a high-fidelity 400 Hz power supply subsystem (via generator + frequency converter), precision current/voltage monitoring (4–20 mA analog signal conditioning), programmable droplet delivery, and synchronized blade reciprocation—all coordinated through a certified Siemens S7-1200 PLC. Designed to replicate the rigorous qualification protocols defined in AS4373D (Aerospace Standard for Wire Test Methods), GJB773A (Chinese Military Standard for Electrical Wires), and PREN6059-502 (European aerospace wiring testing), the YHT-RC100a delivers repeatable, auditable, and standards-compliant arc endurance data essential for MIL-SPEC, DO-160 Section 22, and aircraft wiring harness certification.

Key Features

• Integrated dual-mode operation: independent dry arc and wet arc test configurations, each with dedicated sample holders, fluid containment trays (solution reservoir and waste collection), and contamination control pathways.
• Siemens-certified PLC-based control architecture with deterministic scan cycle timing (<10 ms), ensuring precise synchronization between arc initiation, blade motion, and solution dosing.
• 10-inch MCGS capacitive touch HMI with real-time visualization of voltage (kV), current (A), cumulative arc time (s), droplet count, and system status flags—including fault logging with timestamped event records.
• Servo-driven linear actuation system featuring ball screw transmission and precision linear guide rails, enabling repeatable blade stroke (1–10 cm), velocity (0.5 ±0.05 cps), and loading (250 ±25 g) per ASTM D495 and IEC 60587 alignment conventions.
• Dual-channel analog signal acquisition: voltage transducers and current transformers output calibrated 4–20 mA signals directly to PLC inputs, supporting traceable measurement chains compliant with ISO/IEC 17025 documentation requirements.
• Modular safety architecture: five 7.5 A circuit breakers for individual subsystem isolation; one 30 A short-circuit breaker; active grounding (<1 Ω); and emergency stop interlocked with exhaust fan and main contactor.
• Onboard conductivity verification: integrated conductometer enables pre-test validation of electrolyte solution resistivity (e.g., 0.1% ammonium chloride per AS4373D Annex C), ensuring repeatability across laboratories.

Sample Compatibility & Compliance

The YHT-RC100a accommodates insulated wire specimens up to 6 mm outer diameter, with standardized mounting using dual-purpose fixtures—dry-mode clamping plates and wet-mode sloped holders with integrated drainage channels. Seven test wires are mounted simultaneously: five under electrical load and two as open-circuit references for comparative degradation analysis. All mechanical and electrical interfaces conform to dimensional tolerances specified in AS4373D Clause 4.5.2 and GJB773A Section 3.2. The system supports full audit trails required under GLP and GMP frameworks, including user-access-level permissions, electronic signature support (via optional 21 CFR Part 11 add-on module), and immutable test log export in CSV/Excel format. Calibration intervals align with ISO/IEC 17025 Clause 6.6, recommending annual verification of voltage/current sensors against NIST-traceable standards.

Software & Data Management

Control logic resides entirely within the Siemens S7-1200 PLC firmware, eliminating dependency on external PCs and minimizing cybersecurity exposure. The MCGS HMI provides intuitive parameter entry for arc duration, blade position, droplet rate, and pass/fail thresholds. All operational data—including instantaneous voltage, RMS current, cumulative arcing time, and droplet volume—is logged at 100 ms intervals and stored locally on industrial-grade SD card (≥32 GB). Export functionality supports USB mass storage mode for post-test analysis in MATLAB, Python (Pandas), or JMP. Optional Ethernet/IP interface enables integration into factory MES systems for automated test reporting and SPC charting. Firmware updates follow IEC 62443-2-4 change management protocols, with version history and SHA-256 checksums provided in release notes.

Applications

• Qualification testing of fluoropolymer-insulated wires (e.g., ETFE, FEP, PTFE) used in avionics, flight control systems, and engine bay harnesses.
• Comparative evaluation of nanocomposite insulation formulations for improved arc track resistance (CTI enhancement).
• Root cause analysis of field failures involving wire chafing + moisture ingress + high-voltage transients.
• Process validation for plasma-treated or silane-coated insulation surfaces.
• Supporting FAA AC 20-174 and EASA AMC 20-21 compliance evidence packages for wire system life extension programs.
• Research applications in high-altitude electrical breakdown physics, particularly for UAV and eVTOL platform wiring.

FAQ

What standards does the YHT-RC100a fully support out-of-the-box?
AS4373D (2022 edition), GJB773A-2020, ASD-STAN PREN6059-502:2018, and IEC 60587 Annex A — all test sequences, parameter limits, and acceptance criteria are preloaded in PLC logic.
Can the system operate without a dedicated 400 Hz power source?

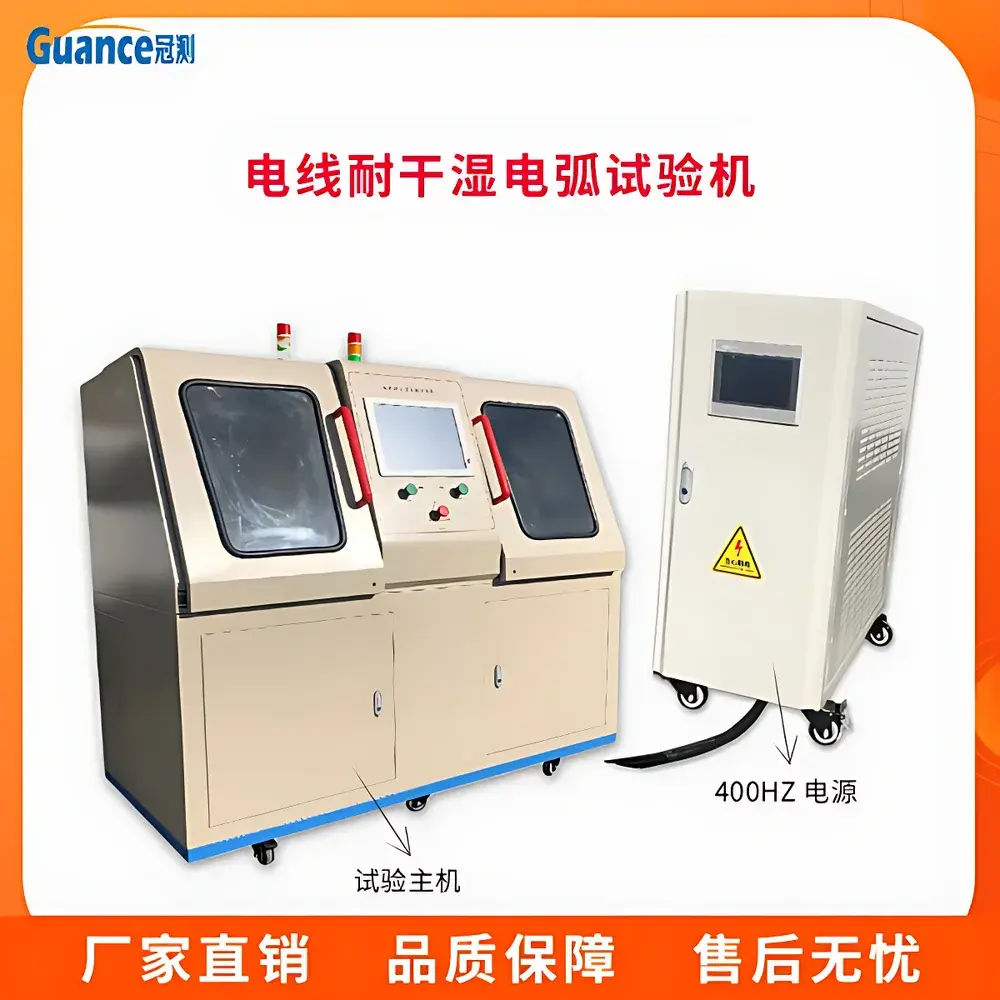

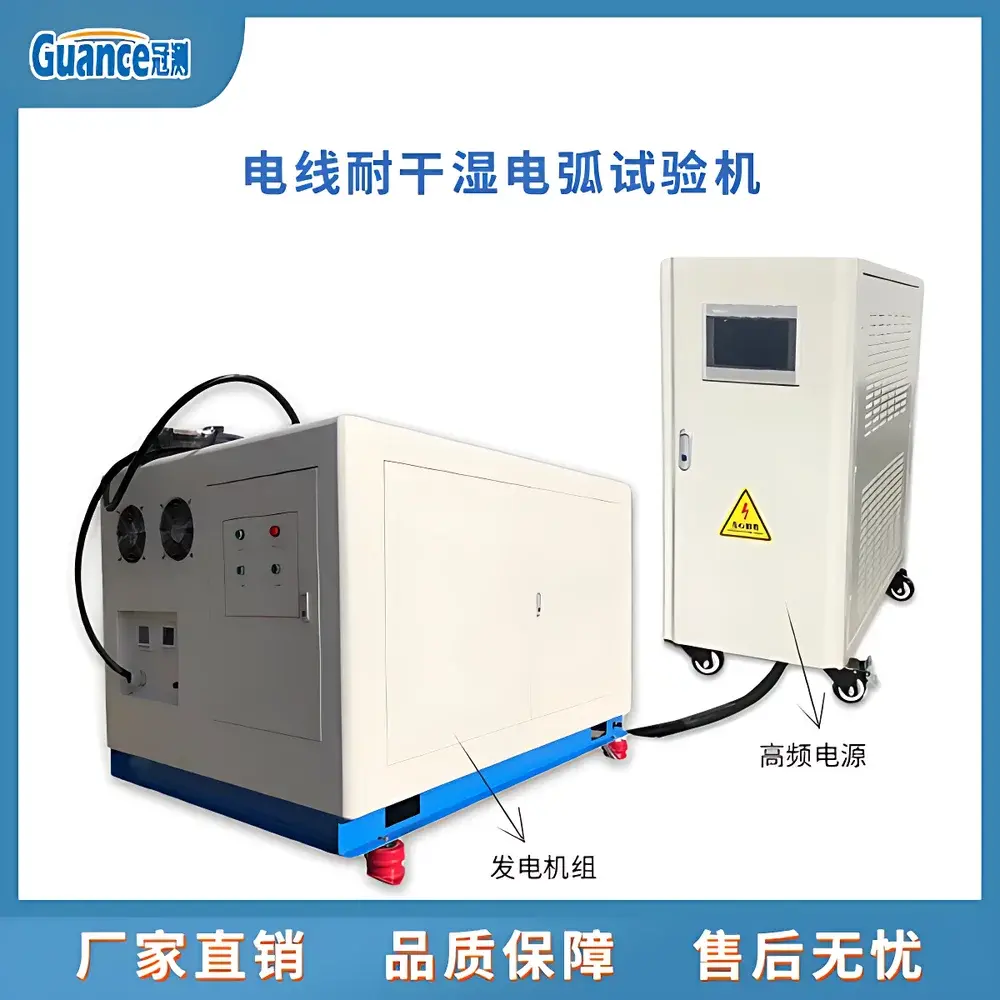

Yes. The integrated generator + frequency converter subsystem generates stable 400 Hz output from standard 50 Hz mains input; no external 400 Hz supply is required.
Is third-party calibration certification included with delivery?
Factory calibration certificates (voltage, current, time, mass flow) traceable to CNAS-accredited labs are supplied. Full ISO/IEC 17025 calibration reports require separate service engagement.
How is solution conductivity verified during setup?
The built-in conductometer measures solution resistivity in real time and triggers audible/visual alerts if deviation exceeds ±5% of target value (e.g., 1000 µS/cm for 0.1% NH₄Cl per AS4373D).
What maintenance intervals are recommended for long-term reliability?
Per manufacturer guidelines: quarterly inspection of peristaltic pump tubing wear, biannual torque verification of blade fasteners, and annual recalibration of transducers and touch screen digitizer.
