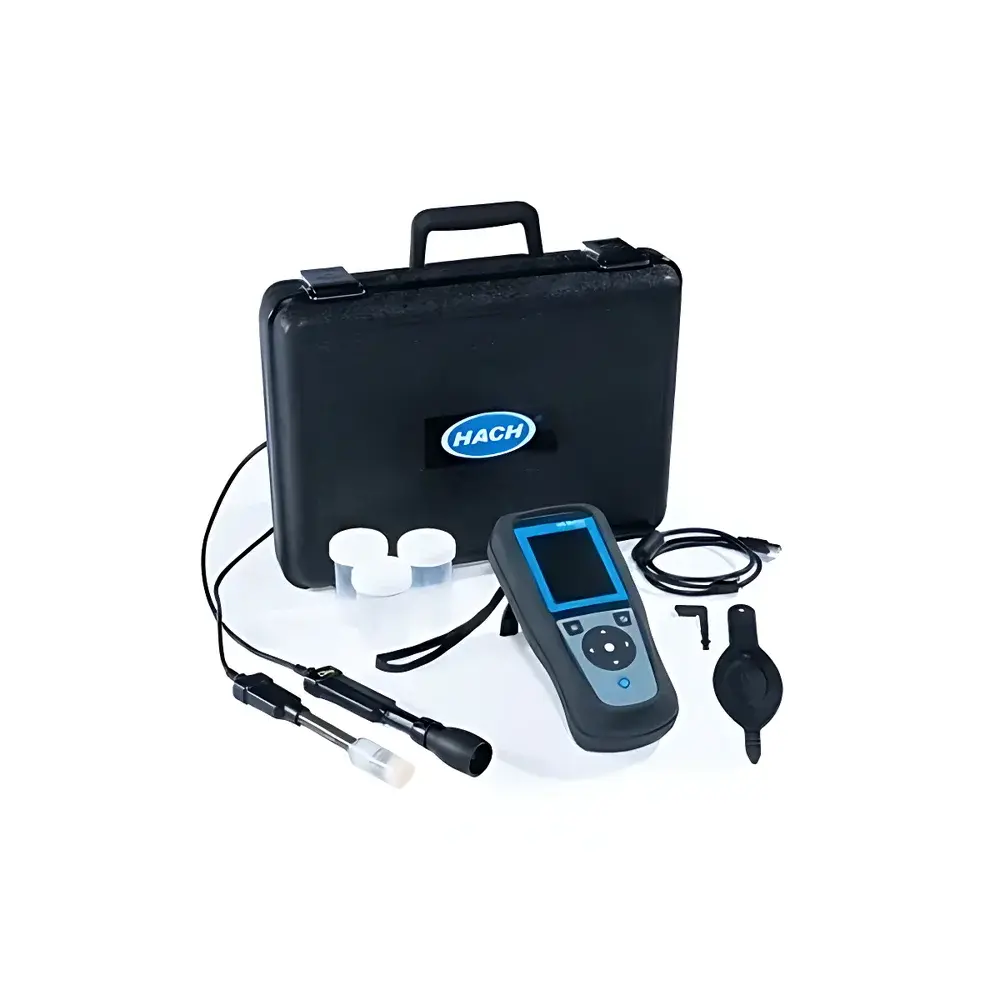

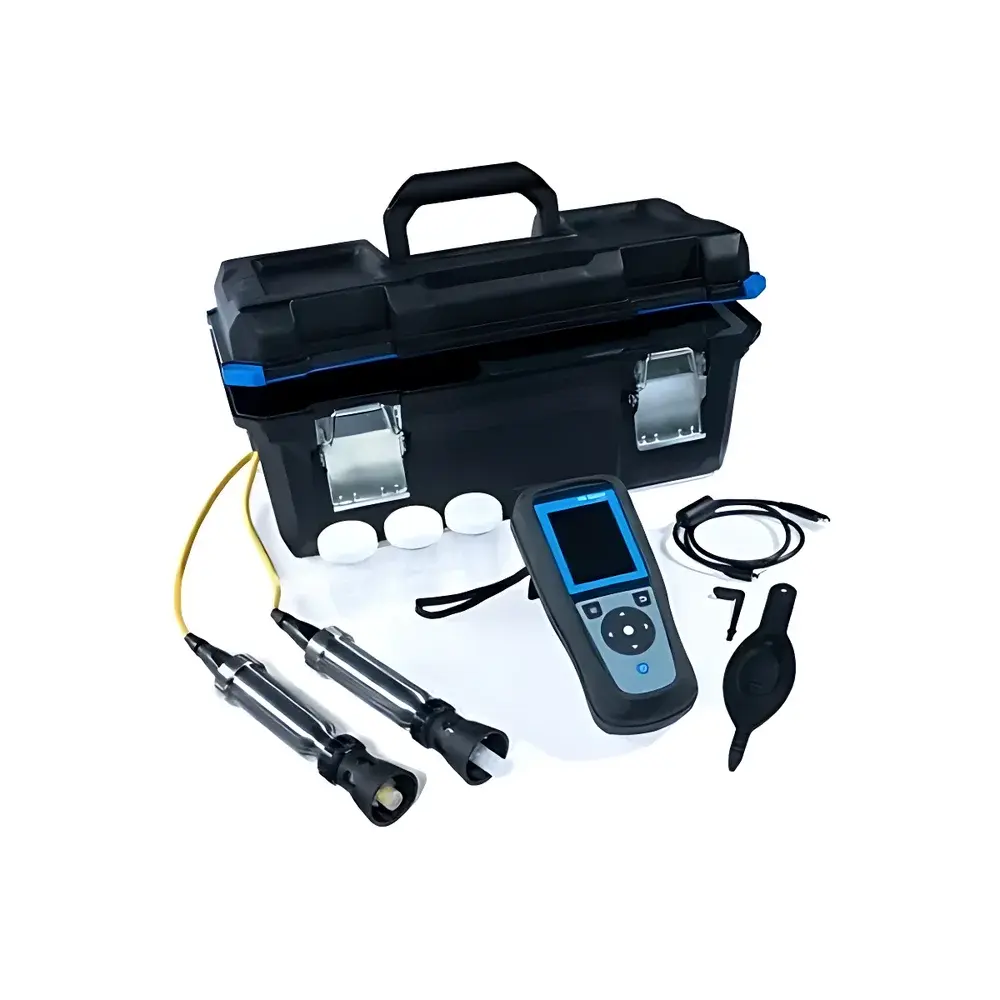

Hach HQ1130 Portable Dissolved Oxygen Meter with IntelliCAL Electrochemical Probe

Overview

The Hach HQ1130 Portable Dissolved Oxygen Meter is a field-deployable, multi-parameter electrochemical analyzer engineered for precision, ruggedness, and regulatory traceability in environmental, industrial, and municipal water quality applications. It operates on the polarographic principle—utilizing a Clark-type membrane-covered electrode with a silver/silver chloride reference system and a gold cathode—to generate a diffusion-limited current proportional to dissolved oxygen concentration. This well-established electrochemical method delivers high reproducibility across variable temperature, salinity, and pressure conditions when paired with automatic temperature compensation (ATC) and barometric pressure input. Designed for compliance-critical workflows, the HQ1130 meets foundational requirements of ASTM D888 (Standard Test Methods for Dissolved Oxygen in Water), ISO 5814 (Water Quality — Determination of Dissolved Oxygen — Electrochemical Probe Method), and USP <643> (Oxygen Concentration in Pharmaceutical Waters). Its fully sealed IP67-rated housing—including battery compartment—ensures uninterrupted operation during rain, dust exposure, or accidental submersion up to 1 m for 30 minutes, making it suitable for wastewater outfalls, river surveys, reservoir profiling, and process monitoring in food & beverage or power generation facilities.

Key Features

• IP67-certified enclosure with integrated rubberized grip and shock-absorbing bumper for field durability
• IntelliCAL auto-recognition technology: detects probe type, serial number, calibration history, and expiration status upon insertion—eliminating manual configuration errors
• High-resolution graphical LCD with intuitive icon-driven navigation and multilingual support (English, Spanish, French, German, Chinese)
• Onboard guided calibration wizard with step-by-step visual prompts and real-time pass/fail feedback for zero and span checks
• Automatic temperature compensation (0–50 °C) and optional barometric pressure correction for accurate % saturation reporting
• Three-channel architecture supporting simultaneous measurement of DO, pH/ORP, and conductivity/TDS/salinity—or any combination of IntelliCAL electrochemical sensors
• Built-in GLP-compliant data logging: timestamps, operator ID, sample ID, probe ID, calibration parameters, and environmental metadata stored with each reading

Sample Compatibility & Compliance

The HQ1130 is validated for use with natural waters (freshwater, estuarine, seawater), treated effluents, potable supplies, cooling tower fluids, and process streams with suspended solids ≤ 100 mg/L and turbidity ≤ 400 NTU. Its polarographic probe requires minimal maintenance—regular membrane replacement and electrolyte refilling per manufacturer schedule ensures long-term stability. The instrument conforms to Good Laboratory Practice (GLP) and supports audit-ready documentation through secure USB data export. All stored records include immutable metadata required under FDA 21 CFR Part 11 for electronic records and signatures when used in regulated environments. Calibration verification follows NIST-traceable standards, and sensor performance adheres to EPA Method 4500-O G for field-portable DO determination.

Software & Data Management

Data transfer occurs via standard USB-A interface to Windows or macOS systems without proprietary drivers. Exported files are generated in CSV format compatible with LIMS, Excel, and statistical analysis platforms. The HQ1130’s internal memory retains up to 10,000 measurements with full contextual metadata—including date/time, GPS coordinates (when paired with external Bluetooth GPS module), probe serial number, and calibration certificate IDs. Firmware updates are delivered via downloadable .hex files through Hach’s official support portal, enabling feature enhancements and regulatory alignment (e.g., new buffer recognition logic, updated compliance flags). No cloud dependency or subscription service is required—data sovereignty remains fully under user control.

Applications

• Environmental monitoring: BOD incubation verification, stream health assessment, hypolimnetic oxygen profiling, and wetland restoration tracking
• Municipal utilities: Influent/effluent DO monitoring at WWTPs, distribution system residual oxygen mapping, and source water quality surveillance
• Industrial process control: Aeration basin optimization in activated sludge systems, boiler feedwater deaeration validation, and fermentation tank DO setpoint verification
• Food & beverage QA/QC: Carbonation stability testing, cold chain integrity checks, and rinse water oxygen residual analysis
• Educational and research use: Field-based limnology studies, undergraduate analytical chemistry labs, and method validation protocols

FAQ

Does the HQ1130 require manual probe calibration before each use?
No—IntelliCAL probes retain calibration coefficients and history internally; the instrument auto-loads settings upon connection. However, periodic verification against air-saturated water or Winkler titration standards is recommended per ISO/IEC 17025 guidelines.
Can the HQ1130 measure dissolved oxygen in seawater?
Yes—when equipped with the LDO101R salinity-compensated optical probe or the polarographic DO probe with manual salinity input (0–70 ppt), it delivers accurate mg/L and % saturation values per ISO 5814 Annex B.
Is firmware update capability available for legacy units?
Yes—all HQ1130 units manufactured since 2012 support over-the-air firmware upgrades via USB; release notes and version compatibility matrices are published in Hach’s Technical Documentation Library.
How does the instrument handle temperature drift during extended field deployments?
The HQ1130 incorporates dual-sensor thermal stabilization: an internal thermistor monitors electronics temperature, while the probe’s built-in thermistor provides real-time aqueous phase temperature—enabling dynamic ATC correction with ±0.1 °C resolution.
What GLP features are embedded in the data logger?
Each record includes operator ID, sample ID, location tag, calibration timestamp, probe serial number, measurement mode (manual/interval/continuous), and ambient temperature—fully compliant with ISO/IEC 17025 Clause 7.7 and EU Annex 11 requirements for analytical data integrity.
