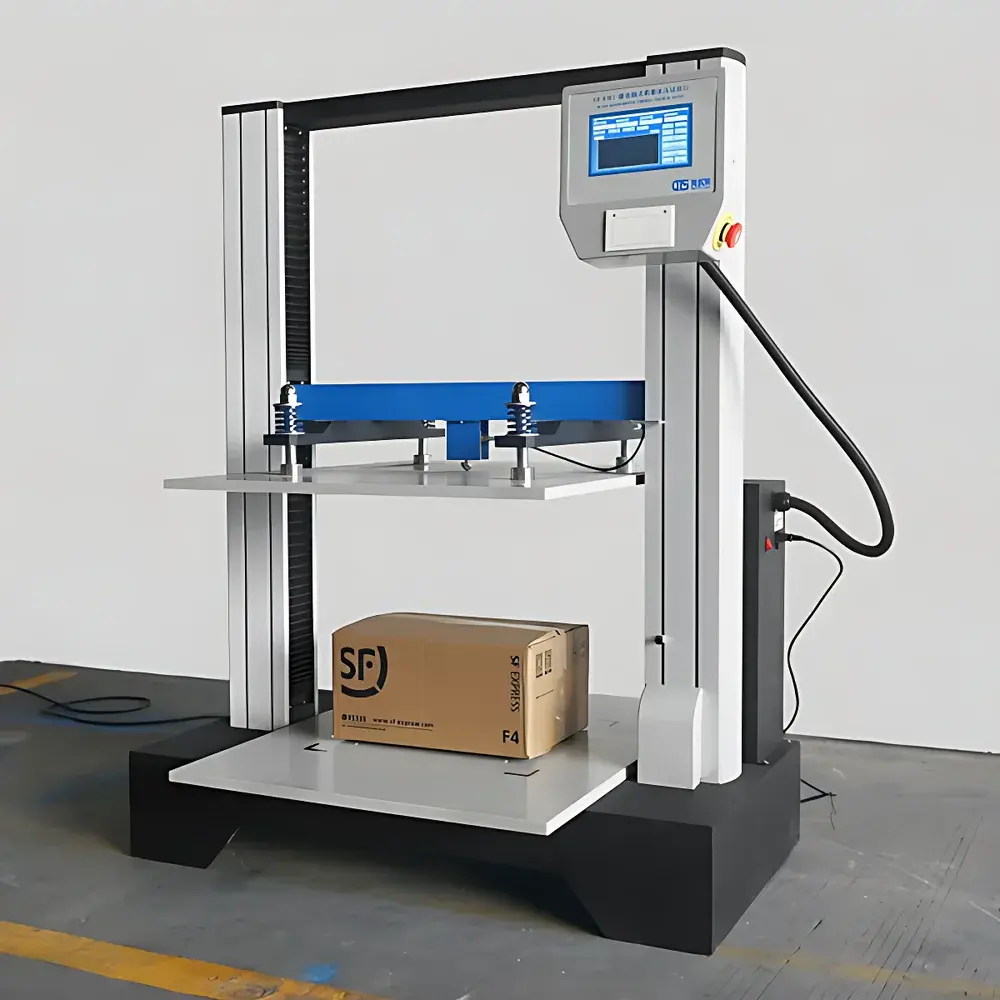

HAIDA HD-A501-900 Microcomputer-Controlled Compression Tester for Corrugated Boxes

Overview

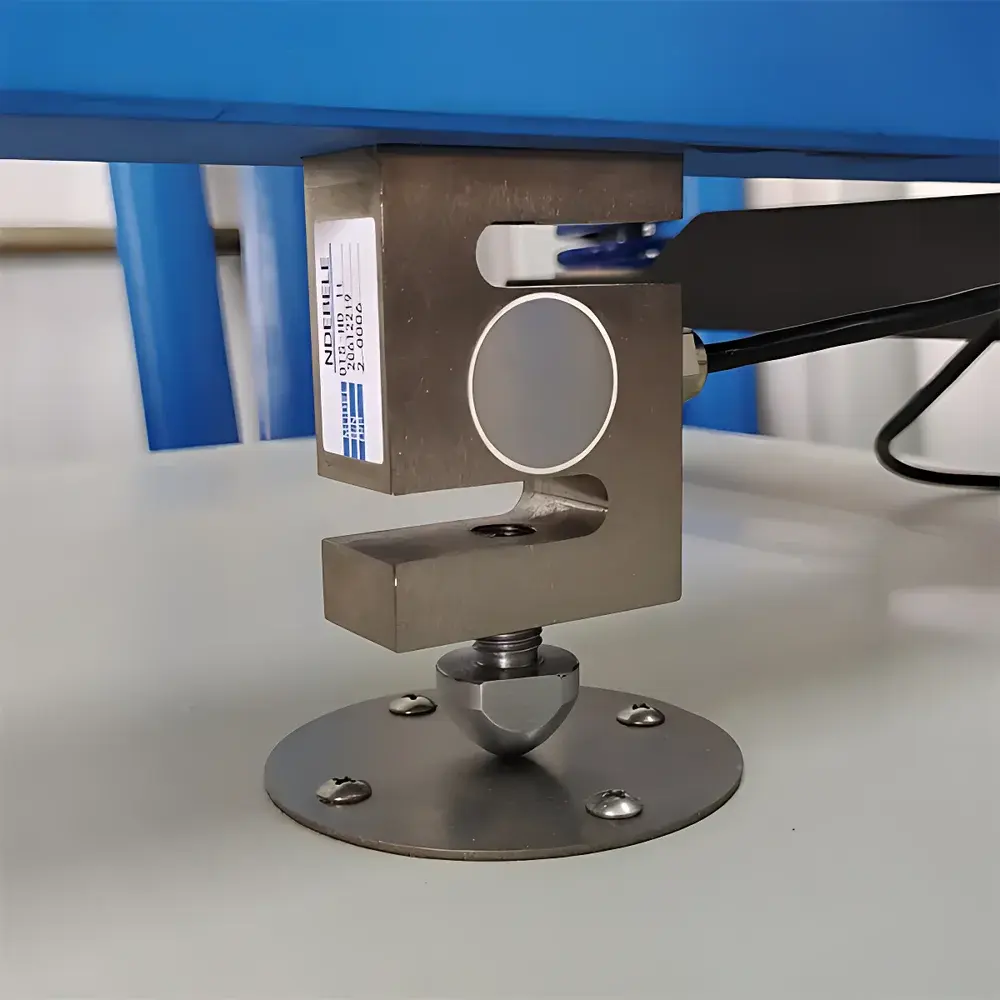

The HAIDA HD-A501-900 Microcomputer-Controlled Compression Tester is a purpose-built mechanical testing system engineered for precise and repeatable evaluation of compressive strength, deformation behavior, and stacking performance of corrugated fiberboard containers and rigid packaging systems. Operating on the principle of controlled axial compression via a servo-assisted ball-screw actuation system, the instrument applies a defined load at a regulated displacement rate to simulate real-world distribution stresses—including static stack loading, dynamic palletized transport compression, and edge crush resistance under confined conditions. Its structural architecture complies with fundamental metrological requirements for force measurement traceability, incorporating a high-stability 10 kN load cell calibrated to national standards and integrated into a rigid A3 steel frame fabricated using CNC bending and laser-cutting processes. Designed for laboratory and quality control environments in packaging R&D, manufacturing, and third-party certification labs, the HD-A501-900 delivers deterministic test outcomes suitable for internal process validation as well as regulatory submissions aligned with international packaging performance frameworks.

Key Features

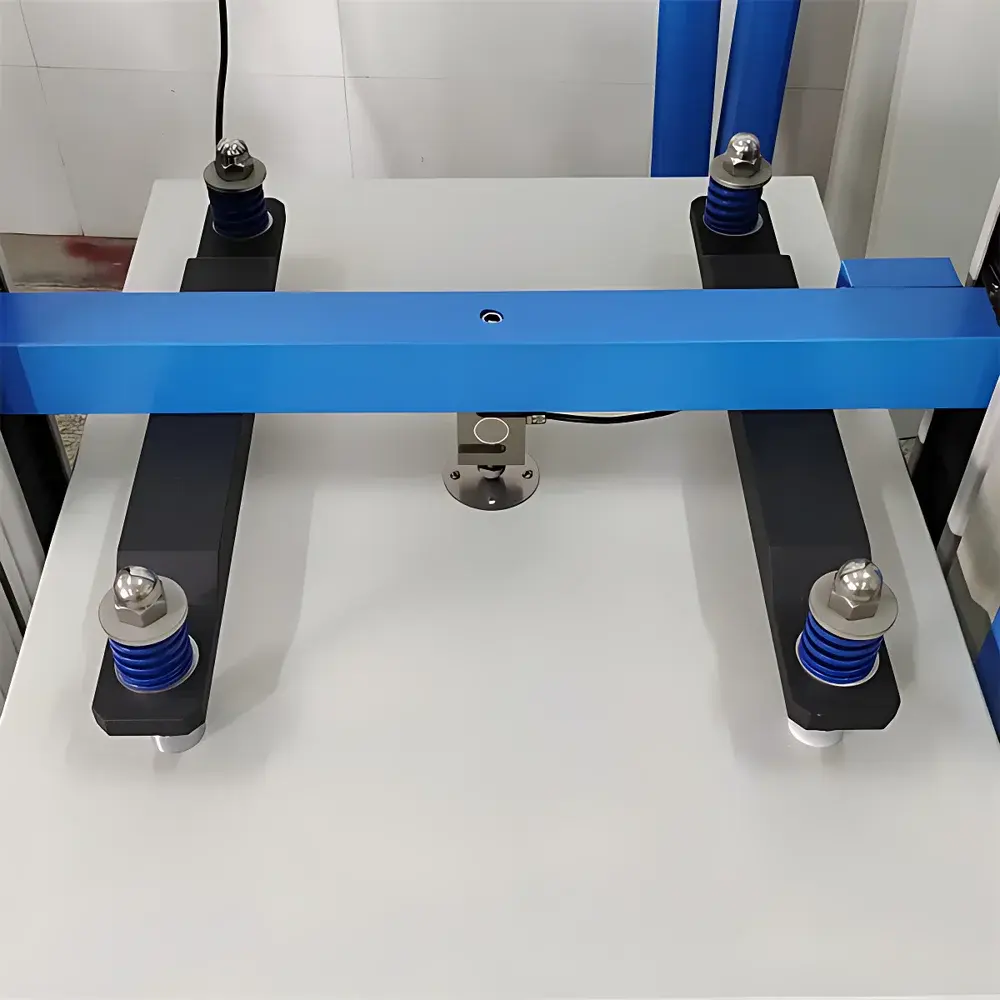

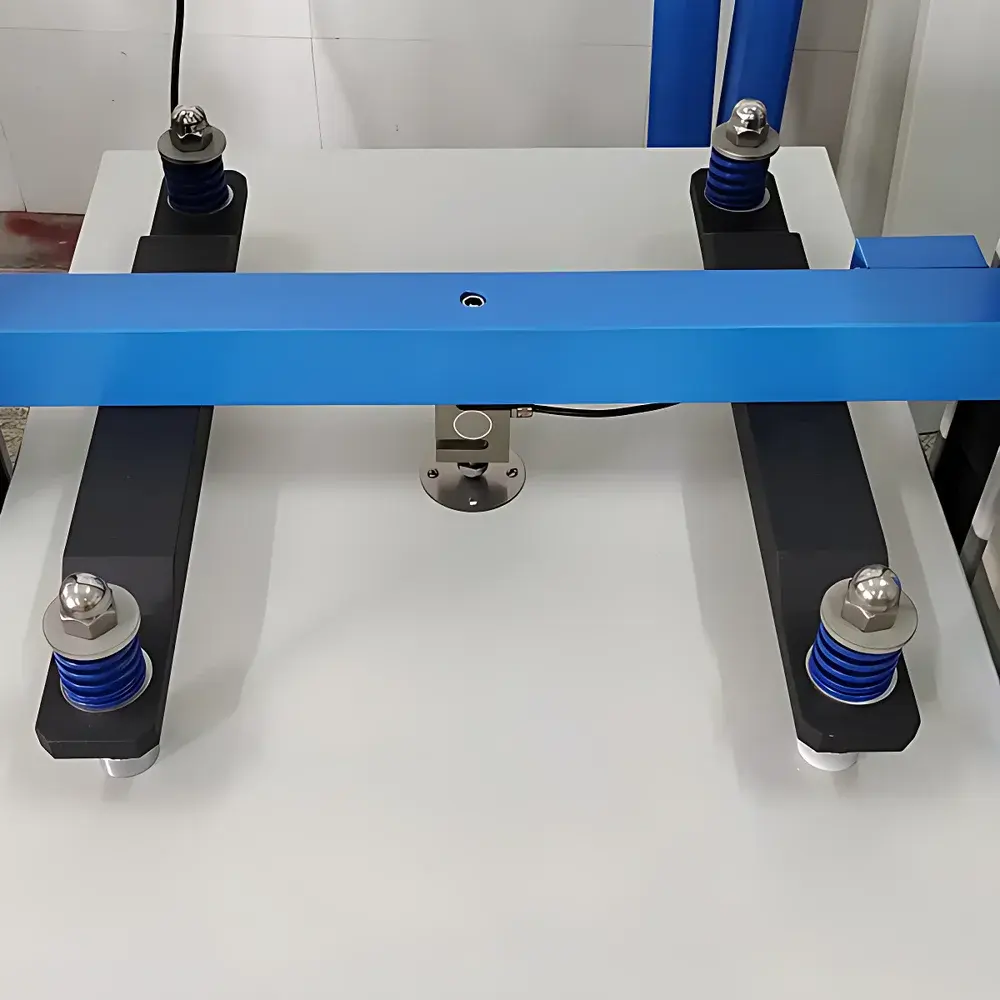

• High-precision dual-ball-guide column system ensures vertical alignment stability and minimizes lateral deflection during compression—critical for maintaining uniform stress distribution across large-format specimens (up to 900 mm width).
• Robust monolithic frame constructed from laser-cut and welded A3 structural steel, finished with electrostatically applied corrosion-resistant coating in HAIDA’s signature gloss-white and metallic-blue livery.
• Frequency-inverter-driven AC motor enables smooth, low-noise actuation with speed regulation accuracy within ±0.5%—essential for compliance with ASTM D642’s prescribed 10 mm/min compression rate and ISO 12048’s ramp-to-failure protocols.
• Integrated touchscreen HMI supports bilingual operation (English/Simplified Chinese), intuitive test method selection, real-time force–displacement curve visualization, and programmable hold-phase execution for long-term creep or stacking simulation.
• Comprehensive safety architecture includes mechanical end-stop limit switches, software-based overload cutoff (configurable threshold), automatic emergency stop upon sensor anomaly detection, and audible/visual fault alerts.
• Thermal printer interface provides immediate hardcopy output of test ID, peak load (kN), average load, preset hold value, dwell duration, and timestamp—formatted for audit-ready documentation per GLP and ISO/IEC 17025 requirements.

Sample Compatibility & Compliance

The HD-A501-900 accommodates a broad spectrum of rigid and semi-rigid packaging substrates, including single- and multi-wall corrugated board boxes, honeycomb paperboard containers, fiber drums, folding cartons, composite cans, intermediate bulk containers (IBCs), and plastic pails (e.g., PET water bottles, HDPE cooking oil jugs). Its 700 × 900 × 900 mm internal test chamber permits full-size palletized unit load evaluation when configured with optional auxiliary fixtures. The system conforms to globally recognized compression testing standards: ISO 12048 (compression strength of box-shaped packages), ISO 2872 (stacking tests), ISO 2874 (edge crush test), ASTM D642 (standard test method for compressive properties of shipping containers), ASTM D4169 (performance testing of shipping containers), TAPPI T804 (compressive strength of fiberboard boxes), JIS Z0212 (Japanese industrial standard for box compression), and Chinese national standards GB/T 4857.4 and GB/T 4857.16. All firmware logic and data handling routines are structured to support 21 CFR Part 11–compliant electronic records when paired with validated networked data export modules.

Software & Data Management

The embedded microcomputer platform runs a deterministic real-time OS optimized for deterministic sampling at ≥100 Hz, ensuring high-fidelity capture of load–displacement transients during rapid collapse events. Test sequences are defined via hierarchical parameter sets—including pre-load conditioning, ramp rate, target load or displacement, dwell duration, and auto-return configuration. Measurement units are fully switchable between metric (gf, kgf, N, kN) and imperial (lbf, ton-force) without recalibration. Raw data files (.csv) can be exported via USB port for post-processing in Excel, MATLAB, or statistical analysis suites. Audit trails record operator ID, test start/stop timestamps, calibration history, method version, and any manual overrides—supporting traceability in GMP-regulated packaging qualification workflows. Firmware updates are performed offline via secure SD card protocol to maintain system integrity.

Applications

• Corrugated box compression strength verification for supplier qualification and incoming inspection.
• Stack load simulation for warehouse storage validation under static and dynamic environmental profiles.
• Edge crush resistance assessment of blank stock prior to box fabrication.
• Comparative evaluation of alternative packaging materials (e.g., molded pulp vs. corrugated board).
• Accelerated aging studies coupling compression testing with humidity/temperature preconditioning (when used with external climate chambers).
• Design validation of reusable transport containers (RTCs) and returnable packaging systems per ISO 11607 and ISTA 3-series protocols.
• Regulatory submission support for FDA, EU Commission Regulation (EC) No 1935/2004, and CPSC-compliant packaging dossiers.

FAQ

What is the maximum specimen height the HD-A501-900 can accommodate?
The internal test chamber height is 900 mm, allowing upright testing of full-height shipping containers and palletized loads up to that dimension.
Does the system support automated data archiving to a network server?
Yes—when connected to an enterprise LAN and configured with optional Ethernet-enabled firmware, test results can be routed to centralized SQL databases or LIMS platforms via configurable API endpoints.
Is the 10 kN load cell factory-calibrated and NIST-traceable?
Each unit ships with a manufacturer-issued calibration certificate referencing CNAS-accredited primary standards; field recalibration services are available through HAIDA’s global service network.
Can the HD-A501-900 perform constant-rate-of-loading (CRL) tests per ISO 12048 Annex B?
Yes—the variable-speed drive and closed-loop PID controller enable precise CRL mode implementation with programmable ramp profiles and slope compensation algorithms.
What maintenance intervals are recommended for the ball screw and guide rails?
Lubrication of the precision ball screw assembly is required every 500 operational hours; linear guide rails should be inspected and re-greased quarterly under continuous use conditions.
