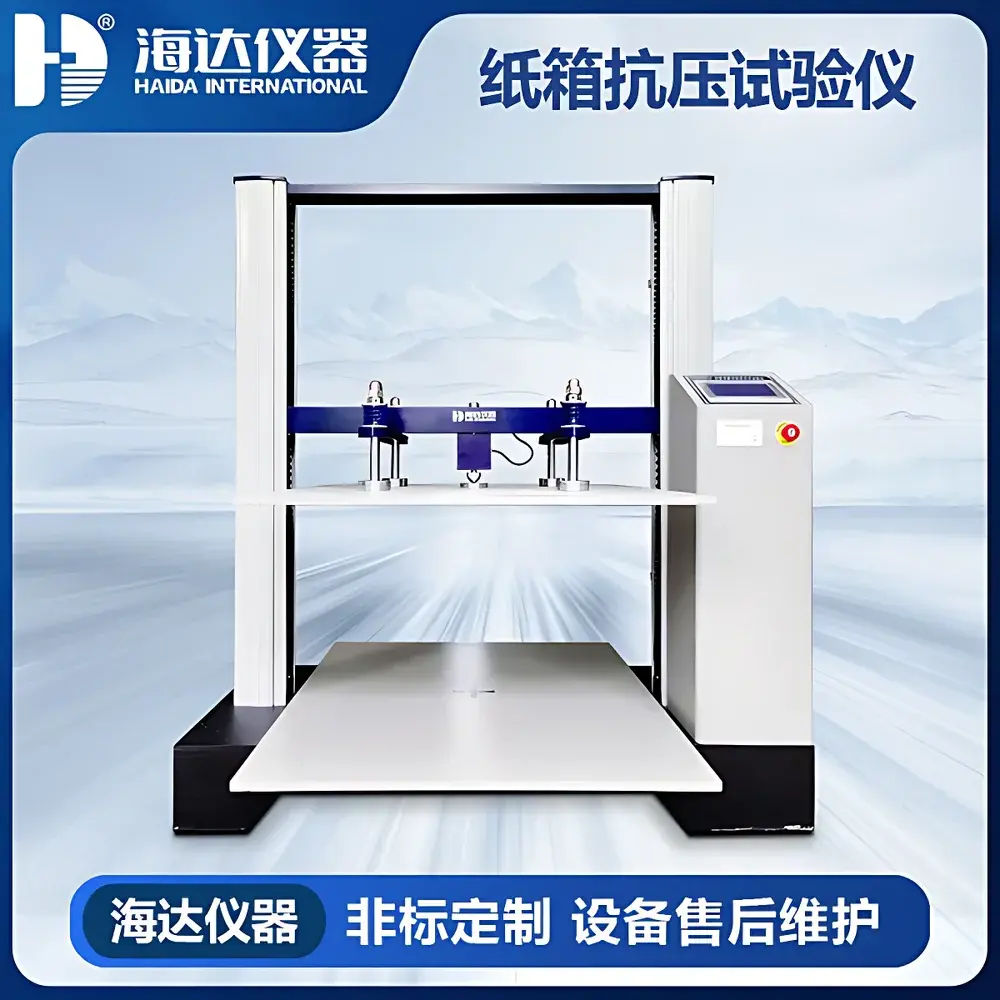

HAIDA HD-A502S-1200 Servo-Controlled Computerized Compression Tester for Corrugated Boxes

Overview

The HAIDA HD-A502S-1200 is a high-precision servo-controlled compression testing system engineered for deterministic evaluation of compressive strength, deformation behavior, and stacking performance of corrugated fiberboard containers and rigid packaging structures. It operates on the principle of controlled axial force application via a digitally regulated AC servo motor driving a preloaded ball screw mechanism, enabling precise displacement control and real-time load feedback through a calibrated 20 kN load cell. The system conforms to internationally recognized mechanical testing methodologies for packaging integrity assessment—including static crush resistance, creep-induced deformation under sustained load, and simulated warehouse stack loading conditions. Its rigid A3 steel frame, dual precision linear guide rails, and thermally stable structural geometry ensure long-term repeatability and metrological traceability in regulated laboratory and quality assurance environments.

Key Features

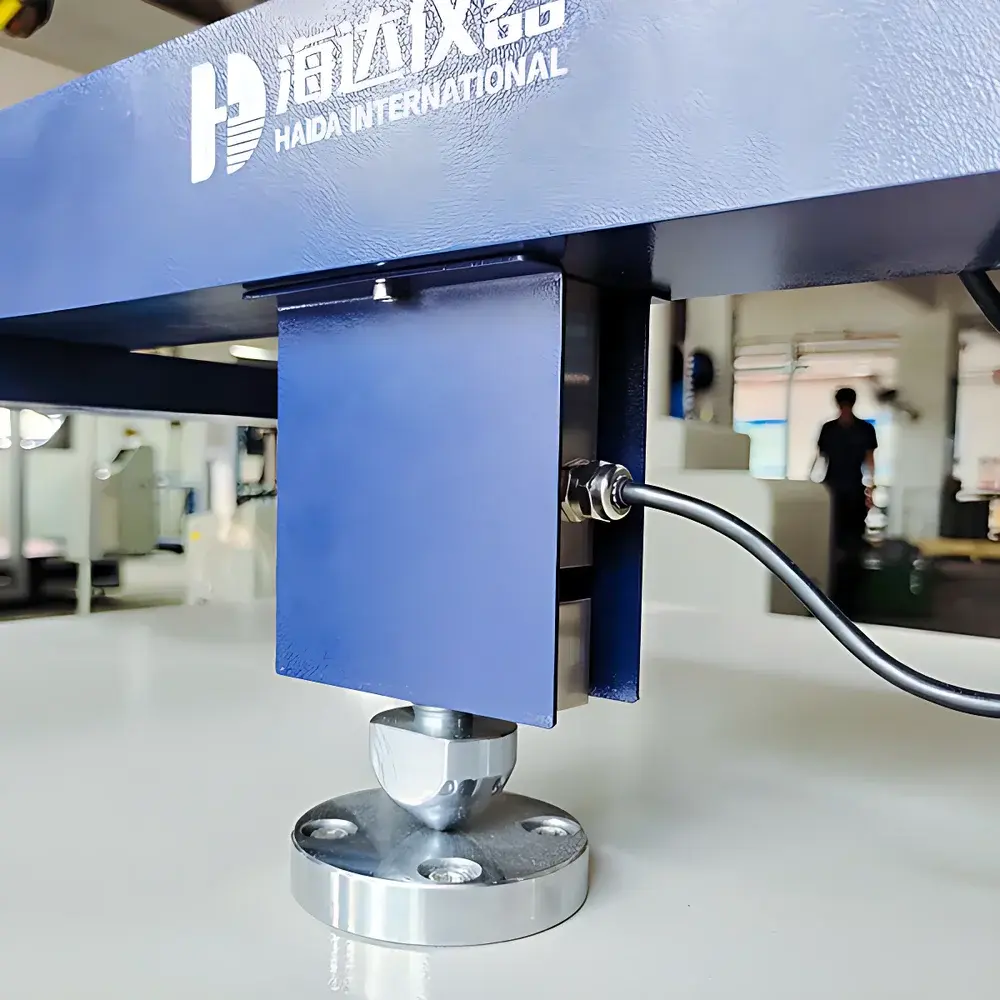

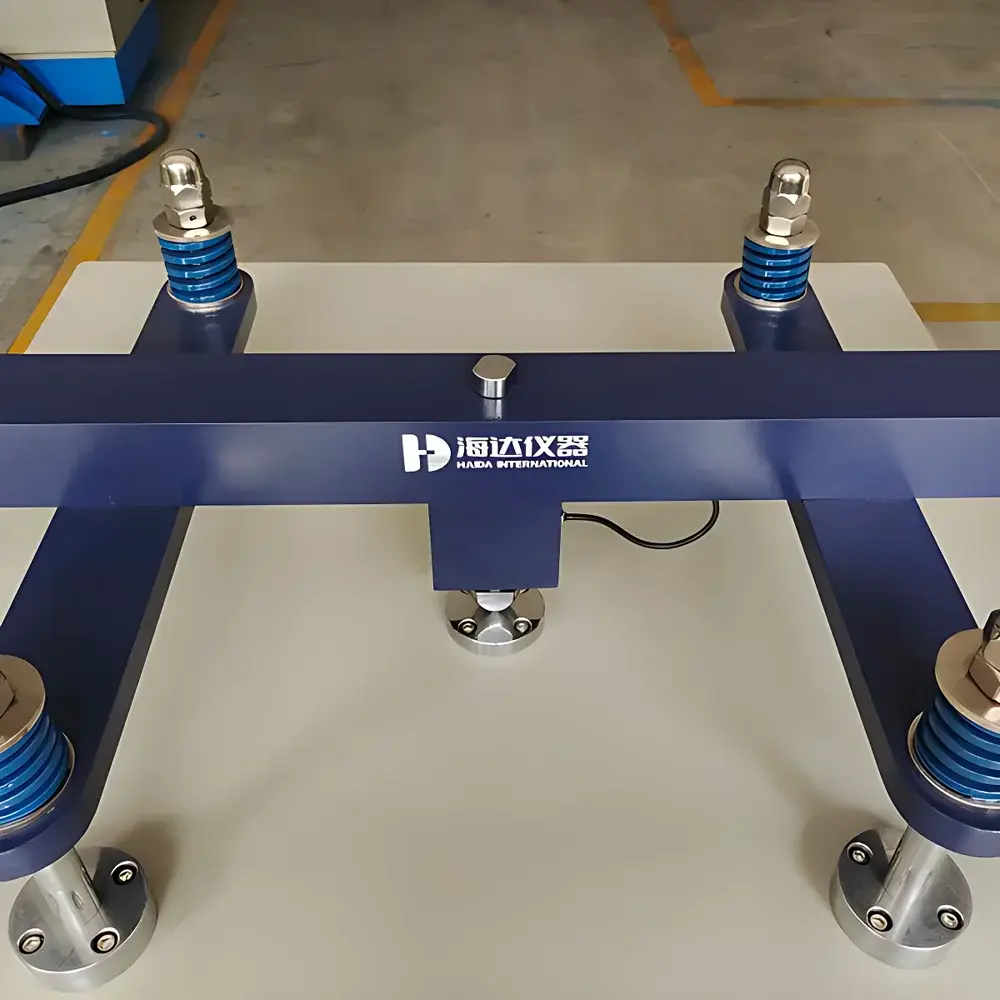

• High-fidelity 20 kN load cell with ≤ ±0.5% full-scale accuracy and 1/250,000 internal resolution for detection of subtle yield points and collapse thresholds.
• Dual high-precision ground ball-screw actuators with integrated servo drive (400 W AC servo motor + matched servo amplifier), delivering smooth, low-noise motion across the full 0.1–200 mm/min speed range with velocity stability within ±0.5%.

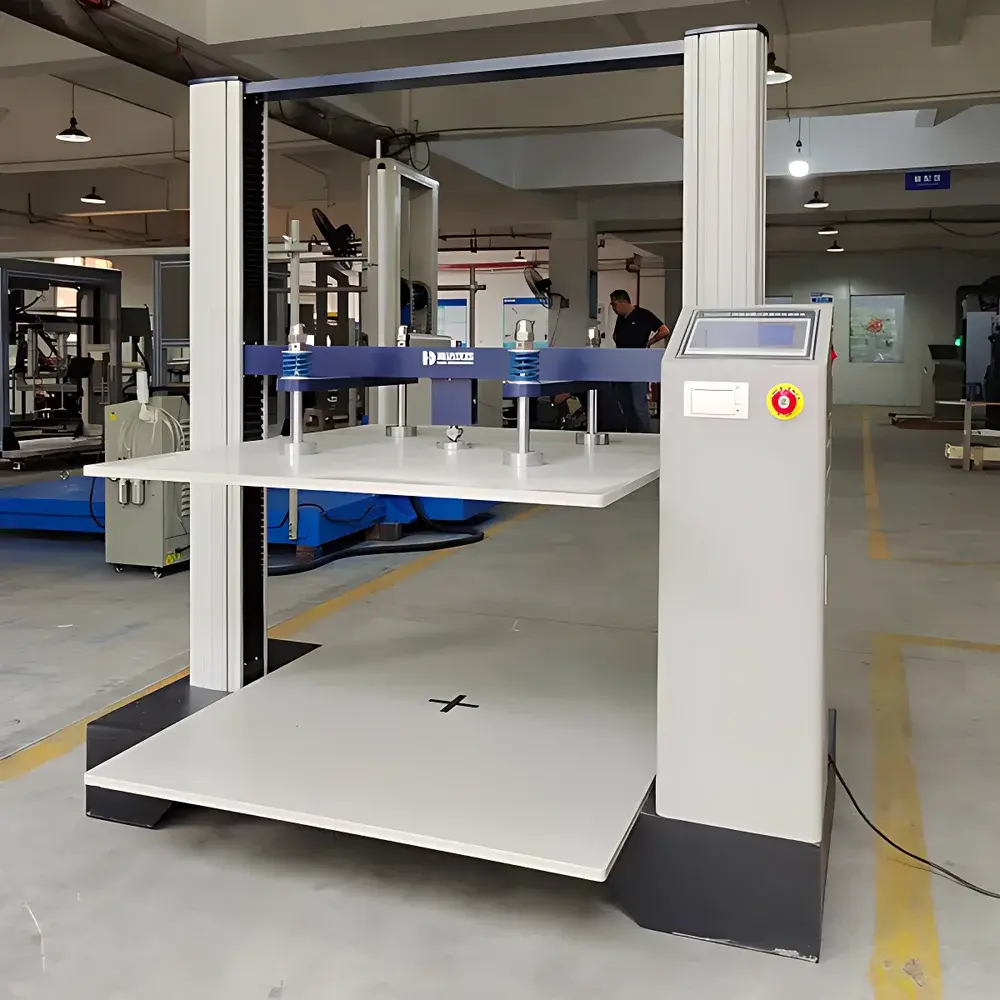

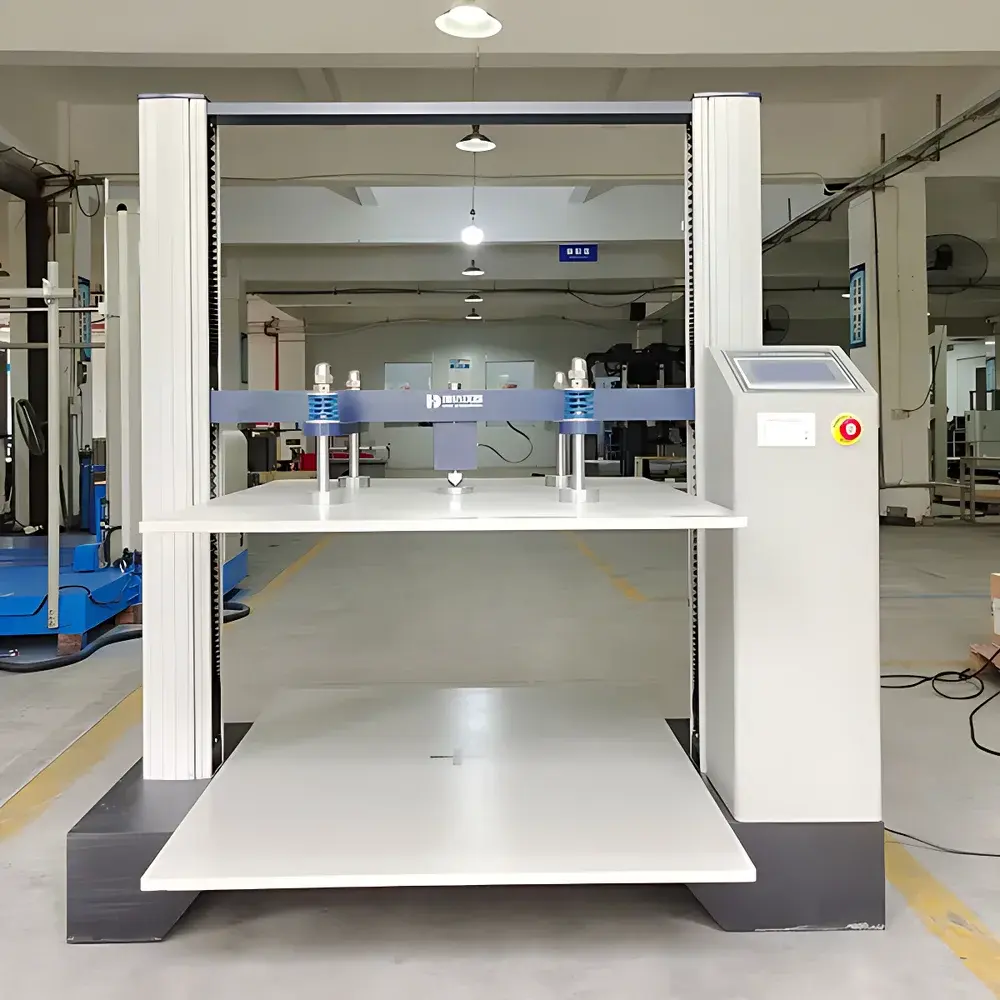

• Large-format test chamber accommodating specimens up to 1000 mm (L) × 1200 mm (W) × 1000 mm (H), optimized for full-size shipping containers, IBC totes, and palletized unit loads.
• Robust structural architecture featuring laser-cut and CNC-bent A3 steel base, column, and platens, finished with corrosion-resistant electrostatic powder coating in HAIDA’s signature gloss-white and metallic-blue livery.
• Integrated safety architecture including programmable travel limits, hardware-based overload cutoff, real-time fault diagnostics, and emergency stop circuitry compliant with IEC 60204-1.
• Modular control options: standalone touchscreen microcontroller interface or Windows-based PC operation with HAIDA’s proprietary ForceTest software suite.

Sample Compatibility & Compliance

The HD-A502S-1200 is validated for standardized compression testing of corrugated board boxes (single-, double-, and triple-wall), honeycomb panels, rigid paperboard containers (folding cartons, drums, cans), plastic intermediate bulk containers (IBCs), and composite packaging systems. It supports both single-cycle crush tests and extended-duration stacking simulations per defined hold times and load profiles. The instrument meets mechanical and metrological requirements of ISO 12048:1994 (Corrugated fibreboard — Determination of compression resistance — Edge crush test), ISO 2872:1985 (Packaging — Complete, filled transport packages — Compression test), ASTM D642–15 (Standard Test Method for Determining Compressive Resistance of Shipping Containers), TAPPI T804 OM–2010 (Compression Strength of Fiberboard Boxes), and JIS Z0212:1998. Calibration traceability aligns with JJG(粤) 043–2017 (Guangdong Provincial Verification Regulation) and JJG(轻工) 115–2000 (Light Industry Sector Verification Regulation), supporting GLP-compliant documentation workflows.

Software & Data Management

ForceTest software provides full test method configuration, real-time data acquisition at up to 1 kHz sampling rate, and automated result calculation per ASTM/ISO reporting conventions. Users may define custom test protocols—including constant-rate compression, constant-force hold (with automatic termination upon specified deformation threshold), and multi-stage stacking simulation. Data output supports native Windows export (CSV, XLSX), direct thermal printer integration, and Office-compatible report generation with configurable headers, logos, and metadata fields (operator ID, sample ID, environmental conditions). Audit trail functionality records all parameter changes, test executions, and calibration events—fully compliant with FDA 21 CFR Part 11 requirements when deployed with electronic signature modules and secure user access controls.

Applications

• Quantification of edge crush test (ECT) and flat crush test (FCT) values for corrugated board grade qualification.
• Validation of box compression strength (BCT) under static and dynamic loading per ASTM D642 and ISO 12048.
• Stacking endurance evaluation of filled shipping units under time-dependent load profiles simulating warehouse storage conditions.
• Structural integrity verification of reusable plastic totes, fiber drums, and composite IBCs used in pharmaceutical, food, and chemical logistics.
• Root cause analysis of packaging failure modes—including buckling onset, sidewall collapse, corner deformation, and top-panel indentation.
• Support for ISTA 3A, 3E, and 3H test protocols requiring controlled compression preconditioning steps.

FAQ

What standards does the HD-A502S-1200 support for calibration and verification?

It complies with JJG(粤) 043–2017 and JJG(轻工) 115–2000 for metrological verification in China, and its mechanical design satisfies ISO/IEC 17025 prerequisites for accredited lab use.
Can the system perform creep or relaxation testing?

Yes—via programmable hold segments within custom test methods, enabling time-dependent deformation monitoring under constant load for up to 999 hours.
Is the software compatible with LIMS or ERP integration?

ForceTest supports ODBC-compliant database connectivity and XML/JSON API extensions for seamless integration with enterprise laboratory information management systems.
What maintenance intervals are recommended for the servo drive and ball screw assembly?

Servo motor and drive require no scheduled maintenance; ball screws should be inspected and re-greased every 12 months or after 5,000 operational cycles, per HAIDA’s preventive maintenance checklist.
Does the system include factory calibration certification?

Each unit ships with a NIST-traceable calibration certificate for the 20 kN load cell, valid for 12 months from date of shipment, along with as-found/as-left verification records.
