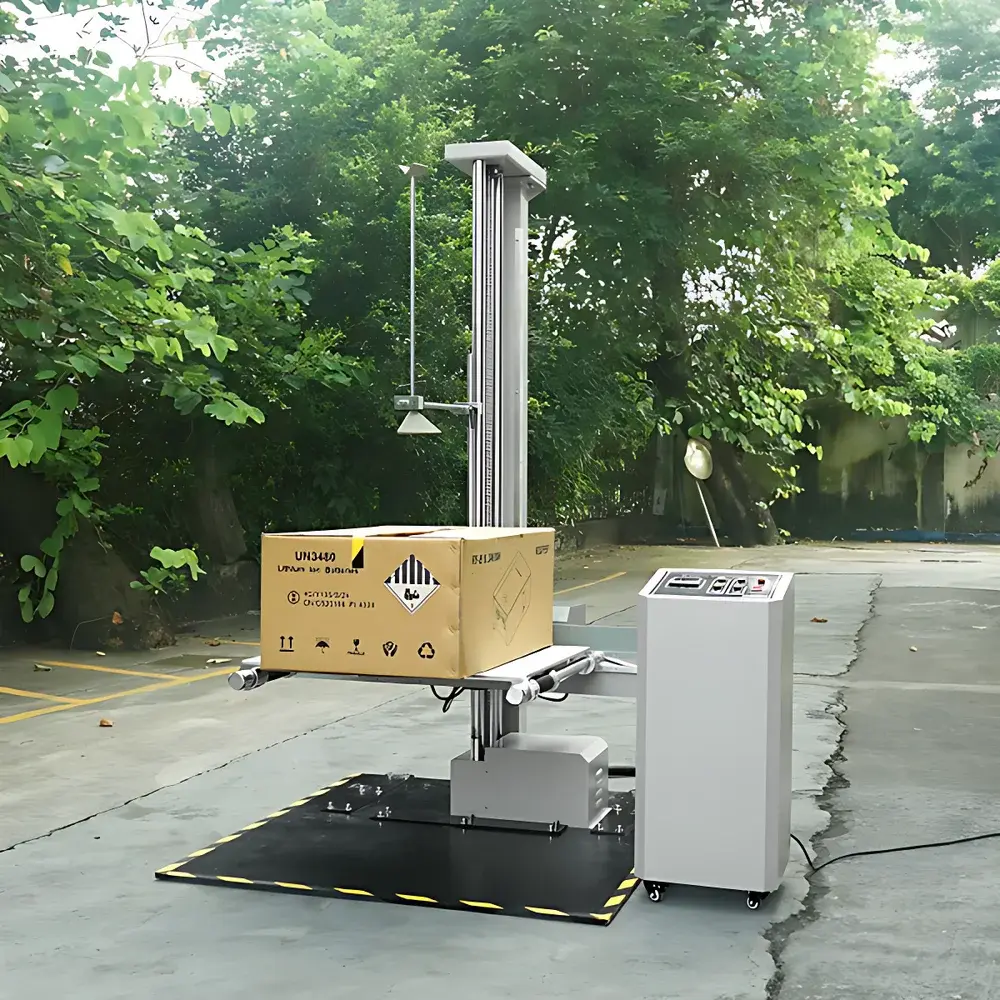

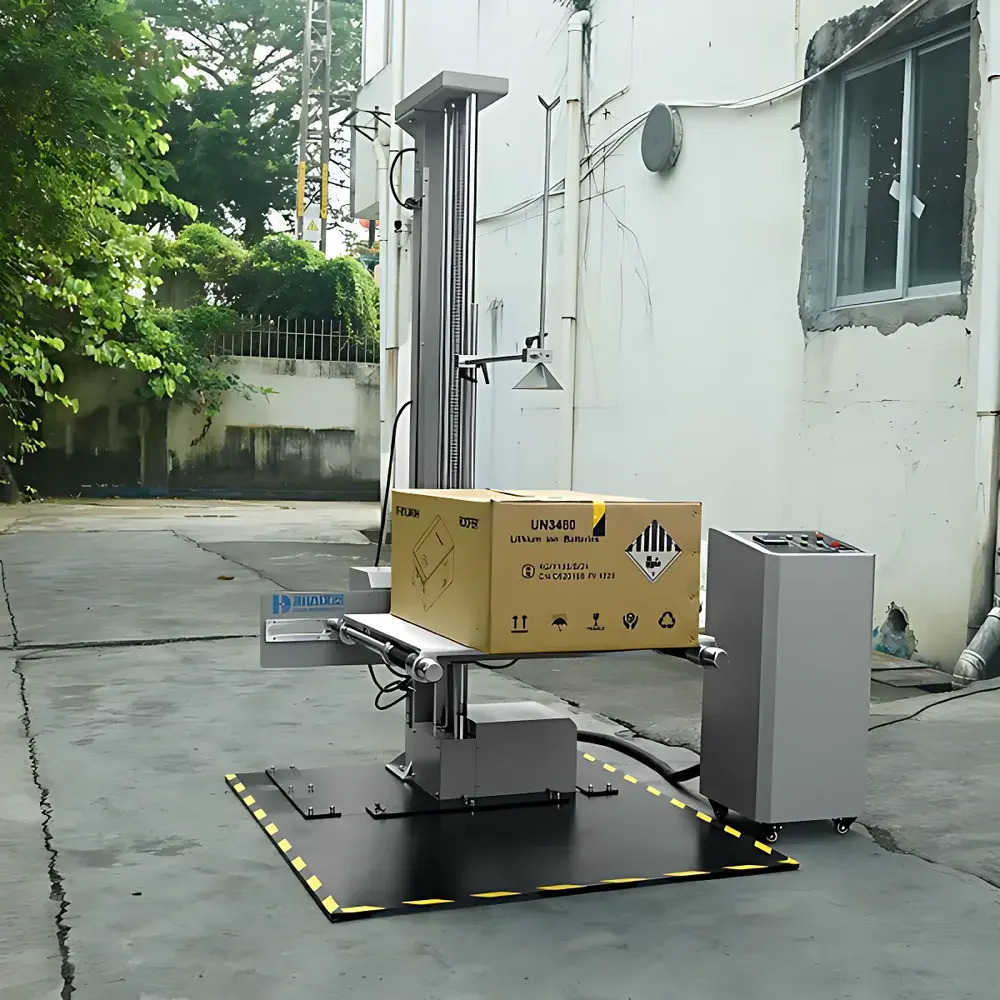

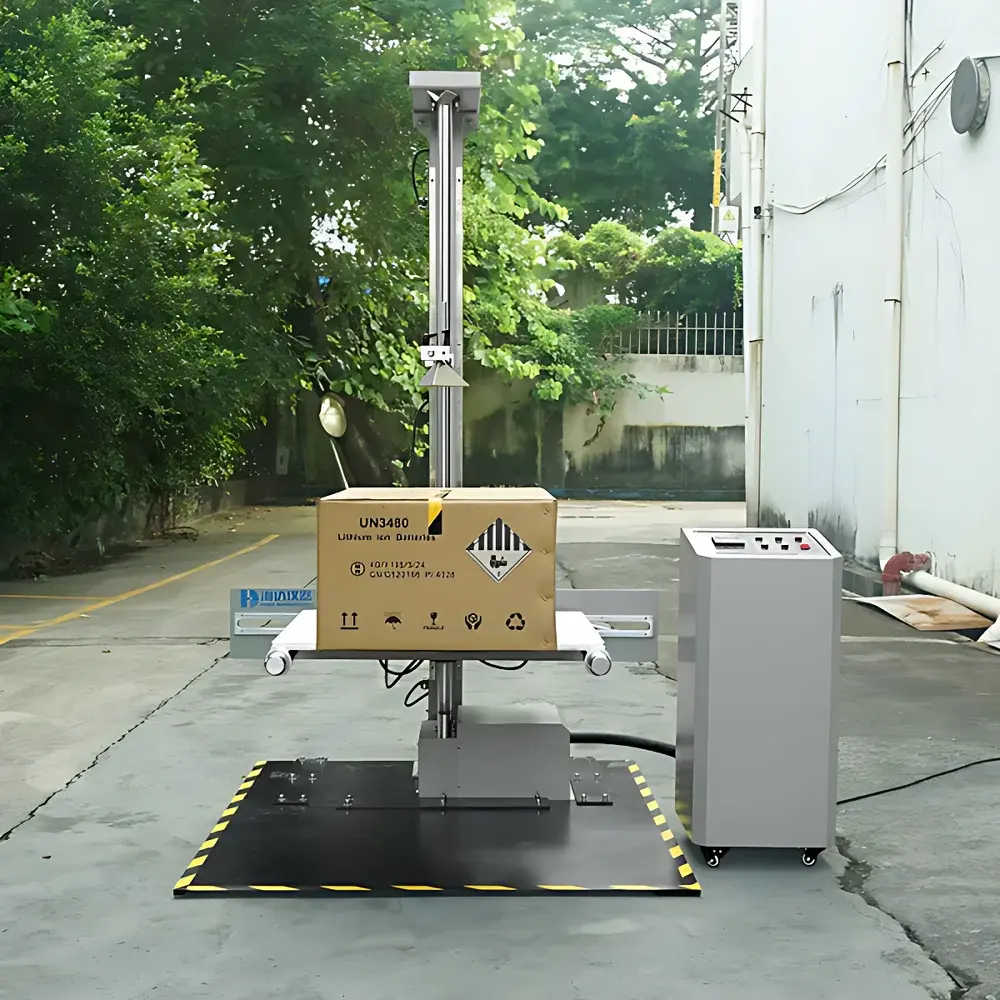

HAIDA HD-A520-1 Dual-Wing Drop Test Machine for Packaging Boxes

Overview

The HAIDA HD-A520-1 Dual-Wing Drop Test Machine is an electromechanically actuated, precision-controlled physical testing instrument engineered to simulate real-world drop events encountered during logistics handling and transportation. It operates on the principle of free-fall impact testing—where a packaged specimen is elevated to a defined height and released under gravity to strike a rigid, horizontally aligned impact surface. This method enables quantitative evaluation of package integrity, cushioning performance, structural resilience, and product protection efficacy under controlled mechanical shock conditions. Designed in strict accordance with international packaging test standards—including ASTM D5276-2019 (Standard Test Method for Drop Testing of Loaded Containers by Free Fall), ISTA 6-Series protocols, and GB/T 4857.5–1992 (Packaging—Basic Tests for Transport Packages—Part 5: Vertical Impact Test by Free Fall)—the HD-A520-1 supports face, edge, and corner drop configurations, providing repeatable, traceable, and auditable test data essential for quality assurance, regulatory compliance, and design validation workflows.

Key Features

• Dual-wing, three-column structural architecture ensures high rigidity and minimal lateral deflection during lift and release cycles, contributing to mechanical stability and long-term repeatability.
• Precision lead-screw lifting mechanism replaces conventional chain drives—reducing vibration, eliminating backlash, and maintaining height accuracy within ±5 mm across the full 400–1500 mm range (error <1% relative to setpoint).
• Digital height display with pre-programmable drop height and cycle count via intuitive push-button interface; no PC or external software required for basic operation.
• Integrated safety subsystems include mechanical limit switches, overload protection circuitry, and emergency stop functionality compliant with IEC 60204-1 machinery safety directives.

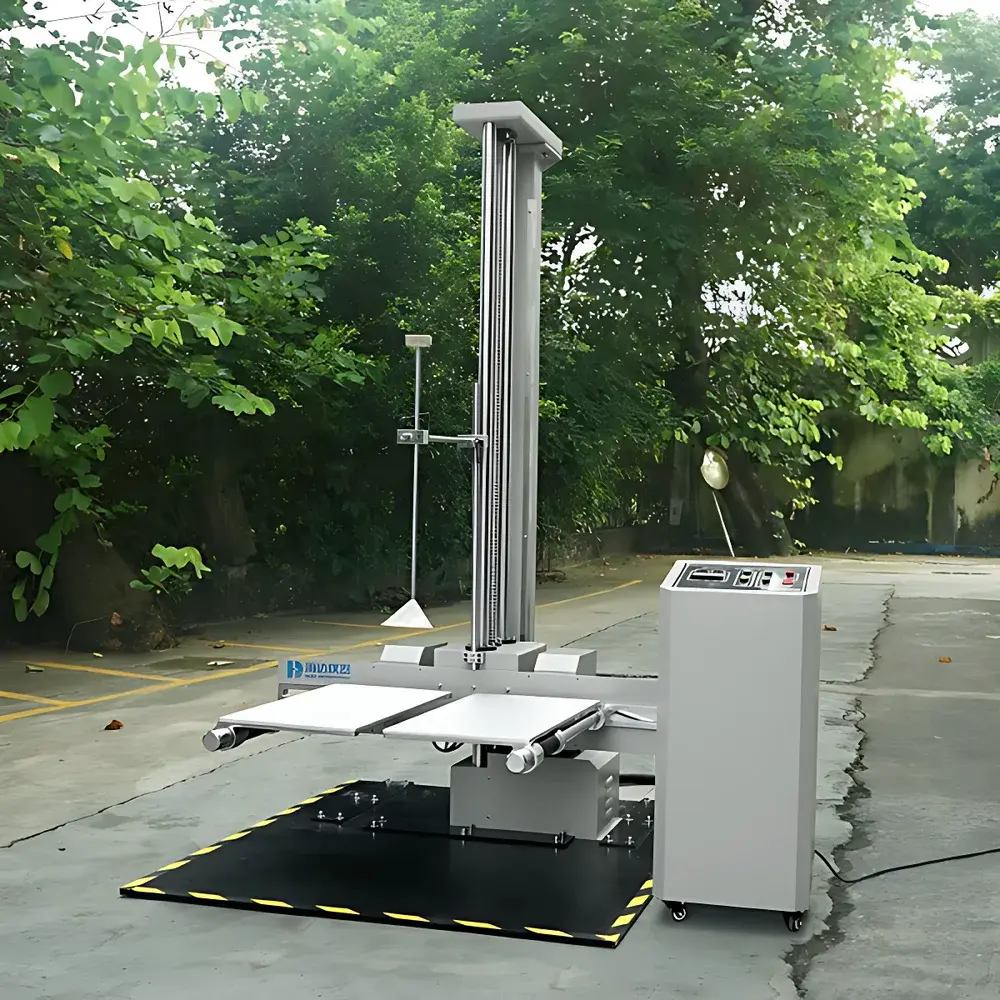

• Adjustable dual-arm support system accommodates specimens up to 800 mm × 800 mm × 800 mm (L×W×H), with independent arm positioning for precise orientation control prior to release.
• Impact base constructed from reinforced steel plate (1400 mm × 1200 mm surface area) mounted on calibrated leveling feet to ensure ≤2° angular deviation of the drop plane—critical for ISO/IEC 17025-compliant test environments.

Sample Compatibility & Compliance

The HD-A520-1 accepts rigid, semi-rigid, and corrugated packaging systems—including shipping cartons, palletized unit loads, consumer electronics enclosures, medical device shippers, and e-commerce fulfillment packages. Specimens must not exceed 65 kg mass or 800 mm cubic envelope. Its modular arm geometry allows standardized execution of face-drop (flat surface impact), edge-drop (two adjacent surfaces contacting simultaneously), and corner-drop (three orthogonal edges meeting at a vertex) per ASTM D5276 and ISTA 6-FEDEX-A. All test procedures are fully compatible with GLP-aligned documentation requirements and support audit-ready records when integrated with optional data logging modules. The system meets CE machinery directive requirements (2006/42/EC) and conforms to electrical safety standards IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission).

Software & Data Management

While the base HD-A520-1 operates via embedded digital controller with LED height readout and manual cycle initiation, optional RS-232/USB interfaces enable integration with laboratory information management systems (LIMS) or custom QA databases. When paired with HAIDA’s optional TestLog Pro software (v3.2+), users gain timestamped test logs, exportable CSV reports, pass/fail flagging per predefined acceptance criteria, and configurable audit trails satisfying FDA 21 CFR Part 11 electronic record requirements. All firmware updates maintain backward compatibility and preserve calibration history in non-volatile memory.

Applications

• Validation of primary and secondary packaging designs for consumer goods, pharmaceuticals, and industrial components.
• Supplier qualification testing per OEM packaging specifications (e.g., Apple, Amazon, Johnson & Johnson).
• Internal QC screening prior to shipment consolidation or third-party logistics handover.
• Root cause analysis of field damage incidents using controlled replication of suspected drop scenarios.
• Supporting ISTA-certified test labs seeking scope expansion under ISO/IEC 17025 accreditation for packaging performance testing.
• Academic research in material science, packaging engineering, and supply chain resilience modeling.

FAQ

What standards does the HD-A520-1 comply with for drop testing?

ASTM D5276-2019, ISTA 6-FEDEX-A, GB/T 4857.5–1992, GB/T 1019–2008 (Clause 5.9), and ISO 2234:2000.
Can the machine perform corner-drop tests reliably?

Yes—the dual-wing arm configuration enables precise angular alignment of three orthogonal edges prior to release, ensuring reproducible corner impact per ASTM D5276 Section 7.3.
Is height calibration traceable to national metrology institutes?

The integrated digital height sensor is factory-calibrated against NIST-traceable laser interferometry standards; calibration certificates (with uncertainty budget) are provided upon request.
What safety certifications apply to the HD-A520-1?

CE marking per Machinery Directive 2006/42/EC, RoHS 2011/65/EU compliance, and electrical safety certification to IEC 60204-1.
Does HAIDA offer installation, training, or IQ/OQ documentation?

Yes—on-site commissioning, operator training, and GMP-aligned Installation Qualification (IQ) and Operational Qualification (OQ) protocol packages are available as value-added services.
