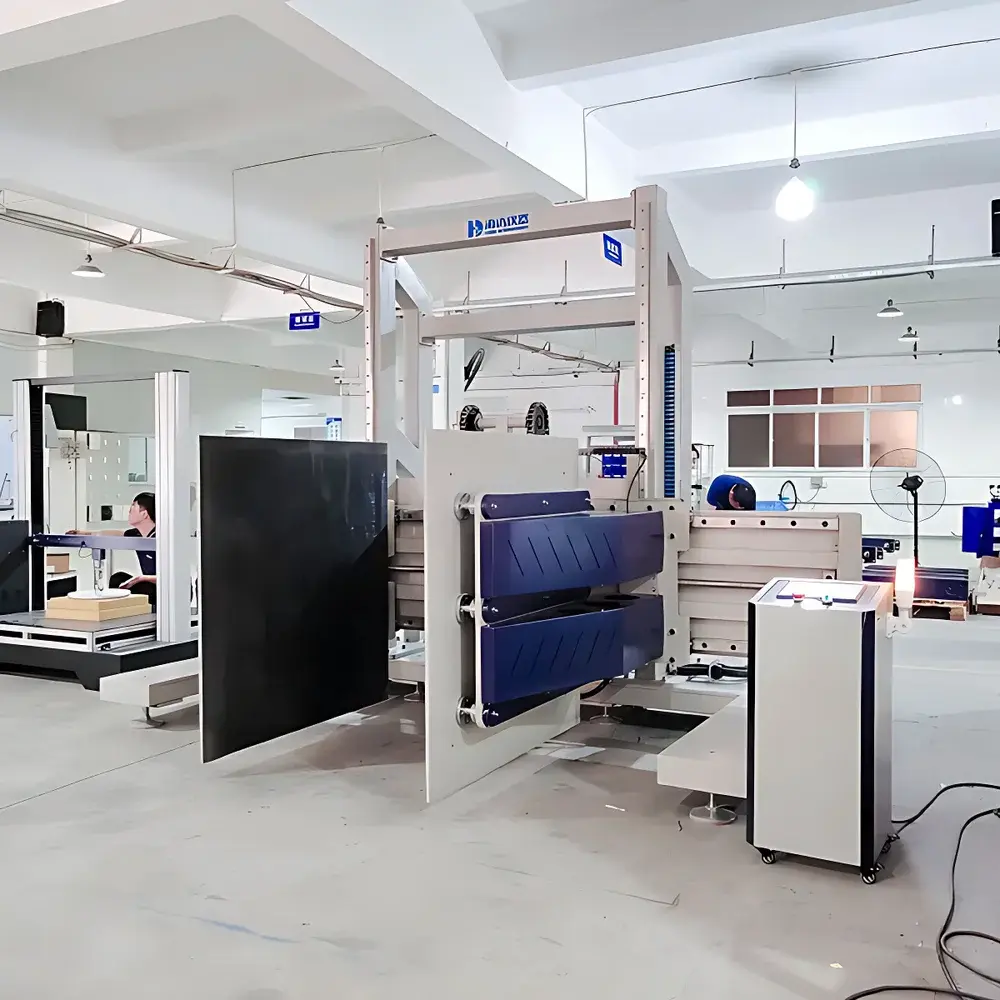

HAIDA HD-A534 Simulated Clamp-and-Hug Testing System

Overview

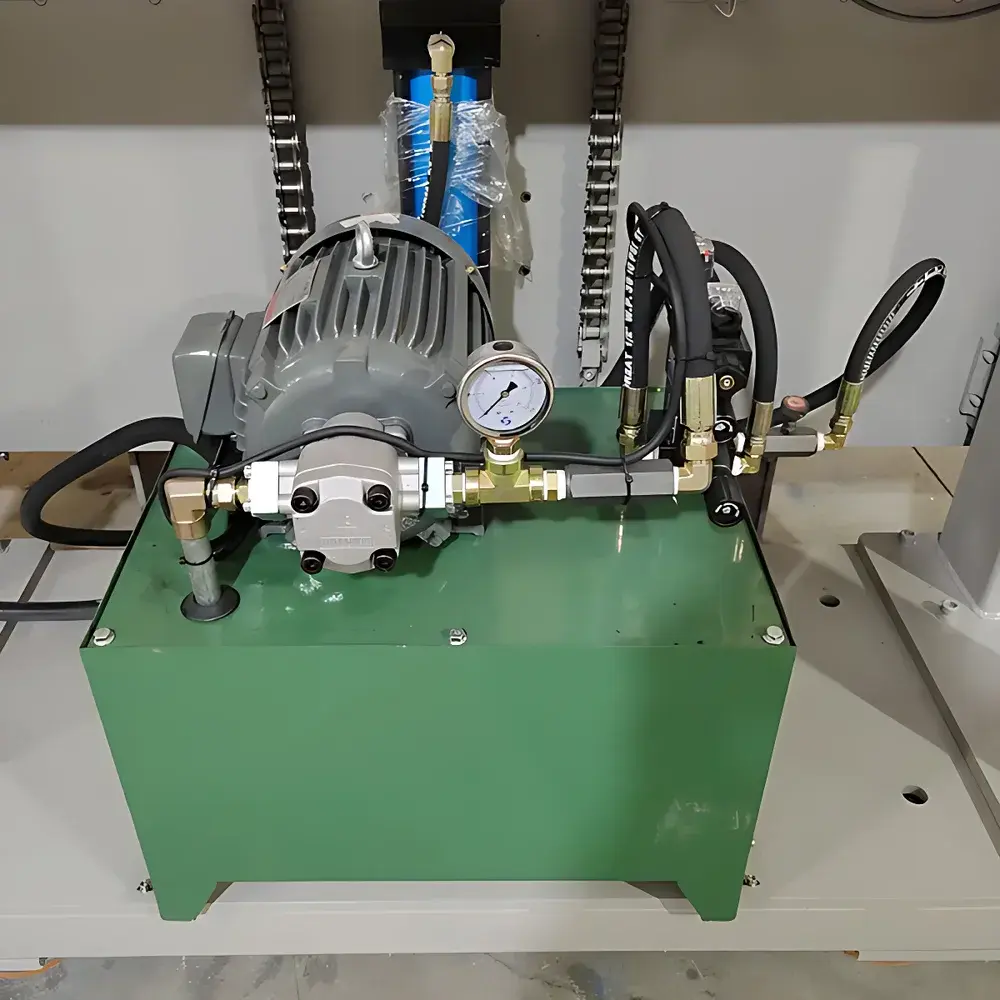

The HAIDA HD-A534 Simulated Clamp-and-Hug Testing System is an industrial-grade mechanical test platform engineered to replicate real-world horizontal compression and lateral gripping forces experienced by packaged goods during automated palletizing, warehouse handling, and unit-load formation. Unlike conventional compression testers, the HD-A534 implements a dual-axis actuation architecture—hydraulic vertical elevation combined with precision servo-driven horizontal clamping—to emulate the dynamic loading profiles imposed by robotic end-effectors, clamp trucks, and automated storage/retrieval systems (AS/RS). Its design adheres to the physical boundary conditions defined in ASTM D6055-2019 (Standard Test Methods for Mechanical Handling of Unitized Loads and Large Shipping Cases) and ISTA 6-Series protocols for simulated distribution environments, particularly addressing Section 6.2.1 (Horizontal Compression) requirements. The system delivers repeatable, traceable force application across large-format consumer product packaging—including assembled furniture, kitchen appliances, juvenile products, and home electronics—enabling quantitative assessment of structural integrity under lateral restraint.

Key Features

• Robust structural frame fabricated from reinforced square tubing, channel steel, and solid steel components, ensuring torsional rigidity and long-term dimensional stability under cyclic 18 kN load conditions.
• High-fidelity clamping kinematics: Four independently calibrated 10 kN load cells integrated into each clamp plate assembly provide synchronized force measurement with ≤ ±0.5% full-scale accuracy and 1/250,000 resolution.
• Dual-mode motion control: PLC-based servo regulation governs horizontal clamping speed (5–500 mm/min) and vertical traverse (5–600 mm/min up; 5–300 mm/min down), maintaining velocity consistency within ±0.5% across the operational range.

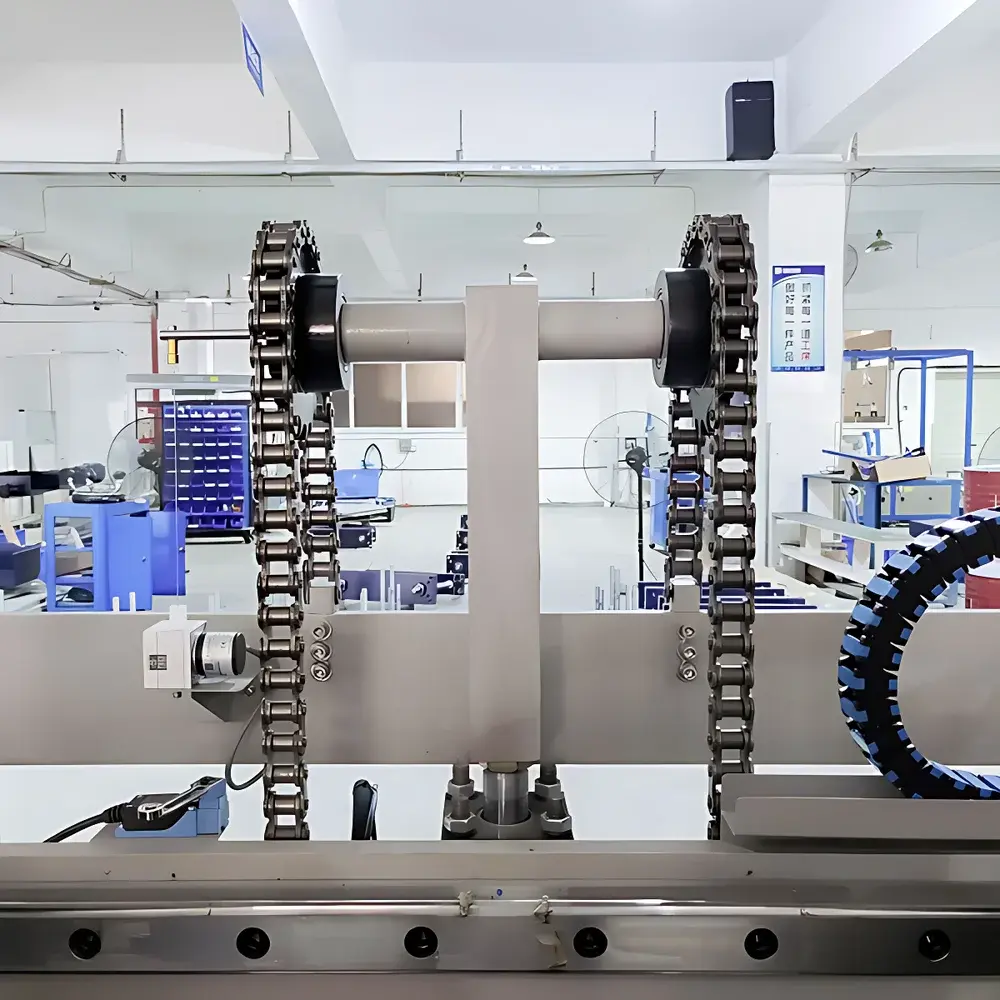

• Real-time positional feedback via high-resolution draw-wire displacement encoders on both vertical columns, enabling precise stroke monitoring and closed-loop position verification independent of hydraulic pressure fluctuations.
• Integrated safety architecture including hardware-enforced stroke limits, overload cutoff relays, emergency stop circuitry compliant with ISO 13850, and audible/visual fault alerts for abnormal pressure, overtravel, or sensor drift.

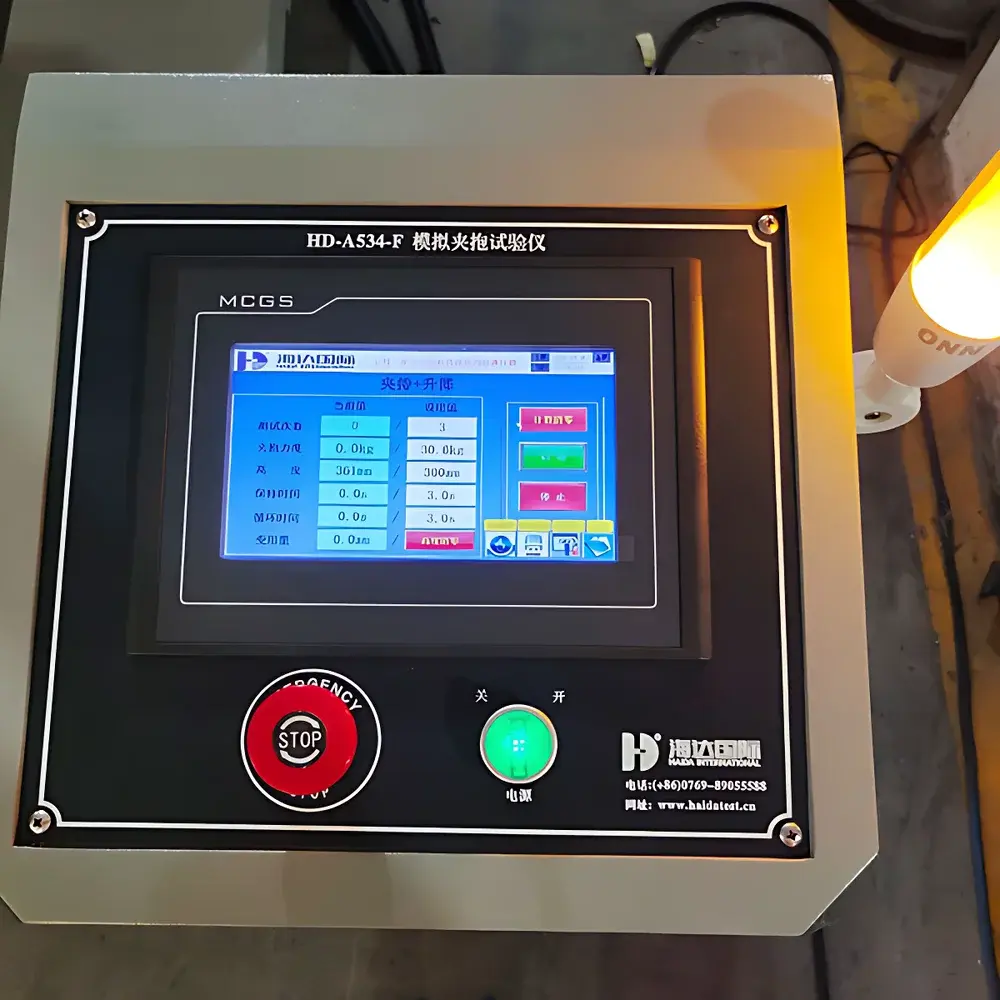

• Industrial-grade human-machine interface (HMI) featuring a 7-inch capacitive touchscreen with intuitive icon-driven workflow navigation, multi-language support (English, Spanish, German, Chinese), and embedded parameter validation logic to prevent out-of-spec test configuration.

Sample Compatibility & Compliance

The HD-A534 accommodates unitized loads up to 2000 mm in length, 1220 mm in width, and 1220 mm in height—with minimum clearance of 50 mm between plates—making it suitable for testing fully assembled retail-ready packages, flat-packed furniture cartons, and oversized appliance shippers. Its clamping surface geometry (1220 mm × 1220 mm) satisfies dimensional requirements for evaluating SEARS-specific packaging validation protocols, where lateral compression resistance is assessed under controlled dwell time and displacement rate. The system supports full compliance documentation generation aligned with GLP and GMP frameworks, including audit trails for test method selection, operator ID, environmental timestamping, and raw sensor data export. All mechanical and electrical subsystems conform to IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) standards. Optional calibration certificates are available traceable to NIM (China National Institute of Metrology) or UKAS-accredited laboratories.

Software & Data Management

• Test sequence programming via HMI allows creation of multi-step protocols—including pre-load stabilization, ramped clamping, dwell-hold phases, and controlled release—each configurable with force thresholds, displacement limits, and timeout safeguards.
• Data acquisition occurs at ≥100 Hz sampling rate, with synchronized time-stamped records for load, displacement, and velocity stored internally and exportable via USB 2.0 to CSV or Excel-compatible formats.
• No proprietary software installation required: Raw output files are natively readable in MATLAB, Python (Pandas), Minitab, and JMP for statistical process control (SPC), Weibull analysis, or DOE correlation studies.
• System firmware supports optional 21 CFR Part 11-compliant user access controls (role-based permissions), electronic signatures, and immutable audit logs when paired with external networked authentication servers.

Applications

The HD-A534 serves as a critical validation tool across supply chain engineering and packaging R&D functions. It quantifies resistance to deformation during automated clamping operations in e-commerce fulfillment centers, evaluates corner crush performance of double-wall corrugated containers subjected to side-gripping conveyance, verifies structural retention of nested plastic trays under robotic pick-and-place stress, and supports root-cause analysis of field failures linked to lateral compression damage. End users include global retailers enforcing ISTA-certified packaging programs, third-party testing laboratories accredited to ISO/IEC 17025, and OEM packaging development teams qualifying new materials such as molded fiber, recycled PET composites, or bio-based laminates against mechanical handling thresholds.

FAQ

What international standards does the HD-A534 directly support?
The system implements test routines aligned with ASTM D6055-2019 (Section 7.3 – Horizontal Compression), ISTA 6-Amazon.com-SIOC, and ISTA 6-FedEx, with built-in parameter presets for force ramp rates, dwell durations, and pass/fail criteria.
Can the HD-A534 perform cyclic clamping fatigue tests?
Yes—via programmable multi-cycle sequences with user-defined upper/lower force bounds, dwell intervals, and reversal logic, enabling evaluation of long-term structural creep or joint loosening in assembled products.
Is remote diagnostics or firmware update capability available?
Standard configuration includes Ethernet port for local network integration; optional RS-485 Modbus RTU interface enables integration into factory SCADA systems for centralized monitoring and predictive maintenance logging.
What calibration interval is recommended for ISO/IEC 17025 compliance?
Annual calibration is advised, with intermediate verification checks using certified deadweight standards before each daily shift or after any mechanical impact event.
Does the system support custom fixture mounting for non-standard package geometries?
Yes—the top and bottom platens feature standardized T-slot patterns (ISO 2768-mK tolerance) compatible with modular aluminum workholding systems, allowing rapid reconfiguration for irregularly shaped or oversized test specimens.
