HAIDA HD-D126 Zipper Reciprocating Durability Tester

Overview

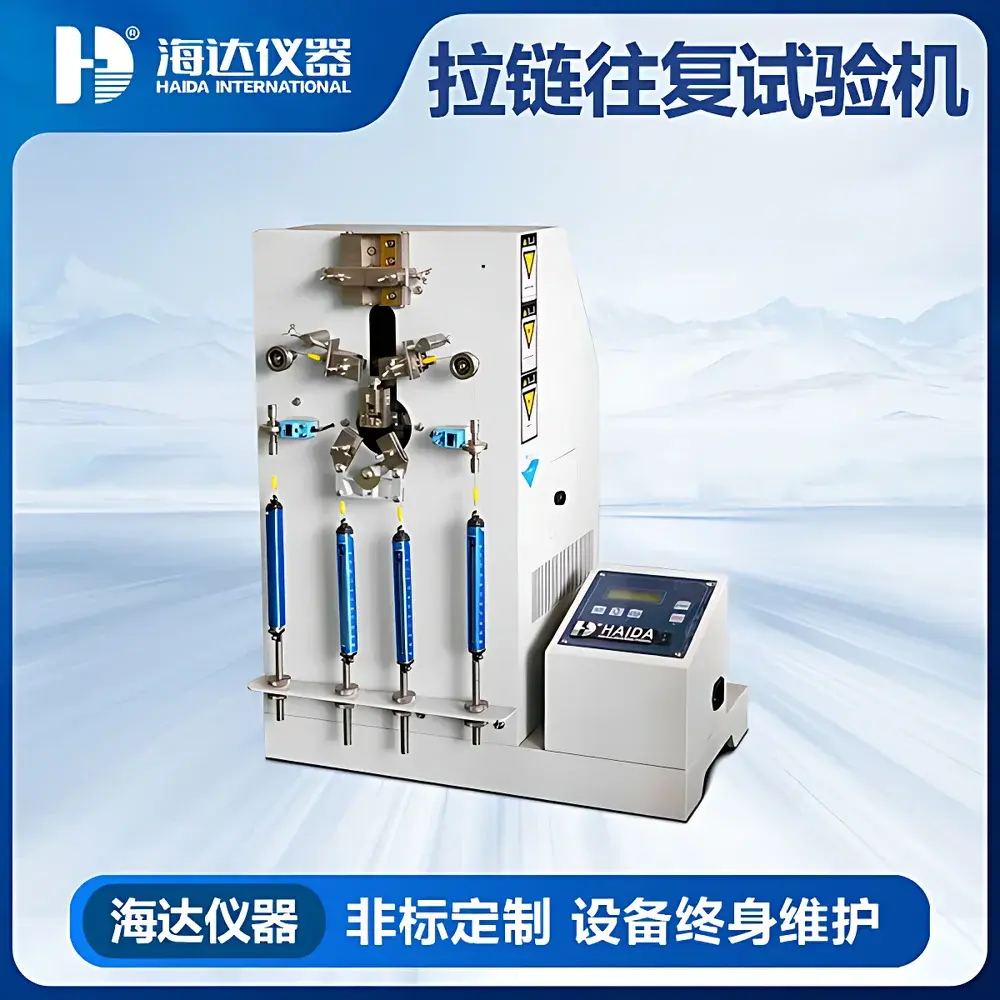

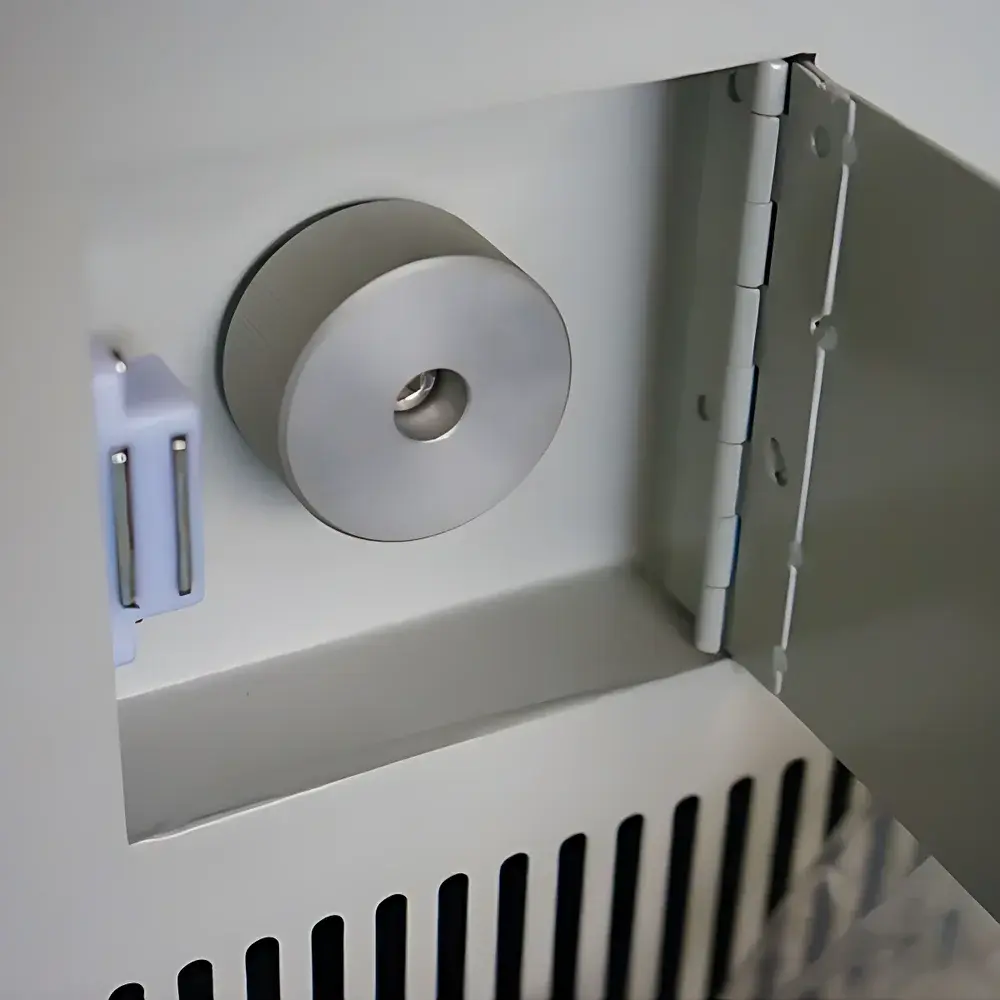

The HAIDA HD-D126 Zipper Reciprocating Durability Tester is an electromechanical test instrument engineered for standardized mechanical endurance evaluation of textile and composite zippers used in luggage, handbags, apparel, and outdoor gear. It operates on the principle of controlled reciprocating motion under defined tensile and angular constraints, simulating real-world opening/closing usage patterns to quantify functional longevity. The device applies simultaneous longitudinal traction and lateral bending forces while cycling the zipper through precisely calibrated angular transitions—between 30° (fully open) and 60° (fully closed)—at a fixed stroke length of 75 mm and a repeatable rate of 30 cycles per minute. This kinematic profile replicates the biomechanical loading conditions encountered during manual operation, enabling objective assessment of chain integrity, slider resistance, tape deformation, and interlocking reliability over extended duty cycles.

Key Features

• Programmable digital counter with LCD interface supporting up to 99,999,999 cycles—enabling long-term fatigue testing without manual intervention.

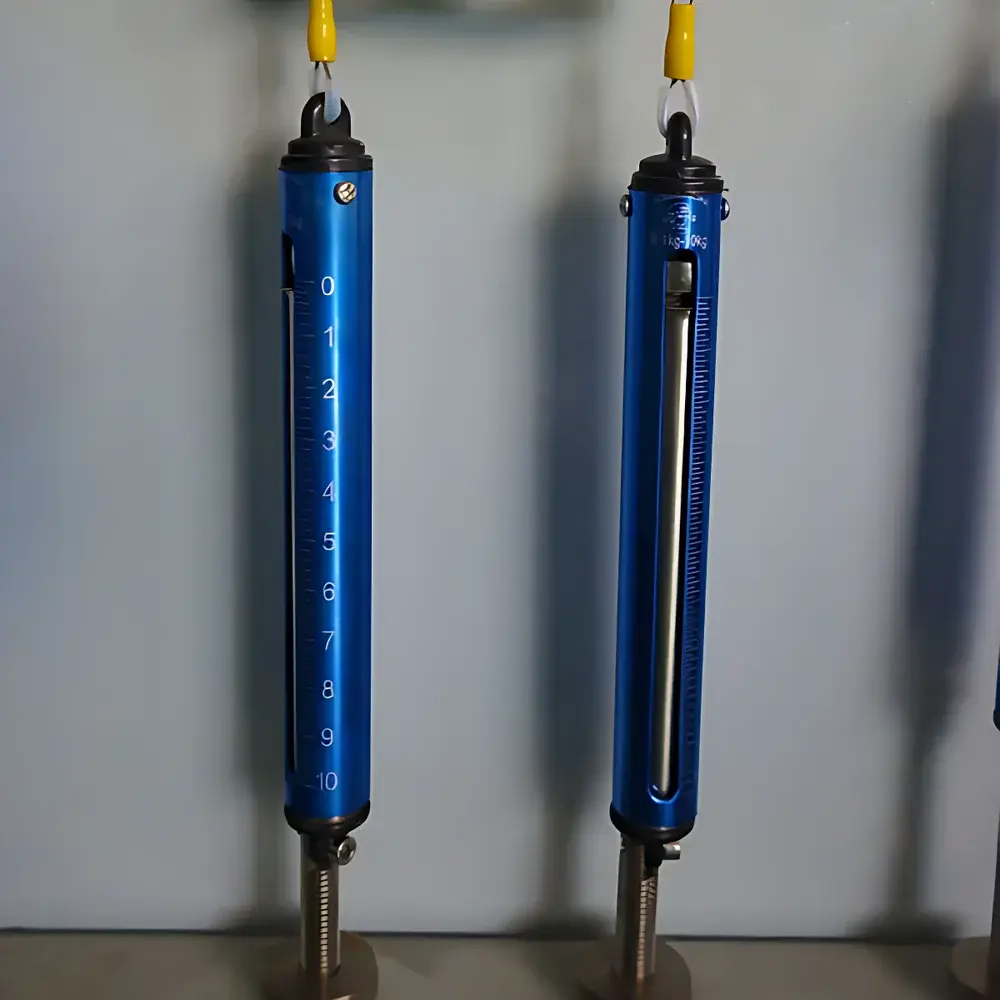

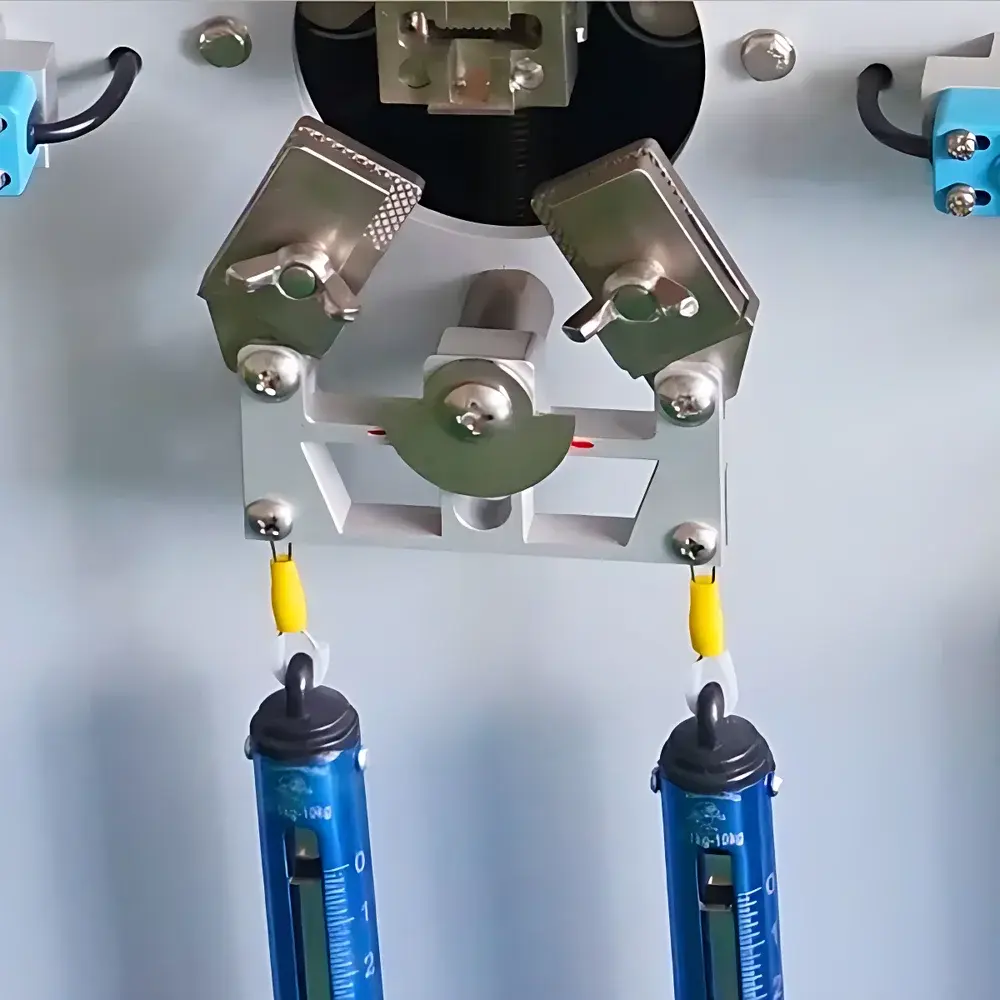

• Dual-axis mechanical actuation system: horizontal clamp (25 mm width) maintains consistent lateral tension while vertical linkage governs angular articulation (α = 30°–60°; β = 10° fixed orientation).
• Robust structural frame constructed from high-rigidity steel alloys, ensuring dimensional stability and minimal vibration transmission during repetitive operation.
• User-configurable test parameters via intuitive keypad navigation: setpoint value (SV), real-time cycle count (PV), cursor positioning, digit increment/decrement, and zero-reset functionality.
• Compliance-ready control logic with START/STOP latching buttons and status-indicating LED—designed to support traceable test execution in GLP- and ISO 17025-aligned laboratories.

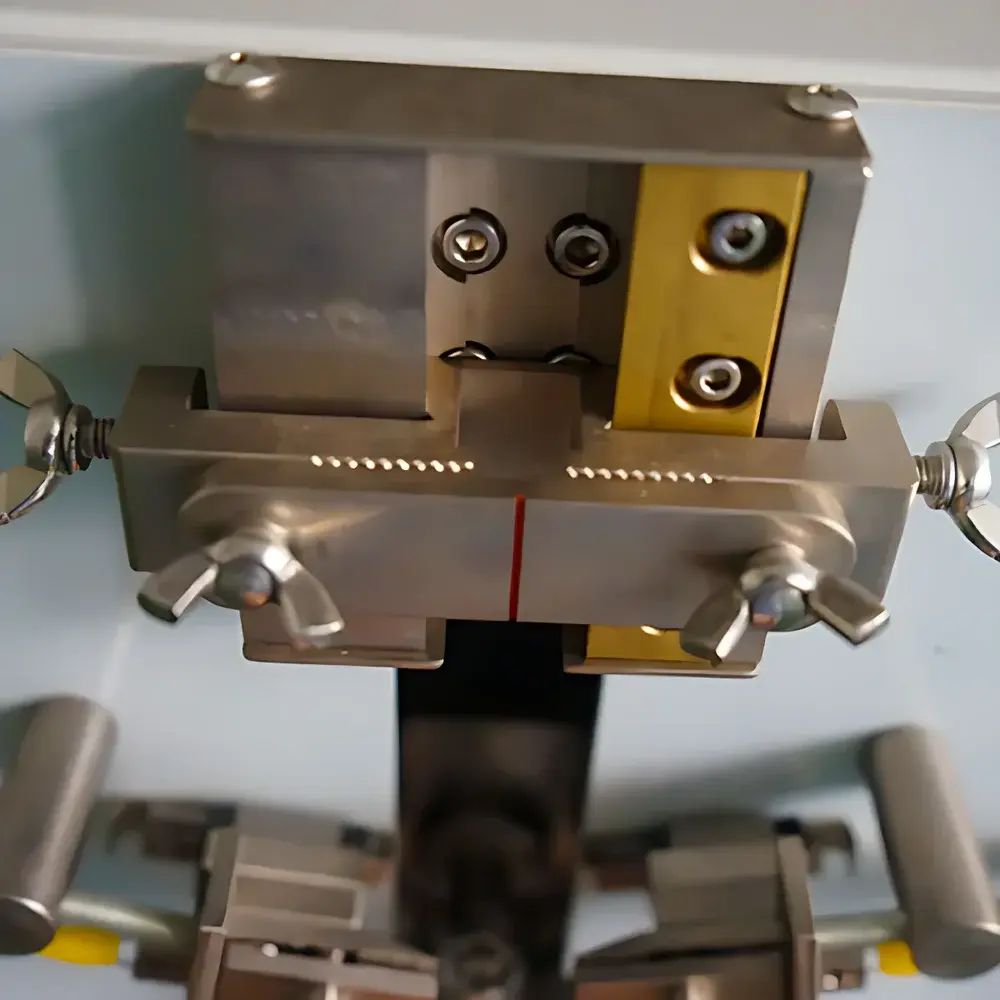

• Modular clamp assembly facilitates rapid specimen mounting and accommodates diverse zipper configurations—including coil, molded plastic, and metal-tooth variants mounted on woven or nonwoven tapes.

Sample Compatibility & Compliance

The HD-D126 accommodates standard zipper specimens conforming to SATRA TM50 (2022 edition), QB/T 2171–2014 (Chinese Light Industry Standard for Zipper Performance Testing), and ASTM D2059/D2059M (Standard Test Method for Tensile Properties of Zippers). It supports flat-mounted specimens with nominal tape widths up to 25 mm and slider heights within mechanical clearance limits. All test protocols are executed under ambient laboratory conditions (23 ± 2 °C, 50 ± 5 % RH) unless otherwise specified. Instrument calibration documentation includes traceable verification of stroke displacement (±0.3 mm), angular positioning accuracy (±1.0°), and cycle timing consistency (±0.5 s per 60-cycle interval), satisfying internal quality audit requirements and pre-audit readiness for third-party certification bodies.

Software & Data Management

While the HD-D126 operates as a standalone hardware platform with embedded firmware, its digital counter architecture supports external data capture via optional RS-232 or USB-to-serial interface modules (sold separately). When integrated with HAIDA’s optional TestLink™ PC software suite, users gain access to automated test logging, CSV export, pass/fail threshold configuration, and timestamped audit trails compliant with FDA 21 CFR Part 11 Annex 11 requirements. All stored records include operator ID, test date/time, environmental metadata, and full parameter configuration history—facilitating retrospective analysis and regulatory submission packages.

Applications

• Pre-production validation of zipper assemblies for OEM luggage manufacturers.
• Comparative durability benchmarking across supplier tiers in global sourcing programs.
• Root-cause analysis of slider jamming, chain separation, or tape fraying in QA failure investigations.
• Supporting technical documentation for ISO 9001:2015 clause 8.5.1 (Control of Production and Service Provision) and ISO 14001:2015 environmental compliance reporting.
• Academic research on polymer chain fatigue behavior under cyclic shear and flexural stress.

FAQ

What standards does the HD-D126 explicitly reference in its design and validation?
The instrument is mechanically and functionally aligned with SATRA TM50 and QB/T 2171–2014. Full conformance documentation—including dimensional verification reports and angular repeatability test logs—is available upon request.
Can the HD-D126 test both metal and plastic zippers?
Yes—the clamping geometry and force profile accommodate nylon coil, polyester molded, and brass/aluminum tooth zippers when mounted on textile substrates meeting minimum tensile strength thresholds.
Is external power conditioning required for stable operation?
A dedicated 220 V, 50 Hz circuit with surge suppression is recommended. Voltage fluctuations exceeding ±5 % may affect cycle timing consistency and should be mitigated using line regulators in industrial environments.
How is calibration maintained between scheduled service intervals?
Users perform daily functional checks using certified reference specimens; formal recalibration is advised every 12 months or after 50,000 operational cycles—whichever occurs first—as per HAIDA’s Maintenance Protocol MP-HD-D126 Rev. 3.
