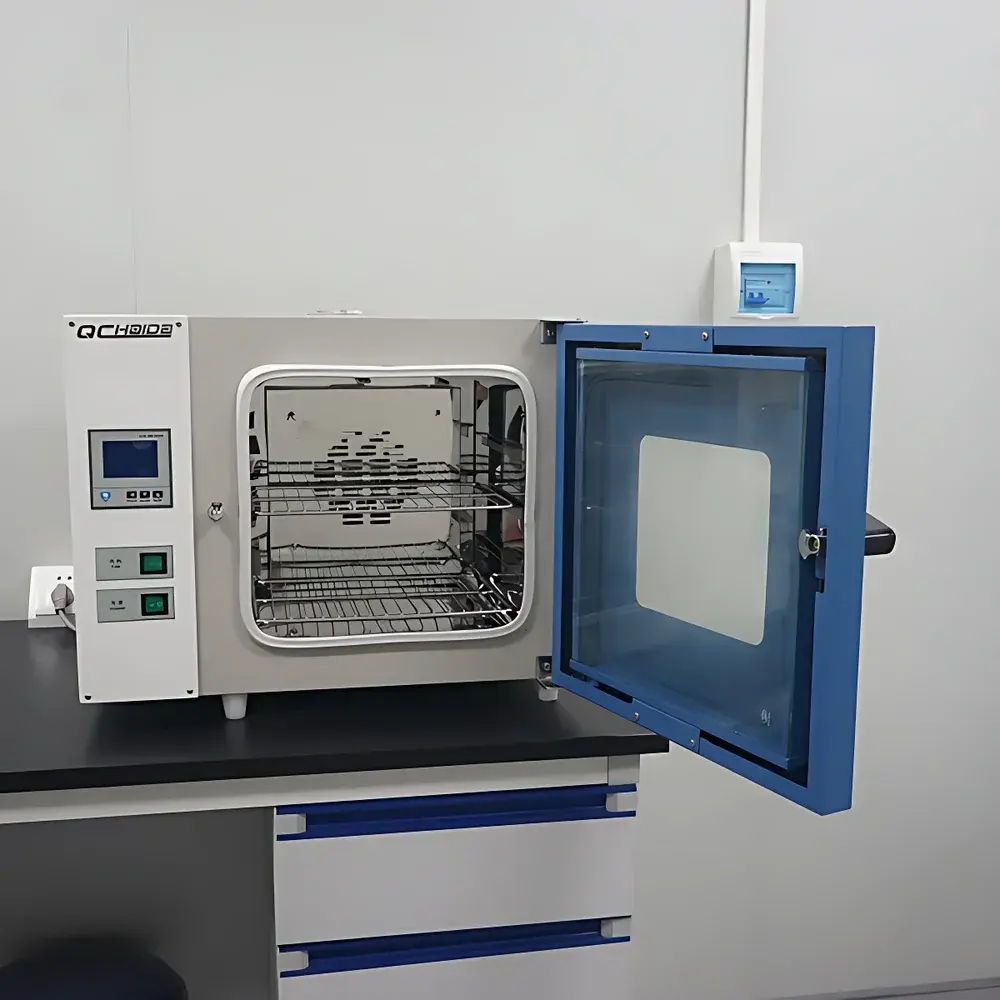

Haida HD-E804-41B Vacuum-Enabled Forced-Air Constant-Temperature Oven

Overview

The Haida HD-E804-41B is a precision-engineered vacuum-capable forced-air constant-temperature oven designed for laboratory and industrial thermal processing under controlled atmospheric conditions. Unlike conventional convection ovens, the HD-E804-41B integrates dual-mode operation—standard forced-air heating and vacuum-assisted drying—enabling precise thermal treatment of thermally sensitive, hygroscopic, or oxidation-prone materials. Its operational principle relies on convective heat transfer enhanced by a tangential blower system, combined with vacuum chamber integrity maintained at ≤133 Pa, thereby lowering solvent boiling points and minimizing thermal degradation during dehydration. The unit complies with key Chinese national standards for industrial ovens (JB/T 5520–1991 for performance testing, JB/T 9505–1999 for safety requirements, and JB 20033–2004 for pharmaceutical equipment classification), making it suitable for environments requiring documented process consistency and regulatory traceability.

Key Features

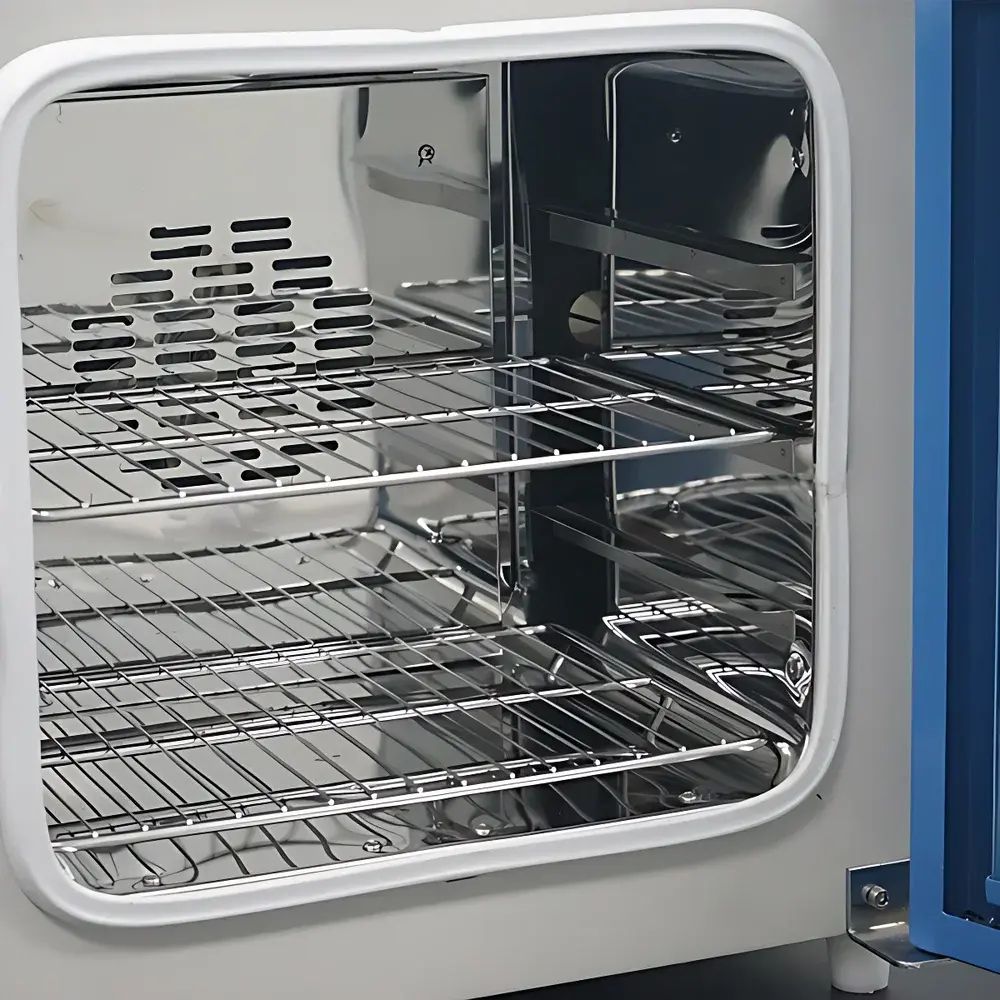

• Robust chamber construction featuring SUS304 stainless steel interior with seamless quarter-radius corners for easy cleaning and residue-free maintenance.
• High-integrity vacuum sealing system using a one-piece molded silicone gasket and adjustable door compression mechanism to ensure long-term vacuum retention stability.

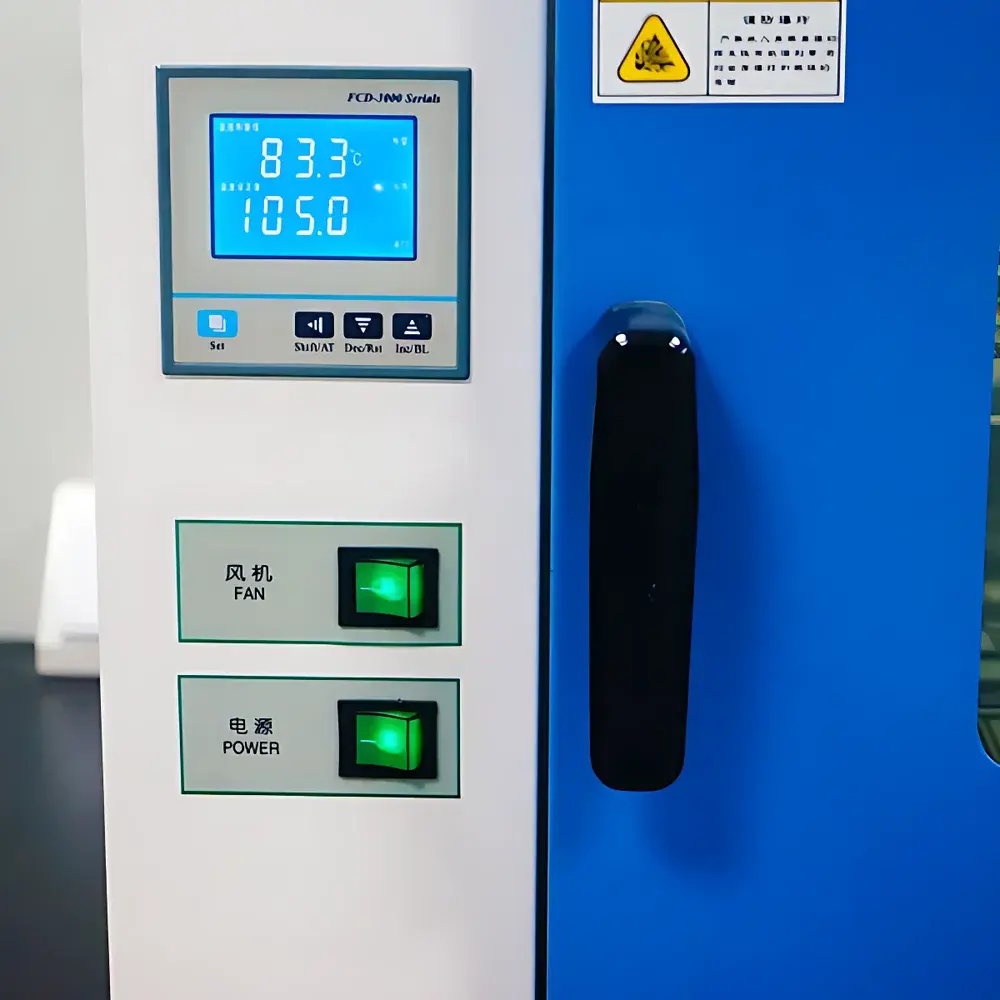

• Microprocessor-based PID temperature controller with LCD display, supporting multi-parameter monitoring (setpoint, real-time chamber temperature, elapsed time, vacuum status), intuitive menu navigation, and user-accessible calibration offset adjustment.
• Two anodized aluminum shelving trays engineered for uniform thermal distribution, high-temperature oxidation resistance, and rapid heat transfer—critical for reproducible drying kinetics.
• Comprehensive safety and operational intelligence: over-temperature cut-off protection, programmable timer with auto-shutdown, power-failure recovery logic, and non-volatile parameter memory to retain user configurations across cycles.
• Exterior housing fabricated from cold-rolled steel with electrostatic powder coating for corrosion resistance and mechanical durability in shared lab or production floor environments.

Sample Compatibility & Compliance

The HD-E804-41B accommodates solid, granular, and powdered samples—including pharmaceutical intermediates, polymer precursors, ceramic powders, metal coatings, and biological matrices—without risk of oxidation when operated under inert gas purging (e.g., N₂ or Ar) within the evacuated chamber. Its design supports applications aligned with Good Manufacturing Practice (GMP) and Good Laboratory Practice (GLP) frameworks, particularly where thermal stability studies, moisture content validation (per USP <921>), or residual solvent removal (per ICH Q3C) are required. While not certified to ISO/IEC 17025 or FDA 21 CFR Part 11 out-of-the-box, its programmable controller logs support manual audit trails, and all critical parameters (temperature setpoint, actual reading, vacuum level, cycle duration) are observable and recordable via external data loggers compliant with ALCOA+ principles.

Software & Data Management

The HD-E804-41B operates via embedded firmware without proprietary software dependency. All operational parameters—including temperature ramp profiles, hold times, vacuum initiation timing, and alarm thresholds—are configured directly through the front-panel interface. Real-time values are displayed continuously; however, native data export (e.g., USB, RS-485, or Ethernet) is not integrated. For regulated environments, third-party validated data acquisition systems can be interfaced using analog output signals (0–5 V or 4–20 mA) corresponding to chamber temperature and vacuum pressure. Users implementing electronic records must validate such integrations per their internal SOPs and applicable regional requirements (e.g., EU Annex 11 or FDA Guidance on Computerized Systems).

Applications

This oven serves cross-industry thermal processing needs: in pharmaceutical R&D, it supports lyophilization pre-drying, excipient stability testing, and API moisture loss-on-drying (LOD) assays; in materials science, it enables controlled sintering of metal-organic frameworks (MOFs) and binder burnout in green ceramics; in automotive QA labs, it verifies paint-cure profiles and adhesive moisture tolerance; in food technology, it performs accelerated shelf-life testing of dehydrated ingredients under low-oxygen conditions. Its ability to sustain inert atmospheres also makes it suitable for reducing metal oxide formation during heat treatment of battery cathode precursors or magnetic alloy powders.

FAQ

Does the HD-E804-41B support vacuum and forced-air modes simultaneously?

Yes—the blower remains active during vacuum operation to enhance internal air circulation prior to evacuation, improving thermal homogeneity before vacuum sealing.
Is the vacuum pump included with the unit?

No—the HD-E804-41B is supplied as a vacuum chamber only; users must specify and integrate a compatible two-stage rotary vane pump capable of achieving ≤133 Pa base pressure.
Can the temperature controller be calibrated externally?

Yes—via the built-in calibration offset function, which allows correction against a NIST-traceable reference thermometer at up to three user-defined setpoints.
What is the maximum load capacity per shelf?

Each anodized aluminum shelf is rated for uniform static loading of up to 15 kg; total chamber loading should not exceed 30 kg to maintain airflow integrity and thermal uniformity.
Are replacement gaskets and shelves available as spare parts?

Yes—Haida International supplies OEM-certified silicone door gaskets (part #HD-GSK-41B) and aluminum shelves (part #HD-SHF-41B), both with documented material certifications (RoHS, REACH).
