HAIDA HD-F733 Office Chair Base Vertical Static Load Tester

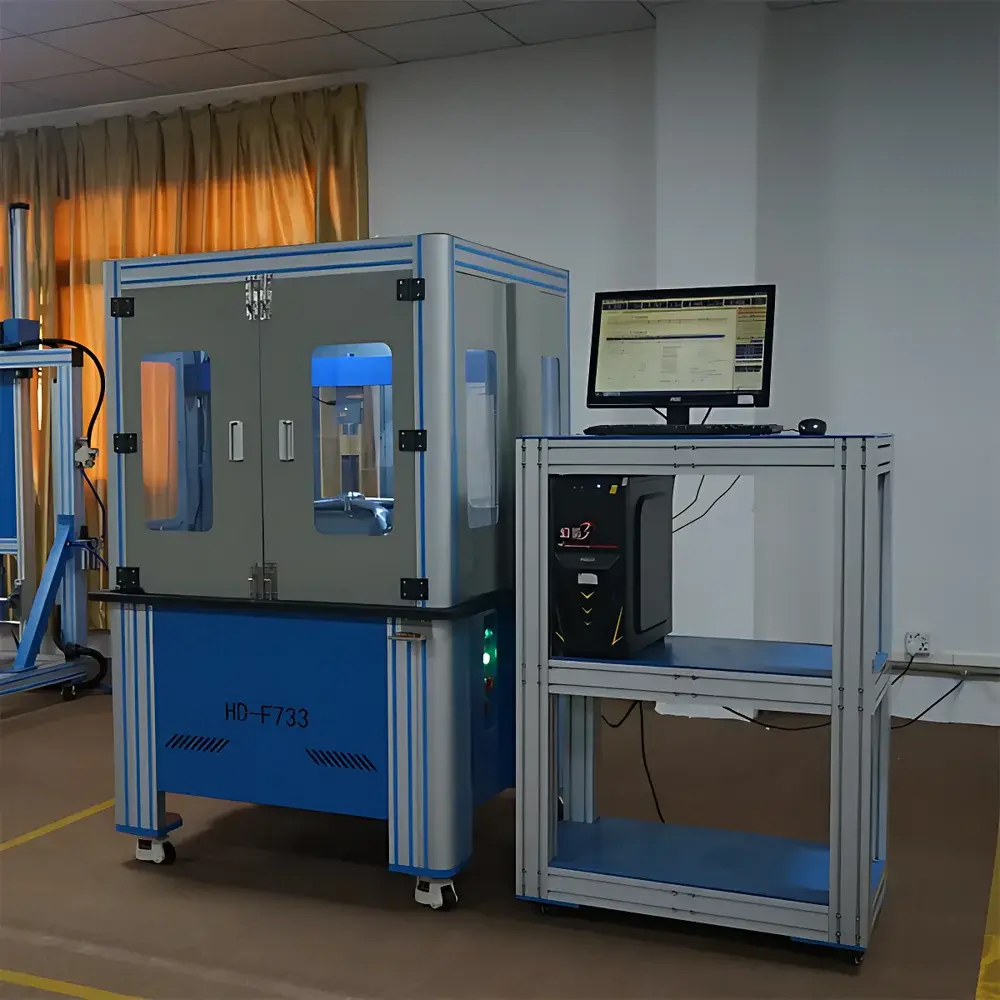

Overview

The HAIDA HD-F733 Office Chair Base Vertical Static Load Tester is an electromechanical universal testing system engineered for standardized static load evaluation of five-star chair bases—specifically designed to assess structural integrity under sustained vertical compressive forces. Operating on the principle of controlled displacement-driven force application, the instrument applies a precisely regulated axial load via a servo-motor-driven crosshead and high-accuracy load cell, maintaining constant force or displacement profiles per test protocol. Unlike dynamic fatigue testers, the HD-F733 focuses exclusively on quasi-static loading sequences defined in ergonomic furniture standards, including dwell-time hold phases (e.g., 1-minute load retention), stepwise re-loading cycles, and failure-triggered termination. Its architecture integrates metrological traceability with industrial robustness, making it suitable for quality assurance labs, OEM R&D centers, and third-party certification facilities performing routine conformance testing against internationally recognized seating performance benchmarks.

Key Features

• High-fidelity force measurement using a calibrated German-imported load cell (3 kN standard, scalable to 30 kN full-scale), delivering ≤ ±0.5% full-scale accuracy and 1/200,000 internal resolution.
• Panasonic 750 W servo motor coupled with dual-column preloaded ball screws ensures smooth, backlash-free motion control across the full speed range (0.1–120 mm/min), enabling both slow creep assessment and rapid positioning.

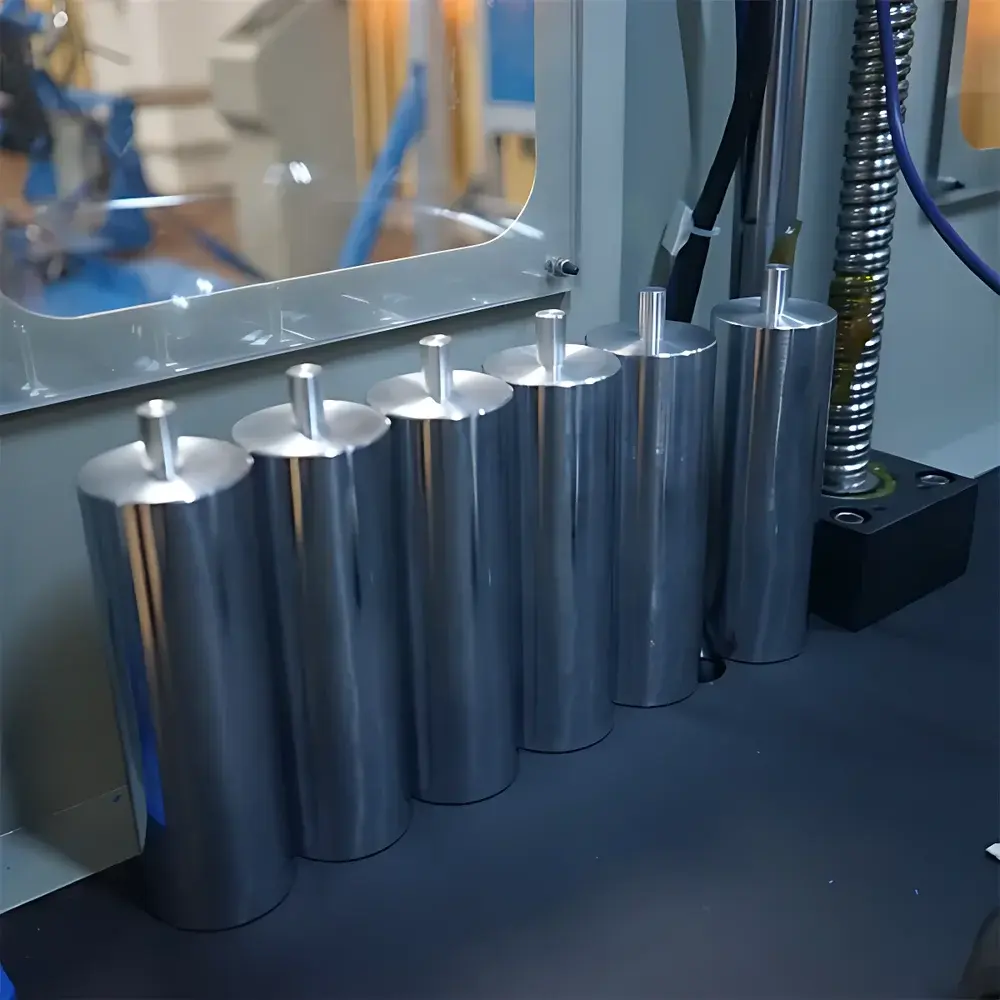

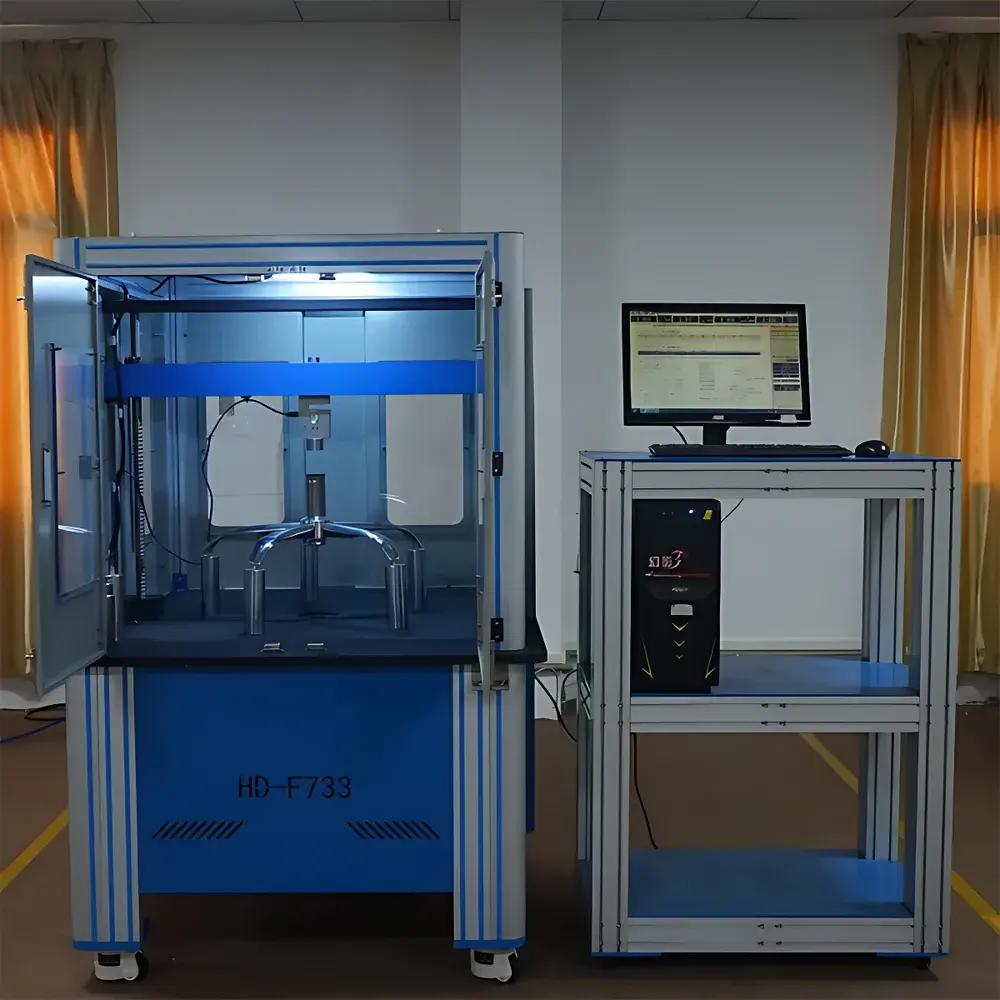

• Modular fixture system—including center-aligned compression platen, adjustable support columns, and rotating base cradle—accommodates diverse five-star base geometries (max. 750 mm diameter) while enforcing concentric load alignment per BIFMA requirements.
• Dedicated Windows-based control software developed in-house supports multilingual UI (English, Simplified/Traditional Chinese), real-time force-displacement curve plotting, automated stop-on-failure logic, and programmable multi-step test sequences.

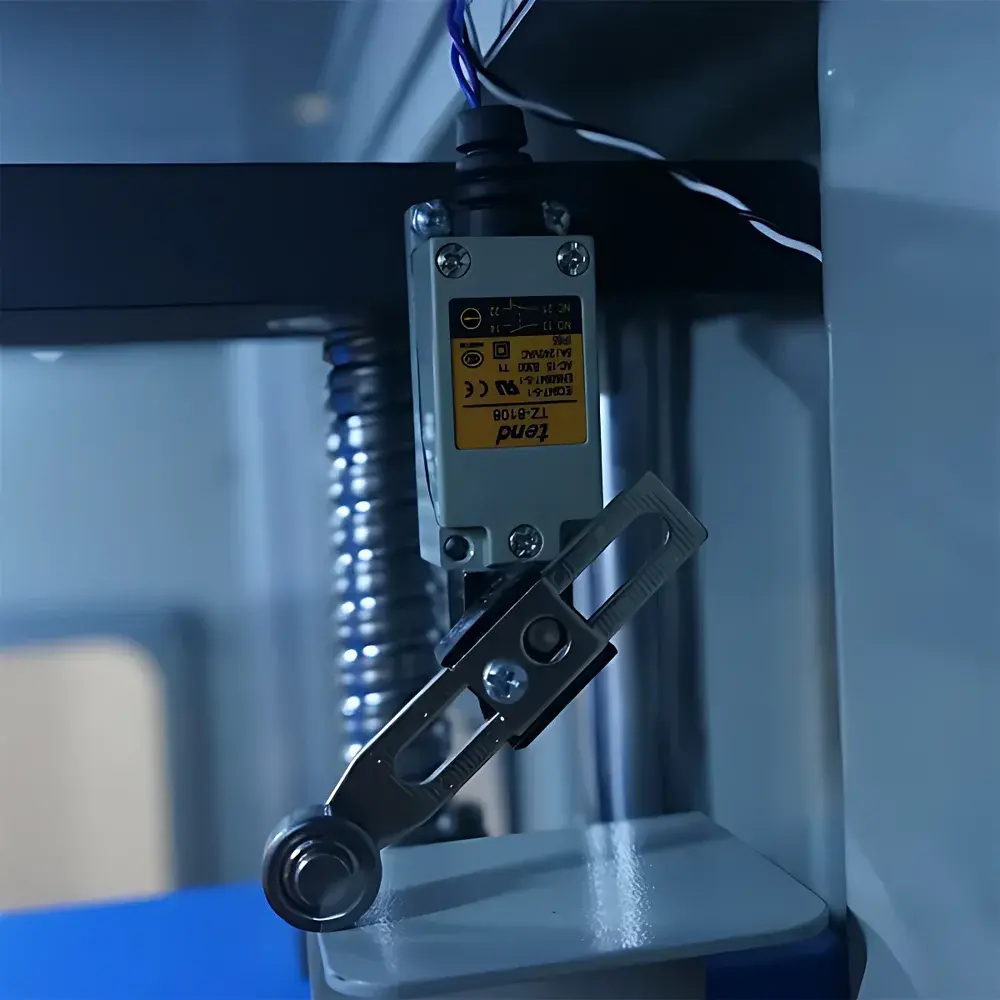

• Integrated safety architecture includes mechanical limit switches, electronic overload cutoff, automatic return-to-home post-test, and configurable emergency stop protocols compliant with IEC 60204-1.

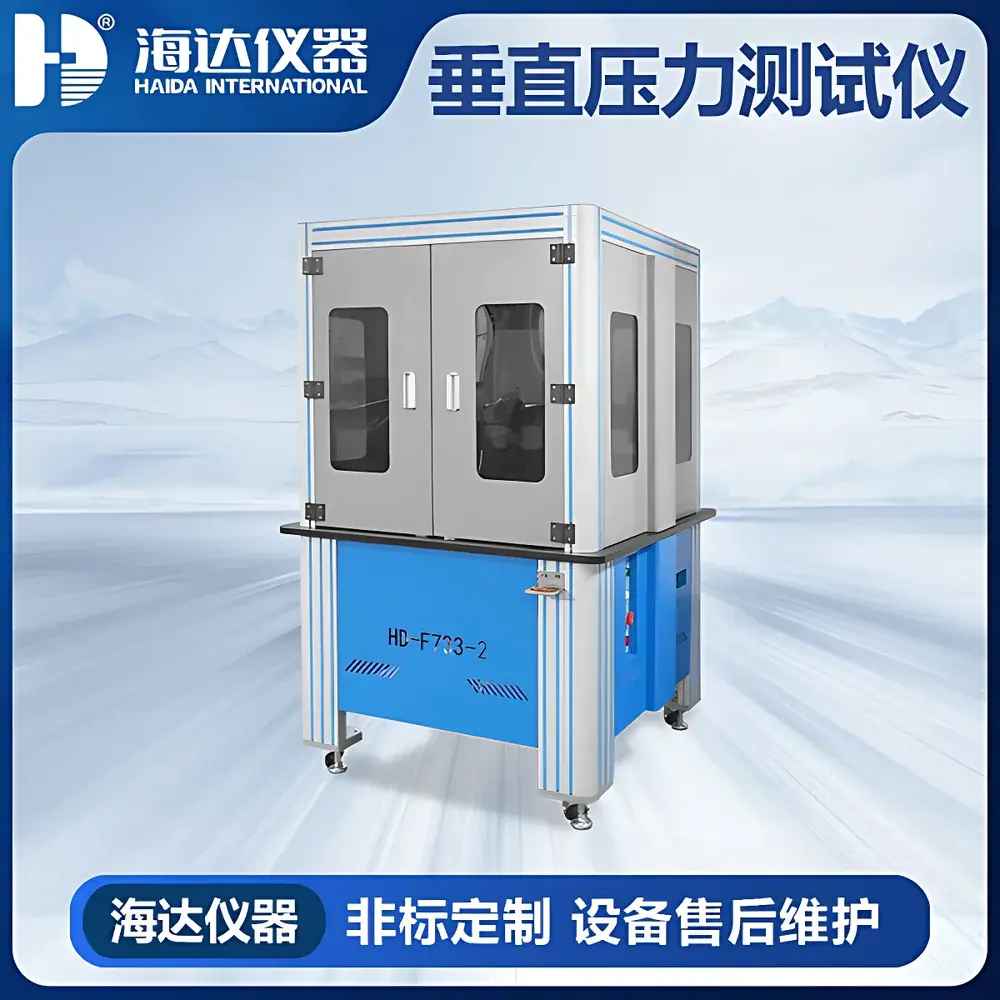

• Industrial-grade enclosure fabricated from laser-cut A3 steel with electrostatic powder coating (gloss white/metallic blue finish), optimized for long-term stability and resistance to workshop environmental stressors.

Sample Compatibility & Compliance

The HD-F733 is validated for testing complete office chair five-star bases—regardless of material composition (polypropylene, nylon, aluminum alloy, or reinforced composites)—provided dimensional constraints are observed (≤750 mm span, ≤650 mm effective height). Fixture adaptability allows evaluation of both swivel-mounted and fixed-base configurations. The system meets essential regulatory and industry-standard requirements, including BIFMA Standard 5.1 (Appendix C: Vertical Load Test for Chair Bases), QB/T 2280–2016 (Chinese National Standard for Office Chairs), and ISO 7174-1:2020 (Furniture — Test Methods for Chairs — Part 1: Determination of Strength and Durability). While not inherently 21 CFR Part 11-compliant out-of-the-box, audit-ready data export (CSV, PDF, XML) and optional electronic signature modules support GLP/GMP-aligned validation workflows upon customer request.

Software & Data Management

The proprietary HAIDA TestMaster™ software provides deterministic test execution, synchronized data acquisition at ≥100 Hz sampling rate, and timestamped metadata logging (operator ID, test ID, environmental notes, calibration status). All raw force/displacement/time vectors are stored locally with SHA-256 hash integrity verification. Export formats include ASTM E1434-compliant ASCII files, Excel-compatible CSV, and annotated PDF reports containing pass/fail annotations relative to threshold criteria (e.g., permanent deformation >1.5 mm after unloading). Multi-batch statistical comparison tools enable Cp/Cpk calculation, Weibull distribution fitting, and outlier detection across production lots. Optional network integration permits centralized database archiving via SQL Server or cloud-hosted SaaS platforms meeting ISO/IEC 27001 information security controls.

Applications

• Verification of star-base yield strength and plastic deformation limits during product development and design validation.
• Batch release testing in manufacturing environments to ensure consistency across injection-molded or die-cast components.
• Root cause analysis of field failures—correlating lab-induced collapse modes (e.g., hub fracture, arm buckling, weld seam separation) with real-world incident reports.
• Supplier qualification audits requiring documented evidence of mechanical compliance per procurement specifications.
• Academic research into polymer creep behavior, metal fatigue initiation thresholds, and composite joint performance under static compressive stress.

FAQ

What standards does the HD-F733 directly support?
BIFMA 5.1 Appendix C and QB/T 2280–2016 are fully implemented in the default test templates; ISO 7174-1:2020 and EN 1335–2:2012 can be configured manually.
Is the system compatible with LIMS or ERP integration?
Yes—via TCP/IP socket API or OPC UA interface; custom middleware development is available under NDA.
Can the HD-F733 perform cyclic loading tests?
No—it is purpose-built for static and quasi-static hold tests; for fatigue evaluation, HAIDA recommends the HD-F750 series electrodynamic fatigue tester.
What calibration documentation is provided at shipment?
NIST-traceable certificate of calibration (force and displacement), signed by HAIDA’s ISO/IEC 17025-accredited metrology lab, valid for 12 months.
Is remote technical support available for software troubleshooting?
Yes—screen-sharing sessions via TeamViewer or AnyDesk are included in the standard warranty period (24 months).
