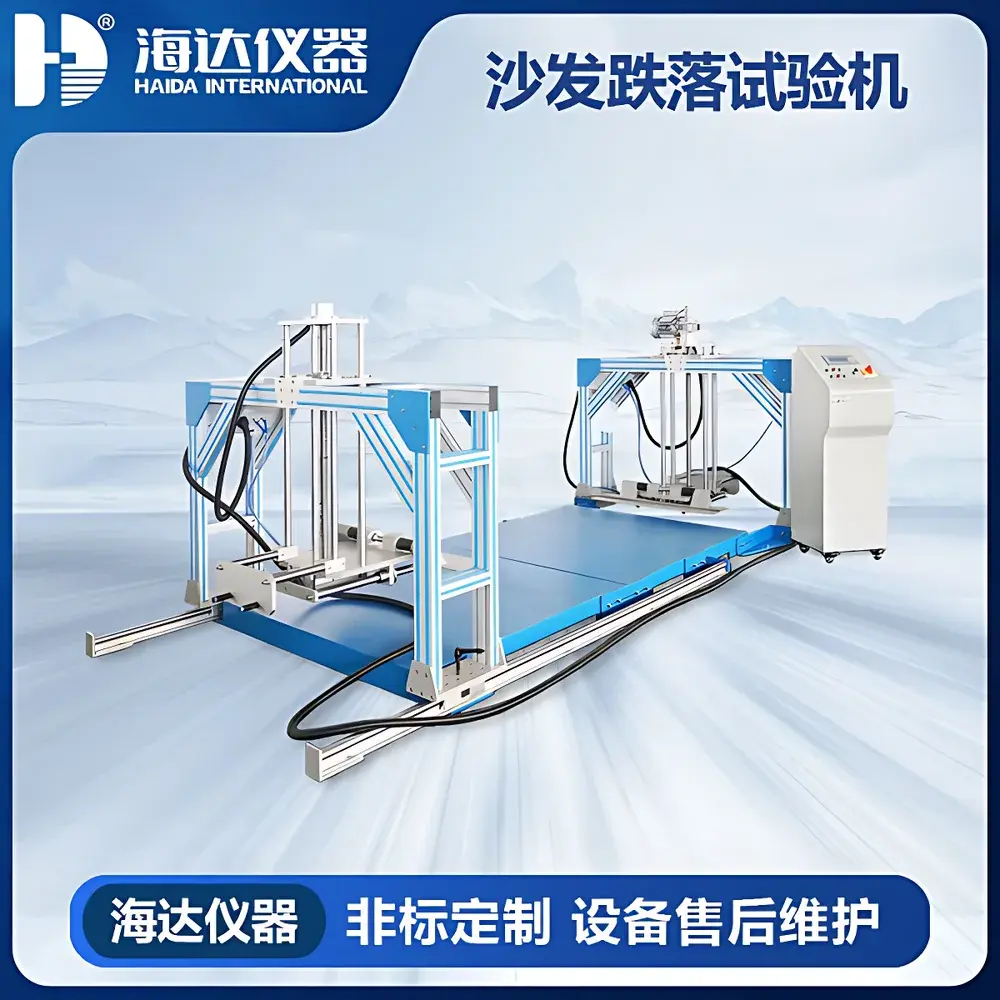

HAIDA HD-F767 Sofa Drop Tester
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | HAIDA HD-F767 Sofa Drop Tester |
| Quotation | Available upon Request |
| Lift Height Adjustment Range | 75–300 mm |
| Cylinder Bore Diameter | 63 mm |
| Maximum Operating Pressure | 0.6 MPa |
| Overall Dimensions (L×W×H) | 1400 × 1200 × 1800 mm |
Overview
The HAIDA HD-F767 Sofa Drop Tester is a purpose-built mechanical impact testing system engineered for the standardized evaluation of structural integrity in upholstered sofa frames following controlled free-fall impact. Designed in strict accordance with GB 10357 (Furniture — Strength and Durability Tests for Sofas), this tester subjects assembled sofa units to repeatable, vertically oriented drop events—simulating real-world handling, transportation, and accidental displacement scenarios. The test principle relies on gravitational acceleration applied to the full mass of the sofa under defined lift height conditions, enabling quantitative assessment of frame deformation, joint failure, leg detachment, or structural collapse. Unlike generic drop testers, the HD-F767 integrates a pneumatically actuated lifting mechanism with precise height control, ensuring consistent release dynamics and eliminating manual variability. Its robust steel-frame architecture supports load capacities typical of residential and commercial-grade sofas (up to 120 kg, per standard test configurations), while maintaining dimensional stability across repeated cycles.
Key Features
- Pneumatic lift system with adjustable drop height from 75 mm to 300 mm in 1-mm increments, calibrated via integrated digital position encoder
- 63-mm bore pneumatic cylinder rated for continuous operation at ≤0.6 MPa working pressure, compliant with ISO 8573-1 Class 4 air quality standards
- Heavy-duty welded steel base frame (1400 × 1200 × 1800 mm) with anti-vibration rubber feet and reinforced support columns for lateral stability during impact
- Non-slip, replaceable impact platform surface with standardized 10-mm-thick tempered glass overlay for visual inspection of frame contact points
- Emergency stop circuit integrated into main control panel, meeting IEC 60204-1 safety requirements for industrial machinery
- Modular design allowing rapid reconfiguration for alternate furniture types (e.g., armchairs, loveseats) using optional fixture kits
Sample Compatibility & Compliance
The HD-F767 accommodates sofas with maximum footprint dimensions of 1000 mm (L) × 900 mm (W) × 950 mm (H), including those with casters, glides, or fixed legs. Test specimens are secured using four adjustable clamping arms with polyurethane-coated jaws to prevent surface marring. All operational parameters align with GB 10357.1–10357.7 (2013 edition), specifically Clause 5.3 “Drop Test for Structural Integrity” and Annex A “Test Report Requirements.” The system supports traceable calibration per JJG 1072–2011 (National Verification Regulation for Drop Test Equipment), with factory-issued calibration certificate included. While not inherently certified to ISO/IEC 17025, the instrument meets foundational metrological requirements for GLP-compliant furniture testing laboratories conducting internal quality audits or supplier qualification programs.
Software & Data Management
The HD-F767 operates via a standalone microprocessor-based controller with LCD interface—no PC dependency required for basic operation. However, optional RS-232/USB connectivity enables integration with laboratory data management systems (LIMS) or custom QA software platforms. Drop cycle count, height setting, pressure reading, and timestamped event logs are stored internally for ≥10,000 cycles. Audit-trail functionality records operator ID (via numeric input), test date/time, and configuration changes—supporting documentation needs aligned with ISO 9001:2015 clause 8.5.2 (Identification and Traceability) and internal quality procedures. Raw data export is available in CSV format for statistical process control (SPC) analysis using Minitab or JMP.
Applications
- Structural validation of wooden, metal, and composite sofa frames during R&D prototyping
- Pre-shipment quality assurance for OEM/ODM manufacturers supplying North American and EU markets
- Compliance verification against GB 10357 prior to CCC certification submission in China
- Root cause analysis of field failures related to joint loosening or leg fracture
- Comparative durability benchmarking between competing frame construction methods (e.g., dowel vs. cam-lock vs. mortise-and-tenon)
- Supplier qualification testing for raw material vendors providing laminated veneer lumber (LVL) or tubular steel components
FAQ
What safety standards does the HD-F767 comply with?
The unit conforms to IEC 60204-1 for electrical safety and incorporates dual-channel emergency stop logic. Mechanical guarding satisfies EN 953:2018 requirements for stationary machinery.
Is third-party calibration available?
Yes—HAIDA partners with CNAS-accredited calibration labs in Guangdong Province; certificates include uncertainty budgets traceable to NIM (National Institute of Metrology, China).
Can the tester be used for non-sofa furniture?
With optional fixtures, it supports armchairs, footstools, and modular seating units—provided mass and footprint remain within specified limits and test protocols are adapted per relevant clauses of GB/T 3324 or EN 12520.
Does the system meet FDA or ISO 13485 requirements?
No—this is a mechanical furniture testing device, not medical device test equipment; it falls outside the scope of FDA 21 CFR Part 820 or ISO 13485.
What maintenance is required for long-term reliability?
Monthly inspection of pneumatic seals, quarterly lubrication of guide rails with ISO VG 68 hydraulic oil, and annual verification of height encoder linearity using certified gauge blocks.
