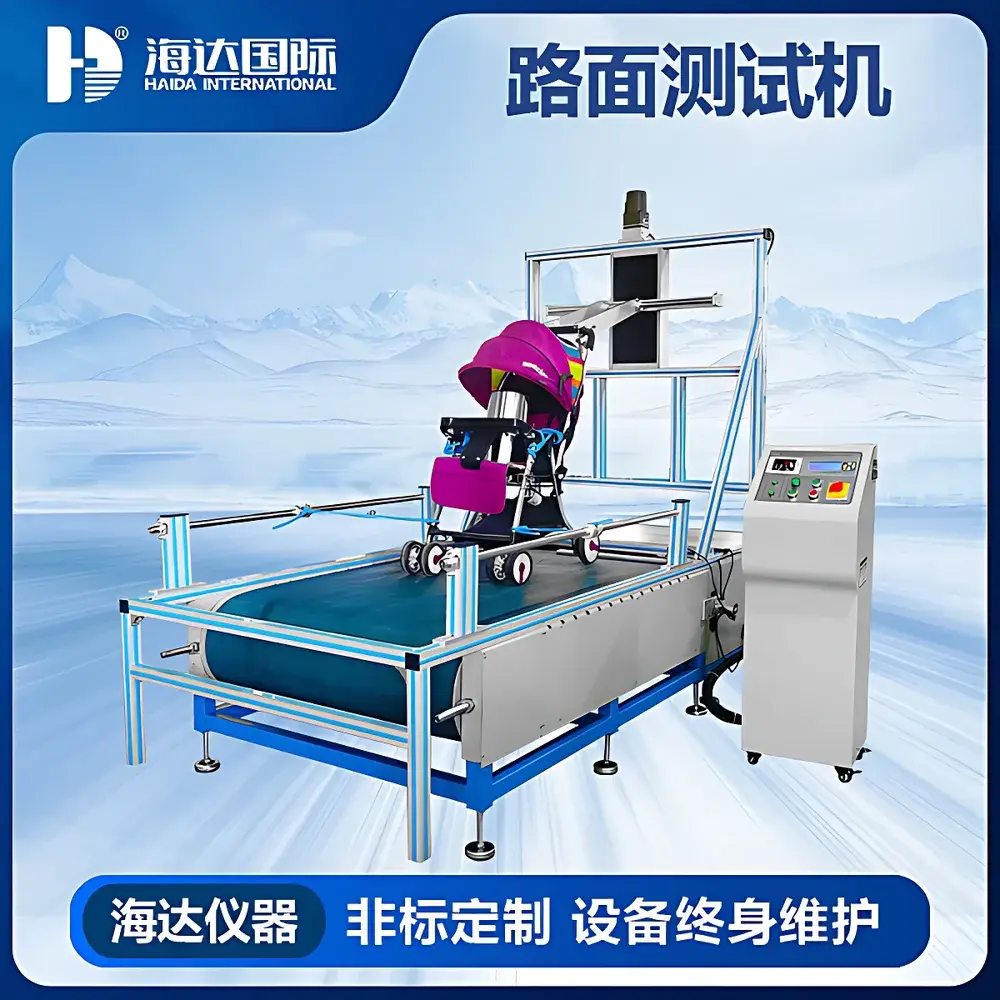

HAIDA HD-J210-1 Infant Stroller Rough Terrain Simulation Tester

Overview

The HAIDA HD-J210-1 Infant Stroller Rough Terrain Simulation Tester is an electromechanically driven durability testing system engineered to replicate real-world uneven surface conditions encountered by infant strollers during daily use. It operates on a controlled kinematic principle: a three-phase AC motor drives a precision-machined cam via a gear reducer, which actuates a linkage mechanism to generate repeatable vertical displacement—simulating the dynamic compressive loading experienced by stroller suspension systems, wheel assemblies, and frame joints when traversing curbs, cobblestones, gravel, or other irregular terrain. Unlike static load testers, the HD-J210-1 applies cyclic, time-correlated mechanical stress under defined speed, amplitude, and frequency parameters—enabling quantitative assessment of structural integrity, joint fatigue resistance, wheel bearing endurance, and elastomeric component wear over extended operational cycles.

Key Features

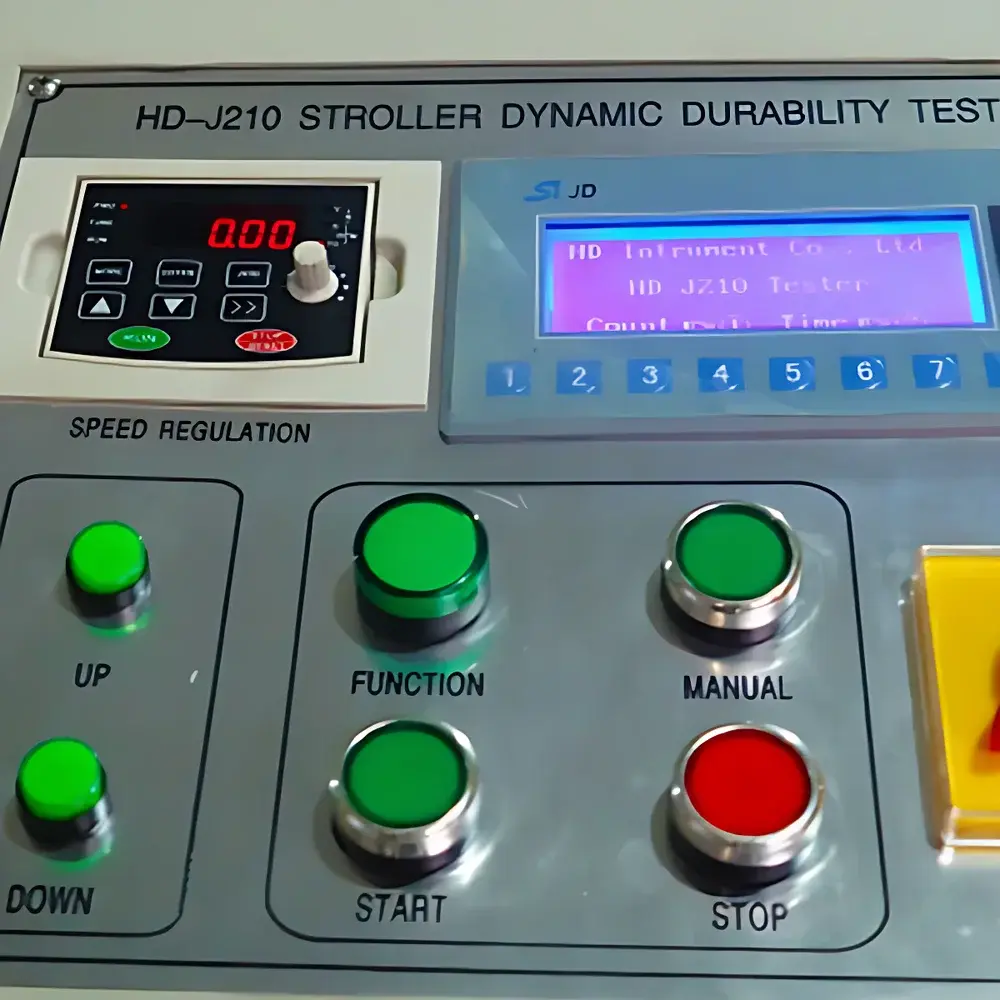

• Programmable test cycle control with LCD interface supporting numeric input of target repetitions, frequency, and dwell time per cycle
• Automated termination upon reaching pre-set cycle count, ensuring consistent test repeatability and eliminating operator-dependent timing errors

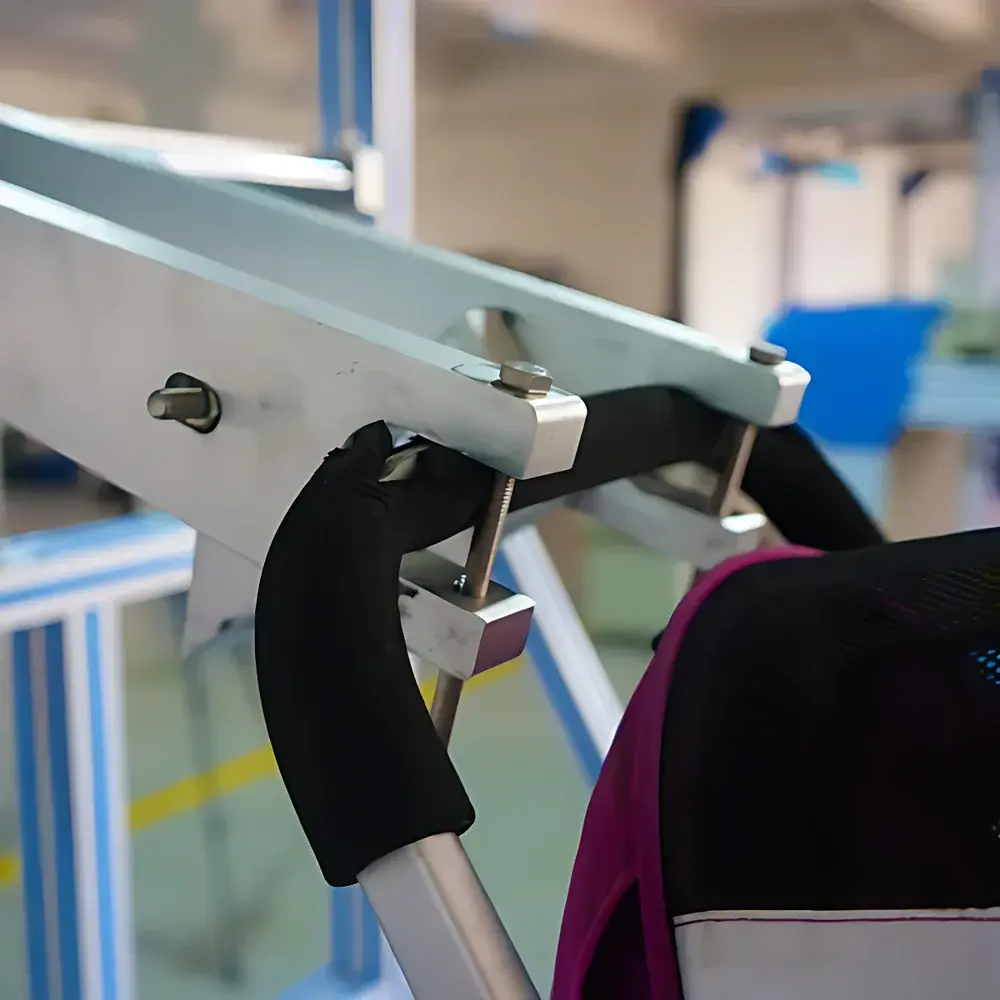

• Adjustable handle height range (±300 mm) accommodates diverse stroller geometries—including tandem, double-decker, and travel-system configurations
• Dual-mode counter: configurable between cycle-count mode (for EN 1888/GB 14748) and real-time timer mode (required for AS/NZS 2088 compliance reporting)
• Modular obstacle block system with standardized trapezoidal and semi-arc aluminum profiles (A-type and B-type, each 100 kg), plus custom profile support for client-specific validation protocols
• Robust structural architecture: heavy-duty welded steel frame with vibration-dampening base mount; designed for continuous operation in QC laboratories and certification testing facilities

Sample Compatibility & Compliance

The HD-J210-1 supports single-unit or dual-unit stroller testing (configurable per customer requirement), with maximum payload capacity of 75 kg per unit. It accommodates all major stroller categories—including umbrella, jogging, travel system, and convertible models—provided wheelbase and axle clearance fall within the 1000 mm effective test width. The system is fully aligned with internationally recognized safety and performance standards: EN 1888:2018 (Child use and care articles — Push chairs and prams — Safety requirements and test methods), GB 14748–2019 (Chinese national standard for stroller safety), and AS/NZS 2088:2013 (Australian/New Zealand standard for pram and stroller durability). Its programmable test speed (5.0 km/h ± 0.1 km/h, digitally displayed and adjustable) meets the velocity tolerance requirements specified across all three standards for rough terrain simulation sequences.

Software & Data Management

While the HD-J210-1 operates via embedded microcontroller-based logic (no external PC dependency), its LCD interface logs critical execution metadata—including start timestamp, elapsed cycles/timer duration, final count, and any manual intervention flags. For laboratories operating under GLP or ISO/IEC 17025 frameworks, optional RS-232 or USB-to-serial data export modules are available (ordered separately) to enable traceable CSV log transfer to LIMS or internal QA databases. All firmware revisions maintain backward compatibility with prior test protocols, and calibration certificates (traceable to NIM-accredited reference standards) are supplied with each unit shipment.

Applications

• Pre-market validation of stroller suspension damping performance and long-term fatigue life
• Comparative wear analysis of polyurethane vs. EVA wheel compounds under simulated curb-impact loading
• Structural deformation assessment of welded aluminum or reinforced polymer frames after 10,000+ simulated terrain cycles
• Joint play measurement (e.g., hinge loosening, swivel lock degradation) before and after standardized durability exposure
• Supplier qualification testing per OEM technical specifications requiring EN 1888 Clause 8.3 (Durability Test on Uneven Surface)
• Root cause analysis support for field failure investigations involving wheel hub fracture or chassis buckling

FAQ

What power supply options are supported?
Standard configuration uses AC 380 V / 3-phase / 5 kW. Single-phase (220 V / 1-phase) operation is available upon order specification, though rated load capacity reduces to 50 kg.
Can the obstacle profile be customized beyond trapezoidal and semi-arc shapes?
Yes—custom aluminum obstacle blocks can be fabricated to match client-defined CAD geometry, subject to dimensional constraints within the 1000 mm × 1000 mm active zone.
Is the HD-J210-1 suitable for testing strollers with electronic braking or smart suspension systems?
Yes, provided the electronics are rated for continuous 5 km/h vibratory exposure and do not interfere with mechanical actuation path; HAIDA recommends pre-test electrical isolation verification.
How is calibration maintained over time?
Annual recalibration is recommended using HAIDA-certified service kits; all torque, speed, and positional sensors are traceable to Chinese National Institute of Metrology (NIM) standards.
Does the system include documentation for regulatory submission?
Each unit ships with a Declaration of Conformity, Factory Calibration Report, and full test method alignment matrix mapping HD-J210-1 operational parameters to EN 1888, GB 14748, and AS/NZS 2088 clauses.
