HAIDA HD-J234-A Scooter Brake Lever Testing Machine
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | HD-J234-A |
| Pricing | Available Upon Request |
Overview

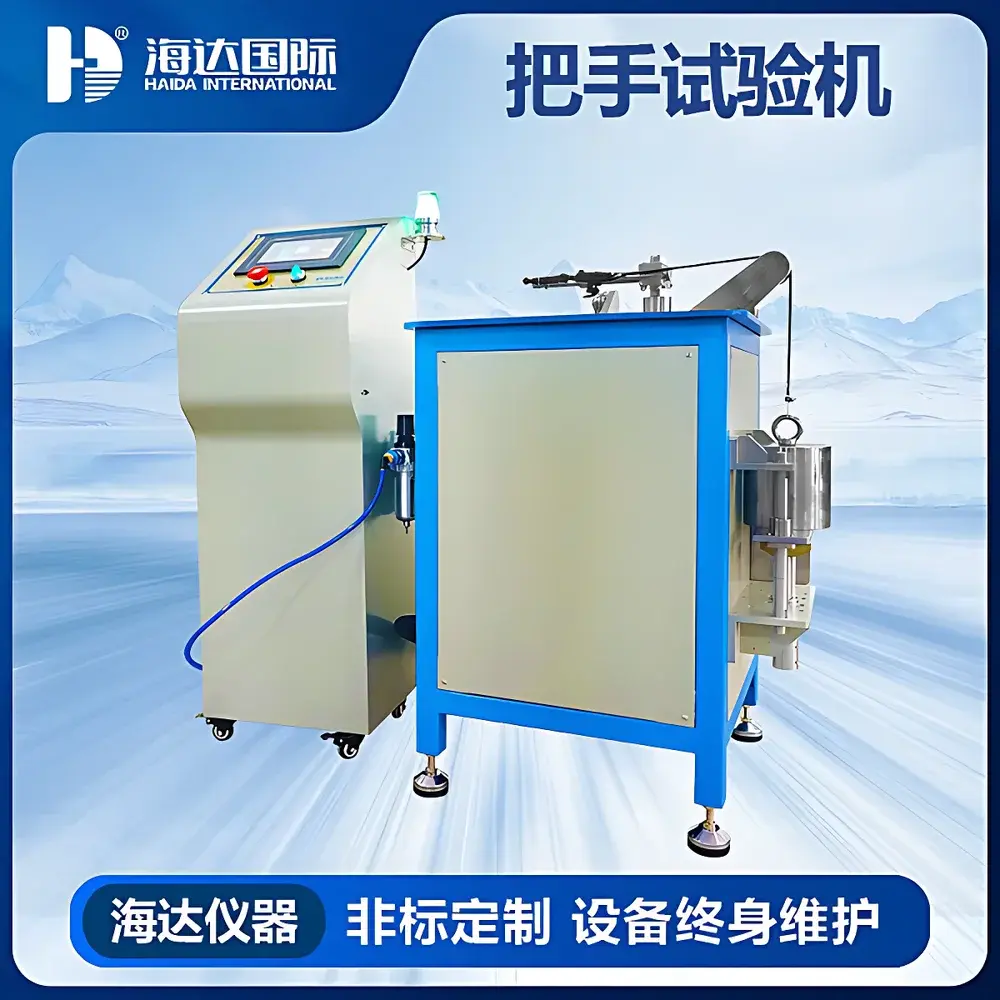

The HAIDA HD-J234-A Scooter Brake Lever Testing Machine is a precision-engineered mechanical test system designed specifically for evaluating the functional performance and durability of brake levers used in electric scooters, kick scooters, and lightweight personal mobility devices. It operates on a servo-controlled electromechanical actuation principle, applying repeatable, programmable force and displacement profiles to simulate real-world braking cycles—including static pull-to-engage, dynamic cyclic loading, and release-force hysteresis measurement. The system complies with fundamental mechanical safety evaluation frameworks referenced in EN 17128:2020 (Personal Light Electric Vehicles), ISO 4210-2:2014 (Cycles — Safety requirements for bicycles — Part 2: Requirements for city and trekking, young adult, mountain and racing bicycles), and relevant clauses of ANSI/CAN/UL 2272 for e-mobility component mechanical integrity. Its compact benchtop footprint (W × D × H: 420 × 350 × 580 mm) enables seamless integration into QC labs, R&D prototyping stations, and third-party certification testing facilities without requiring dedicated floor space or structural reinforcement.

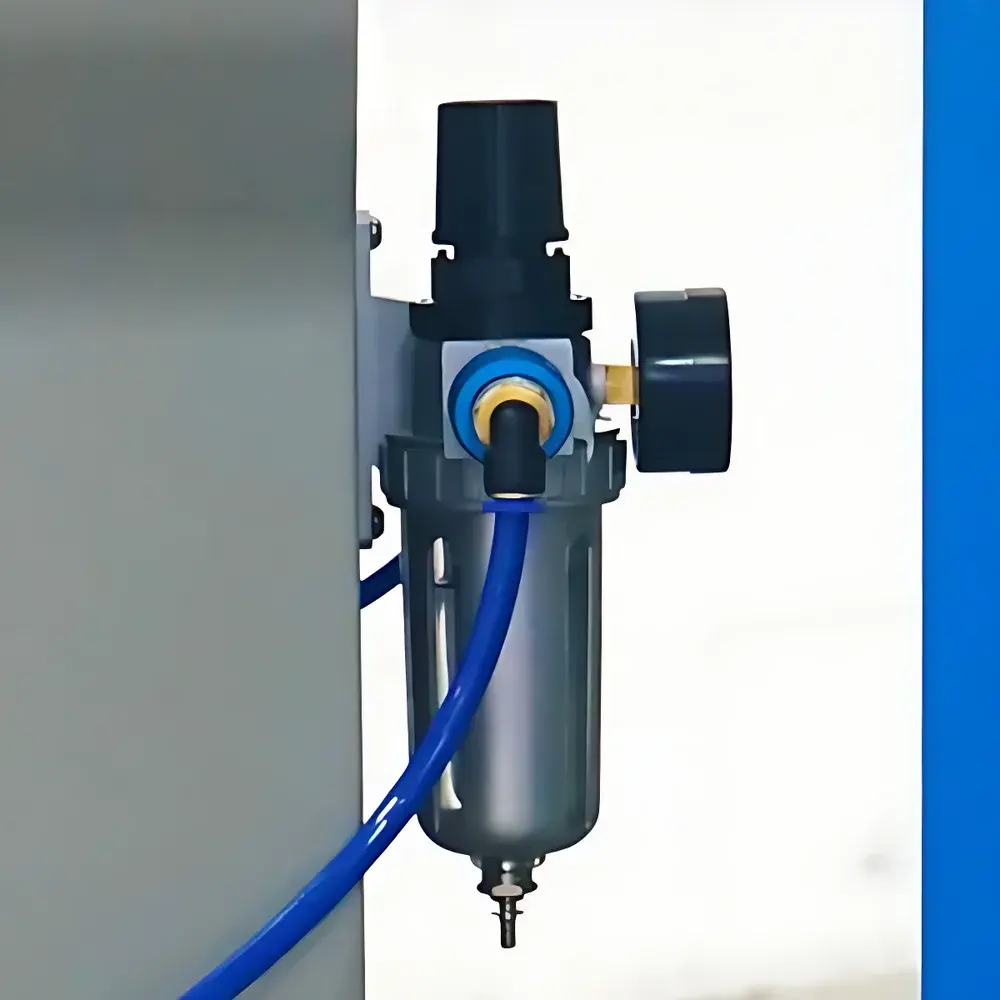

Key Features
- Servo-driven linear actuator with closed-loop position and load feedback, enabling precise control of applied force (range: 0–200 N, resolution: 0.1 N) and displacement (0–80 mm, resolution: 0.01 mm)

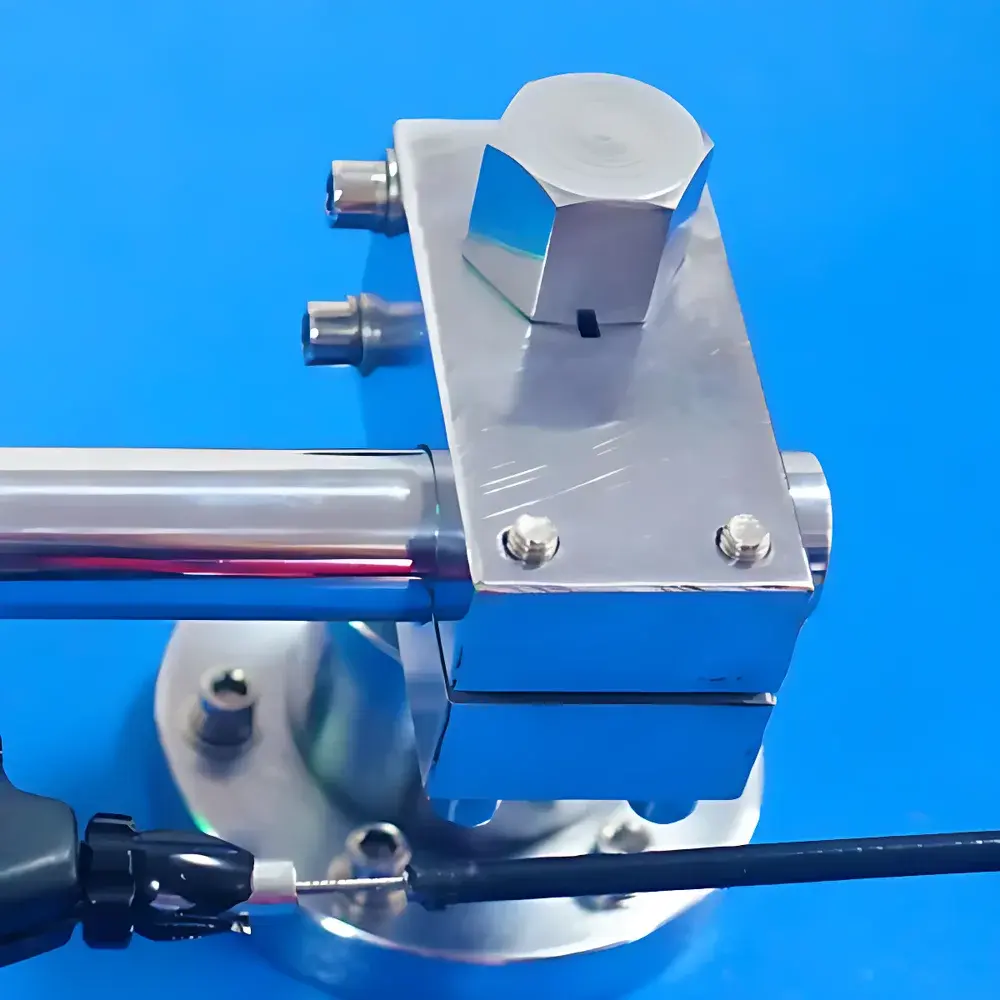

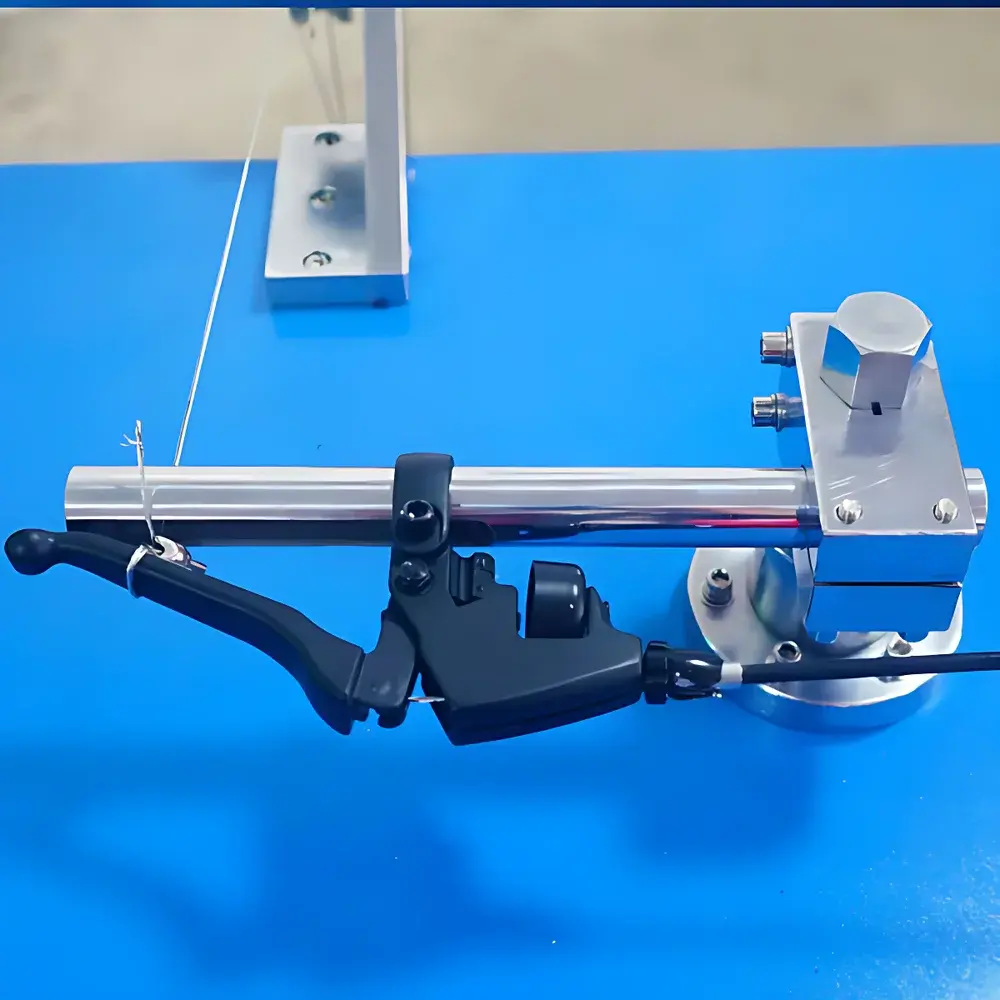

- Modular fixture interface accommodating standard scooter lever geometries (straight, angled, and ergonomic variants) via interchangeable mounting brackets and pivot-axis adapters
- Real-time force-displacement curve acquisition at up to 1 kHz sampling rate, supporting analysis of engagement threshold, travel consistency, return spring behavior, and mechanical hysteresis
- Preloaded test protocols aligned with common OEM specifications—e.g., 5,000-cycle endurance at 75% max rated load, 100-cycle fatigue under alternating load (±15 N around 50 N mean), and static hold tests per EN 17128 Annex C
- Integrated overload protection and emergency stop circuit compliant with IEC 60204-1 safety standards

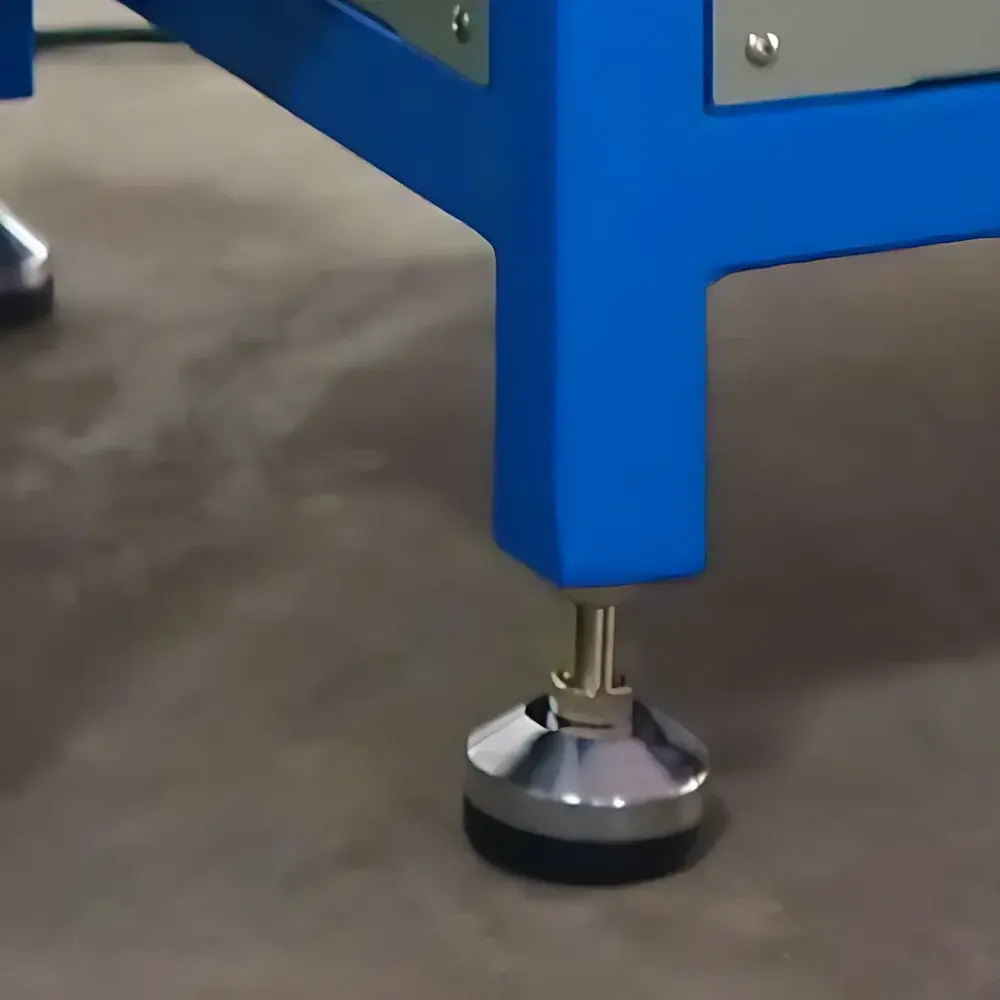

- Stainless-steel load frame and anodized aluminum housing for long-term dimensional stability and corrosion resistance in laboratory environments
Sample Compatibility & Compliance
The HD-J234-A accepts brake levers with mounting hole centers between 30–90 mm, lever arm lengths from 80–160 mm, and pivot diameters ranging from Ø6–Ø12 mm. It supports both cable-actuated and hydraulic master-cylinder interface configurations through optional adapter kits. All test procedures are traceable to documented calibration records (NIST-traceable force transducer, certified annually). The machine meets essential requirements for CE marking under the Machinery Directive 2006/42/EC and supports audit-ready documentation packages for ISO/IEC 17025-accredited laboratories conducting type testing for UL, TÜV SÜD, or SGS certification submissions.
Software & Data Management
Control and analysis are performed via HAIDA’s proprietary TestMaster v3.2 software (Windows 10/11 compatible), which provides intuitive workflow configuration, real-time graphical monitoring, and automated report generation in PDF and CSV formats. The software enforces user role-based access control (operator, supervisor, administrator), maintains full audit trails per FDA 21 CFR Part 11 requirements—including electronic signatures, timestamped parameter changes, and immutable raw data archiving—and supports export of force-time, force-displacement, and cycle-count histograms. Raw binary data files (.hdt) are stored with embedded metadata (test ID, operator, date/time, calibration ID, environmental conditions), ensuring full traceability during GLP or GMP-aligned quality reviews.
Applications
- Verification of brake lever compliance with OEM design specifications and contractual performance thresholds
- Durability validation prior to mass production launch (PPAP Stage 3/4)
- Comparative benchmarking of lever materials (aluminum alloy vs. reinforced polymer vs. magnesium die-cast)
- Root cause analysis of field failures related to lever deformation, pivot wear, or inconsistent engagement force
- Supporting technical documentation for regulatory submissions to EU Notified Bodies or North American AHJs (Authority Having Jurisdiction)
- Training and process standardization for in-house QA technicians performing incoming inspection on lever subassemblies
FAQ
What safety standards does the HD-J234-A help validate against?
It supports verification per EN 17128:2020, ISO 4210-2:2014, and selected clauses of UL 2272 and ANSI/CAN/CSA E64.1.
Can the system be integrated into an existing LIMS or MES environment?
Yes—via TCP/IP API and configurable CSV/XML export modules; custom OPC UA integration is available upon request.
Is calibration certification included with delivery?
A full factory calibration certificate (traceable to NIST standards) is provided with each unit; annual recalibration services are offered globally through HAIDA’s authorized service network.
Does the machine support hydraulic brake lever testing?
Yes—using the optional Hydraulic Interface Kit (HID-KIT-HD234), which includes pressure-compensated master cylinder simulators and fluid containment fixtures.
What is the typical lead time for delivery and installation?
Standard units ship within 4–6 weeks ex-factory; onsite commissioning and operator training are scheduled within 10 business days of shipment confirmation.
