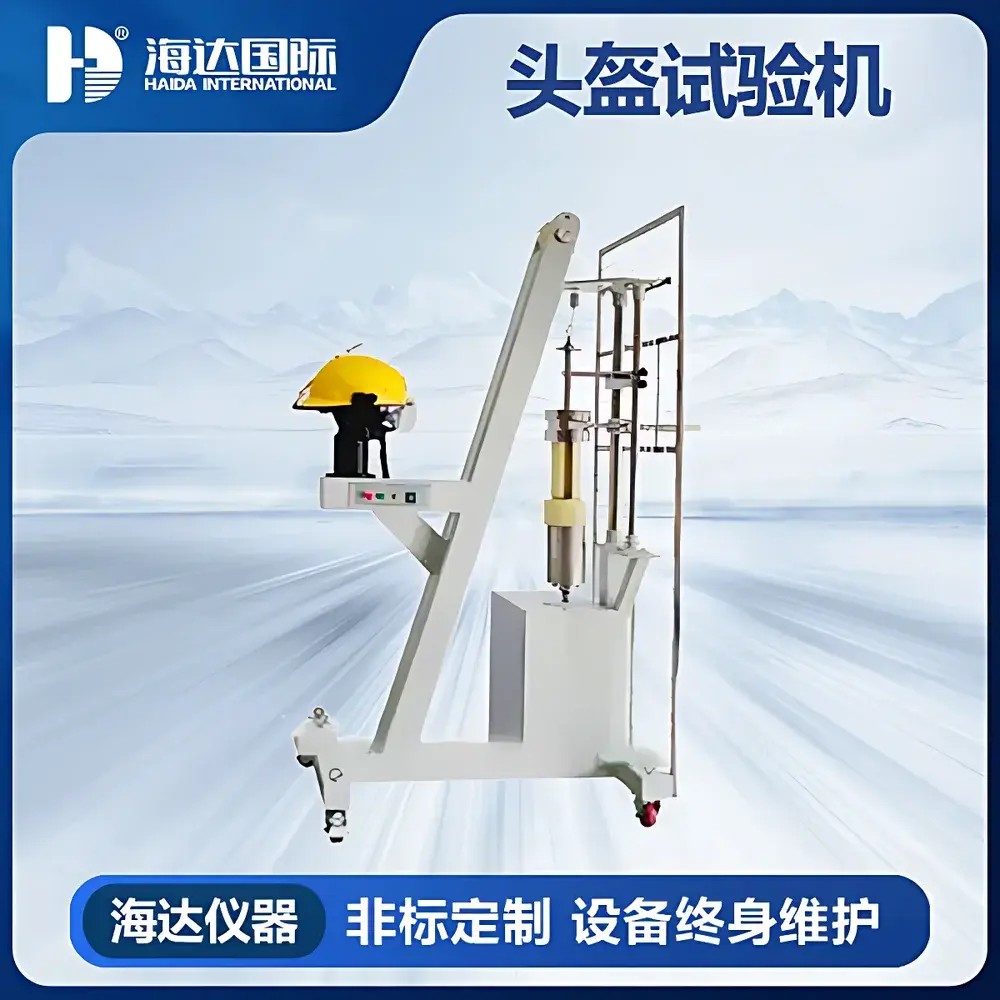

HAIDA HD-K508 Helmet Retention System Stability Tester
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM/ODM) |
| Product Category | Domestic (China-Made) |
| Model | HAIDA HD-K508 Helmet Retention System Stability Tester |
| Pricing | Available Upon Request |
Overview
The HAIDA HD-K508 Helmet Retention System Stability Tester is a purpose-built mechanical testing instrument engineered to evaluate the structural integrity and dynamic stability of helmet retention systems—specifically chin straps, buckle mechanisms, and harness assemblies—under controlled tensile and cyclic loading conditions. Designed in accordance with international head protection standards—including ISO 10819:2013 (acoustic attenuation), EN 397:2012+A1:2012 (industrial safety helmets), EN 1078:2012 (bicycle and skateboard helmets), and GB/T 2812–2006 (test methods for safety helmets in China)—the HD-K508 applies calibrated axial force profiles to simulate real-world retention failure modes such as strap slippage, buckle disengagement, or webbing elongation under sustained load. Its robust frame construction, precision load cell integration (±0.5% FS accuracy), and programmable test sequence logic enable repeatable, traceable assessments essential for product certification, quality control, and R&D validation.
Key Features
- Modular dual-axis actuation system supporting static tensile tests (0–300 N range) and dynamic cyclic loading (1–5 Hz, up to 10,000 cycles)
- Adjustable anthropomorphic headform fixture compatible with standard sizes (ISO 10819 headforms, sizes M/L/XL) and customizable mounting interfaces
- Integrated high-resolution load cell with digital signal conditioning and real-time data sampling at 100 Hz
- Motorized vertical displacement stage with ±0.01 mm positional resolution and overload protection
- Compliance-ready firmware architecture supporting audit trails, user-level access control, and timestamped test logs
- Front-panel touchscreen interface with intuitive test setup wizard and preloaded standard test protocols (EN 1078 Annex B, GB/T 2812 Clause 6.3)
Sample Compatibility & Compliance
The HD-K508 accommodates full-coverage industrial, cycling, motorcycle, and construction helmets equipped with adjustable retention systems. It supports both rigid-shell and composite-shell configurations, including thermoplastic, fiberglass-reinforced, and carbon-fiber constructions. The test fixture allows rapid reconfiguration for chin straps (webbing widths 10–25 mm), ratchet buckles, snap-fit closures, and dial-adjustment mechanisms. All mechanical and software functions align with ISO/IEC 17025:2017 requirements for testing laboratories. Test reports generated by the system include metadata required for GLP-compliant documentation and can be exported in CSV, PDF, or XML formats suitable for regulatory submissions to CNAS, TÜV Rheinland, SGS, or BV-accredited bodies. The instrument meets electromagnetic compatibility (EMC) per EN 61326-1 and safety requirements per EN 61010-1.
Software & Data Management
The HD-K508 operates with HAIDA’s proprietary TestMaster v3.2 software suite, installed on an embedded industrial PC running Windows IoT Enterprise. The software provides full test method configuration—including ramp rate definition, hold duration, cycle count, pass/fail thresholds, and automatic stop-on-failure logic. All test parameters are stored with cryptographic hash verification to prevent unauthorized modification. Audit trail functionality records operator ID, timestamp, parameter changes, and result exports in accordance with FDA 21 CFR Part 11 requirements for electronic records and signatures. Raw force-displacement data is saved in HDF5 format for post-processing in MATLAB, Python (NumPy/Pandas), or third-party statistical analysis tools. Optional network connectivity enables centralized data aggregation via OPC UA or MQTT protocols for integration into enterprise LIMS or MES environments.
Applications
- Verification of retention system performance during type approval testing for CE, CCC, and DOT certification
- Comparative evaluation of strap material fatigue resistance (e.g., nylon vs. Dyneema® webbing) under accelerated aging conditions
- Root cause analysis of field-reported retention failures through controlled reproduction of failure sequences
- Design validation of novel buckle geometries and friction-based retention enhancements
- Supplier qualification testing for helmet component manufacturers (strap suppliers, buckle OEMs, harness integrators)
- Internal QC screening of production-line helmet batches prior to final packaging
FAQ
Does the HD-K508 comply with EN 1078:2012 Annex B for bicycle helmet retention testing?
Yes—the instrument implements the exact force application profile, dwell time, and measurement criteria specified in Clause B.3.2, including the 200 N static load followed by incremental 25 N increments up to 300 N.
Can test data be exported in a format compatible with ISO/IEC 17025 accredited reporting?
Yes—reports include calibration certificate references, uncertainty budgets, operator credentials, environmental monitoring logs (optional temperature/humidity sensor integration), and digitally signed PDF outputs.
Is remote firmware update supported?
Yes—secure over-the-air (OTA) updates are available via HTTPS-encrypted connection with SHA-256 signature verification.
What maintenance intervals are recommended for long-term metrological reliability?
Annual recalibration of the load cell and position encoder is recommended; HAIDA-certified service technicians perform traceable adjustments aligned with ISO 9001:2015 internal calibration procedures.
Does the system support custom test method development beyond preloaded standards?
Yes—TestMaster v3.2 includes a scriptable test engine supporting Python-based protocol extensions and conditional logic branching for complex multi-stage evaluations.
