HAIDA HD-K902 Cabinet Door Latch & Hinge Durability Tester

Overview

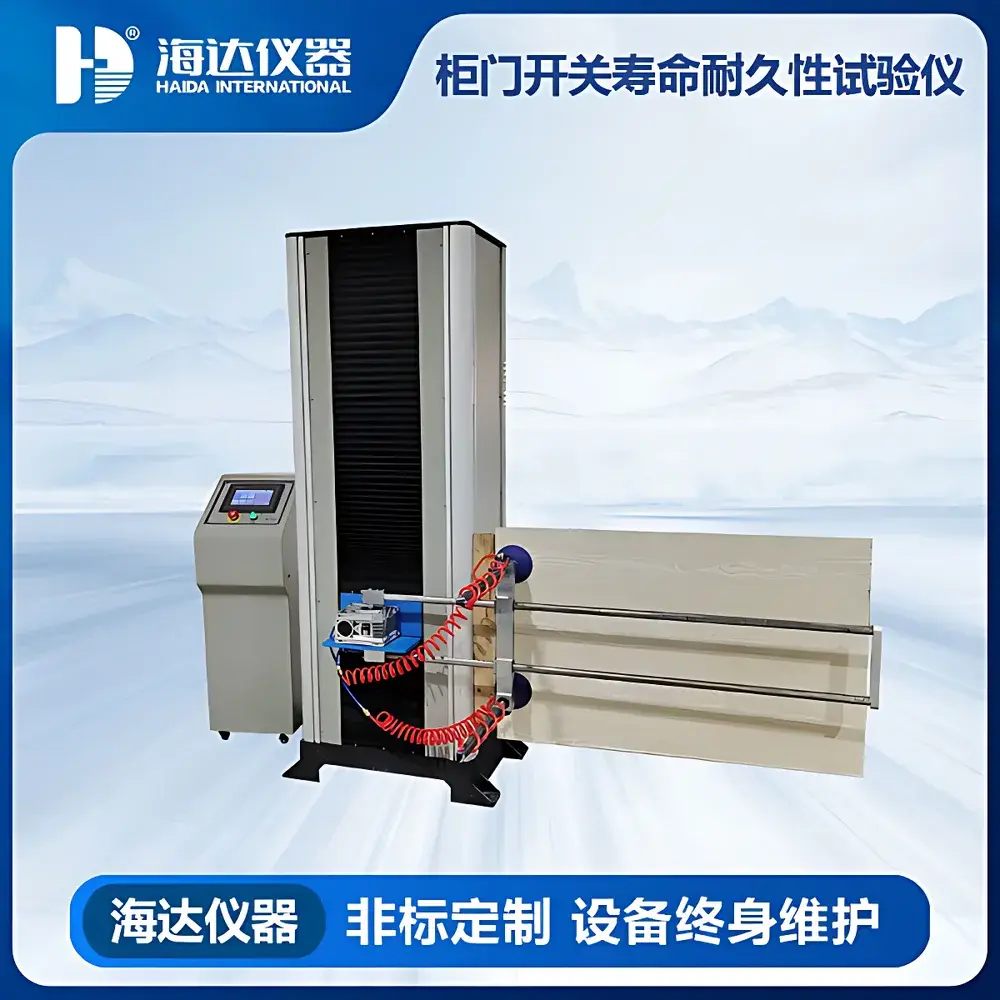

The HAIDA HD-K902 Cabinet Door Latch & Hinge Durability Tester is an electromechanical fatigue testing system engineered for quantitative evaluation of mechanical endurance in cabinet door closure mechanisms—including latches, hinges, cam locks, push-to-open actuators, and integrated soft-close systems. It operates on a programmable cyclic actuation principle, applying controlled angular displacement, torque load, and positional feedback to simulate real-world usage conditions over thousands to millions of operational cycles. Designed specifically for furniture, kitchen cabinetry, office storage systems, and architectural interior components, the HD-K902 complies with functional durability requirements defined in ISO 7170 (Furniture — Strength, durability and safety — Test methods for domestic seating), EN 14749 (Furniture — Requirements for kitchen furniture), and ANSI/BIFMA X5.3 (Seating — Durability Tests). Its robust architecture supports both static load preconditioning and dynamic cycle testing under variable speed, dwell time, and stroke amplitude—enabling correlation between laboratory results and field service life predictions.

Key Features

• Programmable cycle control with adjustable open/close angle (0°–120°), dwell time (0.1–99.9 s), and cycle count (1–999,999 cycles)
• Integrated torque sensor (range: 0–50 N·m, resolution: 0.05 N·m) and angular encoder (±0.1° repeatability) for synchronized force-angle profiling
• Motor-driven linear actuator with precision ball-screw transmission and closed-loop position feedback
• Modular fixture interface accommodating standard cabinet door thicknesses (16–38 mm) and hinge centerline offsets (35–60 mm)
• Real-time data logging at up to 100 Hz sampling rate; onboard memory stores ≥10 test profiles with timestamped event logs
• Compliance-ready test reporting engine supporting export to CSV, PDF, and XML formats with embedded metadata (operator ID, calibration date, environmental conditions)

Sample Compatibility & Compliance

The HD-K902 accommodates flat-panel cabinet doors mounted on concealed hinges (e.g., Blum CLIP top, Grass Dyna, Hettich Intivo), surface-mounted butt hinges, and multi-point locking systems used in high-end residential and commercial cabinetry. Fixture adaptability extends to frameless, face-frame, and inset door configurations per ANSI A162.1 and EN 15288-2 specifications. All test protocols align with GLP (Good Laboratory Practice) documentation standards and support audit trails required under ISO/IEC 17025:2017 accreditation. The system’s mechanical design and software architecture are structured to meet FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed in regulated manufacturing environments.

Software & Data Management

The HD-K902 is operated via HAIDA’s proprietary TestMaster v3.2 software, a Windows-based application featuring intuitive workflow navigation, multi-user role management (Admin, Technician, QA Reviewer), and password-protected parameter locking. Software modules include Cycle Sequence Editor (for stepwise load ramping), Failure Detection Logic (monitoring torque deviation >±5% from baseline or positional stall), and Statistical Process Control (SPC) dashboard with Cp/Cpk calculation. Raw data files retain full traceability—including firmware version, sensor calibration certificate ID, and environmental sensor inputs (ambient temperature/humidity logged via optional external probe). Exported reports embed digital signatures and hash verification to ensure data integrity during regulatory submissions.

Applications

• Validation of latch retention force degradation after 50,000+ cycles in modular kitchen manufacturers
• Comparative fatigue analysis of hydraulic vs. cam-based soft-close mechanisms per EN 16341
• Qualification testing for fire-rated cabinet doors subjected to thermal cycling + mechanical endurance per UL 10C
• Supplier qualification audits requiring documented conformance to IKEA TEST METHOD TM-00012 (Door Opening/Closing Durability)
• Root cause analysis of hinge pin wear using synchronized torque-angle hysteresis loops
• Design verification for smart cabinet systems integrating IoT-enabled position sensors and motorized actuators

FAQ

What standards does the HD-K902 directly support?
It natively implements test sequences aligned with ISO 7170, EN 14749, ANSI/BIFMA X5.3, and CY/T 229–2020 (Chinese industry standard for furniture mechanical performance). Custom protocol development is available for client-specific internal standards.
Can the system test doors with integrated electronic locks or touch-latch mechanisms?
Yes—the HD-K902’s I/O expansion port supports TTL-level trigger signals for synchronization with external power supplies, current monitors, or logic analyzers, enabling concurrent electrical functionality validation during mechanical cycling.
Is calibration traceable to national metrology institutes?
All torque and angular sensors are calibrated using NIST-traceable reference standards; calibration certificates include uncertainty budgets compliant with ISO/IEC 17025 Annex A.
Does the software support automated pass/fail decision logic based on user-defined thresholds?
Yes—thresholds can be set for maximum cycle count, cumulative torque loss (%), positional drift (mm), or event-based failure triggers (e.g., latch rebound >2° after closure).
What maintenance intervals are recommended for long-term reliability?
Lubrication of the ball-screw assembly every 250,000 cycles and annual verification of encoder linearity and torque sensor zero-drift are specified in the Maintenance Manual (Rev. 4.1).
