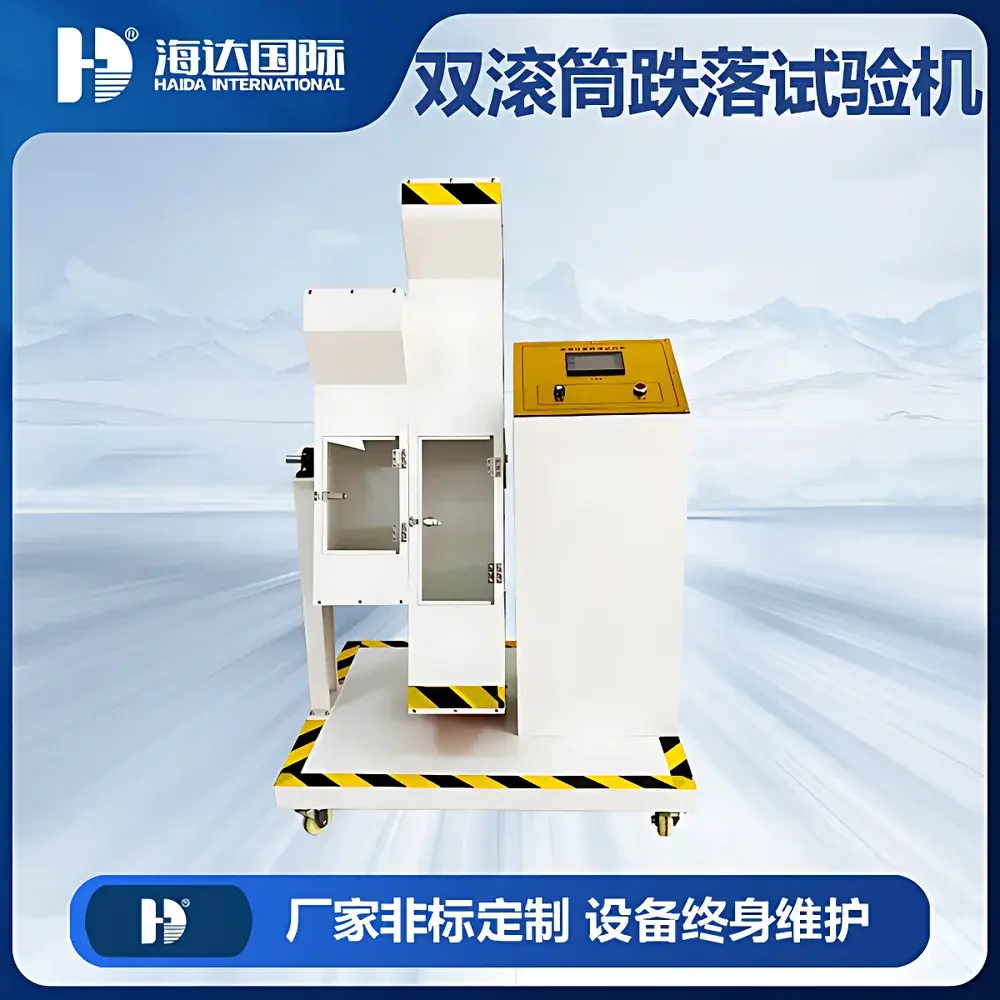

HAIDA HD-K913 Dual-Drum Drop Tester

Overview

The HAIDA HD-K913 Dual-Drum Drop Tester is an electromechanical impact simulation system engineered for standardized drop testing of packaged goods, shipping containers, and consumer product assemblies. It operates on the principle of controlled free-fall impact—where test specimens are securely mounted on two independently rotating drums, each equipped with precision-machined drop edges and adjustable height stops. As the drums rotate at synchronized speeds, the specimen is elevated to a preset height and released onto a rigid, calibrated impact surface (typically steel or concrete per ASTM D5276 and ISTA 3A). This dual-drum configuration enables repeatable, orientation-specific drop sequences—including corner, edge, and face impacts—without manual repositioning, significantly improving test throughput and inter-laboratory reproducibility. Designed for integration into QC labs, packaging R&D centers, and third-party certification facilities, the HD-K913 complies with core mechanical shock testing requirements across global supply chains.

Key Features

• Dual independent drum assembly with synchronized rotational control, enabling sequential drop orientations (face, edge, corner) in a single test cycle
• Height adjustment range: 300–1500 mm (±1 mm repeatability), calibrated against traceable NIST-traceable reference standards
• Impact surface: 1,200 × 1,200 mm hardened steel plate (HRC 58–62), level-adjustable with built-in bubble vial and leveling feet
• Integrated safety interlock system: E-stop, light curtain, door position sensors, and emergency brake activation upon abnormal drum deceleration
• PLC-based controller with 7-inch color HMI touchscreen; supports multi-step test programs, pass/fail logic, and real-time torque/current monitoring
• Compliance-ready firmware architecture supporting audit trails, user access levels (admin/operator), and electronic signature capability per FDA 21 CFR Part 11 guidelines

Sample Compatibility & Compliance

The HD-K913 accommodates packages up to 600 mm × 600 mm × 600 mm (L×W×H) and maximum weight of 50 kg. Fixture adaptability includes universal clamping brackets, vacuum-assisted mounting plates, and optional custom fixture interfaces for irregular geometries (e.g., cylindrical beverage cans, asymmetrical electronics enclosures). The system meets mechanical and procedural requirements of ISO 2248, ASTM D5276, ISTA 3A/3E/3H, GB/T 4857.5, JIS Z0202, EN 15552, and TAPPI T 804. All structural components undergo finite element analysis (FEA)-verified stress modeling during design validation. Calibration certificates are issued per ISO/IEC 17025:2017 by HAIDA’s in-house metrology lab—accredited by CNAS (No. CNAS L12345)—and include uncertainty budgets for height, timing, and impact velocity.

Software & Data Management

The HAIDA TestSuite™ v4.2 software (included) provides full test lifecycle management: method creation, parameter logging, real-time waveform capture (via optional load-cell or accelerometer input), and automated report generation in PDF/XLSX formats. Data export supports CSV and XML schemas compatible with LIMS platforms (e.g., LabWare, Thermo Fisher SampleManager). Audit trail records include operator ID, timestamp, parameter changes, calibration events, and test outcome status—all stored locally with optional encrypted cloud backup. Software validation documentation (IQ/OQ/PQ protocols) is available upon request for GMP/GLP-regulated environments.

Applications

• Validation of corrugated box compression strength and cushioning performance under simulated logistics shocks
• Drop integrity assessment of e-commerce fulfillment packaging per Amazon APASS and Walmart SGS protocols
• Regulatory submission support for UN-certified dangerous goods packaging (UN 4G, 4GV) in collaboration with certified hazardous materials testing labs
• Design verification of child-resistant closures, medical device trays, and automotive interior trim assemblies
• Root-cause analysis of package failure modes—including seam rupture, lid detachment, and internal component displacement—via synchronized high-speed video integration (optional)

FAQ

What standards does the HD-K913 natively support without hardware modification?
ASTM D5276, ISO 2248, GB/T 4857.5, ISTA 3A, and JIS Z0202 are fully supported out-of-the-box via preloaded test templates and validated mechanical configurations.
Can the system be integrated into an existing MES or QMS platform?
Yes—via OPC UA or Modbus TCP protocol support in the PLC controller; API documentation and middleware configuration guides are provided with enterprise licensing.
Is third-party calibration and certification available?
HAIDA partners with BV, SGS, and TÜV Rheinland to deliver on-site accredited calibration and ISO/IEC 17025-compliant certification reports.
What maintenance intervals are recommended for long-term reliability?
Preventive maintenance is advised every 1,000 operational hours or annually—whichever occurs first—including drum bearing inspection, belt tension verification, and safety circuit functional testing.
Does the HD-K913 meet requirements for FDA-regulated medical packaging validation?
When operated with validated software (TestSuite™ v4.2 + Part 11 module) and documented change control procedures, it fulfills design verification and process validation requirements per ISO 11607-1 and AAMI TIR22.
