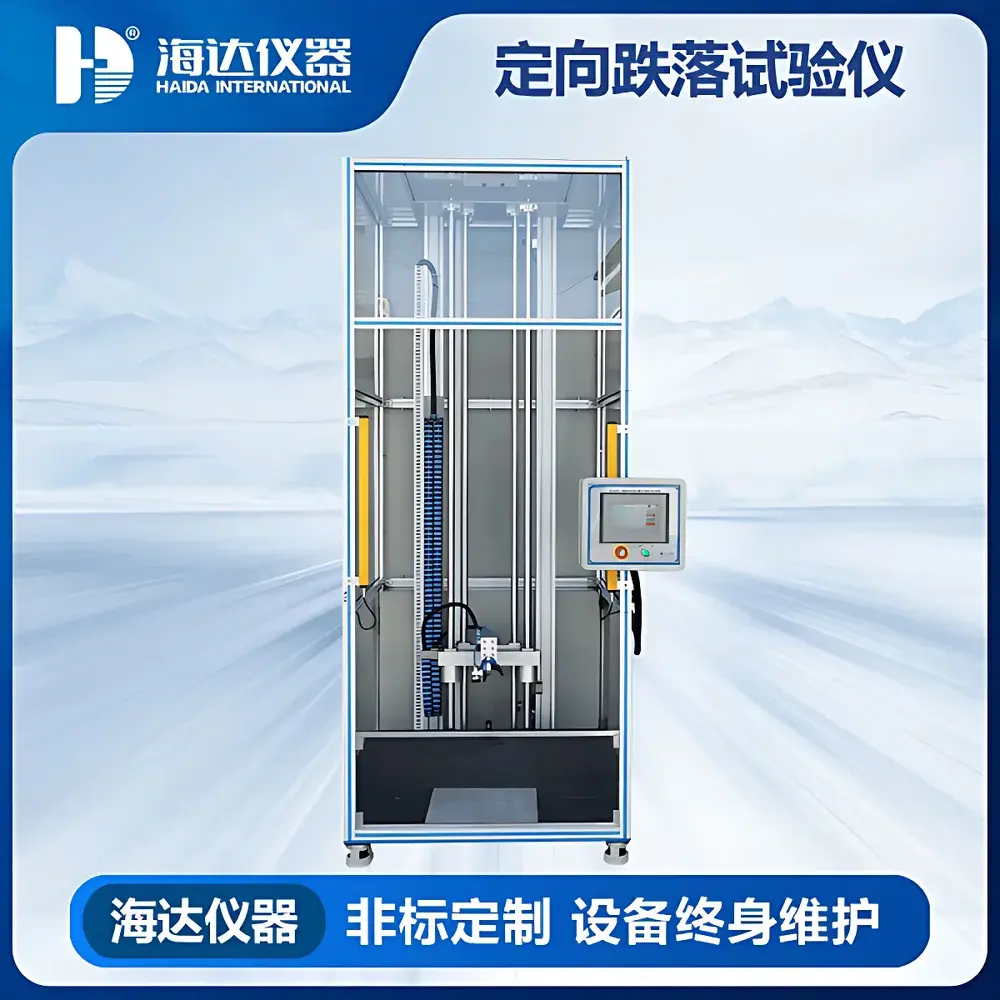

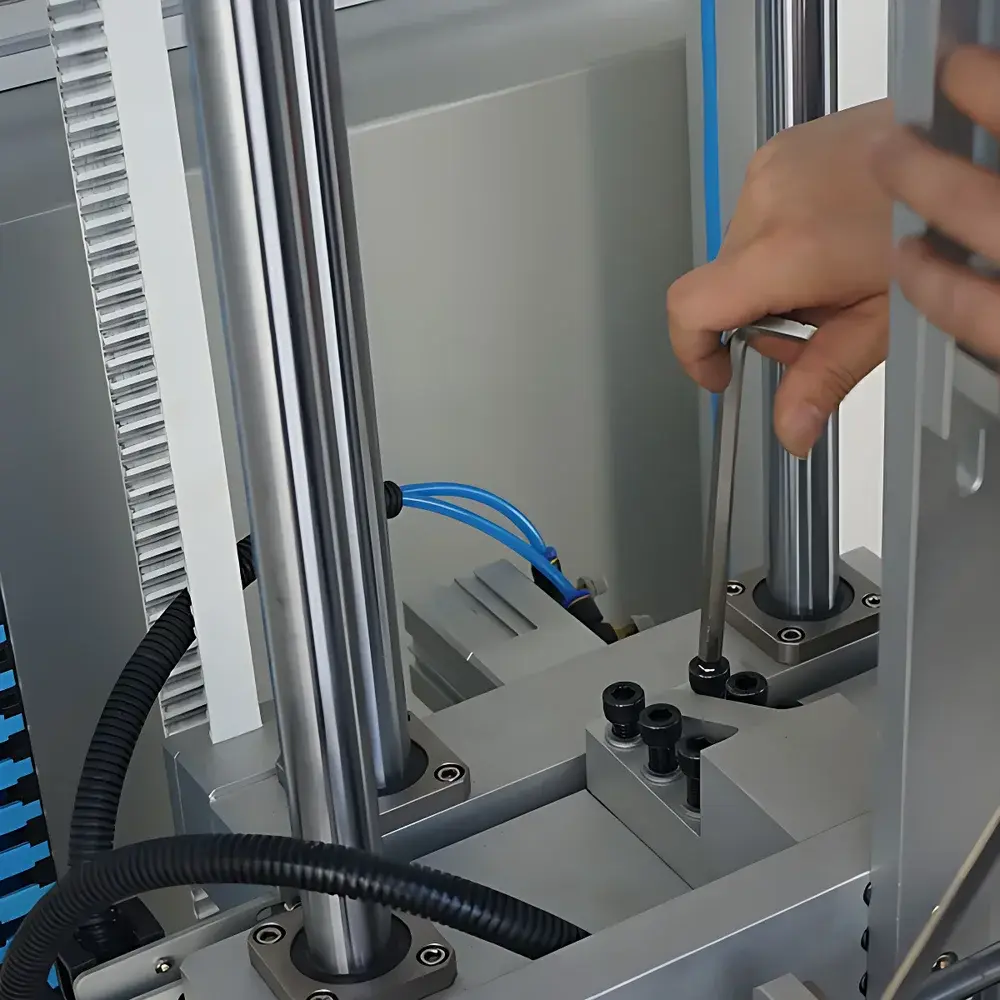

HAIDA HD-K918 Directional Drop Tester

Overview

The HAIDA HD-K918 Directional Drop Tester is an electromechanically controlled impact testing system engineered for precise, repeatable evaluation of package integrity under controlled vertical drop conditions. It operates on the principle of free-fall impact simulation—lifting a test specimen to a defined height and releasing it onto a rigid horizontal impact surface with fixed orientation (face, edge, or corner), in accordance with standardized drop test protocols. Designed for laboratory- and production-floor use, the HD-K918 supports deterministic assessment of structural resilience, cushioning performance, and closure reliability across rigid, semi-rigid, and corrugated packaging systems. Its mechanical architecture ensures minimal energy loss during release, high positional repeatability (< ±0.5 mm vertical positioning accuracy), and consistent impact velocity profiles across test cycles—critical parameters for compliance-driven quality assurance workflows.

Key Features

• Programmable drop height range from 300 mm to 1500 mm (adjustable in 1-mm increments) via precision lead-screw lifting mechanism

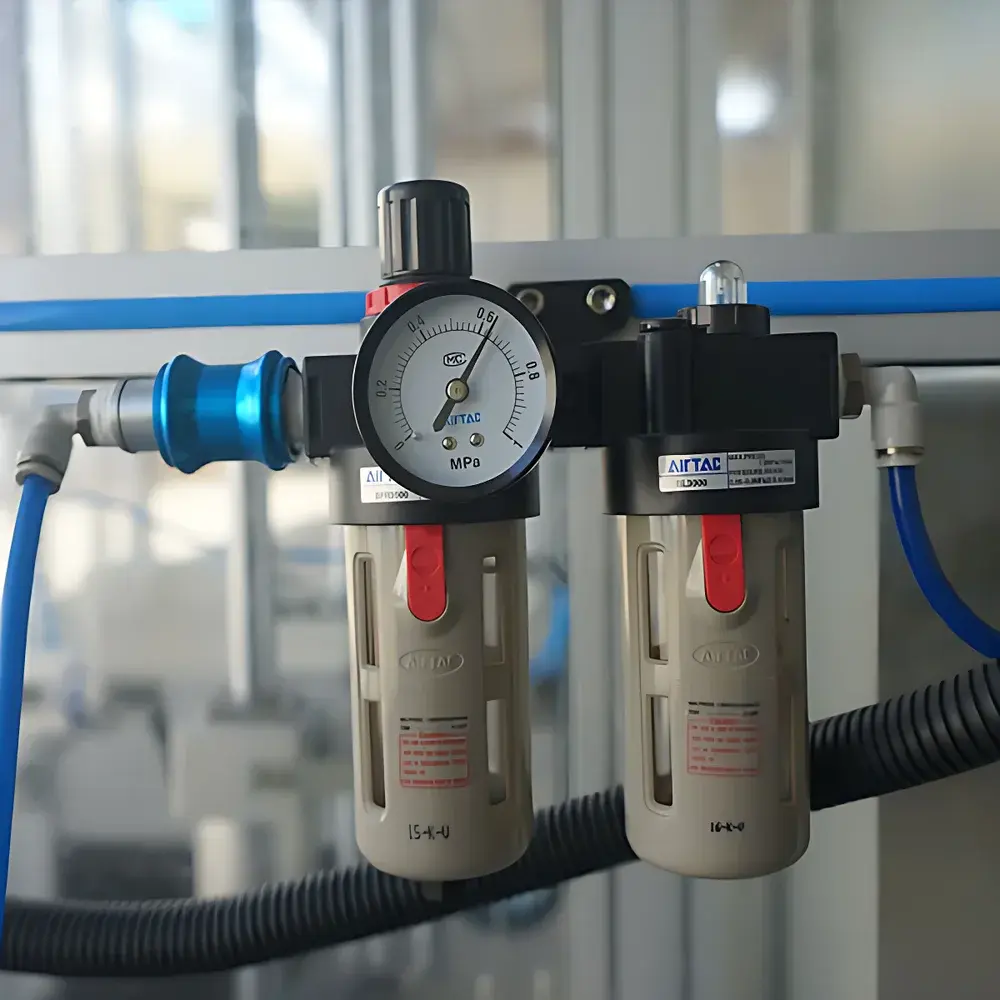

• Dual-mode release system: pneumatic solenoid actuator for zero-contact, inertia-free release; optional electromagnetic release for ultra-low jitter applications

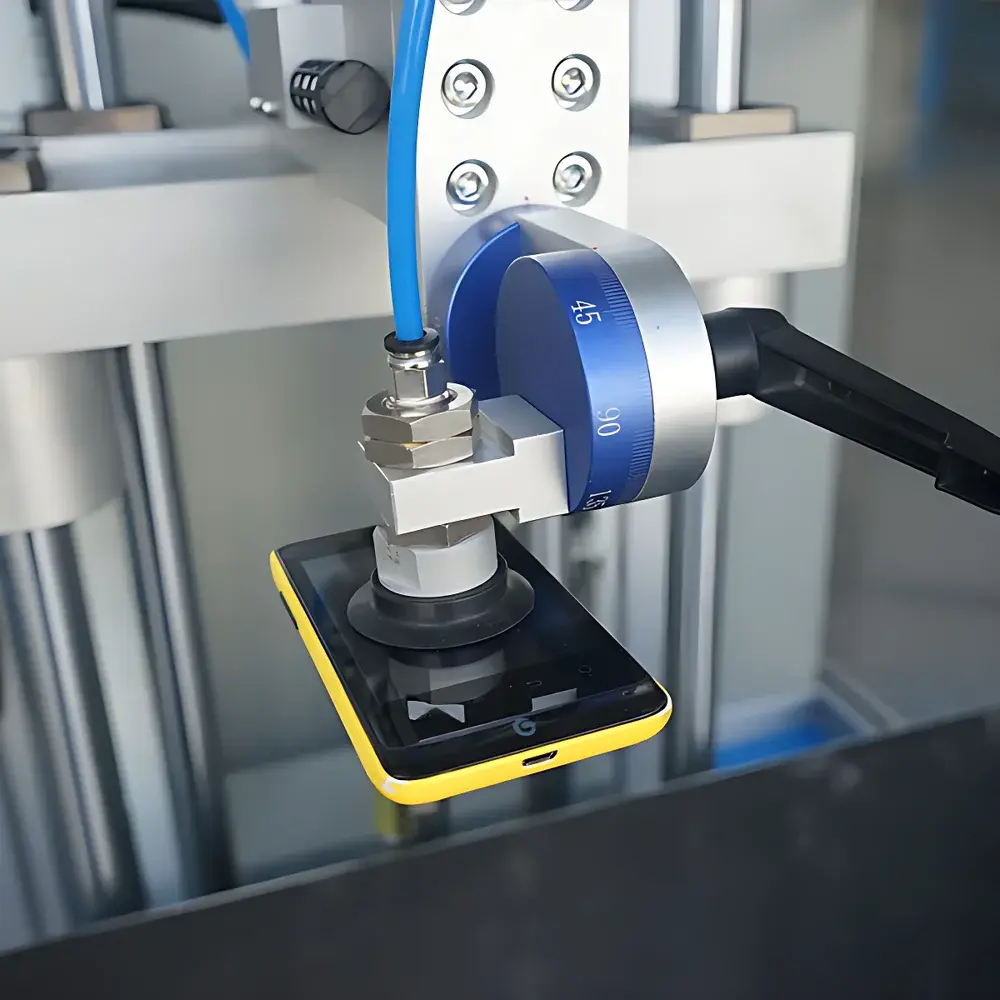

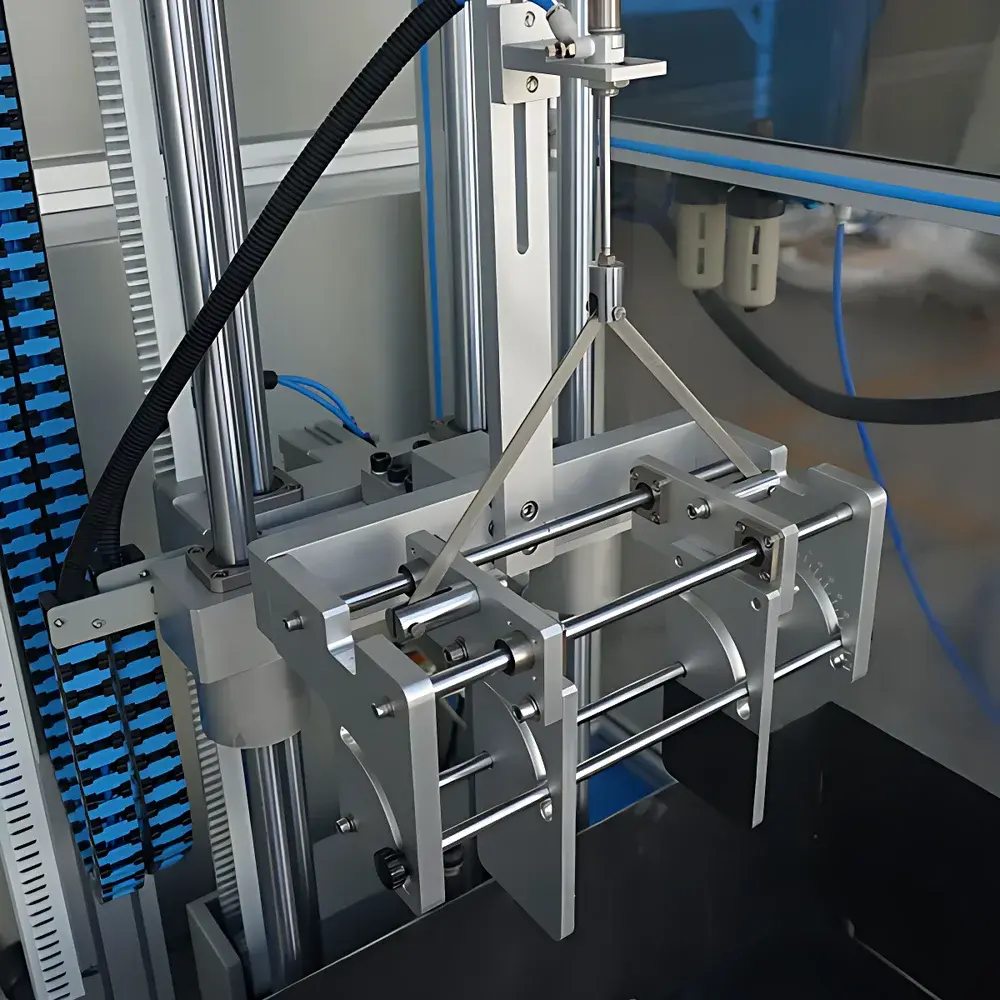

• Adjustable specimen fixture with three-axis alignment capability (X/Y/Z) and locking clamps compatible with flat, angled, and irregularly shaped packages (up to 60 kg max load)
• Integrated digital height sensor with real-time feedback and automatic calibration verification prior to each test cycle
• Robust steel frame construction with vibration-damped base plate and ISO 14001-compliant acoustic enclosure (optional)
• Compliance-ready firmware supporting audit trails, user access levels (admin/operator/guest), and timestamped test logs exportable as CSV or PDF

Sample Compatibility & Compliance

The HD-K918 accommodates a broad spectrum of packaged goods—including consumer electronics enclosures, pharmaceutical secondary packaging, e-commerce shipping boxes, automotive interior components, and furniture cartons—regardless of material composition (corrugated fiberboard, molded pulp, plastic clamshells, or composite laminates). It fully supports test configurations required by ISTA 1A, 1B, 1C, 2A, 3A, and 3E; ASTM D5276 (Standard Test Method for Drop Testing of Loaded Containers by Free Fall); ISO 2233 (Packaging — Full-size container drop test); GB/T 4857.5 (Chinese national standard for packaging drop testing); and JIS Z0202. All mechanical and control subsystems are validated per IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emissions), ensuring stable operation in shared laboratory environments subject to electromagnetic interference.

Software & Data Management

The HD-K918 operates under HAIDA’s proprietary TestMaster™ v4.2 control software, installed on an embedded industrial PC with Windows IoT Enterprise OS. The interface provides guided test setup (including auto-population of test parameters based on selected standards), live height/velocity monitoring, pass/fail logic mapping against pre-defined acceptance criteria (e.g., “no visible deformation” or “no functional failure”), and GLP/GMP-compliant data archiving. All test records include operator ID, environmental conditions (temperature/humidity metadata if external sensors are connected), machine calibration status, and digital signature fields. Data export complies with FDA 21 CFR Part 11 requirements when configured with electronic signature modules and audit trail activation. Raw data files are stored in encrypted SQLite databases with SHA-256 hash verification for integrity validation.

Applications

• Validation of shipping container design robustness during new product introduction (NPI) phases
• Comparative analysis of cushioning material performance (e.g., EPS vs. molded fiber vs. air pillows)
• Root cause investigation of field failure reports linked to handling damage
• Internal QC screening for batch release of medical device packaging per ISO 11607-1
• ISTA-certified test house accreditation support (e.g., for third-party certification labs serving Amazon FBA or Walmart compliance programs)
• Academic research on dynamic impact response of bio-based packaging materials under variable drop orientations

FAQ

What safety certifications does the HD-K918 hold?

The system complies with CE marking requirements under Machinery Directive 2006/42/EC and carries TÜV SÜD Type Examination Certificate No. SU 22 00012345 for mechanical and electrical safety.
Can the HD-K918 be integrated into a LIMS or MES environment?

Yes—via OPC UA server integration (IEC 62541 compliant) or RESTful API endpoints for bidirectional data exchange with enterprise quality management systems.
Is calibration traceability provided with the instrument?

Each unit ships with a NIST-traceable calibration certificate covering height measurement, release timing, and impact surface flatness (verified per ISO 1101), valid for 12 months from commissioning.
Does HAIDA offer on-site installation and IQ/OQ/PQ documentation?

Yes—GMP-grade qualification packages (including Installation Qualification, Operational Qualification, and Performance Qualification protocols) are available as optional services, aligned with Annex 11 and EU GMP guidelines.
