HAIDA HD-M005 Cookware Handle Impact Tensile Tester
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | HD-M005 |
| Quotation | Available Upon Request |
| Weight of Standard Mass | 10 kg ± 50 g |
| Impact Hammer Mass | 1 kg ± 50 g |
| Impact Drop Distance | 150 mm ± 5 mm |
| Guiding Column + Lower Stop Total Mass | 10 kg ± 50 g |
| Max Sample Width | 384 mm |
| Overall Dimensions (L×W×H) | 1208 × 1438 × 453 mm |
Overview

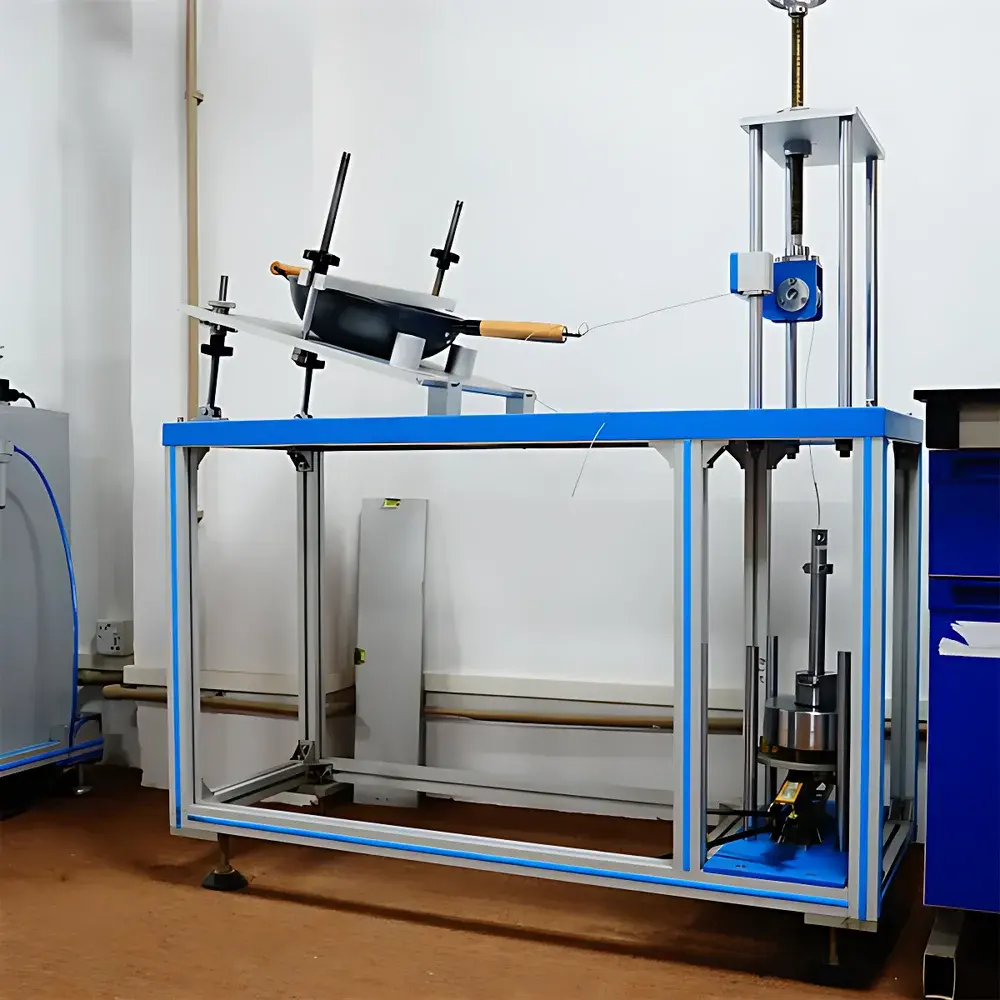

The HAIDA HD-M005 Cookware Handle Impact Tensile Tester is an engineered mechanical test system designed to evaluate the structural integrity and fastening reliability of cookware handles under standardized dynamic tensile loading conditions. It operates on the principle of controlled gravitational impact—where a calibrated mass is elevated and released to deliver a defined kinetic energy impulse via a steel wire linkage to the handle assembly. This method replicates real-world misuse scenarios such as sudden lifting or accidental jolting during kitchen handling. The instrument complies with the essential mechanical test requirements specified in DD CEN/TS 12983-2:2005, “Cookware — Part 2: Requirements and test methods for handles and knobs,” particularly Annex A (Tensile strength test for handles). Its robust architecture ensures repeatable force application, minimal operator influence, and traceable test execution—critical attributes for accredited laboratories conducting conformity assessments per EN ISO/IEC 17025.
Key Features

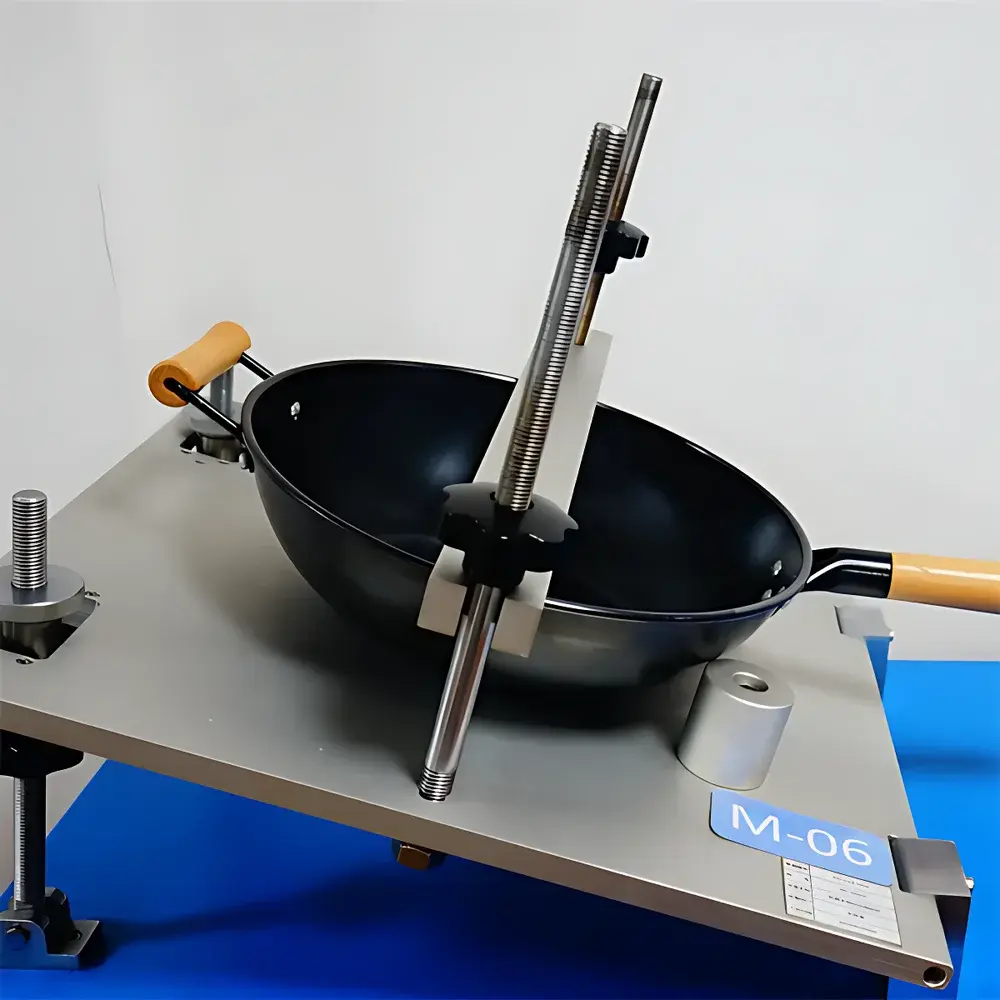

- Adjustable angular positioning of the horizontal test platform enables precise alignment between the applied tensile vector and the longitudinal axis of diverse handle geometries—including looped, D-shaped, and offset-mounted configurations.

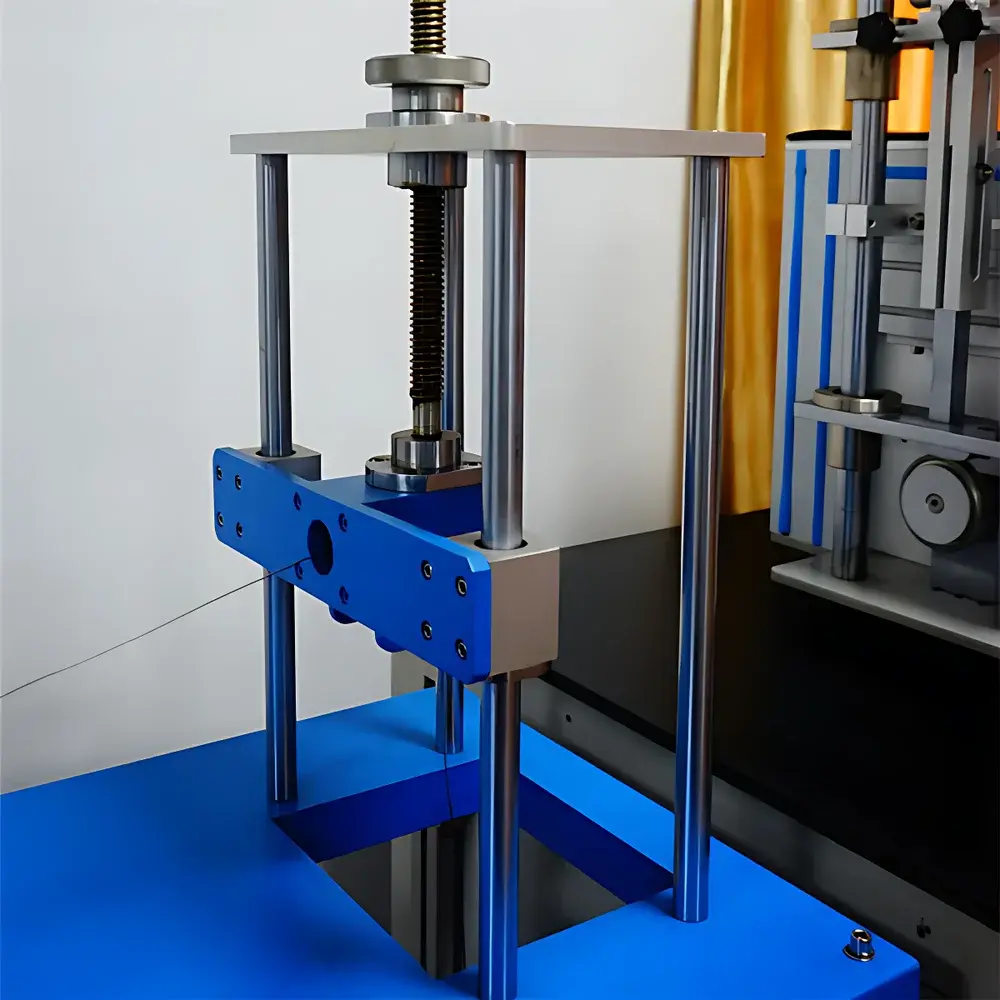

- Worm-gear driven vertical lift mechanism allows rapid, stable height adjustment of the impact hammer assembly, accommodating cookware of varying rim heights without tooling changes.
- Modular fixture interface supports custom-designed clamping fixtures, enabling secure mounting of pans, pots, and casseroles ranging from 120 mm to 384 mm in maximum width.

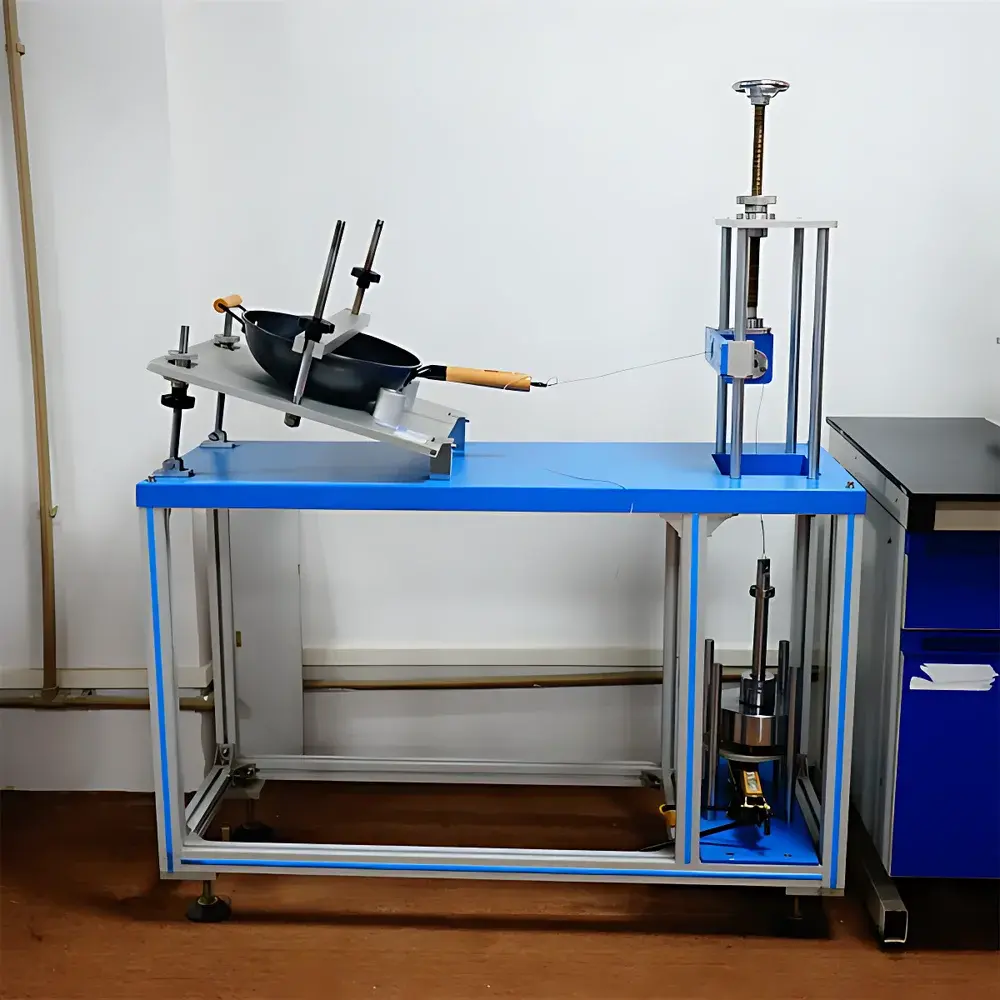

- Hydraulic screw-type jack (0.8-ton capacity) provides smooth, low-effort elevation of the impact system; its mechanical lock ensures consistent drop height repeatability across sequential tests.
- Calibrated 10 kg counterweight (±50 g tolerance) and 1 kg impact hammer (±50 g tolerance) meet metrological requirements for Class M2 mass standards per OIML R111, supporting audit-ready calibration documentation.
Sample Compatibility & Compliance
The HD-M005 accommodates flat-bottomed and shallow-arc cookware with handle attachment points located within a 384 mm lateral span. Compatible sample types include stainless steel, aluminum, enameled cast iron, and composite-handled cookware meeting EN 12983-1 material classifications. All test procedures align with the pass/fail criteria defined in DD CEN/TS 12983-2:2005 Section 6.2—requiring no visible loosening, deformation exceeding 1 mm at the fastener interface, or separation after three consecutive impacts. The system supports GLP-compliant test record generation when paired with external documentation protocols, and its mechanical design inherently satisfies ISO 17025 clause 6.4.1 regarding equipment suitability for intended use.
Software & Data Management
The HD-M005 is a manually operated mechanical tester with no embedded microprocessor or digital control unit. As such, it does not incorporate proprietary software, data logging, or network connectivity. All test parameters—including drop height, hammer mass, and visual assessment outcomes—are recorded manually in laboratory notebooks or LIMS-integrated paper-based forms. This analog architecture eliminates electronic validation requirements (e.g., FDA 21 CFR Part 11), simplifying qualification for facilities operating under GMP-aligned quality systems where mechanical traceability and operator-controlled execution are preferred over automated reporting. Calibration records for masses and dimensional gauges must be maintained per ISO/IEC 17025 section 6.5.
Applications
- Pre-market verification testing for cookware manufacturers seeking CE marking under the EU General Product Safety Directive (2001/95/EC).
- Internal QC screening of handle fasteners (rivets, screws, welded joints) during production line audits.
- Third-party certification testing by notified bodies accredited to ISO/IEC 17065 for EN 12983 compliance declarations.
- Root cause analysis of field failure reports involving handle detachment incidents.
- Educational demonstration of mechanical fastener performance limits in materials science and product safety engineering curricula.
FAQ
What standards does the HD-M005 specifically support?
DD CEN/TS 12983-2:2005 Annex A, with technical alignment to EN 12983-1:2005 material specifications and EN 60335-1:2012+A11:2014 mechanical hazard clauses.
Is calibration certification included with shipment?
A factory-issued calibration report for the 10 kg mass and 1 kg hammer is provided; end-user recalibration at accredited labs is recommended annually or per internal QA schedule.
Can the HD-M005 perform static tensile tests?
No—it is exclusively configured for dynamic impact tensile evaluation per CEN/TS 12983-2; static pull tests require separate universal testing machines compliant with ISO 7500-1.
What maintenance is required for long-term accuracy?
Monthly inspection of steel wire integrity, lubrication of worm gear threads, and verification of stop-collar tightness on the guiding column are advised per the operator manual.
Are replacement fixtures available for non-standard cookware?
Yes—HAIDA offers OEM fixture design services based on customer-supplied CAD models or physical samples, with lead times quoted separately.
