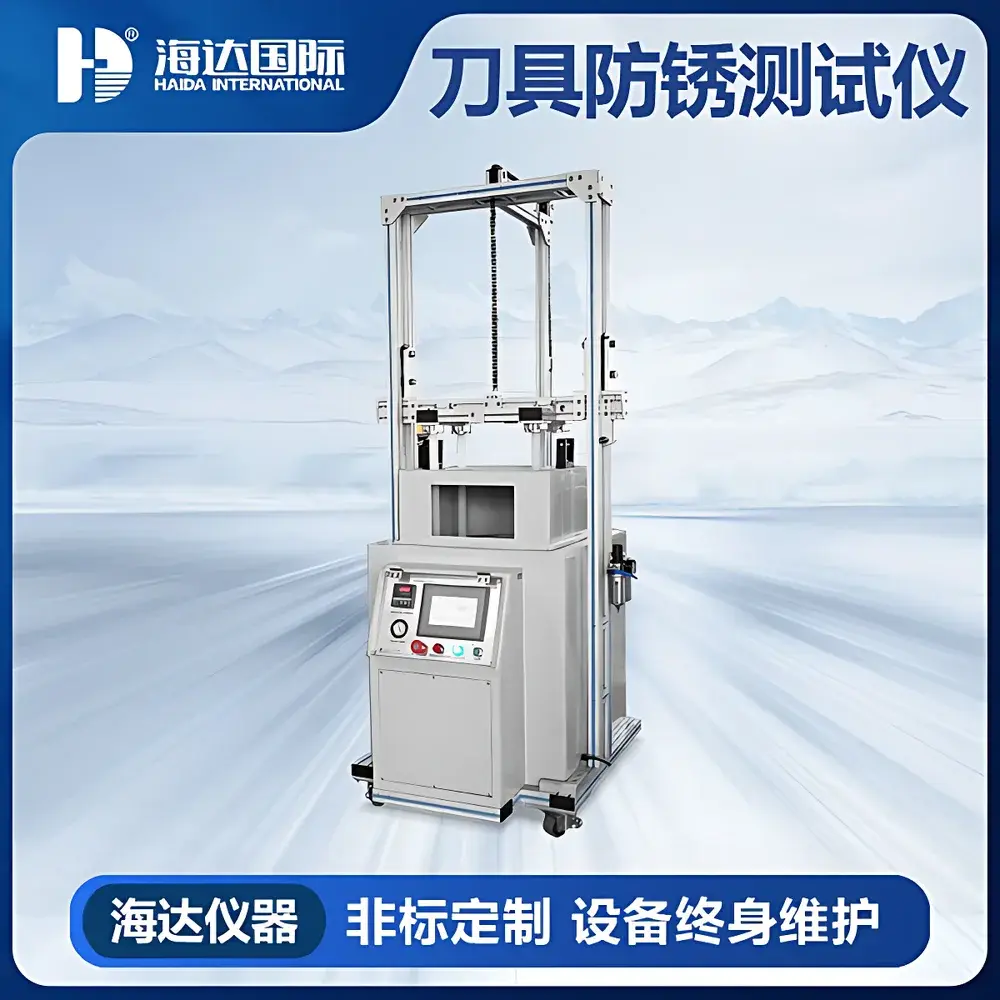

HAIDA HD-M007 Rust Resistance Tester for Cutting Tools

Overview

The HAIDA HD-M007 Rust Resistance Tester for Cutting Tools is an engineered benchtop test system designed to evaluate the corrosion inhibition performance of protective coatings, rust preventatives, and surface treatments applied to cutting tools—such as high-speed steel (HSS), carbide-tipped inserts, and precision-ground tooling components. It operates on the principle of controlled humidified salt spray exposure combined with periodic visual and microscopic assessment of rust initiation and propagation under standardized environmental stress conditions. Unlike generic salt spray chambers, the HD-M007 integrates programmable humidity ramping, temperature stabilization (±0.5 °C), and timed intermittent spray cycles specifically calibrated to accelerate oxidative degradation mechanisms relevant to metalworking fluid residues, vapor-phase corrosion inhibitors (VpCIs), and post-machining passivation layers. The system supports both static immersion and dynamic air–salt mist exposure modes, enabling correlation between laboratory test results and real-world storage or transit environments encountered by tooling in automotive, aerospace, and precision machining supply chains.

Key Features

• Programmable test protocols compliant with ASTM D1748 (Standard Test Method for Rust Protection by Metal Preservatives in the Humidity Cabinet), ISO 9227 (Salt Spray Testing), and GB/T 10125 (Artificial Atmosphere Corrosion Tests)
• Dual-mode operation: continuous salt fog and cyclic humidity–dry–spray sequences with adjustable dwell times (1 min to 99 h per phase)
• Integrated digital hygrometer and thermistor array ensuring ±2% RH accuracy and ±0.3 °C thermal uniformity across test chamber volume
• Corrosion-resistant 316 stainless steel chamber interior with removable sample trays accommodating up to 12 standardized tool holders (ISO 513-compliant mounting fixtures)
• Automated data logging of environmental parameters (temperature, relative humidity, spray duration, cycle count) with timestamped CSV export capability
• Front-access viewing window with anti-fog coating and integrated LED illumination for real-time rust morphology observation without chamber opening

Sample Compatibility & Compliance

The HD-M007 accommodates a broad range of cutting tool geometries—including end mills, drills, taps, reamers, and inserts—mounted on standardized aluminum or phenolic tooling plates. Sample mounting conforms to ISO 2081 and ASTM B117 dimensional guidelines for corrosion test specimens. All test procedures are traceable to national metrology standards maintained by CNAS-accredited calibration laboratories. The instrument’s design and validation documentation support GLP-compliant testing environments and align with FDA 21 CFR Part 11 requirements for electronic record integrity when paired with HAIDA’s optional audit-trail-enabled software module. Test reports generated using the HD-M007 meet evidentiary thresholds for internal quality audits, supplier qualification programs, and third-party certification bodies including SGS, TÜV Rheinland, and BV.

Software & Data Management

The HD-M007 is compatible with HAIDA’s proprietary TestControl Suite v3.2—a Windows-based application supporting method creation, remote monitoring, and automated report generation in PDF and Excel formats. Software features include user-defined pass/fail criteria based on ASTM D610 rust rating scales (0–10), image annotation tools for documenting rust progression, and built-in statistical analysis (mean time to first rust, rust coverage percentage per sample group). Audit trail functionality logs all user actions—including method edits, parameter overrides, and report exports—with immutable timestamps and operator ID authentication. Data files comply with ISO/IEC 17025 documentation requirements and may be archived in secure network folders meeting ICH M7 and EU Annex 11 data retention expectations.

Applications

• Validation of water-displacing rust inhibitors used in CNC machine tool maintenance
• Comparative evaluation of vapor-phase corrosion inhibitor (VpCI) papers and packaging films for tool storage
• Quality control of phosphate conversion coatings and chromate-free passivation layers on tungsten carbide substrates
• Development testing of biodegradable rust preventatives aligned with REACH and RoHS compliance objectives
• Supplier qualification of cutting tool manufacturers requiring documented corrosion resistance performance at ≥72 h under ASTM D1748 Cycle A

FAQ

Does the HD-M007 meet ASTM D1748 requirements for humidity cabinet testing?

Yes—the chamber maintains 100% RH at 38 °C with ±0.5 °C stability and includes programmable condensation control to replicate the dew-point dynamics specified in Section 7.2 of ASTM D1748.
Can the system be integrated into an existing LIMS or MES platform?

Yes—via OPC UA or Modbus TCP interfaces; HAIDA provides documented API specifications and sample integration scripts for common laboratory informatics systems.
Is calibration certification included with shipment?

Each unit ships with a factory calibration certificate traceable to NIM (National Institute of Metrology, China) standards; optional ISO/IEC 17025-accredited calibration is available upon request.
What safety certifications does the HD-M007 hold?

It carries CE marking (EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU), RoHS 2011/65/EU compliance, and has passed flame-retardancy testing per UL 94 V-0 for internal wiring enclosures.
