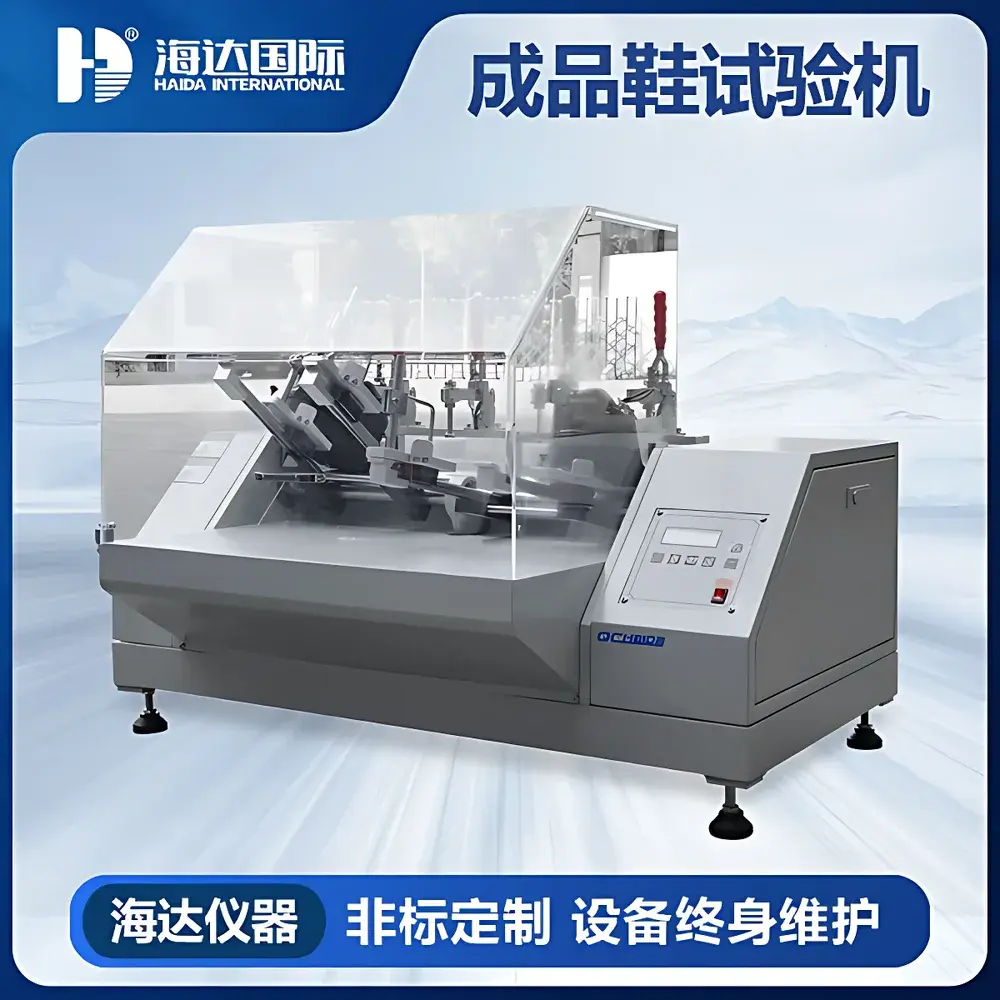

HAIDA HD-P812 Finished Footwear Flexing & Heel Crease Tester

Overview

The HAIDA HD-P812 Finished Footwear Flexing & Heel Crease Tester is an electromechanical durability testing instrument engineered for standardized evaluation of heel creasing and upper flex resistance in finished footwear. It operates on the principle of controlled, repetitive flexing motion—mimicking natural gait-induced deformation—applied to the heel and posterior quarter region of a mounted shoe sample. The device conforms to the mechanical actuation framework defined in ISO 20344:2022 (Personal protective footwear — Test methods), ASTM F2413-23 (Standard Specification for Performance Requirements for Protective Footwear), and GB/T 20991–2007 (Occupational footwear — Test methods). Unlike static compression testers, the HD-P812 replicates dynamic fatigue loading through a programmable cam-driven mechanism that subjects the heel counter and adjacent vamp materials to cyclic bending at a fixed angle (typically ±30° to ±45°), frequency (commonly 60–120 cycles/min), and load profile. This enables quantifiable assessment of structural integrity degradation—including surface cracking, delamination, stitch pull-out, and contour distortion—over extended test durations (up to 100,000 cycles).

Key Features

• Programmable flexing cycle count (1–100,000 cycles) with digital counter and automatic stop function upon completion or fault detection
• Adjustable flex angle (±20° to ±50°) via precision-machined cam profile selection, enabling method-specific calibration per ISO, ASTM, or internal QC protocols
• Dual-axis sample mounting fixture accommodating men’s and women’s footwear sizes EU 36–46 (US 5–12), with adjustable clamping pressure to prevent slippage without distorting sole geometry
• Brushless DC motor drive system ensuring consistent torque output and long-term repeatability across thermal and load variations
• Integrated LED status indicators and audible alarm for cycle completion, motor stall, or safety interlock activation
• Robust steel frame construction with powder-coated finish, designed for continuous operation in QC laboratories and factory floor environments

Sample Compatibility & Compliance

The HD-P812 accommodates fully assembled, commercially finished footwear—including safety boots, athletic shoes, casual leather oxfords, and PU/EVA-based casual styles—without requiring disassembly or component removal. Test specimens must be mounted on standard last forms (included) to maintain anatomical alignment during flexing. The instrument supports compliance verification against multiple international footwear standards: ISO 20344 (heel crease resistance), EN ISO 20347 (occupational footwear), ASTM F2413 (impact/compression/creep resistance), and GB/T 20991 (Chinese national standard for occupational footwear testing). All mechanical parameters—including angular displacement tolerance (±0.5°), cycle timing deviation (< ±0.3%), and positional repeatability (≤ ±0.2 mm)—are traceable to NIM-certified calibration procedures performed at HAIDA’s ISO/IEC 17025-accredited metrology lab.

Software & Data Management

While the HD-P812 operates as a standalone hardware platform with local digital control panel, optional RS-232 or USB-C interface enables integration with HAIDA’s optional LabLink™ Data Acquisition Suite (v3.2+). This software supports real-time cycle logging, pass/fail threshold configuration (e.g., crack width > 0.3 mm detected visually per ISO 20344 Annex D), and automated report generation compliant with GLP documentation requirements. Audit trails include operator ID, date/time stamp, environmental conditions (if linked to optional ambient sensor module), and calibration history—fully aligned with FDA 21 CFR Part 11 electronic record controls when deployed in regulated manufacturing environments.

Applications

• Quality assurance of heel counter stiffness and rearfoot structural retention in OEM footwear production lines
• Comparative fatigue analysis of alternative heel counter materials (e.g., thermoplastic polyurethane vs. fiber-reinforced composites)
• Validation of adhesive bond strength between heel lining, counter board, and upper leather layers
• R&D evaluation of new last geometries and lasting techniques affecting posterior flex behavior
• Third-party certification testing for CE marking, ANSI Z41, or CCC approval submissions
• Supplier qualification audits requiring documented evidence of heel durability per contractual specifications

FAQ

Does the HD-P812 comply with ISO 20344:2022 Section 6.11 (Heel Crease Resistance)?

Yes—the mechanical flexing geometry, angular range, cycle rate, and sample mounting protocol are fully aligned with Clause 6.11 requirements. Calibration certificates include traceability to ISO/IEC 17025-accredited reference standards.
Can the tester accommodate children’s footwear or orthopedic shoes?

Standard fixtures support EU 36–46; custom last adapters (optional) are available for pediatric sizes (EU 22–35) and orthopedic models with non-standard heel profiles.
Is periodic recalibration required, and what is the recommended interval?

Annual recalibration is recommended per ISO/IEC 17025 guidelines; HAIDA provides on-site service or return-to-factory calibration with full uncertainty budget reporting.
What maintenance is required for long-term operational reliability?

Monthly visual inspection of cam surfaces and clamping jaws, biannual lubrication of pivot points with ISO VG 68 synthetic grease, and quarterly verification of motor encoder linearity using HAIDA’s diagnostic utility tool.
Is the HD-P812 suitable for use in ISO 17025-accredited testing laboratories?

Yes—when operated under documented SOPs, maintained per manufacturer instructions, and calibrated with certified traceable standards, the HD-P812 meets the technical competence requirements for inclusion in accredited scope of testing.
