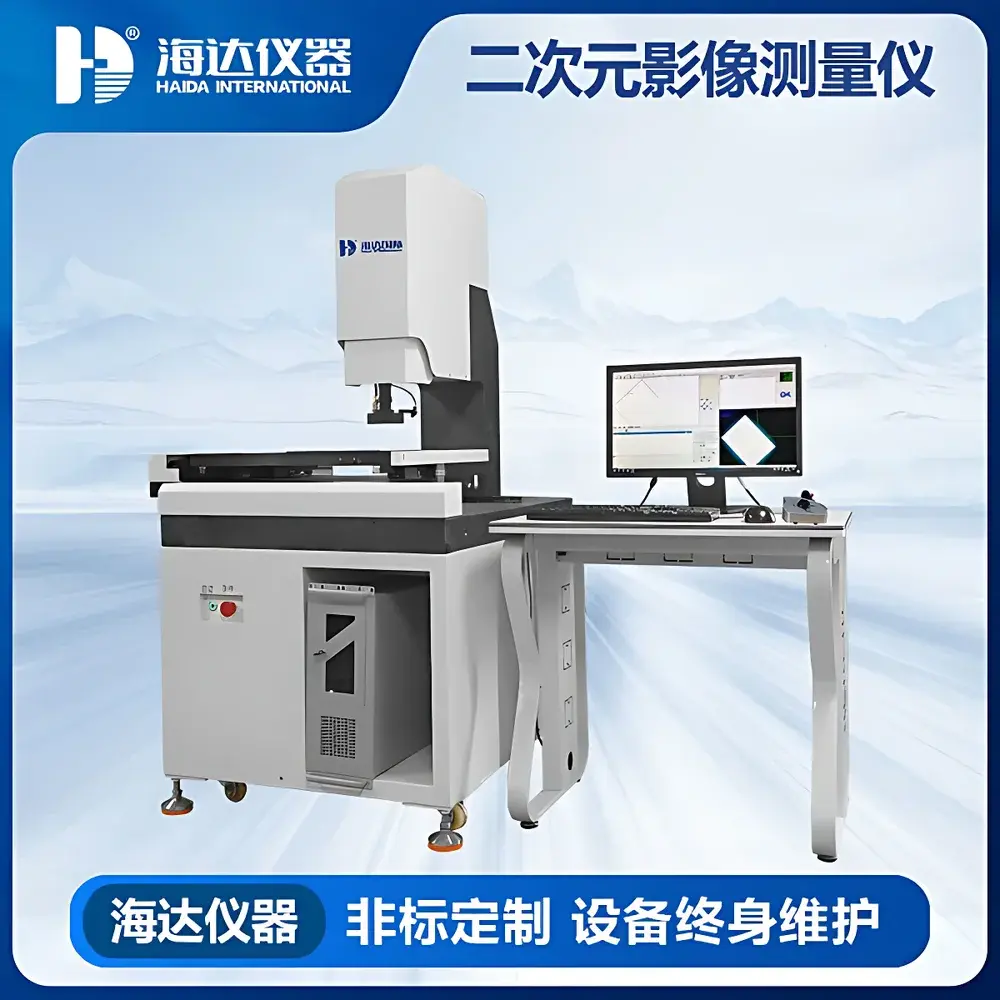

HAIDA HD-U801-1 2D Video Measuring System – Model 3020
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Country of Origin | China |
| Model | HD-U801-1 2D Video Measuring System – 3020 |
| Pricing | Upon Request |
Overview
The HAIDA HD-U801-1 2D Video Measuring System – Model 3020 is a precision optical coordinate measuring instrument engineered for non-contact, high-resolution dimensional metrology of planar components. Utilizing digital image acquisition, sub-pixel edge detection algorithms, and motorized XYZ-stage positioning, the system measures geometric features—including length, width, angle, radius, distance between centers, and positional tolerances—based on calibrated CCD imaging and geometric transformation principles. Designed for quality control laboratories, R&D centers, and production line inspection stations, the HD-U801-1 delivers traceable measurement results aligned with ISO/IEC 17025 requirements when operated under validated conditions. Its fixed-focus telecentric optical path minimizes perspective distortion, ensuring consistent magnification across the full 300 mm × 200 mm measurement field—a configuration optimized for medium-sized mechanical parts, printed circuit board (PCB) substrates, stamped metal components, plastic injection-molded housings, and thin-film packaging materials.
Key Features
- Motorized Z-axis focus control with programmable auto-focus routines for repeatable image sharpness across varying sample heights.
- High-sensitivity 5 MP progressive-scan industrial camera with adjustable LED ring illumination (coaxial + oblique lighting modes) to enhance edge contrast on reflective, matte, or translucent surfaces.
- Manual and CNC-mode operation: supports point-and-click measurement, batch program execution, and script-based automated inspection sequences via built-in motion controller.
- Integrated dual-scale measurement capability: combines pixel-based sub-pixel edge detection (≤0.5 µm resolution) with calibrated stage movement (±1.0 µm repeatability per axis).
- Rugged granite base and precision ground linear guideways ensure long-term thermal and mechanical stability under ambient laboratory conditions (20 ± 2 °C, 40–70% RH).
- Compliant with ISO 10360-7 (coordinate measuring machines — part 7: characterization of image measuring systems) for verification of measurement uncertainty and error mapping.
Sample Compatibility & Compliance
The HD-U801-1 accommodates flat, rigid, or semi-rigid specimens up to 350 mm × 250 mm in footprint and ≤120 mm in height. Samples may be placed directly on the glass stage or secured using vacuum chucks, pin fixtures, or custom clamping plates. It supports measurement of metallic, ceramic, polymer, composite, and coated substrates—provided surface finish permits reliable edge definition under controlled lighting. The system meets essential safety and electromagnetic compatibility requirements per GB/T 18268.1 (equivalent to IEC 61326-1), and its software architecture enables audit-ready data handling compliant with GLP and GMP documentation practices. Measurement reports include timestamped operator ID, calibration certificate references, environmental condition logs, and traceable uncertainty budgets per ISO/IEC 17025 Annex A.5.
Software & Data Management
Equipped with HAIDA VisionPro™ v4.x metrology software, the HD-U801-1 provides intuitive GUI-driven measurement workflows, real-time image annotation, GD&T evaluation (position, concentricity, parallelism), and customizable report templates (PDF, Excel, CSV). All measurement data—including raw images, coordinate sets, and parameter configurations—are stored in an encrypted local database with configurable backup intervals. Software supports role-based access control (RBAC), electronic signatures, and full audit trail functionality—including user login/logout timestamps, parameter modifications, and report generation events—to satisfy FDA 21 CFR Part 11 requirements where applicable. Optional API integration enables bidirectional communication with MES or QMS platforms (e.g., SAP QM, ETQ Reliance) via TCP/IP or OPC UA protocols.
Applications
- Dimensional verification of automotive gaskets, brake pads, and stamped chassis components against engineering drawings (ASME Y14.5 / ISO 1101).
- PCB and FPC inspection: solder mask alignment, pad-to-pad spacing, drill hole location, and fiducial mark registration.
- Packaging quality assurance: blister cavity depth, seal width consistency, label placement tolerance, and carton crease line geometry.
- Furniture hardware metrology: hinge hole pitch, drawer slide mounting bracket symmetry, and laminate edge banding overlap.
- Medical device component validation: syringe barrel diameter uniformity, catheter hub concentricity, and surgical instrument blade profile conformity.
FAQ
What standards does the HD-U801-1 comply with for measurement traceability?
The system supports calibration traceability to national metrology institutes (NMI) via certified step gauges and ball bars; measurement uncertainty evaluation follows ISO/IEC 17025 and VDI/VDE 2634 Part 2 guidelines.
Can the system perform GD&T analysis such as true position or profile of a surface?
Yes—VisionPro™ software includes full GD&T module supporting ISO 1101 and ASME Y14.5 symbols, including datum establishment, tolerance zone calculation, and deviation visualization.
Is remote operation or network deployment supported?
The system operates as a standalone workstation by default; optional network licensing and remote desktop access (via secure VPN) are available for centralized fleet management.
Does HAIDA provide installation qualification (IQ) and operational qualification (OQ) documentation?
Yes—validated IQ/OQ protocols, test scripts, and summary reports are supplied upon request and can be customized to align with internal validation SOPs or regulatory submissions.
