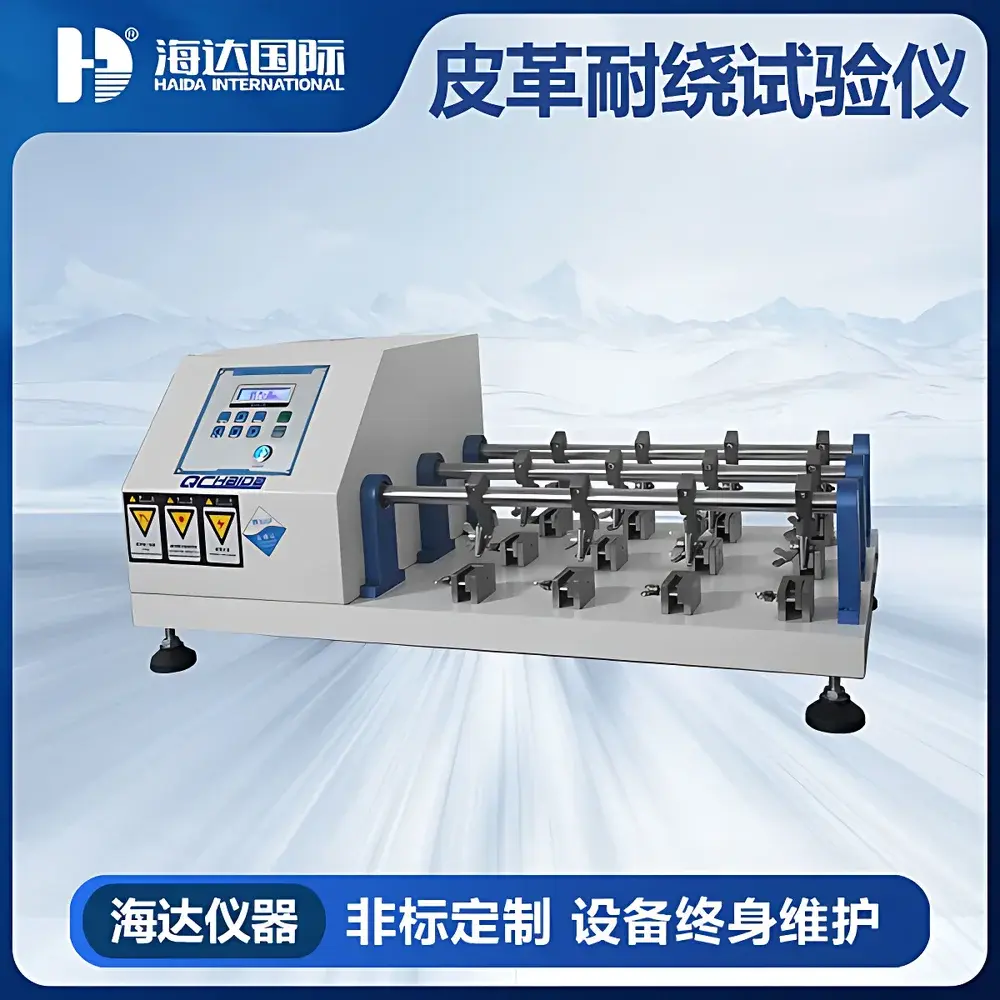

HAIDA INTERNATIONAL Leather Flexing Tester

Overview

The HAIDA Leather Flexing Tester is a precision-engineered mechanical durability testing instrument designed to evaluate the resistance of leather, synthetic leather, and flexible sheet materials to repeated bending, folding, and creasing under controlled conditions. Based on the principle of cyclic mechanical flexing—typically employing a standardized mandrel-based clamping and reciprocating motion system—the tester simulates real-world usage stresses such as those encountered in footwear uppers, upholstery, gloves, and automotive interior trim. It operates in accordance with internationally recognized test methodologies including ISO 5423:1997 (Leather — Determination of resistance to flexing), ASTM D2176 (Standard Test Method for Folding Endurance of Paper), and GB/T 22893–2008 (China National Standard for Leather Flex Resistance). The device delivers repeatable, traceable results essential for QC laboratories, R&D departments, and third-party certification bodies engaged in material qualification and regulatory compliance.

Key Features

• Robust dual-station or single-station configuration options, supporting simultaneous or independent testing of two specimens for enhanced throughput and comparative analysis.
• Adjustable flexing angle (typically 90°–180°) and stroke length, enabling customization to match specific material thicknesses and application requirements.
• Precision-machined stainless-steel mandrels with standardized diameters (e.g., 6 mm, 8 mm, or 10 mm per ISO/GB specifications) ensure consistent contact geometry and minimize edge wear artifacts.
• Digital microprocessor control with real-time cycle counting, programmable test duration (up to 999,999 cycles), and automatic stop-on-failure detection (crack, grain separation, or coating delamination).
• Compliance-ready design: Built-in audit trail logging capability supports GLP and GMP-aligned workflows; optional RS232/USB interface enables integration with LIMS and electronic lab notebooks.
• Modular frame construction with vibration-dampening feet and reinforced load-bearing base ensures long-term dimensional stability and measurement reproducibility across extended operational duty cycles.

Sample Compatibility & Compliance

The HAIDA Leather Flexing Tester accommodates flat, non-woven, and laminated specimens measuring up to 100 mm × 50 mm (L × W), with thickness ranging from 0.5 mm to 5.0 mm. Compatible substrates include bovine/calf/sheep leather, PU/PVC-coated synthetics, textile-leather composites, and technical membranes used in functional apparel. All test protocols align with statutory and industry-standard frameworks: ISO 5423, ASTM D2176 (adapted for flexible films), EN 15987 (Footwear component testing), GB/T 22893–2008, and JIS L 1096 (Section 8.17.2 for flex resistance). The instrument’s mechanical calibration traceability conforms to ISO/IEC 17025 requirements when paired with accredited external verification services.

Software & Data Management

The embedded firmware provides intuitive menu navigation via a backlit LCD interface, supporting multi-language display (English, Chinese, Spanish). Cycle count, elapsed time, failure mode annotation (user-selectable codes), and timestamped event logs are stored internally for ≥1,000 test records. Optional PC-based HAIDA TestSuite™ software (v3.2+) extends functionality with automated report generation (PDF/Excel), statistical process control (SPC) charting (X̄-R, Cp/Cpk), and 21 CFR Part 11-compliant user access controls—including role-based permissions, electronic signatures, and immutable audit trails. Raw data export adheres to ASTM E1461 and ISO 10012-2 metadata conventions for metrological integrity.

Applications

• Quality assurance of finished leather goods in tanneries and cutting houses prior to shipment.
• Comparative benchmarking of alternative leathers and bio-based substitutes during sustainable material development.
• Validation of surface coatings, embossing durability, and backing adhesion in automotive OEM supplier audits.
• Regulatory submission support for REACH Annex XVII, CPSIA Section 108 (flex-critical components), and EU Regulation (EC) No 1907/2006 compliance dossiers.
• Failure mode analysis in root cause investigations following field complaints related to seam cracking or grain flaking.
• Process parameter optimization in wet-blue stabilization and retanning stages through correlation of flex life with collagen crosslink density.

FAQ

What standards does the HAIDA Leather Flexing Tester directly support?
It is configured to execute ISO 5423, GB/T 22893–2008, and ASTM D2176 (with appropriate specimen conditioning and fixture adaptation). Custom protocol loading is supported via firmware update.
Is third-party calibration documentation provided with shipment?
Yes—each unit ships with a factory calibration certificate traceable to NIM (National Institute of Metrology, China) or equivalent national metrology institute, valid for 12 months from date of dispatch.
Can the tester be integrated into an existing laboratory information management system (LIMS)?
Via optional RS232 or USB-to-serial interface, it supports ASCII-based command-response communication compatible with most LIMS middleware (e.g., LabVantage, Thermo Fisher SampleManager, STARLIMS).
What maintenance intervals are recommended for optimal performance?
Mandrel inspection and lubrication every 50,000 cycles; full mechanical verification annually or after 200,000 cycles—whichever occurs first. Maintenance logs are retained within the internal memory.
Does the instrument meet electromagnetic compatibility (EMC) requirements for CE marking?
Yes—certified to EN 61326-1:2013 (Measurement, control and laboratory equipment – EMC requirements) and RoHS Directive 2011/65/EU. Declaration of Conformity available upon request.
