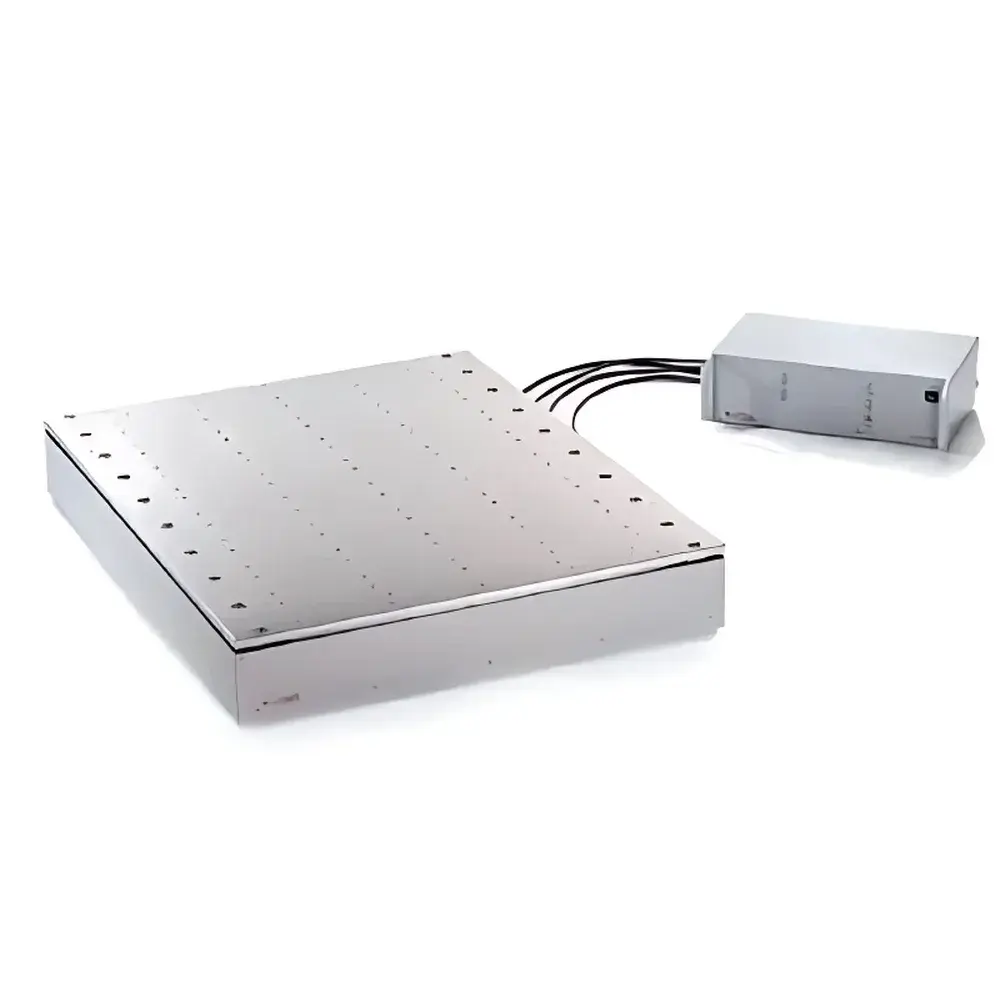

Halcyonics Sandwich Active Vibration Isolation Platform

Overview

The Halcyonics Sandwich Active Vibration Isolation Platform is an engineered solution designed specifically for high-resolution electron microscopy and other ultra-sensitive optical and nanoscale instrumentation. Unlike passive isolation systems—such as air tables or elastomeric mounts—that rely on mechanical damping and exhibit inherent low-frequency resonances (typically 1–3 Hz), the Sandwich platform employs real-time, closed-loop active vibration control based on piezoelectric actuation and inertial sensing. It continuously monitors floor-borne and airborne vibrations across a broadband spectrum (0.1 Hz to >100 Hz) and generates counteracting forces with sub-millisecond latency to suppress motion at the payload interface. This architecture eliminates mechanical resonance peaks and delivers high attenuation (>40 dB) below 1 Hz—where most building- and infrastructure-induced disturbances (e.g., HVAC, footfall, traffic, elevator operation) dominate—making it uniquely suited for scanning electron microscopes (SEM), transmission electron microscopes (TEM), atomic force microscopes (AFM), and interferometric metrology systems installed in non-basement laboratory environments.

Key Features

• True broadband active isolation: Effective from 0.1 Hz to over 100 Hz, with peak attenuation exceeding 40 dB in the critical 0.5–5 Hz band
• No intrinsic mechanical resonance: Eliminates the “resonance hump” typical of passive systems, enabling stable imaging at sub-nanometer resolution without low-frequency drift or image smearing
• Modular load-rated configurations: Five standard payload classes (200 kg, 400 kg, 600 kg, 1000 kg, and 1500 kg) accommodate diverse microscope platforms and auxiliary equipment stacks
• Two standardized platform footprints: 600 × 600 mm and 900 × 900 mm, both compatible with standard SEM/TEM column footprints and integrated stage interfaces
• Standard AC power input (100–240 VAC, 50/60 Hz): No custom transformers, uninterruptible power supplies (UPS), or dedicated grounding required
• Integrated diagnostics and status monitoring: Real-time LED indicators and optional Ethernet-based health telemetry for predictive maintenance and system validation

Sample Compatibility & Compliance

The Halcyonics Sandwich platform is mechanically and electrically compatible with all major commercial electron microscope systems—including Zeiss GeminiSEM and Crossbeam series, JEOL JSM and JEM platforms, Hitachi SU and HT series, and TESCAN MIRA and LYRA systems—as well as multi-axis nanomanipulators, cryo-transfer stages, and EDS/WDS spectrometer modules. Its structural rigidity (natural frequency >250 Hz in vertical mode) ensures minimal dynamic coupling between the isolated payload and the base. The platform conforms to ISO 20483:2020 (Vibration isolation—Performance evaluation methods) and supports compliance with GLP and GMP laboratory requirements through traceable calibration documentation and audit-ready operational logs. Optional factory calibration certificates are available per ISO/IEC 17025 standards.

Software & Data Management

The platform operates autonomously via embedded firmware; no host PC is required for basic operation. For integration into facility-wide monitoring networks, an optional Ethernet interface provides access to real-time sensor data (acceleration RMS, actuator drive levels, error signals), system health metrics, and event-triggered logging. All communication adheres to IEEE 802.3 and uses TLS 1.2 encryption for secure remote diagnostics. Data export is supported in CSV and HDF5 formats, enabling correlation with microscope acquisition timestamps and environmental monitoring systems. Audit trails—including configuration changes, firmware updates, and fault events—are retained for ≥90 days and comply with FDA 21 CFR Part 11 requirements when used in regulated analytical laboratories.

Applications

• Stabilization of field-emission SEMs operating at ≤1 nm resolution under urban or campus-building conditions
• Vibration mitigation for TEM tomography workflows requiring multi-hour tilt-series acquisition
• Isolation of in situ heating/cooling stages during high-magnification dynamic observation
• Support of low-energy electron microscopy (LEEM) and photoemission electron microscopy (PEEM) systems sensitive to sub-Å beam displacement
• Enabling stable operation of electron-beam lithography tools where pattern placement accuracy demands <2 nm overlay tolerance

FAQ

Does the Sandwich platform require external sensors or retrofitting to integrate with my existing SEM?
No. The platform is self-contained and requires only mechanical mounting of the microscope onto its top plate; no modification to the instrument’s chassis or electronics is necessary.
Can it be used in cleanroom environments (ISO Class 5 or better)?
Yes. The platform meets ISO 14644-1 Class 5 particulate emission limits when operated with optional stainless-steel enclosure kits and filtered air purge options.
What is the mean time between failures (MTBF) for the active control electronics?
The control module has an MTBF of ≥50,000 hours under continuous operation at 25°C ambient, validated per Telcordia SR-332 Issue 4.
Is third-party calibration and certification available?
Yes. Accredited metrology laboratories offer annual performance verification per ISO 10816-1 and NIST-traceable accelerometer calibration.
How does it handle transient shocks, such as door slams or nearby construction?
Its feedforward-enhanced feedback loop responds within 2 ms to impulsive inputs, limiting residual displacement to <50 nm peak-to-peak for 100 ms, 1 g half-sine shocks.
