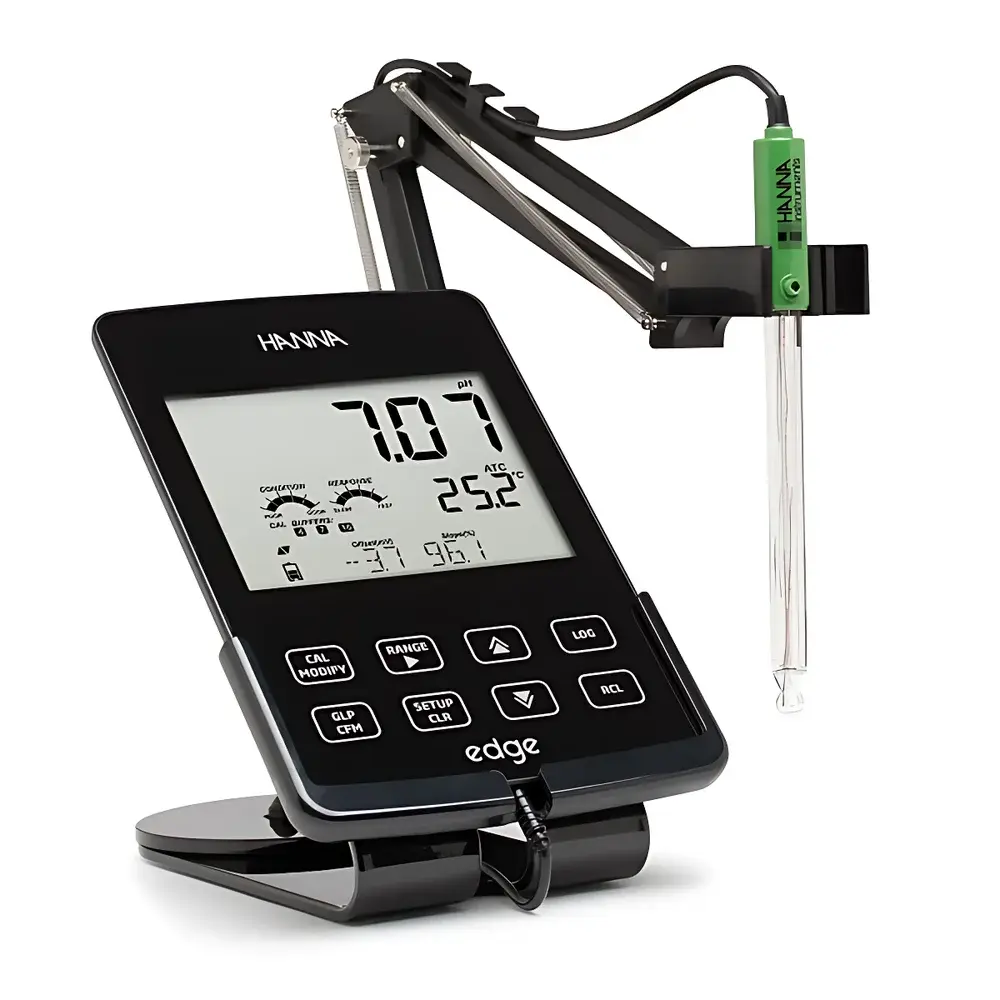

Hanna HI2020 Ultra-Thin Tablet pH & pH-mV Meter

Overview

The Hanna HI2020 is an ultra-thin, portable tablet-style pH and pH-mV meter engineered for precision electrochemical measurement in laboratory, quality control, and field applications. It operates on potentiometric principles using a high-impedance analog-to-digital converter and integrated microprocessor-controlled signal conditioning to ensure stable, low-noise voltage acquisition from glass pH electrodes. The instrument supports both standard pH measurement and direct millivolt (mV) readout—enabling acid-base titration monitoring, redox potential screening (though not ORP-capable per specification), and electrode performance verification. Its wide pH range (–2.000 to 16.000) accommodates highly acidic or alkaline samples encountered in industrial process streams, wastewater treatment, pharmaceutical formulation, and electroplating baths. Built-in temperature compensation (ATC) uses NTC thermistor input from integrated or external temperature probes to correct pH readings per the Nernst equation, minimizing thermal drift errors across –20.0 to 120.0 °C.

Key Features

• 5.5-inch capacitive touchscreen LCD with 150° viewing angle—optimized for wall-mount, benchtop, and handheld operation
• Smart electrode interface: 3.5 mm proprietary connector enabling plug-and-play recognition of digital pH electrodes (e.g., HI11310), including automatic retrieval of calibration history and sensor diagnostics
• Real-time electrode impedance monitoring during measurement and calibration; alerts users to degraded or faulty electrodes before data corruption occurs
• Dual USB architecture: USB-A port for mass storage (U-drive export of GLP-compliant datasets); micro-USB port for simultaneous charging and PC communication
• GLP-compliant data management: time-stamped records include pH/mV values, electrode ID, calibration buffers used, temperature, user ID (if configured), and environmental metadata
• Two operational modes: Basic Mode (3-point calibration using preloaded IUPAC/NIST buffers) and Advanced Mode (up to 5-point calibration with two user-defined points and eight built-in standards: 1.68, 4.01, 3.00, 6.86, 7.01, 9.18, 10.01, 12.45 pH)
• Ultra-portable form factor: 250 g weight and 12 mm profile enable use in confined spaces, mobile labs, or production line QC stations without sacrificing readability or ergonomics

Sample Compatibility & Compliance

The HI2020 is designed for aqueous and low-ionic-strength non-aqueous solutions compatible with standard glass-body pH electrodes. It meets essential regulatory expectations for routine analytical instrumentation under ISO/IEC 17025-accredited laboratories when operated with traceable calibration standards (e.g., Hanna’s HI700xx series). While not certified for FDA 21 CFR Part 11 compliance out-of-the-box, its audit-trail-capable GLP logging—including immutable timestamps, operator identification fields, and full calibration event capture—supports alignment with GMP and GLP documentation requirements. The instrument complies with CE marking directives (EMC 2014/30/EU, RoHS 2011/65/EU) and operates safely within ambient conditions up to 50 °C and 95% RH (non-condensing). Electrode compatibility is limited to Hanna’s 3.5 mm digital pH sensors (e.g., HI11310); legacy analog electrodes require optional HI7662-M adapter and lose smart functionality.

Software & Data Management

Data handling is implemented via embedded firmware without dependency on proprietary desktop software. All measurements are stored internally in non-volatile memory with automatic timestamping (year-month-day-hour-minute-second). Storage capacity includes 1000 automatic readings (triggered at user-defined intervals), 200 interval logs, and 600 manually triggered entries. Export is supported via FAT32-formatted USB flash drives—generating CSV files containing columns for measured value, unit, temperature, date/time, electrode serial number, calibration status, and buffer IDs. No cloud connectivity or remote access is provided; data integrity relies on local encryption-free file transfer, ensuring compatibility with air-gapped environments common in regulated manufacturing. Firmware updates are performed via micro-USB using Hanna’s official update utility, maintaining version traceability per internal QA protocols.

Applications

• Pharmaceutical water system validation (Purified Water, WFI) per USP conductivity and pH correlation checks
• Food & beverage QA/QC: pH monitoring of dairy fermentations, fruit juice stabilization, and meat processing brines
• Environmental testing: surface water, effluent, and leachate analysis in accordance with EPA Method 150.1 and ASTM D1293
• Chemical manufacturing: batch pH verification during neutralization reactions, catalyst activation, and corrosion inhibitor dosing
• Academic teaching labs: demonstration of Nernstian behavior, buffer capacity, and electrode response kinetics
• Biotechnology: upstream bioreactor pH setpoint verification and downstream purification buffer preparation

FAQ

Does the HI2020 support ORP (oxidation-reduction potential) measurement?

No. Although it measures mV in the ±1000 mV range, the HI2020 is not configured for ORP electrode compatibility. It lacks the reference junction design and offset compensation algorithms required for reliable redox potential reporting per ASTM D1498.
Can I use third-party pH electrodes with the HI2020?

Only Hanna-branded digital pH electrodes with the 3.5 mm interface (e.g., HI11310, HI1043B) are fully supported. Analog electrodes may be connected via HI7662-M adapter but will not provide automatic recognition, diagnostic feedback, or stored calibration data.
What is the maximum sampling rate for interval logging?

The instrument supports user-defined intervals from 1 second to 6 hours; however, due to thermal stabilization requirements of pH electrodes, Hanna recommends ≥10-second intervals for reproducible results in dynamic systems.
Is the HI2020 suitable for ISO 17025 accredited testing?

Yes—when used with certified reference materials, documented calibration procedures, and validated electrode maintenance protocols, the HI2020 satisfies metrological traceability and record-keeping requirements outlined in ISO/IEC 17025:2017 clause 7.7.
How does the wall-mount configuration enhance workflow efficiency?

The included adjustable bracket enables hands-free operation at ergonomic height, allowing simultaneous multi-user observation within 5 meters and eliminating desk clutter during high-throughput sample batches—particularly beneficial in clinical labs and contract testing facilities.
