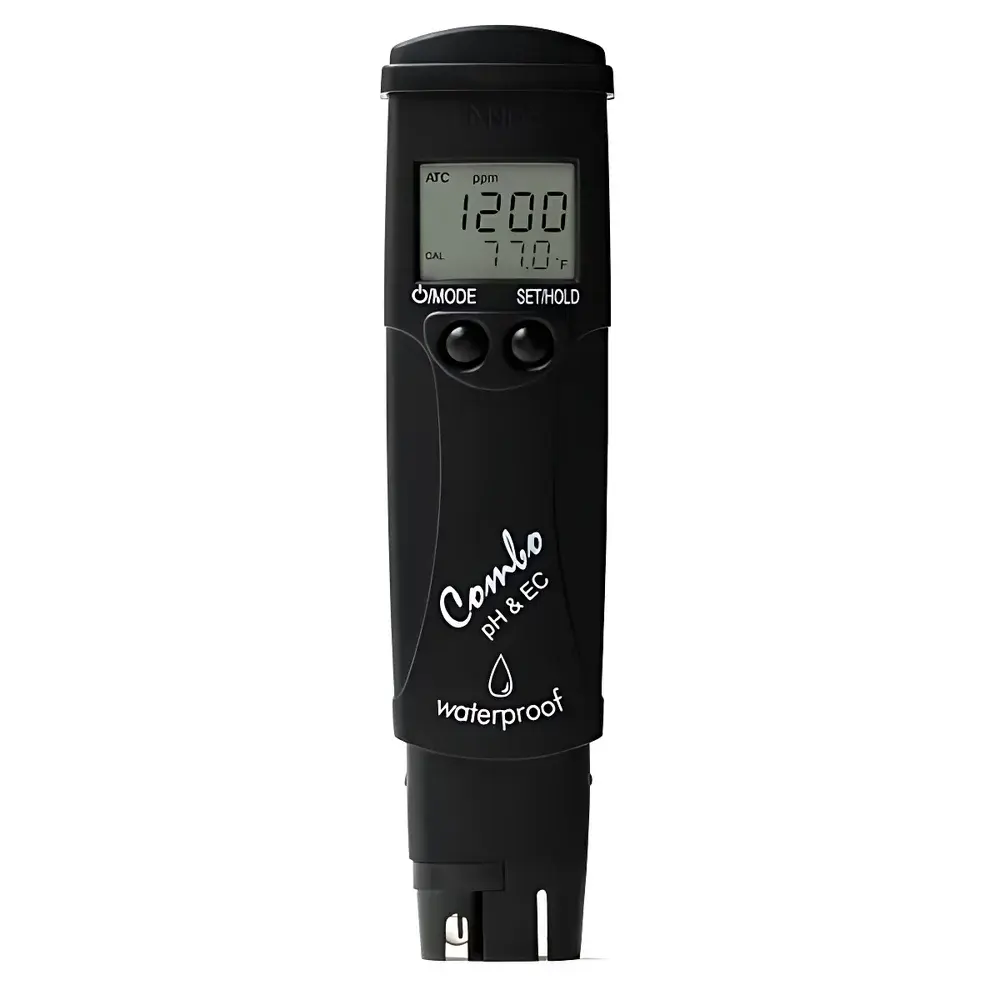

Hanna HI98129 Portable Microprocessor-Based pH/EC/TDS/°C Meter

Overview

The Hanna HI98129 is a compact, field-deployable microprocessor-based multiparameter meter engineered for simultaneous, high-fidelity measurement of pH, electrical conductivity (EC), total dissolved solids (TDS), and temperature in aqueous solutions. Designed around robust electrochemical principles—including potentiometric pH sensing via a glass electrode, conductometric EC determination using a dual-electrode cell, and linear TDS estimation derived from EC with user-selectable conversion factors—the HI98129 delivers laboratory-grade accuracy under variable environmental conditions. Its integrated temperature sensor enables automatic compensation across the full operating range (0.0 to 60.0 °C), while the microprocessor-controlled analog front-end ensures stable signal acquisition and minimized drift. The instrument complies with fundamental metrological requirements for portable electrochemical analyzers used in environmental monitoring, aquaculture, hydroponics, and quality control laboratories where traceable, repeatable measurements are essential.

Key Features

• True multi-parameter capability: Simultaneous real-time display of pH (0.00–14.00), EC (0–3999 µS/cm), TDS (0–2000 mg/L), and temperature (0.0–60.0 °C) on a dual-line LCD with contextual icons.
• Intuitive two-button interface with on-screen calibration prompts—no menu navigation required—reducing operator training time and minimizing procedural errors.
• Auto-recognition calibration: Supports 1–2 point pH calibration using factory-traceable buffers (pH 4.01, 6.86, 9.18, or 4.01, 7.01, 10.01); single-point EC calibration at 1413 µS/cm; and single-point TDS calibration at 1382 ppm (HI7032) or 1500 ppm.
• Programmable temperature compensation: Adjustable β coefficient (0.0–2.4 %/°C) for precise EC correction in non-standard electrolyte systems, including nutrient solutions and brackish water.
• BEPS (Battery Error Prevention System): Monitors battery voltage continuously and disables measurement if power falls below operational threshold—preventing erroneous data capture due to low supply.
• Integrated sensor architecture: Features the HI73127 replaceable pH electrode (polypropylene body, spherical glass tip) and a fixed-conductivity/TDS/temperature probe—eliminating cable interface points and enhancing mechanical reliability in rugged use.

Sample Compatibility & Compliance

The HI98129 is validated for use with clean to moderately turbid aqueous samples, including freshwater, irrigation water, nutrient solutions, aquarium water, and mild industrial process streams. It is not suitable for highly viscous, suspended-solids-laden, or strongly oxidizing/reducing media without prior filtration or dilution. While not certified to ISO/IEC 17025 or accredited for regulatory reporting, its performance aligns with ASTM D1125 (Standard Test Methods for Electrical Conductivity and Resistivity of Water) and ISO 7888 (Water Quality – Determination of Electrical Conductivity). For GLP/GMP environments, users may document calibration events, probe maintenance logs, and measurement records manually or via external data transfer protocols.

Software & Data Management

The HI98129 operates as a standalone instrument with no onboard data logging or USB connectivity. All measurement data remain on-device only until visually recorded. However, its consistent output format and stable calibration behavior support integration into structured QA/QC workflows: operators can log readings manually into LIMS-compatible spreadsheets, or pair the meter with third-party Bluetooth adapters (e.g., Hanna’s HI98129-Bluetooth module, sold separately) for wireless transmission to iOS/Android applications compliant with FDA 21 CFR Part 11 audit trail requirements when configured with appropriate validation protocols.

Applications

• Aquaculture and aquarium management: Monitoring pH stability and conductivity fluctuations critical to osmoregulation in marine and freshwater species.
• Hydroponic and fertigation systems: Tracking nutrient solution strength (via EC/TDS) and acidity (pH) to maintain optimal ion availability and prevent precipitation.
• Environmental field surveys: Rapid assessment of surface water quality parameters during watershed assessments or effluent screening.
• Educational laboratories: Teaching core electrochemical concepts—Nernst equation application, conductivity theory, temperature compensation models, and calibration traceability—using a single, affordable platform.
• Small-scale food & beverage production: Verifying rinse water pH and conductivity in cleaning-in-place (CIP) validation steps per SQF or BRCGS guidelines.

FAQ

What calibration buffers are recommended for routine pH verification?
Hanna recommends HI7004 (pH 4.01), HI7007 (pH 7.01), and HI7010 (pH 10.01) for general-purpose calibration. For agricultural or soil extract analysis, HI7061 (pH 6.86) and HI7062 (pH 9.18) provide improved accuracy near physiological ranges.
Can the HI98129 measure seawater or high-salinity samples?
No. Its EC range (0–3999 µS/cm) corresponds to ~2000 ppm TDS—well below typical seawater (~53 mS/cm). Use HI98330 or HI98304 for marine applications.
Is the temperature sensor independently calibrated?
Yes. The integrated NTC thermistor is factory-calibrated and compensated within the microcontroller firmware; no user adjustment is required.
How often should the pH electrode be cleaned and stored?
Rinse with deionized water after each use. Store immersed in HI70300 pH storage solution. Clean weekly with HI7061 electrode cleaning solution if used in organic or protein-rich matrices.
Does the instrument meet IP rating requirements for field use?
It carries no formal IP rating, but its sealed housing and rubberized keypad resist incidental moisture and dust ingress—suitable for indoor/outdoor field use within specified ambient limits (0–50°C, ≤100% RH).
