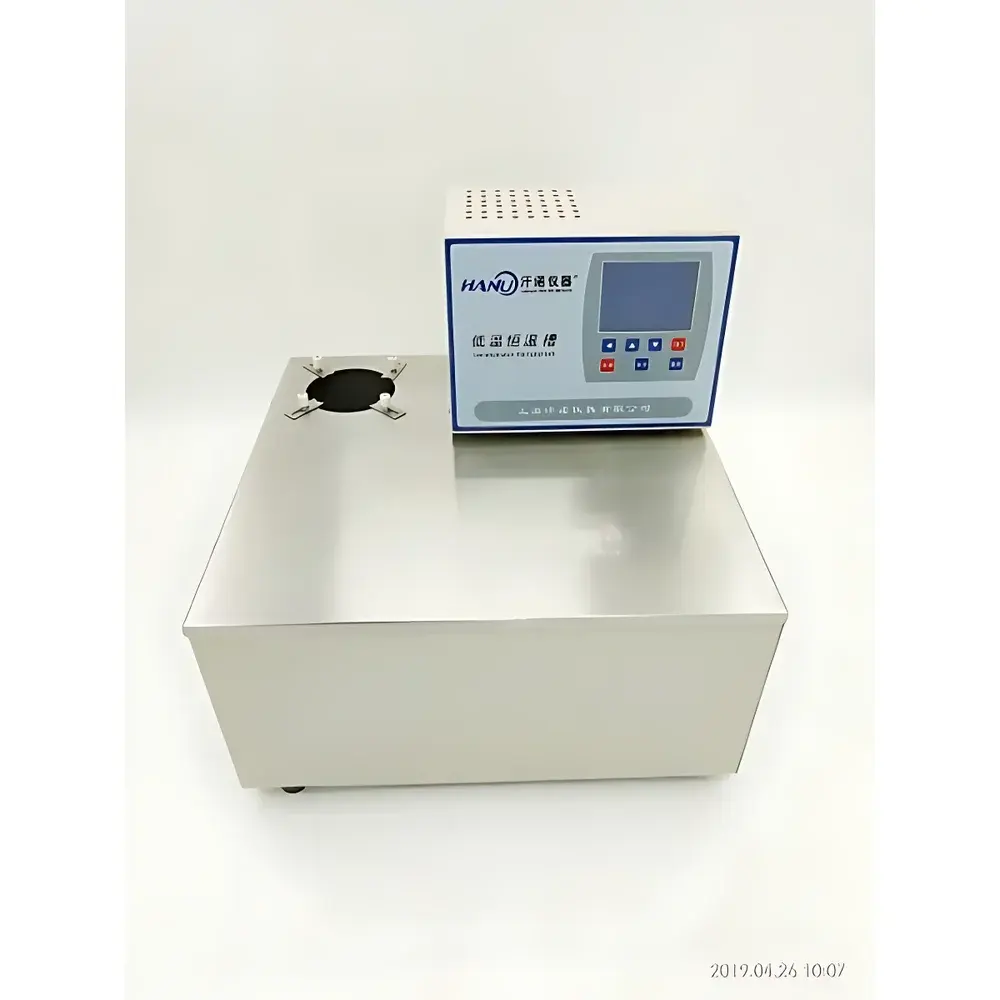

Hanuo DC-0506N Viscosity Measurement-Specific Circulating Bath

Overview

The Hanuo DC-0506N is a precision-engineered circulating bath explicitly designed to support rotational and capillary viscosity measurements in compliance with standardized rheological testing protocols. It operates on a dual-mode thermoregulation principle—integrating Peltier-based cooling and resistive heating—to maintain sample temperature within ±0.05 °C across its full operational range of −5 °C to 100 °C. Unlike general-purpose water baths, the DC-0506N features a dedicated φ90 mm circular aperture optimized for secure placement of standard 250 mL glass or stainless-steel sample containers (e.g., Ubbelohde viscometers, DIN cups, or Brookfield-compatible beakers), ensuring direct thermal coupling between the bath medium and test fluid. Its compact 6 L working volume balances thermal inertia and responsiveness, minimizing overshoot during rapid setpoint transitions while supporting stable equilibration for ISO 2555, ASTM D2196, and USP viscosity determinations.

Key Features

• High-stability temperature control with ±0.05 °C uniformity over the entire bath volume, verified per ASTM E1137 Class A requirements
• Dual-mode thermoregulation system enabling seamless transition between sub-zero and boiling-point conditions without auxiliary chillers or external heaters
• Optimized bath geometry: φ90 mm centered opening accommodates standard viscosity sample vessels and permits unobstructed insertion of rotating spindles or capillary stems
• Internal recirculation pump ensures laminar, low-turbulence flow—critical for eliminating localized thermal gradients that compromise shear-rate-dependent viscosity accuracy
• Stainless-steel bath chamber and corrosion-resistant housing engineered for long-term compatibility with water, ethylene glycol/water mixtures, and silicone oils up to 100 °C
• Front-panel digital interface with real-time temperature display, setpoint memory, and over-temperature safety cutoff (auto-shutdown at 105 °C)

Sample Compatibility & Compliance

The DC-0506N is validated for use with rotational viscometers (e.g., Brookfield DV2T, Anton Paar Physica MCR series), capillary viscometers (Ostwald, Ubbelohde, Cannon-Fenske), and falling-ball systems requiring precise thermal conditioning. Its bath opening diameter and depth allow full immersion of standard 250 mL cylindrical containers while maintaining clearance for spindle rotation or capillary alignment. The unit complies with IEC 61010-1:2010 for laboratory electrical safety and meets CE marking requirements for electromagnetic compatibility (EMC Directive 2014/30/EU). While not certified to GLP/GMP out-of-the-box, its temperature stability and repeatability support audit-ready documentation when integrated into validated laboratory workflows aligned with ISO/IEC 17025 or FDA 21 CFR Part 11–compliant data acquisition systems.

Software & Data Management

The DC-0506N operates as a standalone analog-controlled bath and does not include embedded firmware, USB connectivity, or remote software interfaces. Temperature setpoints and status monitoring are performed locally via its front-panel LED display and tactile keypad. For laboratories requiring electronic data logging, the unit can be paired with external PT100 probes connected to third-party data acquisition hardware (e.g., Keysight 34970A, National Instruments DAQmx) to record time-stamped bath temperature traces synchronized with viscometer output. When used in regulated environments, users must implement procedural controls—including calibration logs, daily verification checks using NIST-traceable reference thermometers, and maintenance records—to satisfy ISO 17025 clause 6.4.10 (Equipment Verification) and USP Analytical Instrument Qualification guidelines.

Applications

• Temperature-dependent viscosity profiling of polymer melts, lubricants, pharmaceutical suspensions, and food emulsions per ASTM D1200 (Ford Cup), ASTM D445 (kinematic viscosity), and ISO 3219 (Rheology of polymer solutions)
• Quality control testing of adhesives, coatings, and inks under controlled thermal conditions to assess shelf-life stability and application viscosity
• Research-grade characterization of non-Newtonian fluids (e.g., shear-thinning xanthan gum solutions, yield-stress carbopol gels) where temperature-induced structural changes directly affect flow behavior
• Calibration support for viscometers requiring traceable thermal conditioning in accordance with ISO/IEC 17025 accredited laboratories
• Pre-conditioning of samples prior to rheological analysis on hybrid instruments (e.g., TA Instruments AR-G2 with environmental chamber)

FAQ

Is the DC-0506N compatible with Brookfield viscometers?
Yes—the φ90 mm opening and internal dimensions accommodate standard 250 mL sample containers used with LV, RV, and HA series spindles; ensure spindle immersion depth meets Brookfield’s specified minimum fill level.
Can it maintain temperature at −5 °C using only water as the bath medium?
No—water freezes at 0 °C; for sub-zero operation, a mixture of deionized water and propylene glycol (e.g., 30% v/v) is required to depress freezing point while preserving thermal conductivity and chemical inertness.
Does the unit support external temperature probe feedback for tighter control?
No—it relies solely on its built-in Pt100 sensor located near the circulation outlet; no external PID input or probe port is provided.
What is the recommended maintenance interval for the refrigeration system?
Annual inspection of condenser coils and refrigerant pressure is advised; users operating continuously below 0 °C should verify compressor performance every six months per manufacturer service bulletin HN-DC-0506N-REV3.
Is the bath suitable for oil-based media such as silicone oil or mineral oil?
Yes—its stainless-steel chamber and seal materials are rated for continuous use with silicone oils up to 100 °C; avoid halogenated solvents or low-flashpoint hydrocarbons due to safety and material compatibility constraints.
