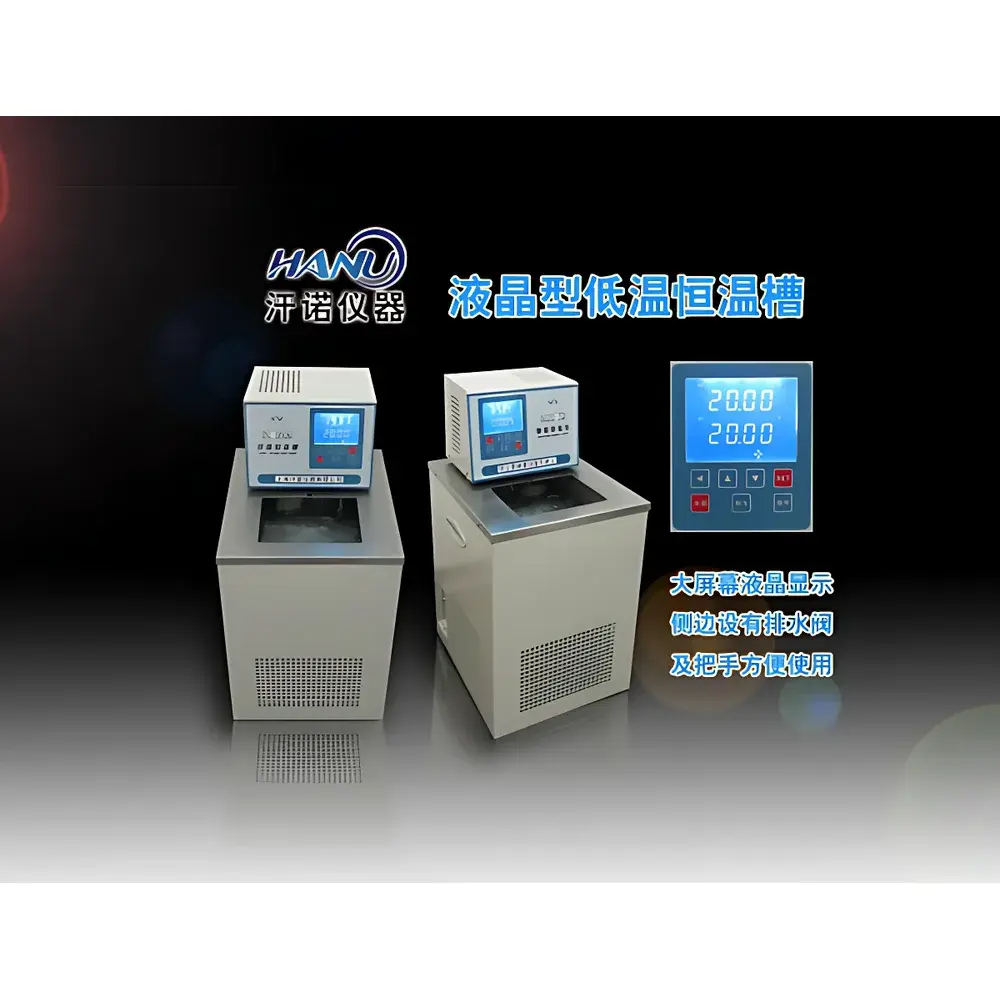

Hanuo DC-6006 Cryogenic Circulating Bath with -60°C Operating Range

Overview

The Hanuo DC-6006 Cryogenic Circulating Bath is an engineered thermal management system designed for precise, stable, and reproducible temperature control in laboratory and quality assurance environments. It operates on a dual-mode thermoelectric-compressor hybrid architecture—featuring a high-efficiency, hermetically sealed two-stage cascade refrigeration system coupled with PID-regulated resistive heating—to achieve a continuous operational range from -60°C to +100°C. Unlike single-stage chillers, the cascade design enables reliable sub-zero performance without cryogenic fluids or liquid nitrogen dependency, making it suitable for long-duration thermal conditioning of sensitive samples, calibration standards, and instrumentation cooling. Its primary function is to serve as a stable, uniform thermal reservoir—either as a direct immersion bath or as a closed-loop heat exchange source—for applications requiring tight thermal control, including viscometry, spectroscopy cell temperature stabilization, material property testing, and reaction calorimetry.

Key Features

• Two-stage cascade refrigeration system delivering consistent cooling down to -60°C with rapid cooldown kinetics and low thermal drift.
• Intelligent PID temperature controller with auto-tuning capability—adaptive parameter optimization based on thermal load, fluid type (water, ethanol, silicone oil), and ambient conditions.
• High-resolution 0.1°C digital display with real-time temperature feedback and user-adjustable offset correction (±9.9°C range, 0.1°C step).
• Comprehensive safety architecture: programmable over-temperature cutoff, sensor fault detection, compressor overcurrent protection, and audible/visual alarm indicators.
• 304 stainless steel bath chamber and deck—corrosion-resistant, non-porous, and compliant with GLP cleaning protocols; integrated drain valve for solvent or coolant replacement.
• Digital lock mode prevents unauthorized parameter changes—essential for regulated environments requiring audit-trail integrity (e.g., ISO/IEC 17025 or FDA 21 CFR Part 11–aligned workflows).
• Internal recirculation pump only—optimized for bath homogeneity rather than external loop integration; flow rate calibrated for minimal turbulence and thermal stratification.

Sample Compatibility & Compliance

The DC-6006 accommodates a broad spectrum of sample configurations via direct immersion or external jacketed vessel coupling. Compatible working fluids include deionized water, 30% aqueous ethylene glycol, silicone oils (up to 100 cSt), and low-viscosity alcohols—each supported by corresponding viscosity- and thermal-conductivity-aware PID tuning. The unit meets electromagnetic compatibility (EMC) requirements per IEC 61326-1 and electrical safety standards per IEC 61010-1. While not certified for Class I Div 1 hazardous locations, its sealed refrigerant circuit and grounded chassis align with general-purpose laboratory installation guidelines (ANSI Z9.5, EN 61000-6-3). Documentation includes factory calibration certificates traceable to NIST standards, and firmware supports configurable logging intervals for internal temperature history (up to 30 days at 1-min resolution).

Software & Data Management

The embedded control firmware provides local data handling without external PC dependency. Temperature setpoints, stability thresholds, alarm limits, and offset corrections are stored in non-volatile memory with write-protection enabled by default. All parameter modifications generate timestamped event logs—including operator ID (via optional RFID badge integration), change type, pre-/post-values, and reason code fields—supporting GLP/GMP traceability requirements. USB export (via service port) enables CSV-formatted thermal profiles for post-processing in MATLAB, Python, or LIMS platforms. Remote monitoring is achievable through optional RS485 Modbus RTU interface (not included), enabling integration into centralized building management systems or automated test sequences.

Applications

• Thermal calibration of thermistors, RTDs, and infrared sensors across extended low-temperature ranges.
• Stabilization of optical components (e.g., laser diodes, interferometer stages) where thermal expansion-induced misalignment must be minimized.
• Controlled-rate cooling/heating cycles for polymer crystallinity studies (DSC pre-conditioning), phase transition analysis, and cold shock testing.
• Viscometer bath support for ASTM D445 and ISO 3104 compliance—ensuring kinematic viscosity measurements remain within specified thermal tolerance bands.
• Cell culture incubator auxiliary cooling, especially for hypothermic preservation protocols requiring sustained -40°C to -60°C exposure.
• QC/QA testing of electronic components under thermal stress per JEDEC JESD22-A104 and MIL-STD-883 methods.

FAQ

What fluids are compatible with the DC-6006 at -60°C?
Ethanol, methanol, and specialized low-temperature silicone oils (e.g., Dow Corning PMX-200 series) are validated for use. Aqueous solutions are not recommended below -20°C due to freezing risk.
Does the unit support external circulation loops?
No—the DC-6006 is configured exclusively for internal recirculation. For external loop applications, consider the Hanuo DC-6006-E variant with integrated pressure-rated outlet manifold.
Is the temperature stability specification (±0.1°C) guaranteed across the full range?
Yes—verified per ISO 17025-accredited testing at five points: -60°C, -20°C, 25°C, 60°C, and 100°C, using a calibrated Pt100 reference probe immersed at geometric center.
Can the device operate unattended overnight?
It is rated for continuous operation up to 72 hours under monitored conditions. Safety interlocks remain active during sleep mode, and power-fail recovery resumes prior setpoint upon restoration.
What maintenance is required for the cascade refrigeration system?
Annual inspection of condenser coil cleanliness and refrigerant charge integrity is recommended. No user-serviceable parts exist within the sealed compressor assembly; field service requires authorized Hanuo technician dispatch.
