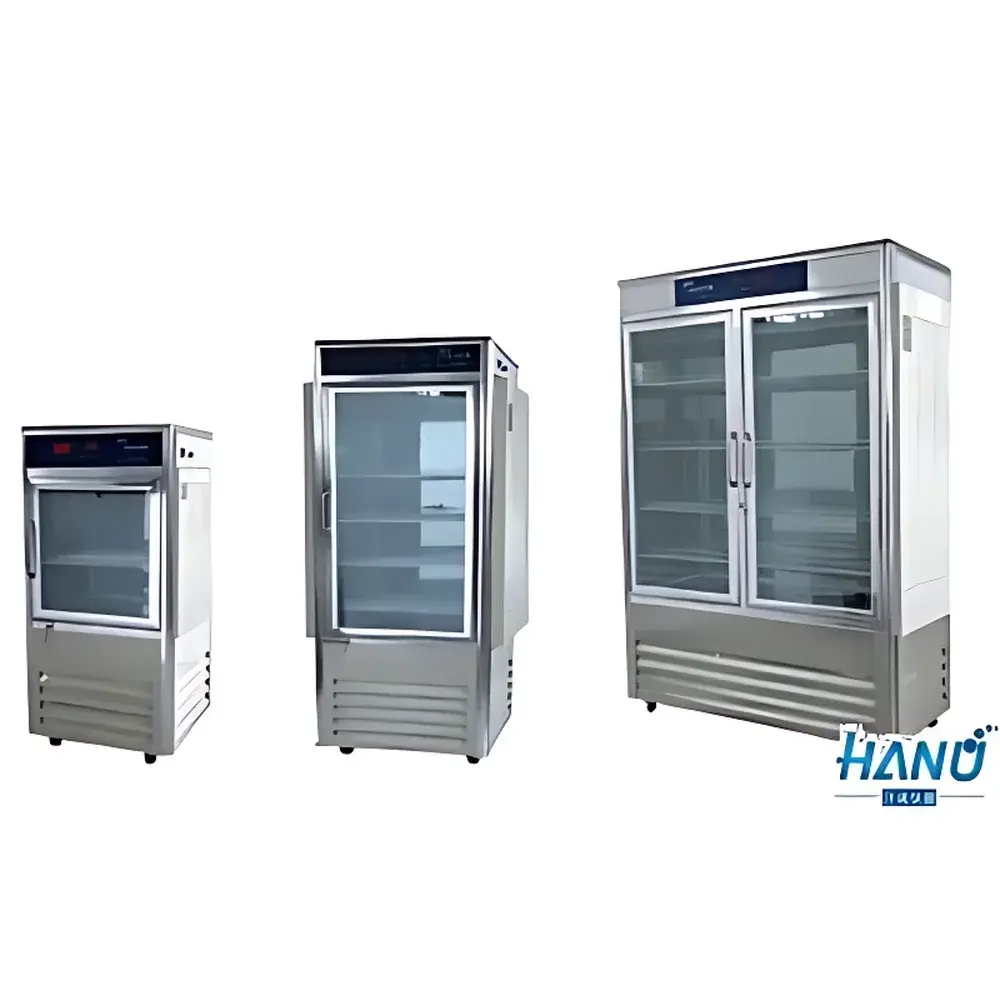

Hanuo PRX-80A Intelligent Plant Growth Chamber

Overview

The Hanuo PRX-80A Intelligent Plant Growth Chamber is a precision-engineered environmental simulation system designed for reproducible, long-term cultivation and physiological studies of photosynthetic organisms under tightly regulated climatic conditions. It operates on a dual-mode thermoelectric and resistive heating/cooling architecture, integrated with ultrasonic humidification and programmable spectral lighting to emulate diurnal cycles. Unlike basic incubators, the PRX-80A implements a closed-loop PID-controlled climate management system—capable of independently modulating temperature, relative humidity, and light intensity across discrete day/night phases. This enables rigorous experimental replication in photobiology, seed germination kinetics, stress physiology (e.g., drought or thermal acclimation), and controlled-environment agriculture (CEA) research. Its 80 L working volume and stainless steel chamber ensure corrosion resistance, while the triple-pane insulated glass door minimizes thermal bridging and condensation—critical for maintaining optical clarity during non-invasive imaging or time-lapse phenotyping.

Key Features

• Microprocessor-based programmable controller with intuitive touch interface and real-time parameter display
• Independent day/night programming for temperature, humidity, and illumination—up to five distinct light intensity levels (0–3000 lx)
• Ultrasonic humidification system delivering uniform moisture distribution without water droplet formation or microbial carryover
• Ducted forced-air circulation ensuring ±0.3 °C temperature uniformity across the entire chamber volume
• Power-loss memory function: automatically resumes pre-interruption setpoints and timing sequences upon re-energization
• Robust safety architecture including over-temperature cutoff, RTD sensor failure detection, and audible/visual alarm outputs
• Structural integrity via electropolished 304 stainless steel interior and anodized aluminum alloy frame—resistant to oxidation and chemical exposure

Sample Compatibility & Compliance

The PRX-80A accommodates standard plant growth vessels (e.g., Petri dishes, Magenta boxes, 100 mm tissue culture plates), hydroponic trays, and small-scale insect rearing cages (up to 15 cm height). Its chamber geometry supports both vertical and horizontal sample orientation without airflow obstruction. The unit complies with ISO 17025-relevant environmental control requirements for accredited testing laboratories and meets mechanical safety standards per IEC 61010-1. While not certified for GMP manufacturing, its audit-trail-capable logging (via optional RS-485 or USB data export) supports GLP documentation workflows—including timestamped parameter records required under OECD Test Guidelines 208 (Terrestrial Plant Toxicity) and ASTM E1980 (Standard Practice for Determining Solar Reflectance Near Ambient Temperature).

Software & Data Management

The embedded controller stores up to 12 months of 1-minute interval environmental logs internally. Data export is supported via USB flash drive (CSV format) or serial communication (Modbus RTU protocol) for integration into LIMS or SCADA platforms. Optional PC software (Hanuo ClimateLink v3.x) provides graphical trend analysis, deviation alerts, and PDF report generation compliant with 21 CFR Part 11 Annex 11 expectations—supporting electronic signatures, user access tiers, and immutable audit trails. All firmware updates are digitally signed and verified prior to installation.

Applications

• Controlled-environment phenotyping of Arabidopsis, rice, wheat, and legume mutants under defined photoperiods and abiotic stress gradients
• Seed viability and germination rate assays per ISTA protocols, including accelerated aging tests at elevated RH/temperature combinations
• Cultivation of phototrophic microalgae (e.g., Chlamydomonas, Scenedesmus) for biomass productivity screening
• Pre-acclimation studies for tissue-cultured plantlets prior to greenhouse transfer
• BOD₅ incubation per Standard Methods 5210B, where stable 20 °C ±0.5 °C and 90 %RH are mandated
• Non-mammalian model organism maintenance (Drosophila, C. elegans) requiring precise thermo-hygrometric staging

FAQ

What is the maximum allowable ambient operating temperature for the PRX-80A?

The chamber is rated for continuous operation in ambient environments up to 32 °C; performance specifications assume ≤60 %RH ambient conditions.
Can the lighting spectrum be customized beyond the default white LED configuration?

Yes—optional narrow-band LED modules (450 nm blue, 660 nm red, 730 nm far-red) are available as field-installable upgrades for photomorphogenesis studies.
Is remote monitoring supported via Ethernet or Wi-Fi?

Not natively; however, third-party IoT gateways (e.g., Modbus-to-MQTT bridges) can be deployed to enable cloud-based telemetry and SMS alerts.
Does the unit include validation documentation for IQ/OQ protocols?

Factory-installed calibration certificates (NIST-traceable RTD and hygrometer) are provided; full qualification packages require site-specific PQ execution per user-defined test scripts.
What maintenance intervals are recommended for optimal long-term stability?

Ultrasonic transducer cleaning every 90 days; chamber gasket inspection biannually; annual verification of temperature/humidity sensor drift against reference standards.
