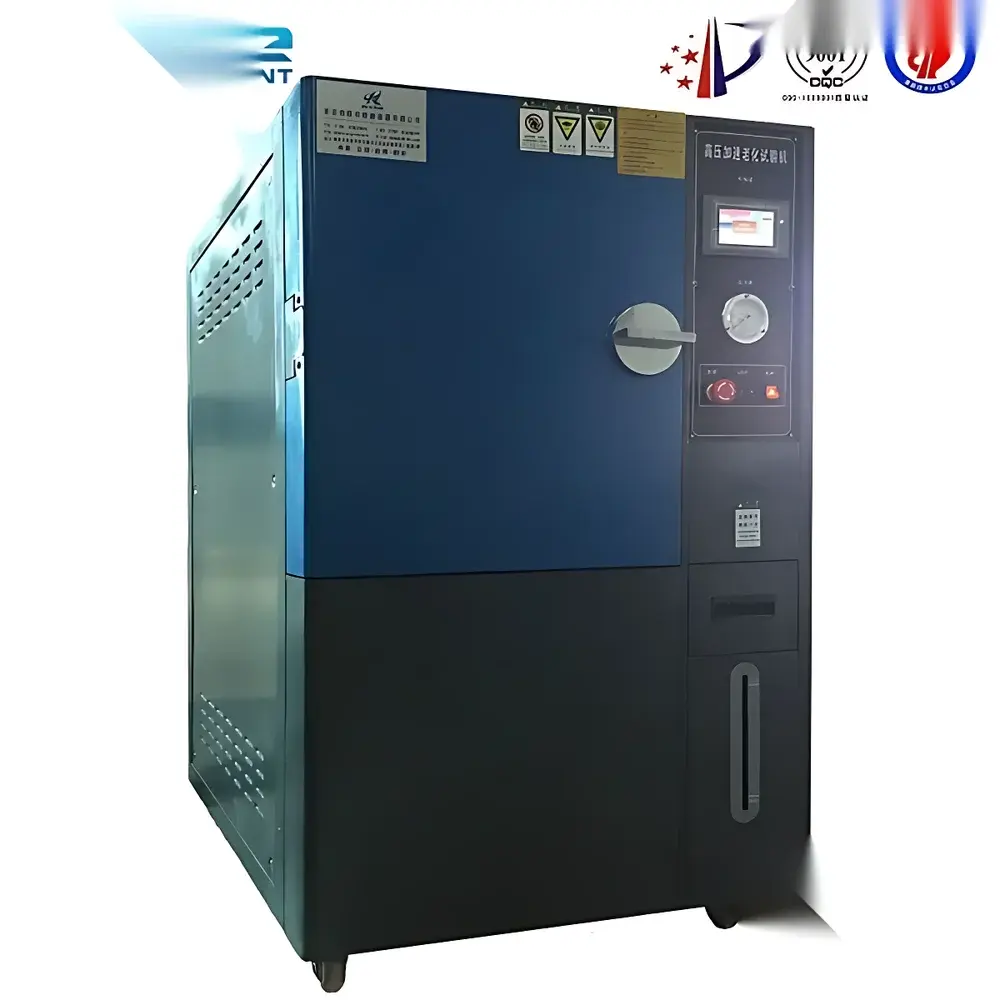

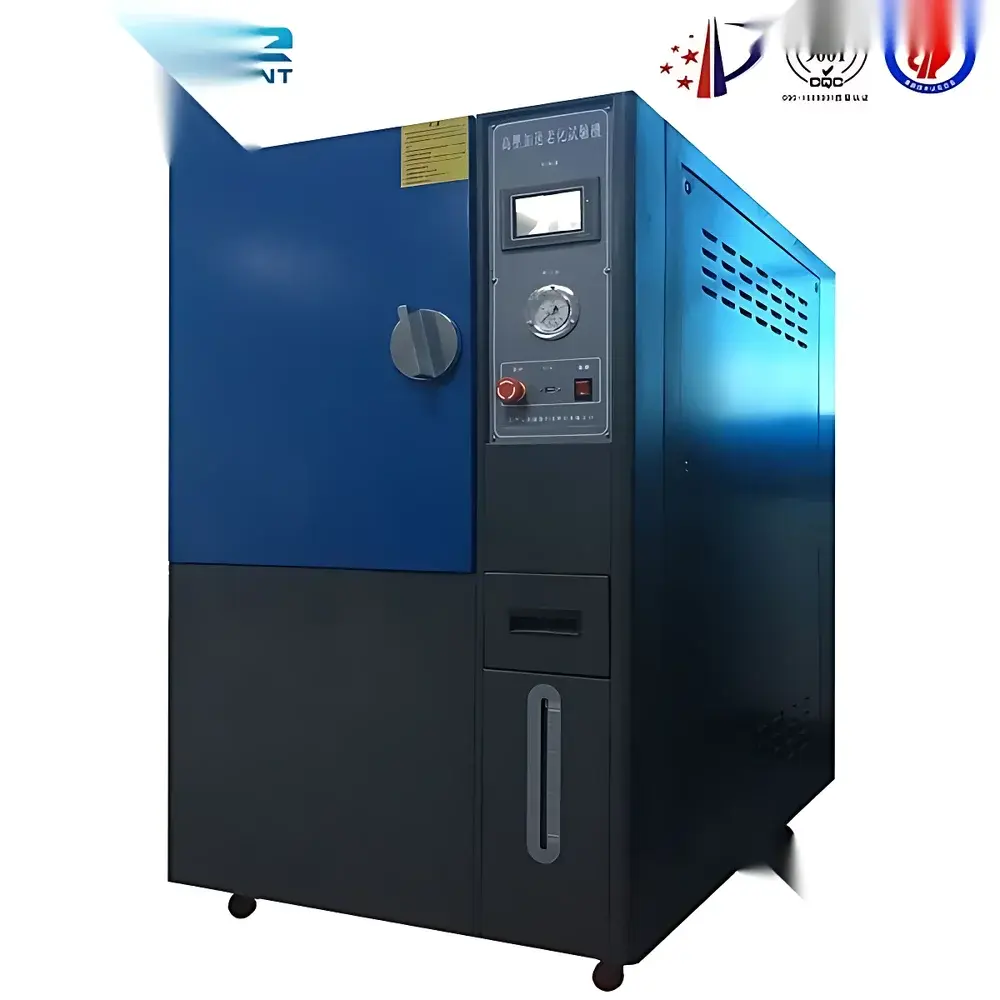

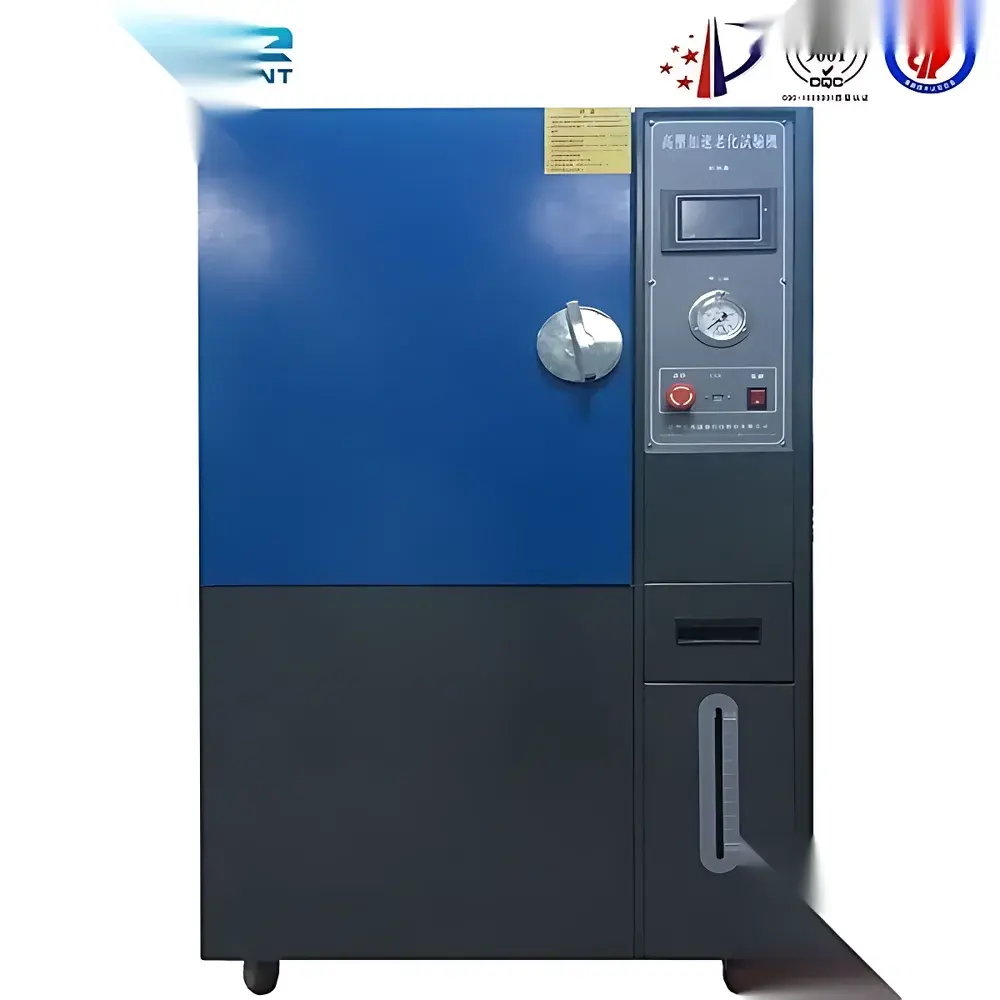

HAST Accelerated Aging Test Chamber

Overview

The HAST Accelerated Aging Test Chamber is a precision-engineered environmental stress test system designed for highly accelerated stress testing (HAST) of electronic components, PCB assemblies, semiconductor packages, and hermetic seals under elevated temperature, pressure, and 100 % relative humidity conditions. Unlike traditional temperature-humidity bias (THB) testing, HAST utilizes saturated steam at pressures above ambient to dramatically accelerate moisture diffusion into encapsulants and dielectric layers—enabling failure mechanisms such as corrosion, wire bond degradation, and delamination to manifest in hours or days rather than weeks or months. This chamber operates on the fundamental principle of vapor-phase accelerated aging governed by the Arrhenius–Eyring model, where reaction kinetics scale exponentially with both thermal energy and water activity. Its design conforms to industry-standard test methods including JEDEC JESD22-A110 (HAST), JESD22-A108 (Highly Accelerated Temperature and Humidity Stress Test), and IPC-9702 for reliability qualification of microelectronic devices.

Key Features

• Full-automated test cycle execution—from chamber preconditioning to final depressurization—with no manual intervention required post-initiation.
• Dual independent overtemperature protection circuits: primary PID-controlled heating cutoff and secondary mechanical thermal fuse, both triggering audible alarm and immediate power isolation.
• High-stability digital LED temperature controller with ±0.1 °C accuracy across the full 100–132 °C operating range; real-time display of setpoint, actual temperature, and elapsed time.
• Delay-start timer synchronized to temperature stabilization—ensuring accurate test duration only after target temperature is reached and maintained for ≥5 minutes.
• Simultaneous analog-style pressure gauge and digital pressure readout (0–4 kgf/cm²), calibrated against NIST-traceable reference standards.
• Integrated steam quality management: continuous purge of non-condensable gases and unsaturated vapor during pressurization to maintain >99.5 % saturation level per ASTM E2089.
• Auto-refill water reservoir with conductive level sensing—prevents dry-run operation and ensures uninterrupted test continuity even during extended cycles (>96 h).
• Interlocked door mechanism: chamber cannot initiate pressurization unless door is fully closed and latched; mechanical override disabled during active test phase.
• ASME-certified safety relief valve with factory-set pop-off threshold at 4.2 kgf/cm², providing fail-safe overpressure protection compliant with PED 2014/68/EU.
• Thermally insulated ABS polymer door housing and one-piece molded silicone door gasket—rated for >10,000 cycles and maintaining leak rate <1×10⁻⁶ mbar·L/s under differential pressure.

Sample Compatibility & Compliance

This chamber accommodates standard JEDEC trays (JEDEC STD-20), 300 mm wafer carriers, and custom fixtures up to the maximum internal dimensions (Φ50 × 70 cm). It supports both un-biased and biased HAST configurations when integrated with external DC bias supplies. All models are CE-marked and comply with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) standards. The control architecture meets GLP audit requirements, supporting user-accessible event logs, calibration history tracking, and password-protected parameter modification. Optional validation packages include IQ/OQ documentation aligned with ISO/IEC 17025 and FDA 21 CFR Part 11-compliant electronic signature capability for regulated environments.

Software & Data Management

Equipped with embedded RS-485 and optional Ethernet interface, the chamber supports Modbus RTU and TCP protocols for integration into centralized lab monitoring systems (e.g., LabVantage, Siemens Desigo, or custom SCADA). Onboard data logging records temperature, pressure, time, and alarm events at 1-second intervals, stored internally for ≥30 days or streamed in real time to external databases. Export formats include CSV and XML, compatible with JMP, Minitab, and Weibull++ for reliability life data analysis. Firmware updates are performed via secure USB port with SHA-256 signature verification to ensure integrity and traceability.

Applications

• Qualification of plastic-encapsulated microcircuits (PEMs) per MIL-STD-750 Method 1082.
• Failure mode analysis of solder mask adhesion, conformal coating integrity, and underfill void formation.
• Accelerated lifetime prediction of automotive-grade ECUs exposed to under-hood thermal-humidity cycling.
• Process validation for wafer-level packaging (WLP) and fan-out wafer-level packaging (FOWLP) technologies.
• Reliability screening of medical electronics subject to ISO 13485 and IEC 60601-1 environmental requirements.
• Material compatibility studies for high-k dielectrics, low-κ interlayer dielectrics, and copper barrier stacks.

FAQ

What is the difference between HAST and traditional THB testing?
HAST replaces ambient-pressure 85 °C/85 % RH conditions with elevated temperature (100–132 °C) and saturated steam pressure (up to 4 kgf/cm²), increasing water vapor partial pressure by ~10–100×. This significantly accelerates hydrolytic degradation without requiring prolonged test durations.

Can this chamber perform unbiased and biased HAST?
Yes—unbiased operation is standard. Biased HAST requires integration with an external programmable DC power supply and isolated feedthroughs, which can be specified at order entry.

Is third-party calibration certification available?
Factory calibration includes NIST-traceable temperature and pressure verification. Optional UKAS-accredited calibration certificates (ISO/IEC 17025) are available upon request with lead time.

What maintenance is required for long-term operational reliability?
Monthly deionized water quality verification, quarterly gasket inspection, annual pressure sensor recalibration, and biannual steam generator descaling using citric acid solution per manufacturer guidelines.
