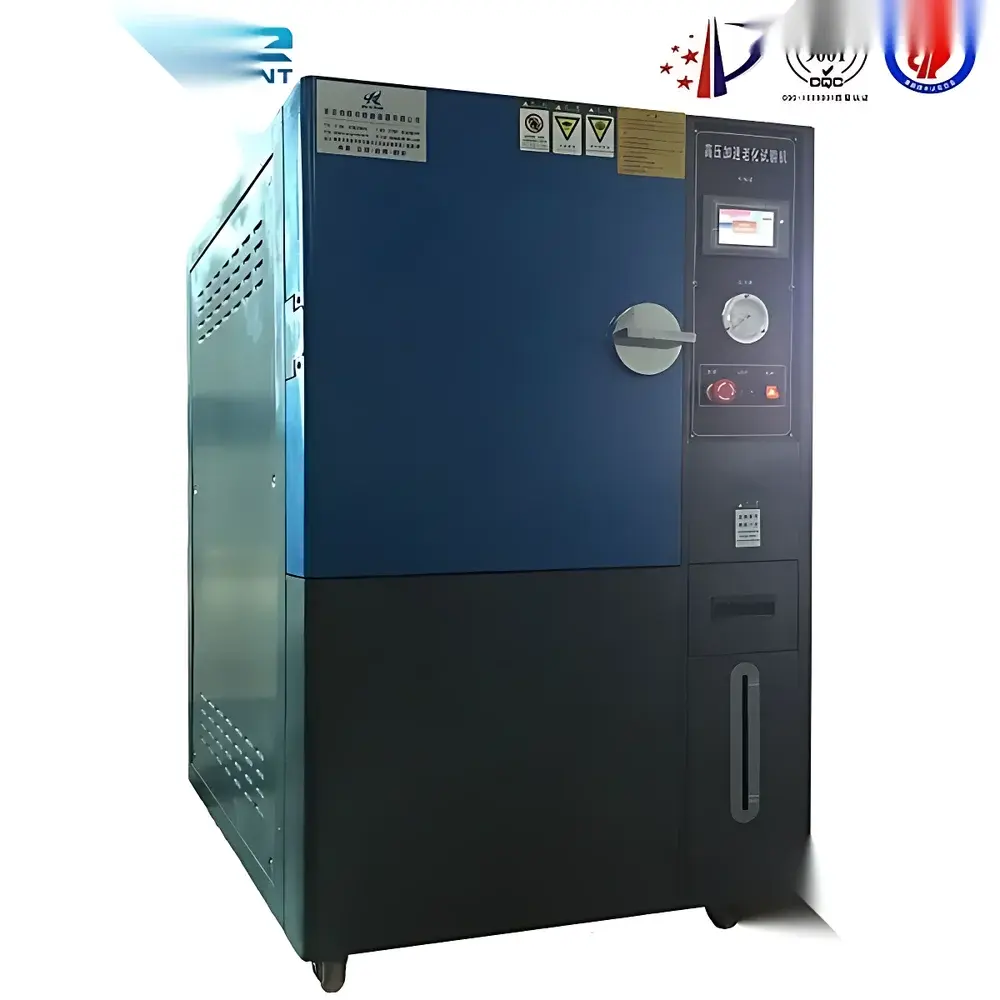

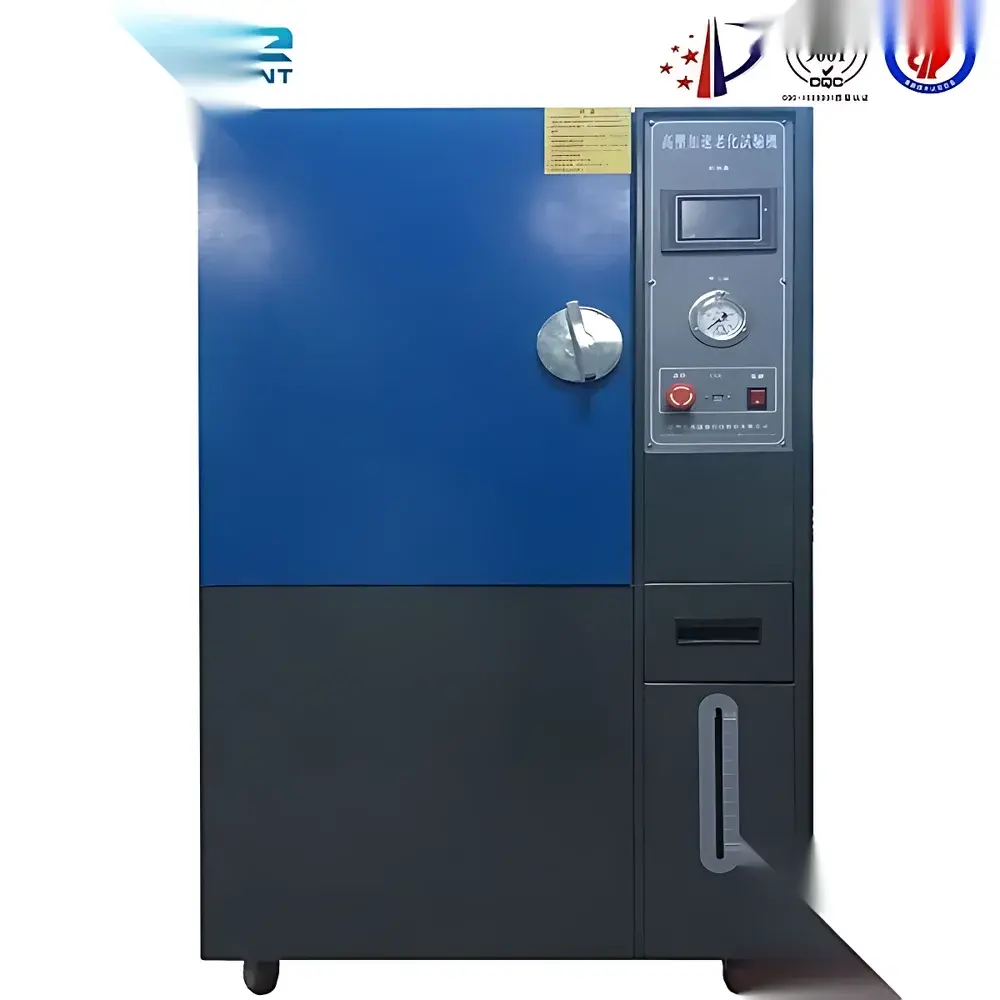

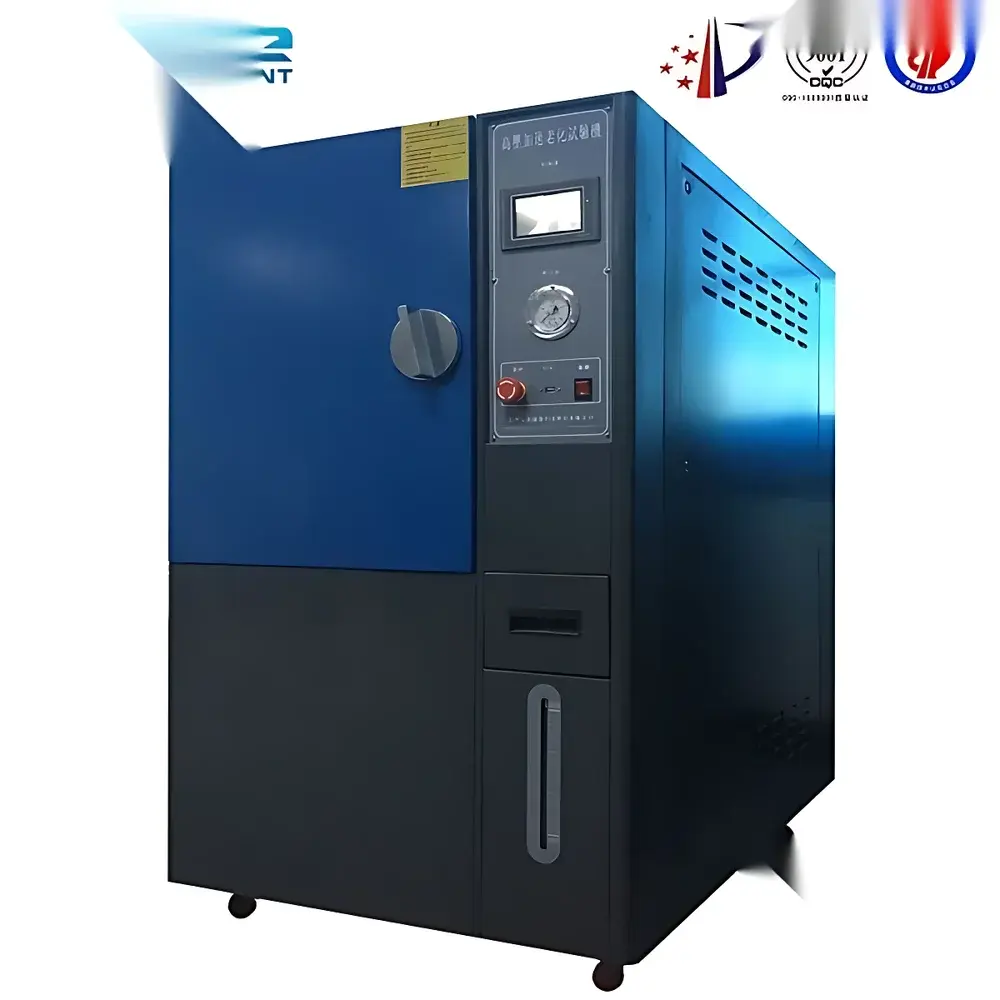

OK-HAST Series High-Accelerated Stress Test (HAST) Chamber

Overview

The OK-HAST Series High-Accelerated Stress Test (HAST) Chamber is an engineered environmental stress screening system designed to replicate and accelerate moisture-related failure mechanisms in hermetically sealed and plastic-encapsulated electronic components. Unlike conventional temperature-humidity testing, HAST applies elevated temperature, high relative humidity, and controlled overpressure—typically 100–130°C, >85% RH, and 1.5–2.8 kg/cm² gauge pressure—to dramatically reduce test duration while maintaining thermodynamic equivalence to 1000+ hours of 85°C/85% RH testing. This chamber operates on the principle of saturated steam pressurization, where increased partial pressure of water vapor drives moisture diffusion through polymer interfaces, mold compound boundaries, and passivation layers—enabling early detection of delamination, wire bond corrosion, intermetallic growth, and conductive anodic filament (CAF) formation. Its architecture conforms to the physical requirements of JEDEC JESD22-A110 (Unbiased HAST) and JESD22-A118 (Biased HAST), supporting both unbiased and voltage-biased reliability qualification per automotive AEC-Q200 and industrial IEC 60749 standards.

Key Features

• Automated water replenishment system maintains optimal water level throughout extended test cycles without manual intervention.
• Full-cycle automation: Pre-programmed sequence initiates heating, humidification, pressurization, dwell, and depressurization—ensuring repeatability and operator safety.
• Digital LED temperature controller with setpoint programming, real-time display, and ±0.5°C control accuracy; resolution 0.1°C.
• Delay-start digital timer begins counting only after chamber reaches target temperature—eliminating premature timing errors.
• Integrated dual-scale pressure/temperature gauge provides simultaneous visual readout of absolute pressure (kg/cm²) and corresponding saturation temperature (°C).
• Steam purging mechanism continuously removes non-saturated vapor during pressurization to ensure consistent steam quality and eliminate air pockets.
• One-piece molded silicone door gasket delivers long-term sealing integrity, low compression set, and resistance to thermal cycling degradation.
• Electropolished SUS304 inner chamber surface minimizes contamination retention, facilitates cleaning, and resists corrosion under aggressive steam environments.

Sample Compatibility & Compliance

The OK-HAST chamber accommodates a broad range of package types—including QFP, BGA, CSP, SOIC, and wafer-level chip-scale packages—as well as PCBAs, LED modules, automotive sensors, and medical-grade encapsulated assemblies. Its internal geometry supports vertical or horizontal sample mounting with unobstructed steam circulation. All models are configured to meet the mechanical and environmental boundary conditions defined in JEDEC JESD22-A110 and JESD22-A118, including maximum allowable pressure ramp rates (<0.5 kg/cm²/min), dwell stability (±0.3 kg/cm²), and temperature-humidity correlation tolerances. The chamber’s construction materials and sealing design comply with ISO 9001 manufacturing controls and support GLP/GMP documentation workflows, including audit-ready calibration traceability and deviation logging.

Software & Data Management

While the base configuration features standalone digital controllers, optional RS-485/Modbus RTU or Ethernet/IP interface enables integration into centralized test management systems (e.g., TestStand, LabVIEW, or custom MES platforms). Logged data includes timestamped pressure, temperature, humidity, cycle phase status, and alarm events—with configurable sampling intervals (1–60 sec). Data export supports CSV and XML formats compatible with statistical process control (SPC) analysis and FA report generation. For regulated industries, optional 21 CFR Part 11-compliant software adds electronic signatures, role-based access control, and immutable audit trails for all parameter changes and cycle executions.

Applications

This HAST chamber is deployed across semiconductor qualification labs, automotive Tier-1 supplier R&D centers, and medical device manufacturers for accelerated reliability validation. Primary use cases include: evaluation of moisture sensitivity level (MSL) compliance per J-STD-020; assessment of mold compound adhesion and die attach integrity; identification of CAF initiation sites in high-density PCB laminates; qualification of conformal coatings under combined thermal-mechanical-hygroscopic stress; and failure mode analysis of MEMS packaging and optoelectronic assemblies. It is particularly effective in design-stage robustness testing—revealing latent defects such as microcracks at leadframe-epoxy interfaces, silver migration paths, and solder mask blistering prior to high-volume production release.

FAQ

What standards does the OK-HAST chamber support?

It is engineered to execute tests compliant with JEDEC JESD22-A110 (Unbiased HAST), JESD22-A118 (Biased HAST), IEC 60068-2-66, and MIL-STD-883 Method 1030.4.

Can the chamber perform biased testing with applied voltage?

Yes—when integrated with external programmable power supplies and isolation modules, it supports voltage-biased HAST per JESD22-A118, with up to 500 V DC bias capability (requires optional feedthroughs and safety interlocks).

How is steam purity maintained during long-duration tests?

A continuous steam purge system vents non-condensable gases and superheated vapor fractions before saturation is achieved, ensuring >99.5% saturated steam quality throughout the dwell phase.

Is calibration certification included with shipment?

Each unit ships with a factory calibration certificate traceable to NIST standards, covering temperature, pressure, and humidity sensors, valid for 12 months from date of commissioning.

What maintenance is required for sustained operational reliability?

Recommended quarterly tasks include descaling the water reservoir, inspecting the door gasket for compression fatigue, verifying pressure relief valve function, and validating temperature uniformity per ASTM E2207.
