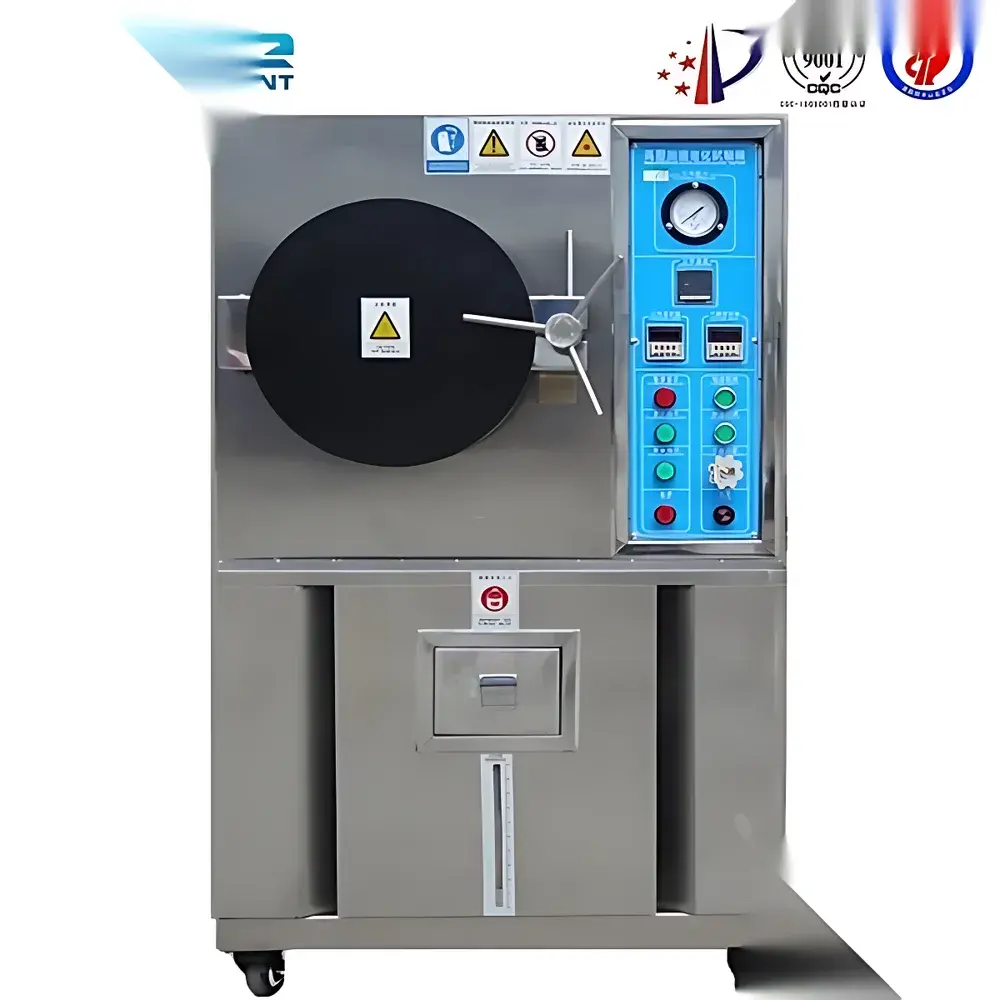

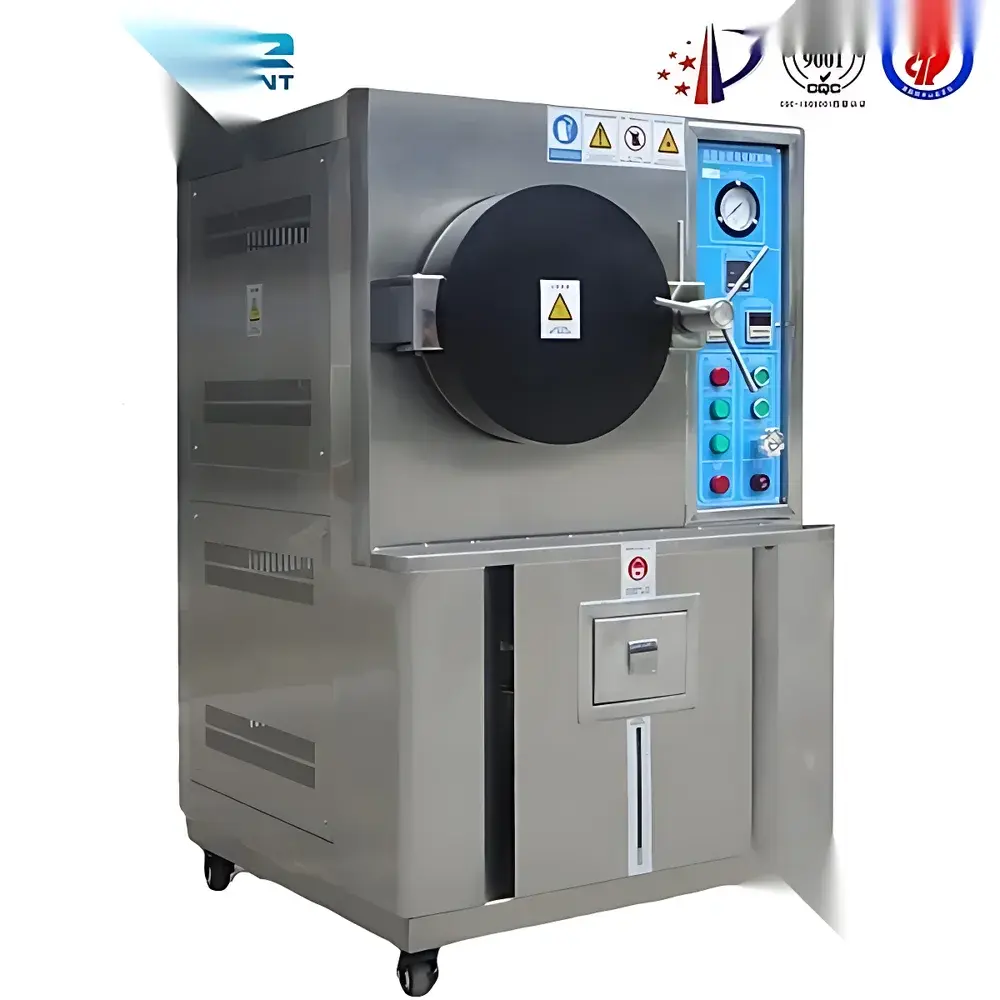

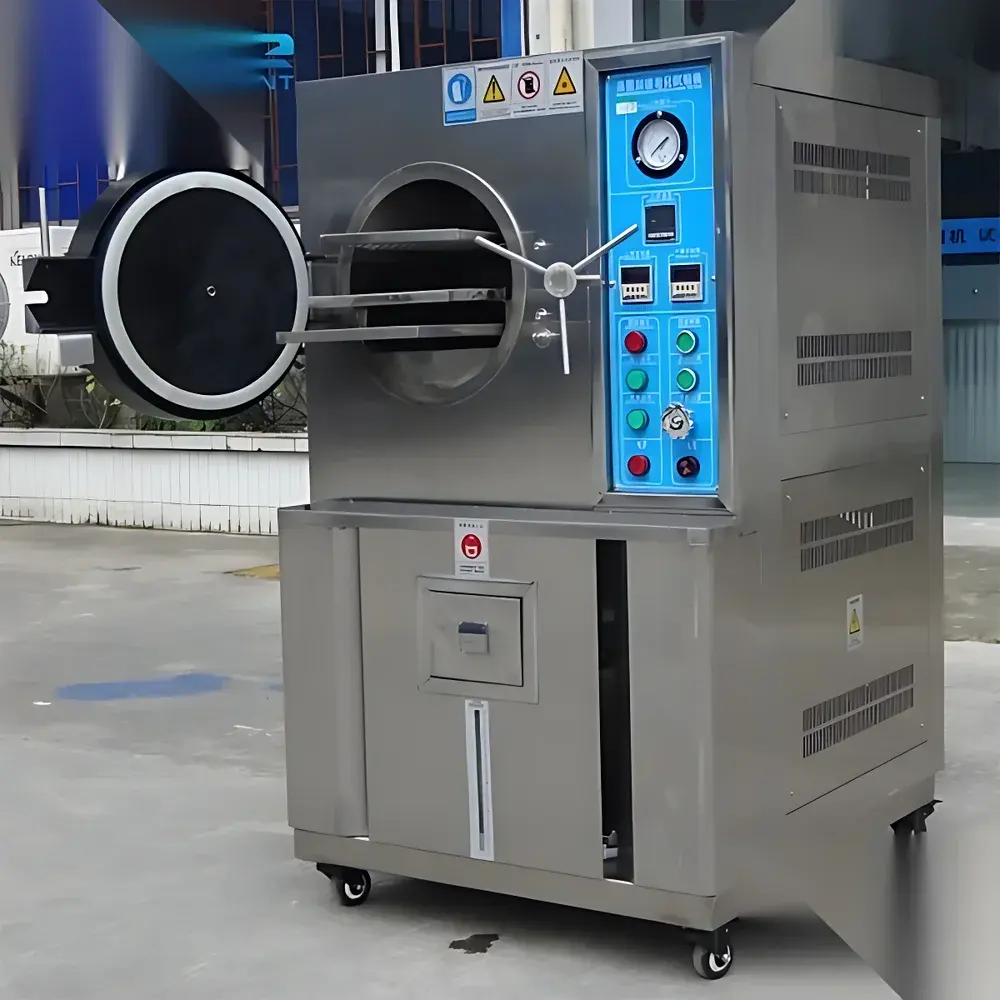

OK-HAST Series High-Pressure Steam Autoclave Test Chamber

Overview

The OK-HAST Series High-Pressure Steam Autoclave Test Chamber is engineered for accelerated reliability assessment of electronic components and hermetically sealed devices under controlled high-temperature, high-humidity, and elevated-pressure conditions. Based on the principle of saturated steam autoclaving, it replicates worst-case environmental stress scenarios—such as those encountered during solder reflow or long-term storage—to evaluate moisture ingress resistance, seal integrity, and latent package defects (e.g., popcorn cracking, wire bond lift, delamination). Unlike conventional damp heat testing, this system operates at pressures exceeding atmospheric levels (up to 4 kg/cm²), enabling rapid saturation of micro-cavities and accelerated diffusion kinetics in accordance with industry-standard HAST (Highly Accelerated Stress Test) protocols defined in JESD22-A110 and JEDEC standards. Its fully automated cycle execution—from cold air purge through pressurization, dwell, and controlled depressurization—ensures repeatable thermal-hygric-mechanical loading without operator intervention.

Key Features

• Dual-path high-temperature solenoid valve architecture minimizes failure probability and improves long-term operational reliability.
• Isolated steam generation chamber prevents direct steam impingement on test specimens, eliminating localized thermal shock and mechanical erosion.
• Ergonomic lever-free door locking mechanism ensures consistent sealing force and eliminates manual torque variability associated with legacy rotary latches.
• Integrated pre-cycle and mid-cycle cold air purge function maintains stable pressure profiles by removing non-condensable gases—critical for achieving reproducible saturation kinetics and minimizing pressure hysteresis.
• Continuous 400-hour unattended operation capability supports extended qualification runs required for AEC-Q200 or MIL-STD-883 compliance verification.
• Real-time water level monitoring via submersible ultrasonic sensor triggers automatic deionized water replenishment without interrupting test continuity.
• Pressure vessel constructed from ASTM A240 316L stainless steel, certified to withstand 2.65 MPa hydrostatic test pressure at 140 °C—exceeding ASME BPVC Section VIII Div. 1 requirements for Class I pressure equipment.
• Dual-redundant pressure safety system: primary electronic controller-based cut-off + secondary mechanical pressure relief valve—both independently validated per ISO 13849-1 PL e functional safety criteria.
• Emergency two-stage manual pressure release handle enables immediate depressurization in fault conditions while maintaining fail-safe interlock integrity.

Sample Compatibility & Compliance

The OK-HAST chamber accommodates PCBs, multilayer laminates, IC packages (QFN, BGA, CSP), LCD modules, ferrite magnets, MEMS sensors, and other miniaturized assemblies requiring hermeticity validation. Chamber dimensions support standardized test boards (e.g., IPC-J-STD-020 compliant trays) and custom fixtures. All models comply with JEDEC JESD22-A110E (HAST), IEC 60068-2-66 (damp heat, accelerated), and IPC-9701A (reliability qualification of printed board assemblies). Pressure vessel design conforms to PED 2014/68/EU and carries CE marking for pressure equipment. Optional audit-ready configuration supports FDA 21 CFR Part 11-compliant electronic records and GLP/GMP traceability when integrated with validated data acquisition software.

Software & Data Management

Equipped with a 7-inch industrial touchscreen HMI running embedded Linux, the system provides real-time graphical display of temperature, pressure, humidity, and elapsed time. All process parameters—including ramp rates, dwell durations, purge cycles, and alarm logs—are timestamped and stored internally (≥10,000-cycle capacity). USB export enables CSV-formatted data transfer for statistical analysis (Cpk, Weibull). Optional Ethernet interface supports Modbus TCP integration into centralized MES or LIMS platforms. Calibration certificates (NIST-traceable thermocouples, pressure transducers) and IQ/OQ documentation packages are available upon request for regulated environments.

Applications

• Qualification of moisture sensitivity level (MSL) for surface-mount components per J-STD-020.
• Failure mode analysis of plastic-encapsulated microcircuits (PEMs) under combined thermal-hygric stress.
• Validation of conformal coating integrity and edge seal performance in automotive ECUs.
• Accelerated aging studies of medical device packaging (ISO 11607-1).
• Reliability screening of 5G RF front-end modules exposed to humid coastal environments.
• Process window qualification for wafer-level packaging (WLP) and fan-out wafer-level packaging (FOWLP).

FAQ

What standards does the OK-HAST chamber support for HAST testing?

It fully implements JEDEC JESD22-A110E (unbiased HAST) and JESD22-A118 (biased HAST), including mandatory cold air purge, pressure ramp control, and dwell stability specifications.

Can the chamber perform both unbiased and biased HAST tests?

Yes—when paired with an external programmable DC power supply and isolated feedthroughs (optional accessory), it supports voltage-biased testing per JESD22-A118.

Is third-party calibration and validation support available?

Yes—factory-certified IQ/OQ protocols, NIST-traceable calibration reports, and 21 CFR Part 11-compliant software validation packages are offered as add-on services.

How is pressure stability maintained during long-duration tests?

Through continuous closed-loop PID control of steam injection, redundant pressure transducer feedback, and active cold air purge management—achieving ±0.1 kg/cm² pressure tolerance over 400-hour runs.

What maintenance intervals are recommended for sustained compliance?

Steam generator descaling every 200 operating hours; pressure relief valve functional verification quarterly; full system calibration annually per ISO/IEC 17025 guidelines.
