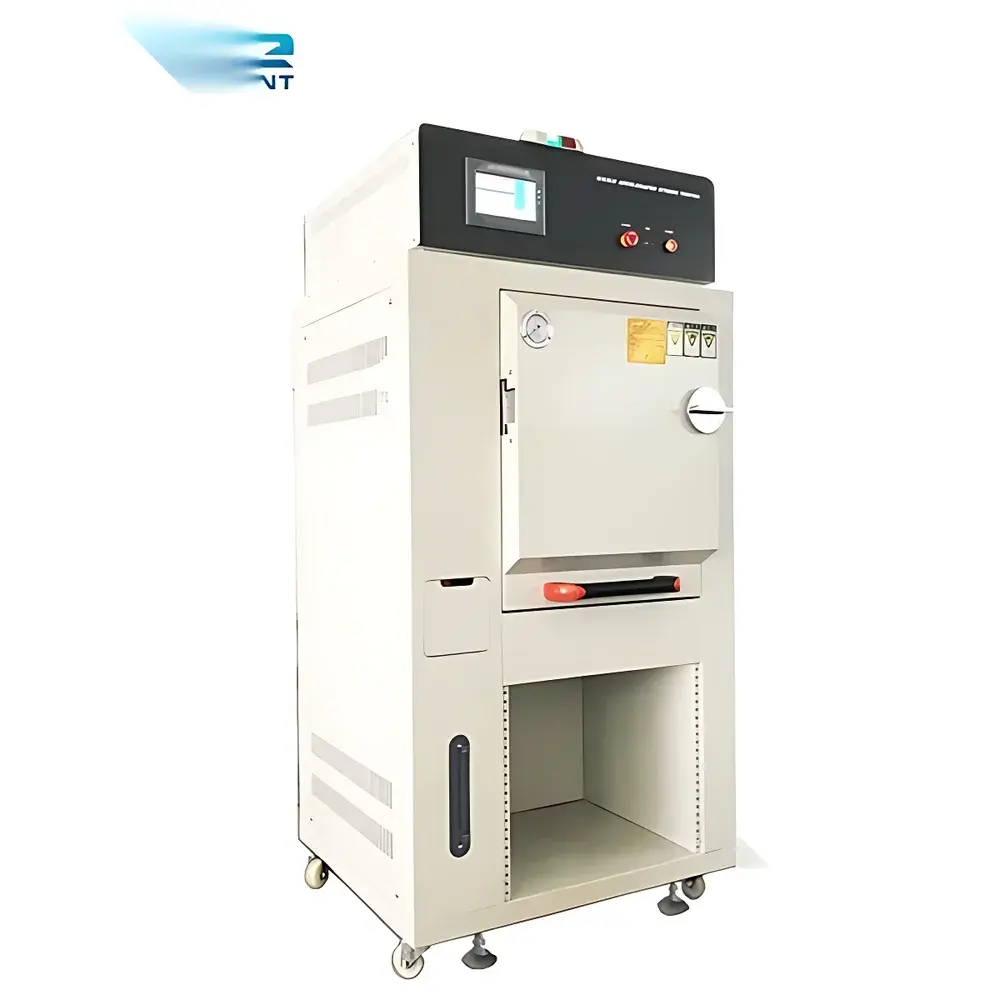

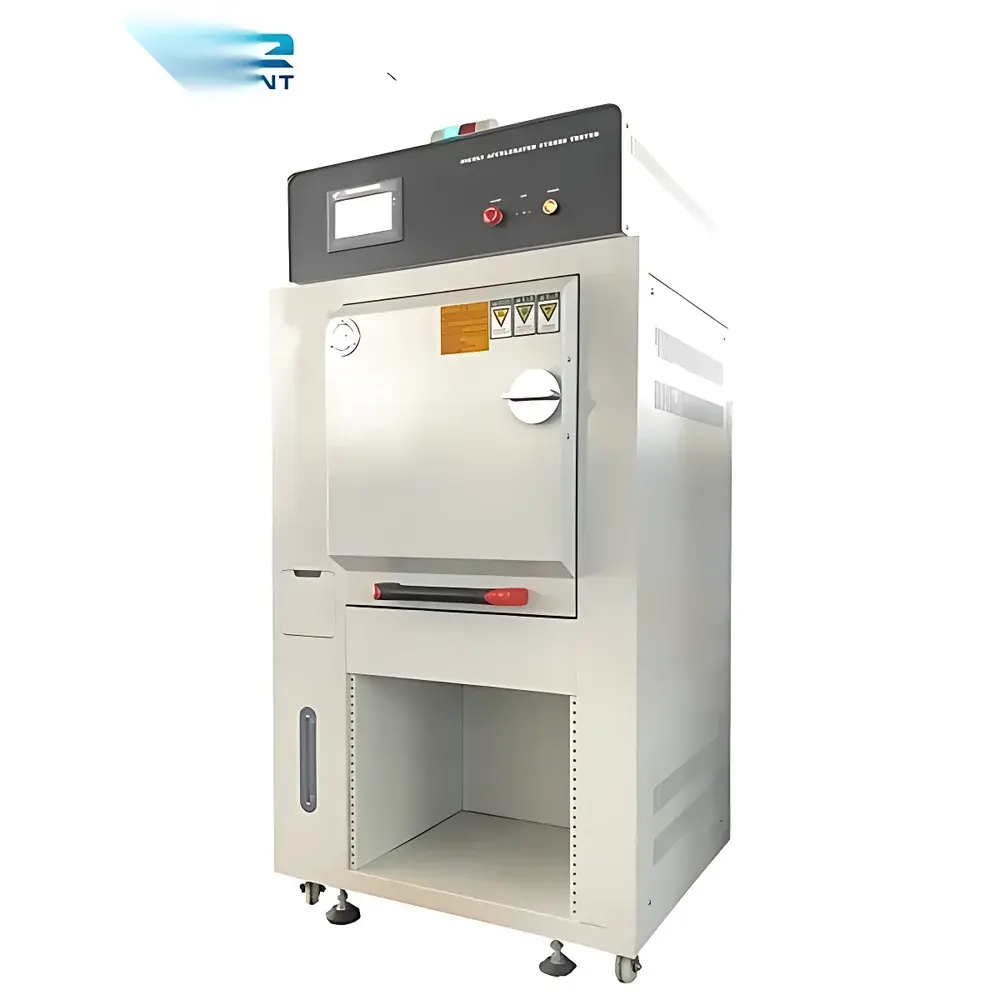

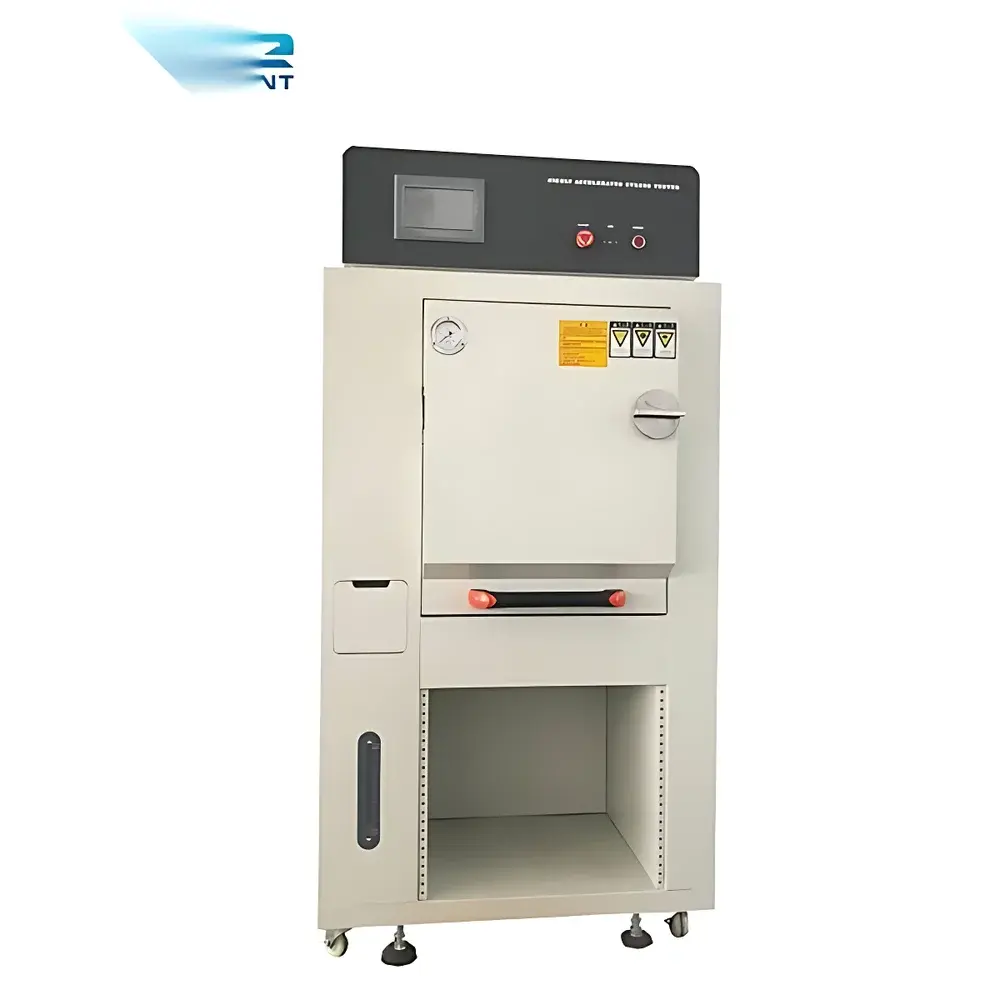

OK-HAST Series Programmable High-Pressure Steam Aging Test Chamber

Overview

The OK-HAST Series Programmable High-Pressure Steam Aging Test Chamber is an engineered environmental stress screening system designed specifically for accelerated reliability testing of semiconductor devices, LED packages, photovoltaic cells, magnetic components, printed circuit boards (PCBs), and other moisture-sensitive electronic assemblies. Operating on the principle of Highly Accelerated Stress Testing (HAST), this chamber subjects samples to elevated temperature, saturated steam pressure, and high relative humidity—conditions that significantly accelerate moisture diffusion and electrochemical degradation mechanisms such as corrosion, wire bond lift-off, and die passivation failure. Unlike conventional autoclave-based aging systems, the OK-HAST series integrates precise programmable control over pressure, temperature, and dwell time, enabling strict adherence to standardized HAST test profiles defined in JEDEC JESD22-A102 (Unbiased HAST) and JESD22-A110 (Biased HAST), as well as IEC 60068-2-66. The chamber’s forced-steam convection circulation ensures uniform thermal and hygric distribution throughout the test volume, minimizing spatial gradients and supporting reproducible failure mode identification across qualification lots.

Key Features

• Programmable digital temperature controller with LED display for precise setpoint definition, real-time monitoring, and closed-loop PID regulation within ±0.5 °C accuracy.
• Digital timer synchronized to chamber temperature attainment—initiates countdown only after reaching target temperature, eliminating timing drift due to thermal lag.
• Integrated pressure–temperature gauge providing simultaneous analog readout of internal absolute pressure (kg/cm²) and corresponding saturation temperature (°C), facilitating direct correlation per steam tables.
• Automated water replenishment system with conductive level sensing: detects low reservoir condition during operation and triggers controlled deionized water injection without interrupting test continuity.
• Steam quality optimization via continuous venting of non-saturated vapor during pressurization—ensures >95 % dryness fraction and consistent condensation behavior on test specimens.
• Electropolished 316L stainless steel inner chamber surface—resistant to chloride-induced pitting, easy to clean, and compliant with ISO 14644-1 Class 8 cleanroom-compatible maintenance protocols.
• Interlocked safety architecture: mechanical door latch sensor prevents power-up unless fully sealed; ASME-certified spring-loaded safety valve activates at preset overpressure threshold (adjustable up to 3.0 kg/cm²).
• Dual independent overtemperature protection: primary thermostat + redundant bimetallic cutout—triggers audible alarm and immediate heater shutdown upon deviation exceeding 5 °C above setpoint.
• Ergonomic ABS polymer door shield—thermally insulated, impact-resistant, and compliant with EN 61000-6-2/6-4 EMC immunity and emission requirements.

Sample Compatibility & Compliance

The OK-HAST chamber accommodates a broad range of sample configurations—from bare die trays and wafer-level carriers to fully assembled modules and encapsulated sensors—via configurable stainless steel shelf supports (standard: two-tier). Internal dimensions scale across four models (OK-HAST-25 to OK-HAST-65) to support industry-standard test fixtures including JEDEC trays (JEDEC MO-178), EIA-481 tape-and-reel carriers, and custom jigs. All units are constructed and validated per ISO 9001 manufacturing controls and undergo factory performance verification against traceable NIST-calibrated reference standards. The system meets functional requirements for GLP-compliant test documentation when paired with optional audit-trail-enabled software (see Software & Data Management). It supports full alignment with AEC-Q200 stress validation sequences for passive components and satisfies pre-conditioning requirements outlined in IPC-J-STD-020 and IPC-SM-785 for moisture sensitivity level (MSL) classification.

Software & Data Management

Optional OK-ControlSuite™ software provides PC-based test program creation, remote chamber supervision, and automated data logging at user-defined intervals (minimum 1-second resolution). Logged parameters include chamber temperature, jacket pressure, elapsed time, and status flags (e.g., “filling”, “pressurizing”, “soaking”, “venting”). Export formats include CSV and XML, compatible with LIMS integration and statistical process control (SPC) platforms. When configured with digital signature and electronic record modules, the software complies with FDA 21 CFR Part 11 requirements—including role-based access control, operator authentication, immutable audit trails, and electronic signature capture for test report finalization. Raw data files retain embedded timestamps traceable to UTC via NTP synchronization.

Applications

• Qualification of IC packaging materials (EMC, mold compounds, underfills) for moisture resistance under biased/unbiased HAST conditions.
• Failure analysis root cause isolation in LED phosphor degradation, solder joint intermetallic growth, and aluminum wire bond corrosion.
• Reliability screening of PV module backsheet adhesion, edge seal integrity, and junction box potting compound delamination.
• Process validation of conformal coating efficacy (e.g., acrylic, silicone, parylene) on high-density PCBAs exposed to humid tropical environments.
• Accelerated life testing of MEMS sensors and RF front-end modules where hermeticity and long-term stability under thermal–hygric cycling are critical.

FAQ

What standards does the OK-HAST chamber support?
It is fully compatible with JEDEC JESD22-A102 (Unbiased HAST), JESD22-A110 (Biased HAST), IEC 60068-2-66, and AEC-Q200 test conditions.
Can the chamber operate at 143 °C?
Yes—models equipped with upgraded heating elements and reinforced pressure vessel linings support 143 °C operation upon request; validation documentation provided per customer specification.
Is manual pressure release available?
Yes—a dedicated manual depressurization valve is included alongside the automatic pressure relief system for controlled venting during maintenance or emergency procedures.
How is water purity managed?
The system requires deionized water (resistivity ≥1 MΩ·cm); built-in conductivity monitoring alerts operators if feedwater quality falls below specification.
What electrical supply options are supported?
Dual-voltage configuration: AC 220 V ±10 %, 50/60 Hz (single-phase) or AC 380 V ±10 %, 50/60 Hz (three-phase), with CE-marked input protection and harmonic filtering.
