HengaoDe ZRX Series Multi-Function Granular Pesticide Characterization System – Bulk Density, Dispersibility, Abrasion Resistance, Sieving & Tap Density Tester

Overview

The HengaoDe ZRX Series Multi-Function Granular Pesticide Characterization System is an integrated laboratory platform engineered for standardized physical property evaluation of solid agrochemical formulations—particularly water-dispersible granules (WDGs), granular pesticides, and catalytic particulates. Designed in strict accordance with Chinese national standards (GB/T series), the system consolidates five core analytical modules into a unified workflow: bulk/tap density measurement (HAD-LIR & HAD-PH-702), dispersibility quantification (HAD-NSR), abrasion resistance testing (HAD-KAR), mechanical sieving (HAD-SLR), and auxiliary characterization support (e.g., magnetic permeability, lime assay, COD, heating/stirring, ultrasonic cleaning). Each module operates on validated physical principles—gravimetric volumetry, controlled suspension kinetics, rotational attrition mechanics, vibrational particle segregation, and electromagnetic induction—ensuring traceable, repeatable, and auditable data generation suitable for QC release, formulation development, and regulatory documentation under GLP-aligned laboratory practices.

Key Features

• Modular architecture enables independent or sequential operation of all five primary test units without cross-contamination or recalibration.
• Automated feed control (HAD-PH-702) eliminates operator-dependent variability in bulk density loading; electromagnetic dispensing ensures consistent mass/volume ratio across replicates.
• Dual-mode vibration: programmable tap frequency (1–5 Hz), amplitude (1–2 mm), and cycle count (1–9999) for precise compaction profiling per ISO 787-11 and USP <616> guidelines.

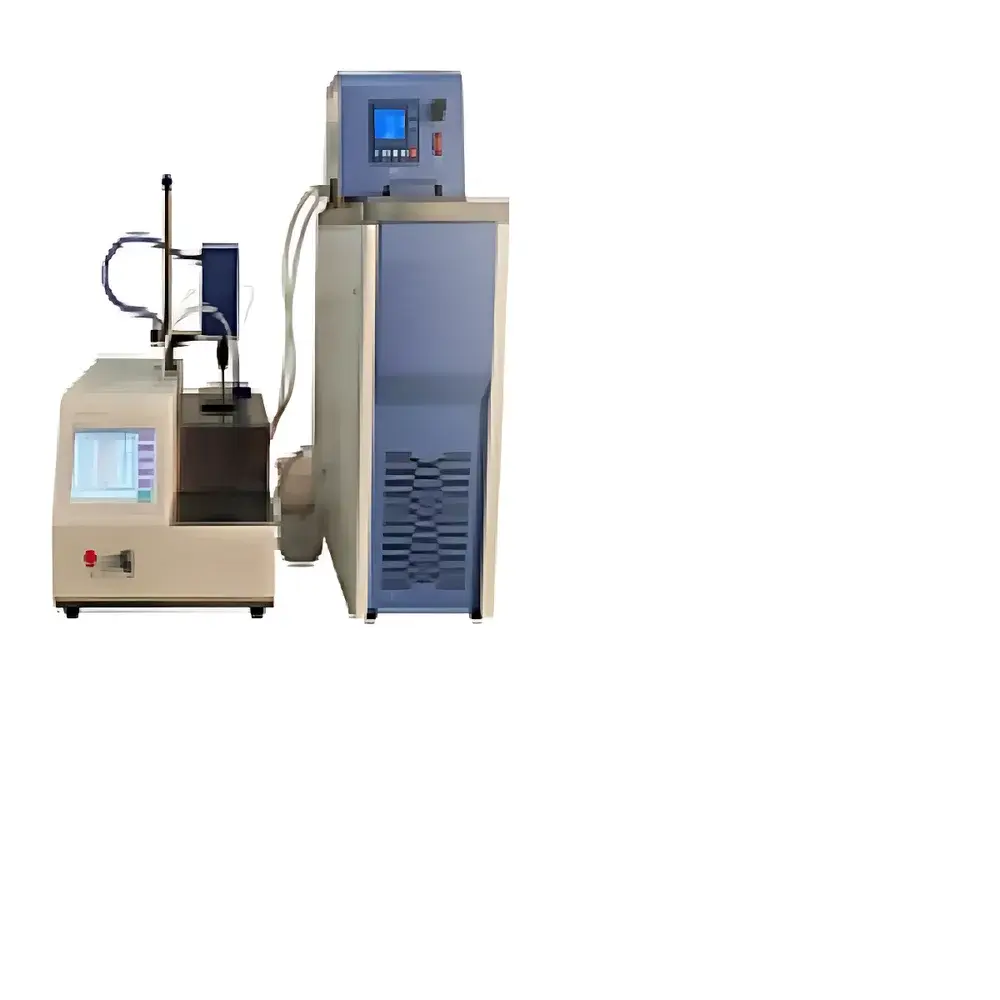

• Dispersibility tester (HAD-NSR) integrates PID-controlled water bath (±0.1 °C), stainless-steel impeller (0–1000 rpm), and automated suction/pipetting for reproducible suspension homogenization and timed dispersion assessment.

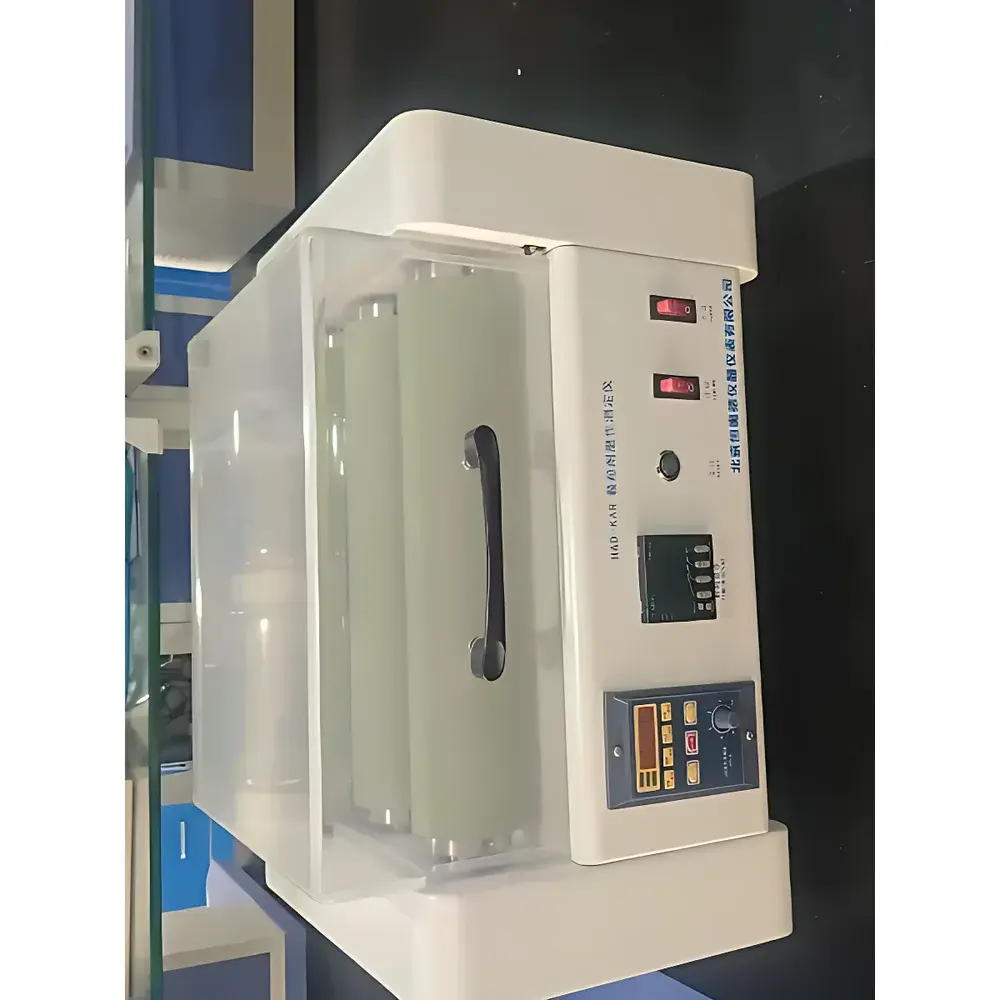

• Abrasion tester (HAD-KAR) features dual-sample chambers, digital tachometer feedback, and level-adjustable base with built-in bubble level—critical for minimizing axial bearing wear and torque deviation during 50–125 rpm rotation.
• All instruments support AC 220 V ±10 %, 50 Hz mains input; no external transformers or voltage converters required for European or North American lab deployment (with appropriate plug adapters).

Sample Compatibility & Compliance

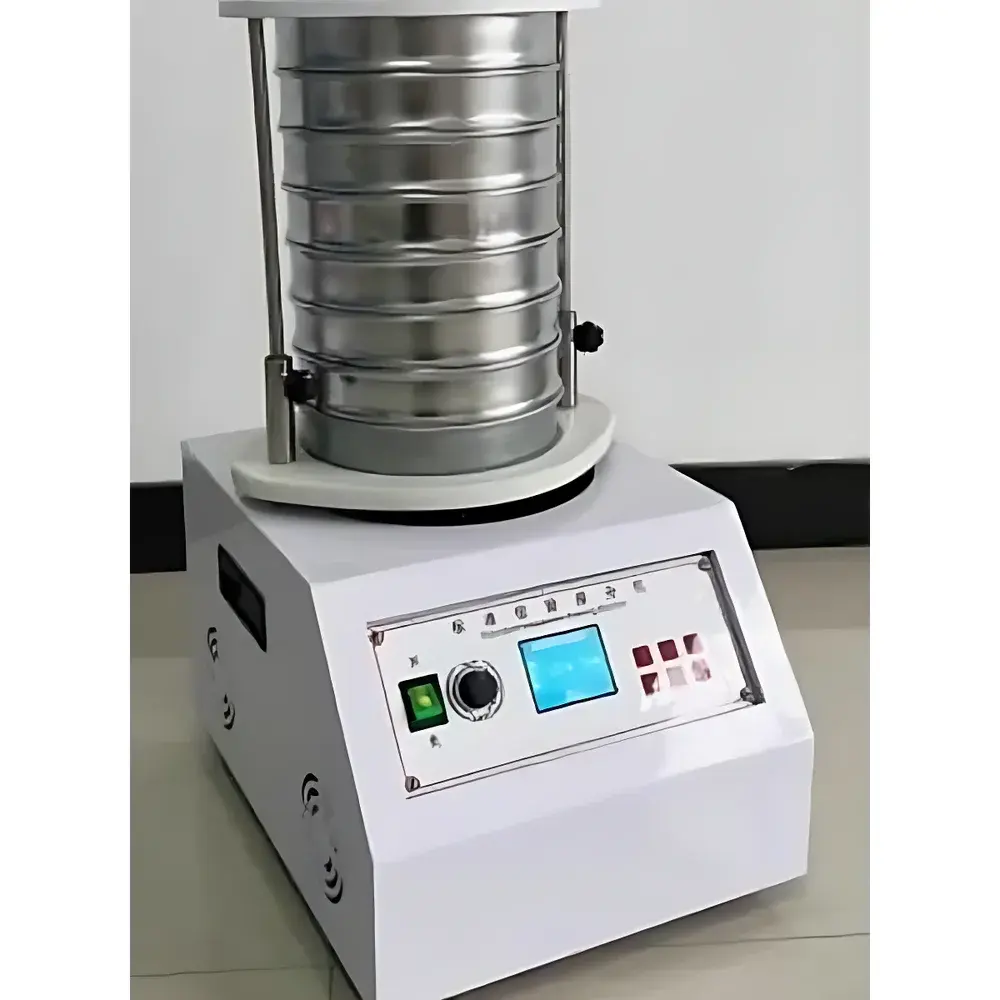

The ZRX platform accommodates dry, free-flowing granules ranging from 20 µm to 2 mm in nominal particle size, including WDGs, wettable powders (WP), granular insecticides, and catalyst carriers (e.g., zeolites, alumina pellets). All test methods align with internationally referenced standard frameworks: GB/T 33810-2017 (equivalent to ASTM D1464 for bulk density), GB/T 32775-2016 (aligned with CIPAC MT 173 for dispersibility), and GB/T 33031-2016 (correlates to CIPAC MT 188 for attrition resistance). While GB standards serve as the primary validation basis, instrument geometries, timing protocols, and mechanical tolerances are dimensionally compatible with ISO 3953 (tap density), ISO 4762 (particle size distribution via sieving), and OECD 105 (aqueous solubility screening workflows). No proprietary consumables are required—standard 125 µm stainless-steel sieves (HAD-SLR), 100/300 mL glass or stainless steel cylinders (HAD-PH-702), and ASTM-certified volumetric glassware may be used interchangeably.

Software & Data Management

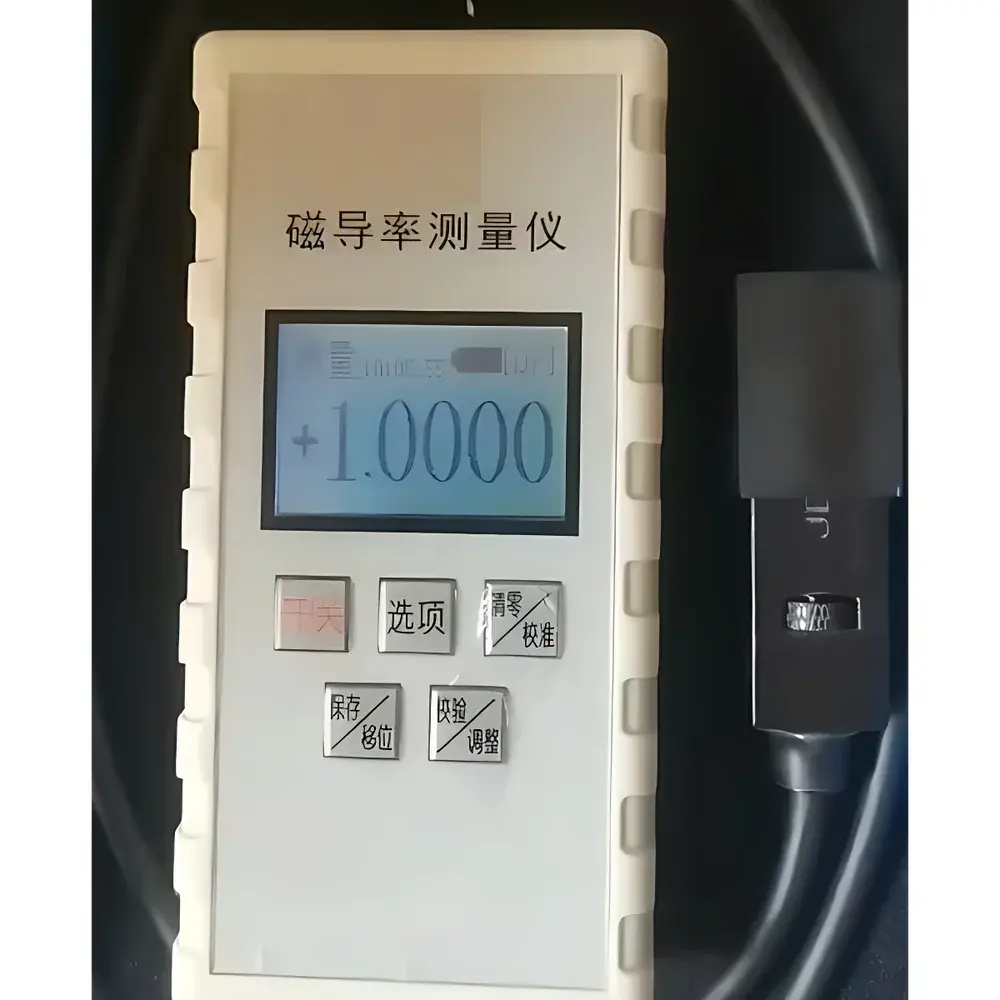

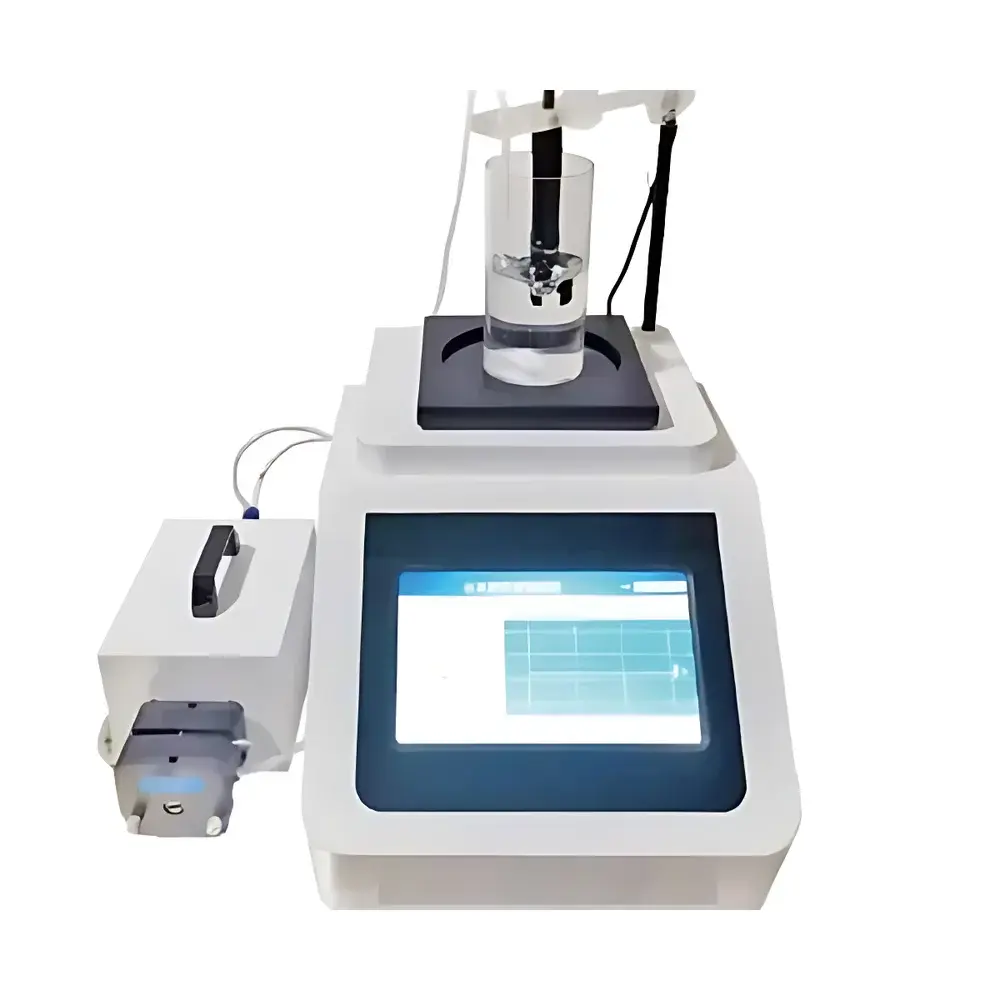

The ZRX system operates via embedded microcontroller logic—no PC dependency for core functions. However, select modules integrate digital interfaces for traceability: HAD-JDZ-2S magnetic permeability meter provides USB serial output (9600 baud, 8N1) for raw µ_r and susceptibility logging; HAD-T201 lime analyzer stores CaO% results with timestamp, pH trajectory, and stir speed metadata in internal flash memory (exportable via USB to CSV). All timed operations—including dispersibility settling intervals, abrasion rotation counts, and sieve oscillation durations—are hardware-locked with real-time digital display and audible end-of-cycle alerts. While not 21 CFR Part 11 compliant out-of-the-box, audit trails (start/stop times, parameter settings, operator ID fields) can be manually recorded in laboratory notebooks or imported into LIMS via exported logs, satisfying GLP documentation requirements for method verification and equipment qualification.

Applications

This system supports full lifecycle agrochemical development and quality assurance: pre-formulation screening of binder efficacy via abrasion loss (% mass retained post-rotation); batch release testing of WDG dispersibility index (DI) and re-dispersion stability; QC verification of granule flowability and compaction behavior prior to packaging; catalyst bed density modeling for fixed-bed reactor design; and comparative analysis of raw material lot variability (e.g., silica carrier density shifts affecting active ingredient loading uniformity). Beyond crop protection, it serves catalyst manufacturers (molecular sieve density profiling), battery material producers (anode/cathode powder packing density), and pharmaceutical excipient suppliers (lactose or MCC flow characterization per EP 2.9.36). Its modular footprint (total system volume < 1.2 m³) fits standard fume hood bays or dedicated QC benches without dedicated HVAC reinforcement.

FAQ

Does the ZRX system comply with international regulatory submissions (e.g., EPA, EU PPP Regulation)?

While GB/T standards are not directly accepted by EPA or EFSA, the test principles, apparatus geometry, and procedural rigor align with CIPAC and ISO equivalents widely cited in dossiers. Full compliance requires method equivalence validation per OECD GD 150 or SANCO/11188/2013.

Can the dispersibility tester (HAD-NSR) accommodate non-aqueous dispersions?

No—the water bath and pump calibration are optimized for aqueous systems at 20 °C. Organic solvent use voids thermal safety certification and risks seal degradation.

Is calibration certification included with shipment?

Factory calibration certificates (traceable to NIM China) are provided for all density, temperature, and rotational modules. On-site verification tools (certified weights, NIST-traceable thermometer, tachometer) are recommended for routine user checks.

What maintenance is required for long-term reliability?

Biannual inspection of motor brushes (abrasion/sieving units), silicone bath fluid replacement (dispersibility unit), and ultrasonic transducer coupling gel reapplication (KQ-500VDE) constitute the preventive maintenance schedule.

Are spare parts and technical support available outside China?

Yes—HengaoDe maintains authorized service partners in Germany, USA, and Singapore. Critical spares (vibration motors, PID controllers, glass cylinders) are stocked regionally with ≤10-day lead time.
