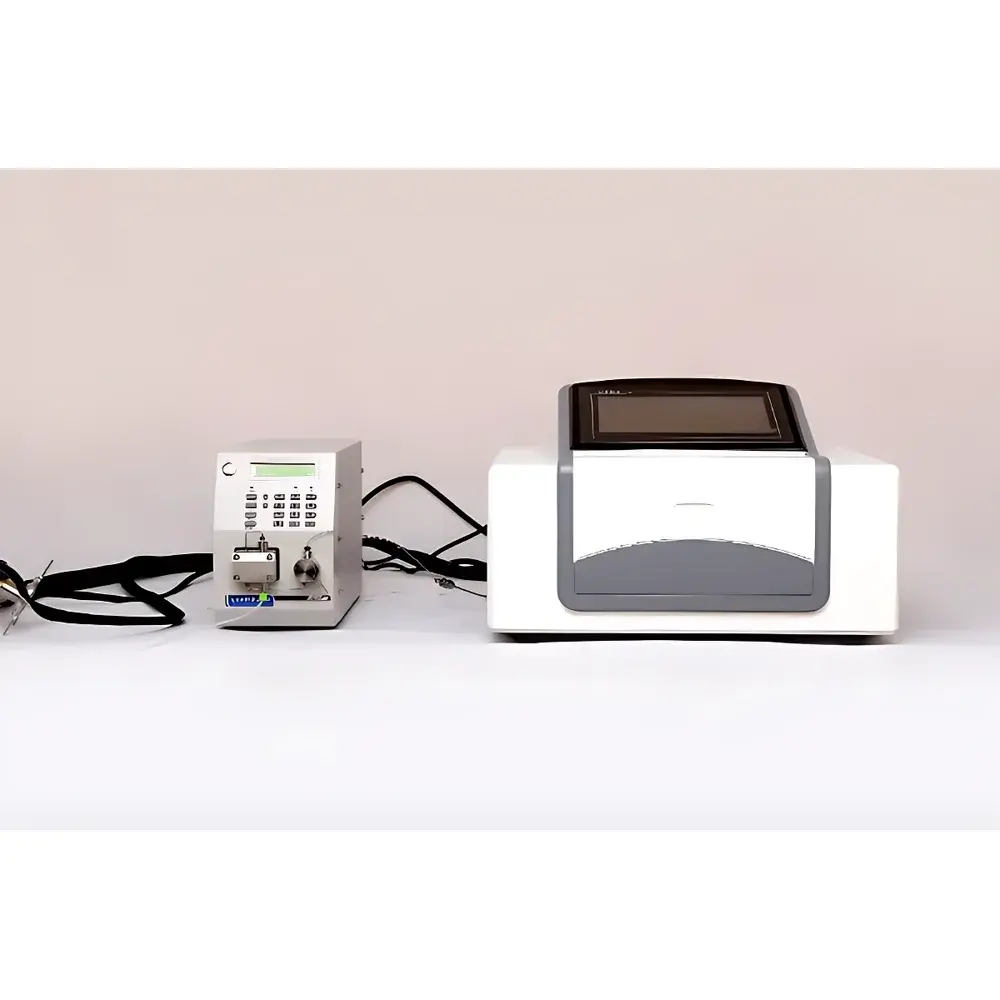

Henven HSZ-1A Steam Generator System

Overview

The Henven HSZ-1A Steam Generator System is an integrated, precision-engineered auxiliary instrument designed for controlled steam delivery in thermoanalytical applications. It operates on the principle of quantitative liquid water metering followed by rapid, temperature-regulated vaporization within a thermally stabilized chamber—enabling reproducible generation of saturated or unsaturated steam streams under inert carrier gas flow. Engineered specifically for coupling with simultaneous thermal analyzers (STA), thermogravimetric analyzers (TGA), and high-temperature reaction cells, the HSZ-1A ensures consistent steam partial pressure and residence time across sample zones during dynamic thermal experiments. Its architecture supports fundamental investigations into steam-assisted decomposition kinetics, coal gasification reactivity, metal oxide reduction pathways, and catalytic steam reforming behavior—where precise control over H₂O(g) concentration, temperature homogeneity, and gas-phase transport dynamics is critical to experimental fidelity.

Key Features

• Integrated intelligent control unit featuring a high-resolution capacitive touchscreen interface with real-time parameter monitoring and multi-stage programmable temperature profiles.
• High-precision micro-piston pump delivering liquid water at rates from 0.011 to 10 mL/min, enabling fine-tuned adjustment of steam concentration via volumetric feed control.
• Dual-zone thermal regulation: independently controllable steam generation furnace (ambient to 200 °C) and constant-temperature connection band (ambient to 200 °C), both maintained within ±0.1 °C accuracy using K-type thermocouple feedback loops.
• Stabilized steam output achieved through a thermostatically regulated surge tank (steady-flow reservoir), minimizing pulsation and ensuring laminar, temperature-uniform vapor delivery.
• Gas-tight, all-metal connection fittings machined from corrosion-resistant alloys, combined with high-temperature PTFE tubing and fiber-wrapped composite heating bands—ensuring mechanical integrity and thermal uniformity across extended operation cycles.
• Mass flow-controlled inert carrier gas integration (N₂, Ar, He), supporting total gas flow rates from 10 to 200 mL/min, with digital setpoint adjustment and closed-loop validation.

Sample Compatibility & Compliance

The HSZ-1A is compatible with solid and powdered samples used in thermal analysis workflows involving steam atmospheres—including but not limited to coal char, biomass derivatives, transition metal oxides, zeolite catalysts, and ceramic precursors. Its design conforms to standard laboratory safety protocols for pressurized vapor systems operating below 0.2 MPa gauge pressure. While not certified to specific ISO/IEC 17025 or ASTM E1131 compliance out-of-the-box, the system supports traceable calibration documentation for temperature sensors and mass flow controllers, facilitating integration into GLP-compliant laboratories. All wetted components meet USP Class VI biocompatibility requirements for stainless steel and PTFE materials, and the system’s modular architecture allows for audit-ready configuration logs when paired with external data acquisition systems compliant with FDA 21 CFR Part 11 requirements.

Software & Data Management

The embedded controller firmware provides local data logging of temperature setpoints, actual readings, pump displacement volume, and carrier gas flow rate at user-defined intervals (1–60 s). Exportable CSV files include timestamps synchronized to internal RTC with millisecond resolution. Optional RS-485 or Ethernet communication modules enable remote parameter setting and real-time telemetry integration into centralized lab information management systems (LIMS) or SCADA platforms. No proprietary software installation is required; configuration and diagnostics are accessible via standard web browser interfaces. Audit trail functionality—recording operator ID, parameter changes, and system status events—is available upon firmware update to v2.3+ and aligns with basic GxP data integrity expectations for non-clinical research environments.

Applications

• Steam-assisted thermal decomposition studies of lignocellulosic biomass and bituminous coals in TGA-MS or STA-FTIR configurations.
• In-situ investigation of iron ore reduction kinetics under varying H₂O/H₂ ratios at elevated temperatures.
• Catalyst stability testing under hydrothermal aging conditions for automotive exhaust or syngas conversion catalysts.
• Quantitative determination of steam adsorption/desorption isotherms on mesoporous silica and MOF frameworks.
• Method development for ASTM D5291-compliant proximate analysis extensions incorporating steam purge steps.
• Calibration verification of humidity sensors and dew point analyzers using gravimetrically traceable steam generation.

FAQ

Can the HSZ-1A be used with oxygen-containing carrier gases?
No. The system is explicitly designed for inert carrier gases only (e.g., N₂, Ar, He) to prevent oxidation of internal stainless-steel components and avoid uncontrolled exothermic reactions with reactive samples.
Is third-party calibration support available for temperature and flow sensors?
Yes. Henven provides NIST-traceable calibration certificates for optional K-type thermocouples and mass flow controllers, with annual recalibration services available through authorized regional partners.
What maintenance intervals are recommended for long-term reliability?
Quarterly inspection of pump seals and vaporization chamber interior is advised; annual replacement of PTFE tubing and thermal insulation sleeves is recommended under continuous operation (>2,000 h/year).
Does the system support automated synchronization with TGA instrument triggers?
Yes—via TTL-level external start/stop signals and analog voltage input for synchronized ramp initiation, provided the host analyzer supports 0–5 V trigger protocols.
How is condensation prevented in the transfer line during low-temperature operation?
The constant-temperature connection band maintains the entire gas path above the dew point of the generated steam mixture; minimum operational band temperature is automatically constrained based on selected steam flow and carrier gas composition.
