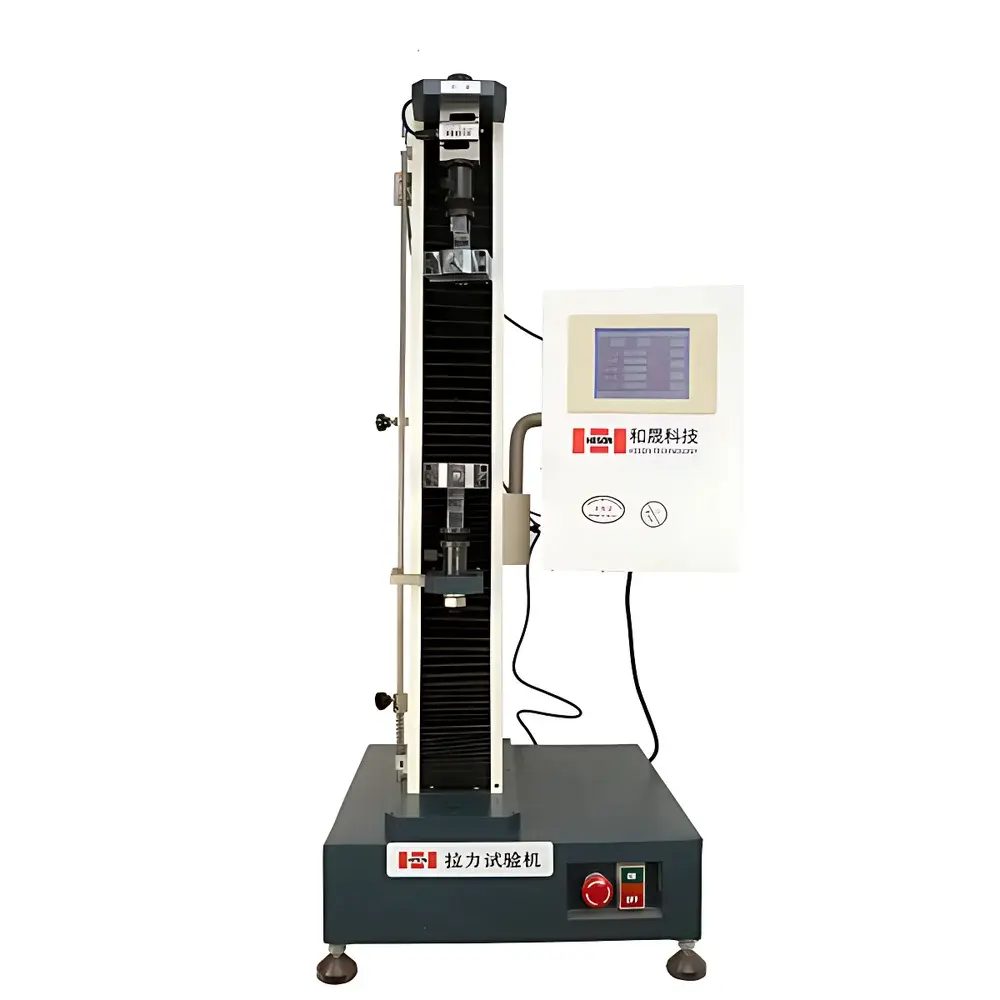

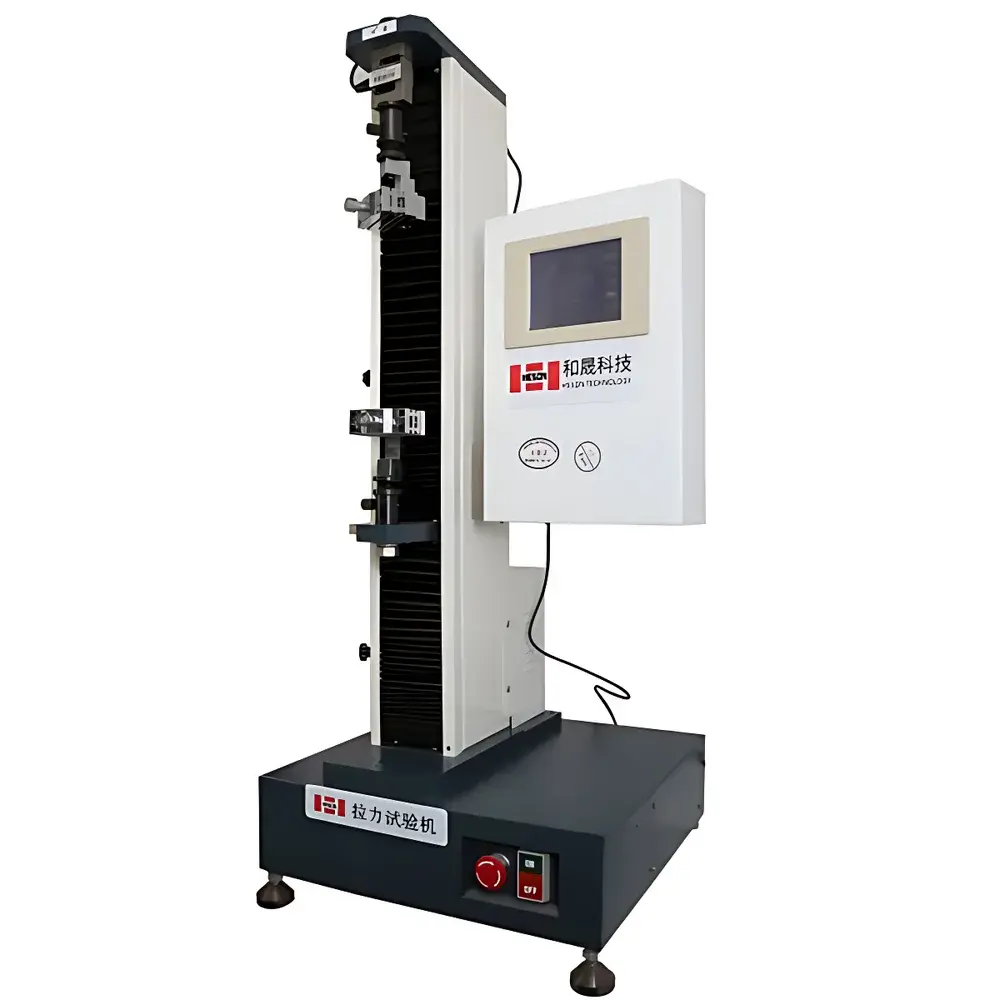

HESON HS-3000A-S Zipper Tensile Tester

Overview

The HESON HS-3000A-S Zipper Tensile Tester is a precision-engineered universal material testing system specifically configured for mechanical evaluation of zippers, fasteners, and related textile-based closure systems in packaging, apparel, footwear, and medical device packaging applications. Built upon a robust dual-column frame architecture, it operates on the fundamental principle of uniaxial tensile loading—applying controlled, monotonic or cyclic force along a defined axis while simultaneously measuring load, displacement, and optional deformation via integrated extensometry. Its design complies with core mechanical test standards including ASTM D5034 (tensile strength of textile fabrics), ISO 13934-1 (determining maximum force and elongation of fabrics), and GB/T 3923.1 (Chinese national standard for textile tensile properties). Unlike general-purpose universal testers, the HS-3000A-S integrates application-specific firmware logic, preloaded zipper test protocols (e.g., slider pull resistance, tape tear strength, chain separation force), and dedicated fixture mounting interfaces to ensure repeatable alignment and minimal operator-induced variability—critical for QC laboratories operating under ISO/IEC 17025 or GMP-regulated environments.

Key Features

• High-fidelity force measurement using a calibrated 1 kN Transcell load cell (USA), delivering resolution of ±1 part in 500,000 full scale and accuracy within ±0.5% of reading across 0.4–100% FS.
• Panasonic AC servo drive system (Japan) enables precise speed control from 0.001 to 500 mm/min, with closed-loop feedback ensuring ±0.5% speed accuracy above 0.01 mm/min—essential for low-strain-rate creep or relaxation tests on polymer zipper tapes.
• Integrated digital extensometer with ±1/300,000 F.S. resolution supports direct strain measurement over 0.2–100% F.S., eliminating reliance on crosshead displacement for elastic modulus determination of thermoplastic coil zippers or metal-to-textile laminates.
• Mechanically optimized kinematic structure: ABBA ground high-carbon lead screws (Taiwan) and Taekyung hardened linear guides (Korea, HRC ≥60) ensure axial rigidity <0.02 mm deflection under full load and positional repeatability ≤±0.01 mm.
• IP54-rated dust protection via Yidie stainless-steel bellows safeguards critical motion components, extending service intervals and maintaining long-term calibration stability in production-floor environments.
• Touchscreen HMI with embedded real-time curve plotting, configurable pass/fail thresholds, and one-click report generation—including PDF, Excel, and image exports compatible with LIMS integration.

Sample Compatibility & Compliance

The HS-3000A-S accommodates standardized and custom zipper configurations—including coil, molded plastic, and metal tooth variants—with interchangeable jaw fixtures (flat, serrated, pneumatic clamping) and specialized slider-grip adapters. It supports specimens per ASTM F2287 (zippers for protective clothing), ISO 105-C06 (colorfastness after tensile stress), and EN 13758-2 (UV protective textiles subjected to mechanical strain). All hardware and firmware meet electromagnetic compatibility (EMC) requirements per IEC 61326-1 and electrical safety standards IEC 61010-1. The system’s software architecture supports 21 CFR Part 11-compliant user access control, electronic signatures, and immutable audit trails—validated for use in FDA-registered packaging validation labs and ISO 13485-certified medical device manufacturing facilities.

Software & Data Management

The proprietary HESON TestSuite v4.2 (bilingual CN/EN) provides protocol-driven test sequencing, real-time multi-curve overlay (load vs. displacement, stress vs. strain), and automated calculation of key metrics: peak load, yield point, elongation at break, energy absorption (area under curve), and coefficient of variation (CV%) across replicate runs. Raw data is stored in encrypted SQLite databases with timestamped metadata (operator ID, environmental conditions, calibration certificate ID). Export modules generate GLP-compliant reports containing instrument ID, sensor serial numbers, calibration due dates, and traceable uncertainty budgets. Software updates are delivered remotely at no cost, with version history and change logs maintained per ISO/IEC 17025 Clause 7.7.2.

Applications

• Quantitative assessment of zipper slider pull force (ASTM D2059) and tape tear resistance for food-grade flexible packaging compliance.
• Evaluation of thermal aging effects on nylon coil zipper tensile retention after accelerated shelf-life testing (e.g., 40°C/75% RH for 90 days).
• Validation of adhesive bond integrity between zipper tape and laminated barrier films used in sterile medical pouches.
• Comparative analysis of biodegradable polyester zippers versus conventional PET under dynamic humidity cycling (IEC 60068-2-78).
• Supporting R&D for smart textile integrations—measuring mechanical hysteresis during repeated actuation of shape-memory alloy (SMA)-enhanced zippers.
• QC release testing for automotive interior trim zippers subject to SAE J2450 vibration durability specifications.

FAQ

Does the HS-3000A-S comply with ISO/IEC 17025 calibration requirements?
Yes—the system ships with NIST-traceable calibration certificates for force (Transcell), displacement (linear encoder), and timebase (internal oscillator), all valid for 12 months. Optional annual recalibration services include uncertainty budget documentation per ISO/IEC 17025 Annex A.3.
Can the software generate reports meeting FDA 21 CFR Part 11 requirements?
Yes—audit trail logging, role-based user authentication, electronic signature capture, and data immutability are enabled by default. Validation documentation (IQ/OQ/PQ templates) is provided upon request.
Is third-party transducer interchangeability supported?
No—the system is validated exclusively with the supplied Transcell 1 kN sensor. Substitution voids factory calibration and regulatory compliance claims.
What maintenance intervals are recommended for sustained accuracy?
Lead screw lubrication every 500 hours; guide rail cleaning and re-greasing every 1,000 hours; full metrological verification annually or after 10,000 test cycles—whichever occurs first.
Are custom test protocols programmable without developer assistance?
Yes—users may define new test sequences, limit checks, and result calculations via the built-in script editor using Python-compatible syntax, with syntax validation and runtime error logging.
