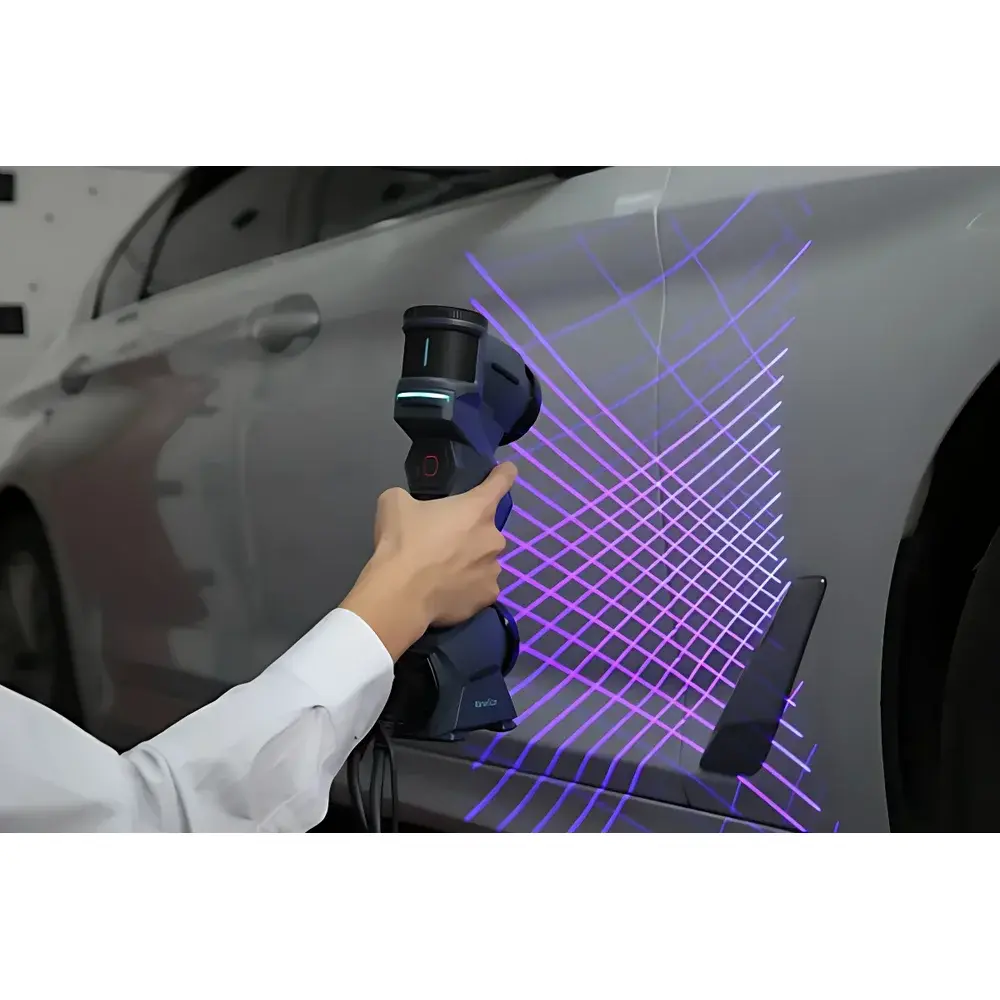

Hexagon MarvelScan Intelligent Inverse-Localization Handheld 3D Laser Scanner

Overview

The Hexagon MarvelScan Intelligent Inverse-Localization Handheld 3D Laser Scanner is an engineered solution for high-accuracy, target-free geometric metrology in industrial R&D, quality assurance, and digital twin workflows. Unlike conventional optical tracking or marker-based systems, MarvelScan implements a proprietary inside-out monocular localization architecture—where the scanner itself determines its six-degree-of-freedom (6DoF) pose relative to fixed environmental reference points (e.g., walls, columns, ceilings) without requiring external trackers, spherical targets, or surface-applied fiducials. This paradigm shift enables rapid deployment, reduced operator dependency, and consistent repeatability across heterogeneous environments—from factory floors and assembly lines to outdoor infrastructure sites. At its core, MarvelScan leverages structured blue-light laser triangulation combined with real-time mesh reconstruction and synchronized photogrammetric volume calibration—delivering traceable dimensional data compliant with ISO 10360-8 (performance verification of coordinate measuring systems) and VDI/VDE 2634 Part 3 (optical 3D measuring systems).

Key Features

• Target-Free Operation: Eliminates need for adhesive markers or spray on part surfaces—ideal for delicate, high-gloss, or thermally sensitive components where surface preparation is impractical or prohibited.
• Triple-Camera Architecture: Integrates two high-resolution scanning cameras for precision triangulation and a third independently focused monocular camera dedicated to photogrammetric reference point acquisition—enabling volumetric accuracy enhancement without hardware duplication or optical compromise.
• 41-Line Blue Laser Engine: Delivers 4 million 3D points per second at ≤0.01 mm volumetric accuracy (per ASTM E2924 test protocol), with enhanced contrast resolution on dark, reflective, or low-texture surfaces due to optimized 450 nm wavelength coherence and uniform LED-assisted illumination.
• AtlaSight Onboard Processing Unit: A custom-designed parallel computing module implementing stacked GPU-accelerated algorithms for real-time point cloud registration, noise filtering, and adaptive mesh generation—reducing post-processing latency and supporting live visualization during acquisition.
• Modular Deployment Flexibility: Supports handheld, tripod-mounted, robotic-arm-integrated, and fully automated inline configurations; optional wireless transmission module and portable CMM docking interface extend operational scope across shop-floor, field service, and production-line validation use cases.

Sample Compatibility & Compliance

MarvelScan accommodates a broad spectrum of industrial parts—including sheet metal assemblies, composite airframe sections, turbine blades, injection-molded housings, and large-scale civil infrastructure elements—without material-specific preprocessing. Its blue-light system ensures stable performance on matte black plastics, anodized aluminum, painted steel, and carbon fiber composites. The system supports GLP/GMP-aligned audit trails via optional Hexagon Metrology Software Suite (HMS), which provides full 21 CFR Part 11-compliant electronic signatures, version-controlled measurement reports, and calibrated uncertainty budgets per ISO/IEC 17025 requirements. All hardware modules are CE-marked and conform to IEC 61000-6-2 (EMC immunity) and IEC 60825-1 (laser safety Class 2).

Software & Data Management

MarvelScan operates natively with Hexagon’s Leica Geosystems-certified Metrology Software Platform (MSP), offering unified control, calibration validation, and traceable report generation. MSP includes embedded photogrammetry alignment tools, GD&T evaluation engines compliant with ASME Y14.5–2018 and ISO 1101, and direct export to common CAD formats (STEP AP242, IGES, STL). Raw scan data is stored in vendor-neutral HDF5 containers with embedded metadata (timestamp, sensor pose, ambient temperature/humidity logs), enabling long-term archival integrity and cross-platform interoperability. For enterprise integration, RESTful APIs support bidirectional synchronization with PLM (Teamcenter, Windchill) and MES (Siemens Opcenter, Rockwell FactoryTalk) environments.

Applications

• Aerospace component first-article inspection and tooling verification
• Automotive body-in-white gap-and-flush analysis and die tryout validation
• Energy sector turbine blade erosion mapping and repair guidance
• Heavy machinery structural deformation monitoring over time
• Digital twin initialization for predictive maintenance modeling
• Reverse engineering of legacy parts lacking original CAD documentation
• On-site as-built verification of architectural steelwork and prefabricated modules

FAQ

Does MarvelScan require calibration before each use?
No—factory-calibrated sensors maintain stability under typical workshop conditions (15–30 °C, <70% RH); however, a quick 90-second verification using the built-in reference artifact is recommended before mission-critical measurements.
Can MarvelScan be integrated into robotic automation cells?
Yes—via EtherCAT or PROFINET interfaces, with ROS2-compatible driver packages available for UR, KUKA, and ABB platforms.
Is photogrammetry functionality optional or included by default?
The third photogrammetry camera and associated calibration routines are standard hardware and software features—not add-on modules.
What is the maximum unaided working distance for reliable inverse localization?
Up to 6 meters in indoor environments with ≥3 visible, non-coplanar reference points (e.g., wall corners, ceiling fixtures); outdoor range extends to 10 m when using the optional high-contrast retroreflective target kit.
How does MarvelScan handle highly reflective or transparent surfaces?
Blue-laser coherence combined with adaptive exposure control and multi-angle LED fill lighting minimizes specular artifacts; for extreme cases (e.g., polished glass), application of removable matte spray remains compatible—but is rarely required in practice.
