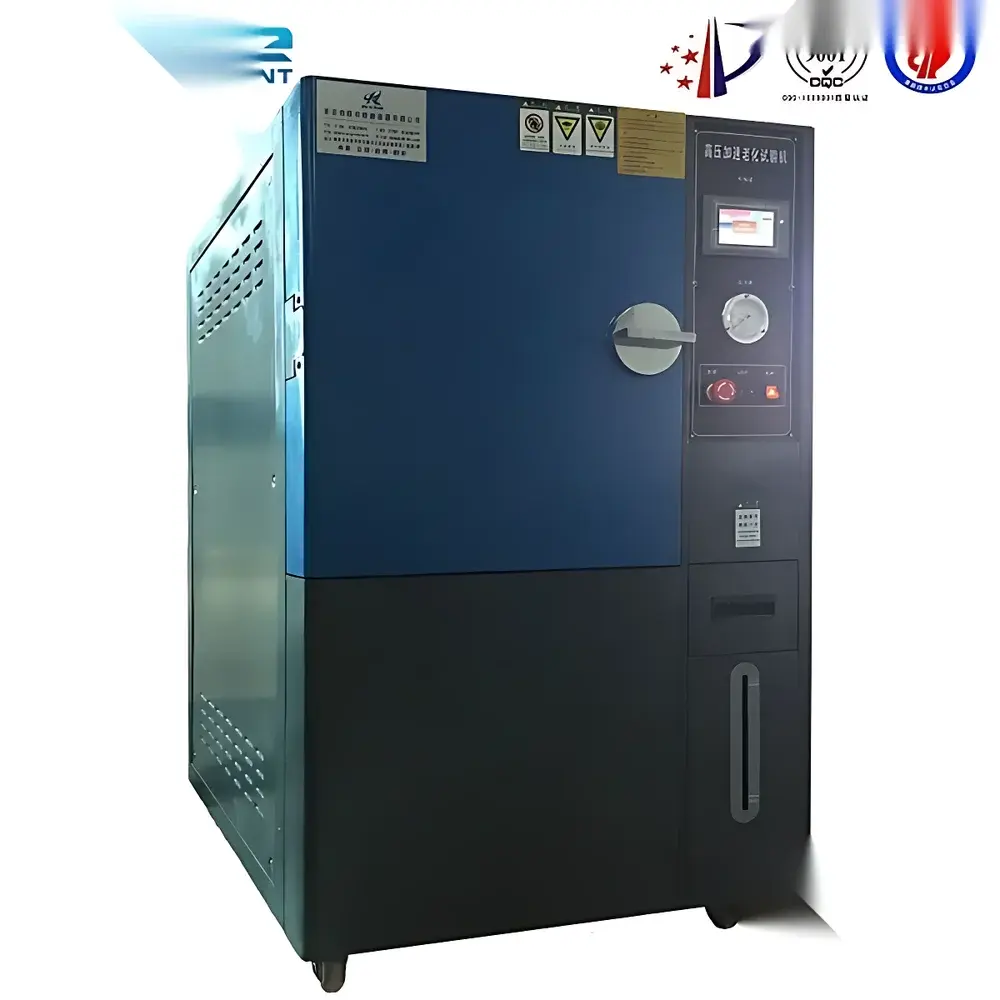

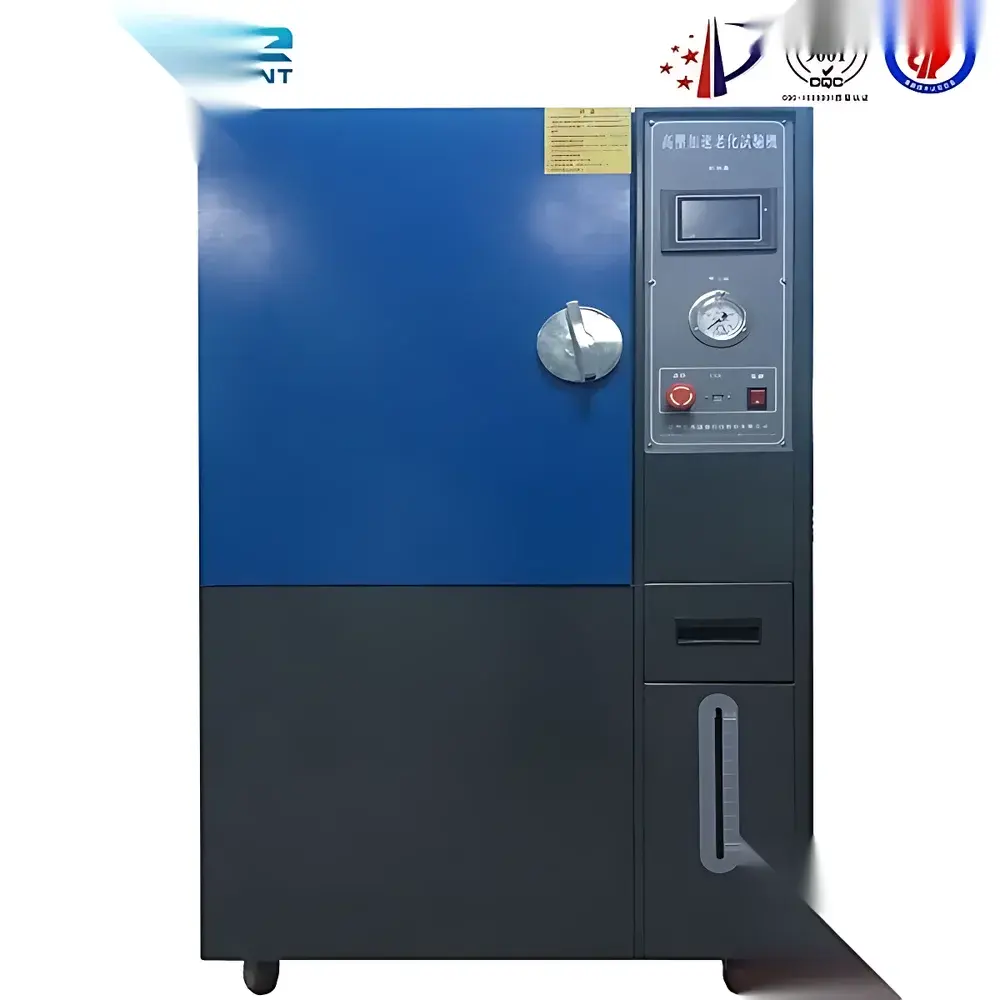

High-Accelerated Stress Test (HAST) Chamber – Industrial-Grade Sealed Environmental Aging System

Overview

The High-Accelerated Stress Test (HAST) Chamber is a precision-engineered environmental stress screening system designed for accelerated reliability evaluation of hermetically sealed and plastic-encapsulated microelectronic components, PCB assemblies, and advanced packaging structures. Operating on the principle of elevated temperature, high relative humidity (up to 100% RH), and controlled saturated steam pressure (typically 1–3 atm absolute), this chamber induces moisture diffusion into encapsulants and along die-leadframe interfaces—accelerating failure mechanisms such as corrosion of bond wires, metallization degradation, and intermetallic growth. Unlike conventional Temperature-Humidity-Bias (THB) testing, HAST eliminates condensation-related variability by maintaining a fully saturated vapor environment, thereby delivering higher test acceleration factors (AF > 10× vs. 85°C/85% RH) while preserving physical integrity of test specimens. The chamber’s cylindrical stainless-steel pressure vessel conforms to ASME BPVC Section VIII Div. 1 design standards for industrial pressure containment, ensuring structural safety during repeated pressurization cycles.

Key Features

• Cylindrical internal chamber constructed from SUS#304 stainless steel — optimized for uniform thermal distribution, minimal condensate pooling, and long-term resistance to corrosive steam environments.
• Vacuum preconditioning cycle prior to pressurization removes ambient air and particulates (<1 µm) via integrated HEPA-filtered intake, ensuring contaminant-free test atmosphere per MIL-STD-883 Method 1030.8 requirements.
• Automated water replenishment system with stainless-steel float valve enables uninterrupted operation: up to 999 hours under auto-refill mode; manual refill supports ≥1 hour of continuous test runtime.
• Intelligent dual-stage pressure regulation with fail-safe mechanical relief valves and programmable over-pressure interlock (setpoint adjustable within 1.1–3.0 atm abs).
• Self-sealing silicone packing system utilizing reverse-pressure actuation — sealing force increases proportionally with internal pressure, extending gasket service life beyond 5,000 cycles.
• Integrated safety door lock mechanism activated by real-time temperature/pressure monitoring; door remains mechanically locked until chamber returns to ambient conditions.
• Front-access circular door with recessed heating elements embedded in inner wall — ensures rapid, uniform thermal ramping without localized hot spots or steam jetting.

Sample Compatibility & Compliance

This HAST system accommodates a broad range of sample configurations including QFN, BGA, SOIC, and wafer-level CSP packages, as well as multilayer PCBs, LED modules, automotive sensors, and medical-grade electronic assemblies. It supports standardized test profiles defined in JEDEC JESD22-A110 (Unbiased HAST) and JESD22-A118 (Biased HAST), and aligns with IEC 60068-2-66 for damp heat testing under pressure. All control logic and data logging functions comply with GLP/GMP traceability requirements, supporting audit-ready event logs with time-stamped timestamps, operator ID, and parameter deviation alerts. The chamber does not require external cooling water or compressed air, making it suitable for ISO Class 7 cleanroom integration or standard QA laboratories.

Software & Data Management

The embedded controller features a 7-inch color touchscreen HMI with intuitive navigation and password-protected user levels (Operator, Engineer, Administrator). Test programs are configured via preloaded templates or custom step definitions (temperature, pressure, humidity, dwell time, ramp rate). Real-time graphs display chamber status across all critical parameters, with automatic CSV export via USB port. Optional Ethernet interface enables remote monitoring, alarm notification via SMTP, and integration with MES/LIMS platforms using Modbus TCP protocol. Audit trail functionality records all configuration changes, start/stop events, and fault conditions in accordance with FDA 21 CFR Part 11 requirements for electronic records and signatures.

Applications

• Qualification of IC packaging materials against moisture-induced failure modes (e.g., popcorning, wire bond lift, delamination).
• Design verification of conformal coatings and encapsulation resins used in automotive ECUs and ADAS modules.
• Reliability screening of flexible printed circuits (FPCs) and rigid-flex hybrids in lighting and consumer electronics.
• Accelerated aging of medical device PCBAs subjected to sterilization and long-term storage conditions.
• Process validation for reflow soldering and underfill curing steps where residual moisture content impacts joint integrity.
• Failure analysis correlation studies linking HAST-induced defects with cross-section SEM/EDS findings.

FAQ

What is the maximum allowable test pressure and corresponding temperature range?
The chamber operates at pressures between 1.1 and 3.0 atm absolute, with corresponding saturation temperatures ranging from 100°C to 121°C (e.g., 2.0 atm ≈ 121°C). Pressure and temperature are intrinsically coupled per steam tables.
Does the system support biased testing with applied voltage during HAST exposure?
Yes — optional bias terminals rated for up to ±50 V DC and 1 A are available with insulated feedthroughs, enabling compliance with JESD22-A118 protocols.
How is chamber calibration verified and maintained?
Built-in NIST-traceable PT100 sensors (±0.15°C accuracy) monitor chamber temperature and pressure transducers (±0.5% FS). Annual recalibration services include sensor drift verification and pressure leak testing per ASTM E2877.
Can the chamber be integrated into an automated test line?
Yes — digital I/O ports support start/stop triggering, status signaling, and emergency stop interfacing with PLC-based manufacturing execution systems.
Is CE or UL certification available for this model?
The unit meets EN 61000-6-2/6-4 EMC immunity/emission standards and carries CE marking. UL 508A listing is available upon request for North American installations.
