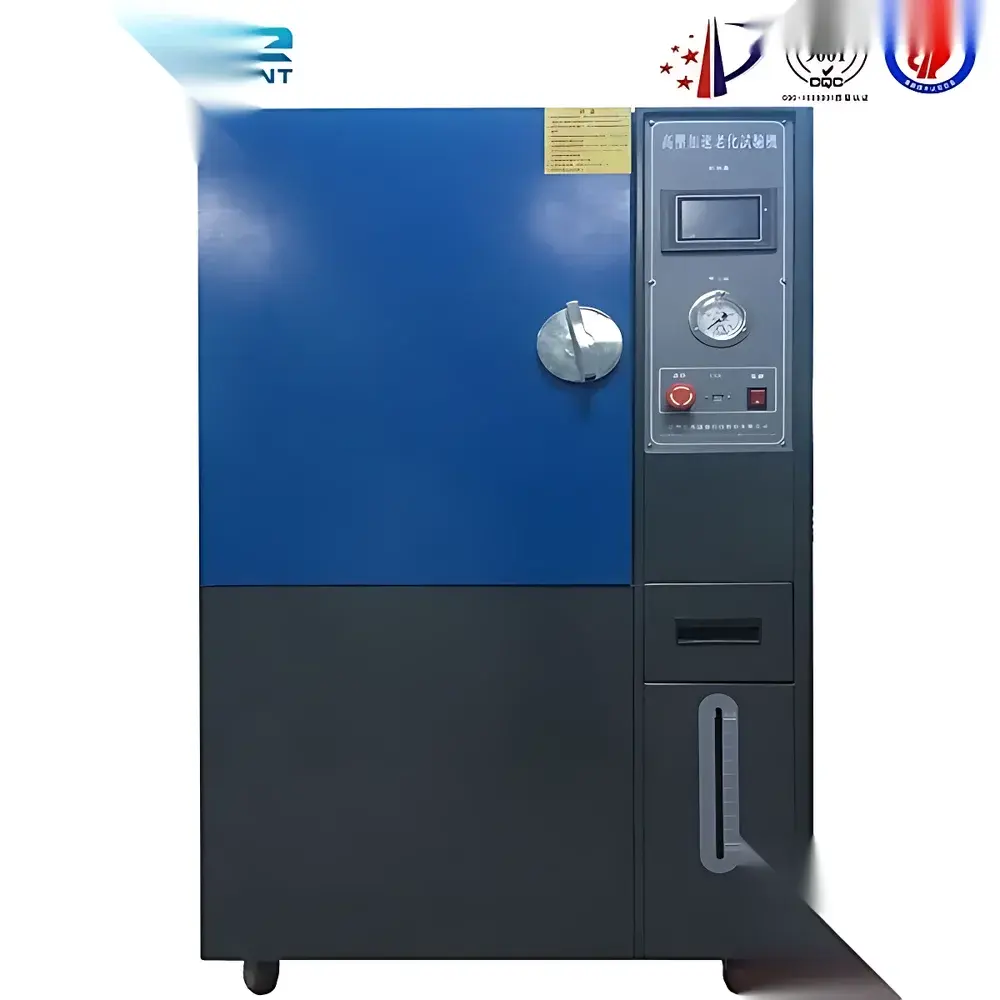

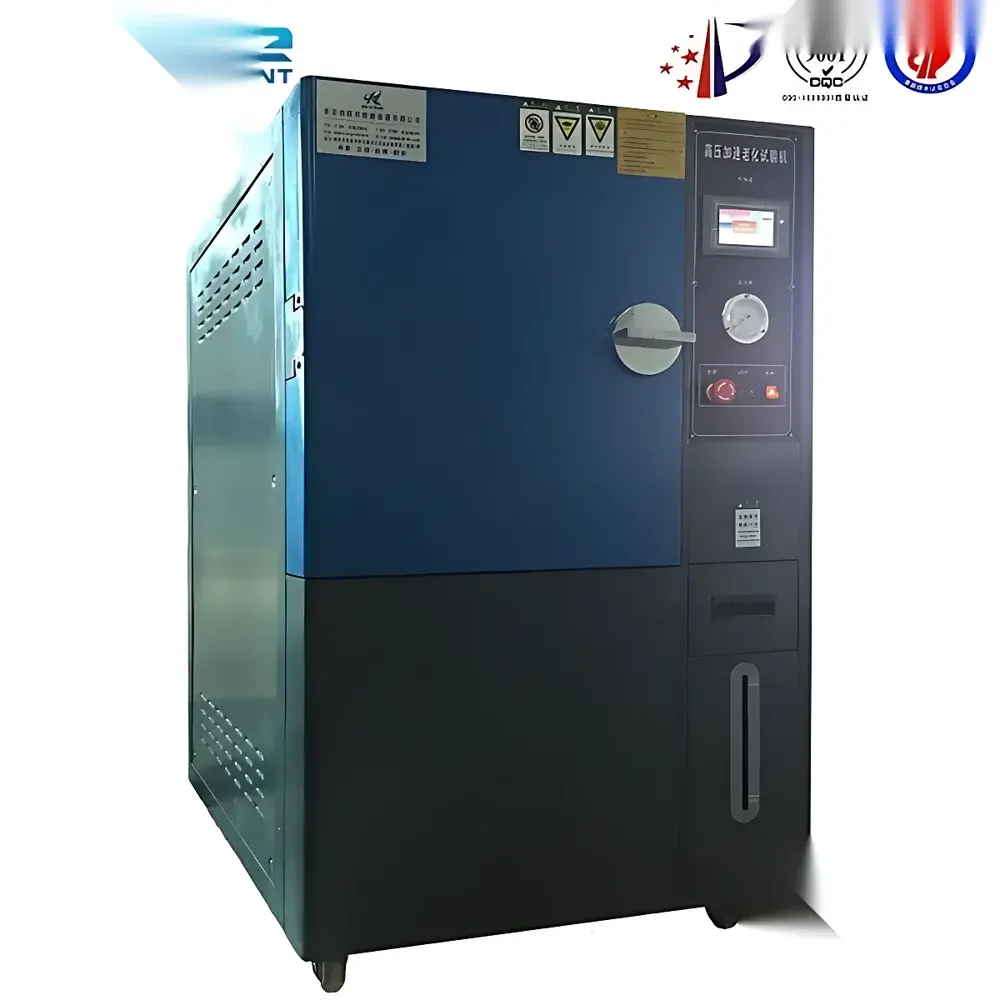

High-Pressure Accelerated Life Test Chamber
| Brand | Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Price | USD 4,100 (FOB) |
| Internal Chamber Dimensions | Ø300 × 450 mm (D × H) |
| External Dimensions | 660 × 950 × 600 mm (W × H × D) |
| Internal Material | SUS304 Stainless Steel |
| External Finish | Powder-Coated Steel |
| Temperature Range | 100–132 °C (adjustable in 0.1 °C increments) |
| Humidity Condition | Saturated Steam at 100 % RH |
| Pressure Range | 0–3.00 kg/cm² absolute (max rated safety pressure: 3.00 kg/cm² abs = 1 atm + 2.00 kg/cm² gauge) |
| Test Duration | 0–1000 h (programmable in 1-min increments) |
| Temperature Uniformity | ±2.0 °C at 100 °C |
| Heating Rate | RT → 121 °C in ≤35 min |
| Pressurization Rate | 0 → 1.00 kg/cm² in ≤35 min |
| Compliance | GB/T 10586–1989, GB/T 2423.3–1993 (IEC 60068-2-3), MIL-STD-810D Method 502.2, GJB 150.9–1986, GB/T 2423.34–1986 / MIL-STD-883C Method 1004.2 |
Overview
The High-Pressure Accelerated Life Test Chamber is a precision-engineered environmental stress test system designed to evaluate the long-term reliability and functional integrity of electromechanical components under combined high-temperature, saturated steam humidity, and elevated absolute pressure conditions. Operating on the principle of accelerated aging via Arrhenius-based thermal stress and moisture diffusion kinetics, the chamber subjects test specimens to thermodynamically intensified environments—effectively compressing years of field exposure into controlled laboratory cycles. Unlike conventional humidity chambers, this system maintains full saturation (100 % RH) under regulated absolute pressure up to 3.00 kg/cm² (≈294 kPa abs), enabling rapid water vapor penetration into micro-gaps, seals, and polymer interfaces. Its cylindrical internal chamber geometry ensures uniform steam distribution and minimizes condensation pooling, while the robust SUS304 stainless steel construction resists corrosion from prolonged exposure to pressurized saturated steam.
Key Features
- Stainless steel internal chamber (SUS304, electropolished finish) with seamless welding for leak-tight integrity and resistance to chloride-induced stress corrosion cracking
- Double-walled insulated external structure with powder-coated carbon steel housing and integrated pressure relief valve certified to ASME BPVC Section VIII Div. 1
- Precision PID-controlled heating system with independent over-temperature cut-off (dual-stage safety limit at 135 °C)
- Automated pressure regulation via proportional solenoid valves and calibrated absolute pressure transducer (0–4 kg/cm² range, ±0.5 % FS accuracy)
- Real-time monitoring and logging of temperature, absolute pressure, and elapsed time with 1-second sampling resolution
- Programmable multi-step test profiles supporting ramp-hold sequences, pressure cycling, and soak dwell functions
- Compliance-ready data audit trail with timestamped event logs, user access control, and optional 21 CFR Part 11-compliant electronic signature module
Sample Compatibility & Compliance
This chamber accommodates a broad spectrum of automotive and industrial components—including lighting assemblies, instrument clusters, seat belt retractors, power seat actuators, rotary encoders, HVAC control modules, door latch mechanisms, and steering column switches. All test fixtures must be non-reactive to saturated steam and rated for operation at ≥132 °C and 3.00 kg/cm² abs. The system conforms to multiple international and military environmental testing standards: GB/T 10586–1989 (Technical Requirements for Damp Heat Chambers), GB/T 2423.3–1993 (IEC 60068-2-3, constant damp heat), MIL-STD-810D Method 502.2 (Humidity), GJB 150.9–1986 (Military Environmental Test Standards – Damp Heat), and GB/T 2423.34–1986 / MIL-STD-883C Method 1004.2 (Combined Temperature-Humidity-Pressure Cycling). It supports GLP and IATF 16949-aligned validation protocols, including IQ/OQ/PQ documentation packages upon request.
Software & Data Management
The embedded controller features an intuitive touchscreen HMI with multilingual interface (English, German, Japanese, Chinese) and supports USB export of CSV-formatted test records. Optional PC-based software (Windows 10/11 compatible) provides advanced scheduling, remote supervision via Ethernet/IP, real-time graphing of all process variables, and automated report generation per ISO/IEC 17025 requirements. Data files include metadata such as operator ID, calibration certificate numbers, sensor drift compensation flags, and digital signatures traceable to NIST-traceable reference standards. Audit logs retain all configuration changes, manual overrides, and alarm events for minimum 12 months—fully compliant with FDA 21 CFR Part 11 Annex 11 and EU GMP Annex 11 expectations for regulated laboratories.
Applications
- Accelerated evaluation of sealant adhesion failure, gasket compression set, and O-ring extrusion under simultaneous thermal and hydrostatic stress
- Validation of moisture ingress resistance in IP67/IP6K9K-rated connectors and junction boxes
- Reliability screening of MEMS sensors, potentiometers, and brushless motor controllers exposed to under-hood conditions
- Qualification testing of polymer housings for hydrolytic degradation, dimensional stability, and surface whitening (blushing)
- Corrosion acceleration studies on plated fasteners, switch contacts, and PCB edge connectors
- Supporting AEC-Q200 stress qualification for passive components and AEC-Q100 for integrated circuits requiring combined environmental stress screening
FAQ
What safety certifications does this chamber carry?
The unit complies with IEC 61010-1:2010 for electrical safety and incorporates dual redundant pressure relief mechanisms meeting PED 97/23/EC Category II requirements. CE marking is provided with Declaration of Conformity.
Can the chamber perform pressure ramping during temperature soak phases?
Yes—fully programmable ramp rates for both temperature and absolute pressure are supported independently, enabling complex profiles such as “soak at 121 °C for 2 h, then ramp pressure from 1.0 to 2.5 kg/cm² over 30 min.”
Is third-party calibration documentation included?
A factory calibration certificate traceable to NIST and CNAS-accredited labs is supplied; optional on-site calibration by ISO/IEC 17025-certified service engineers is available.
How is condensate managed during depressurization cycles?
An integrated condensate evacuation system with heated drain line and automatic purge sequence prevents residual water accumulation post-test, minimizing cross-contamination between cycles.
