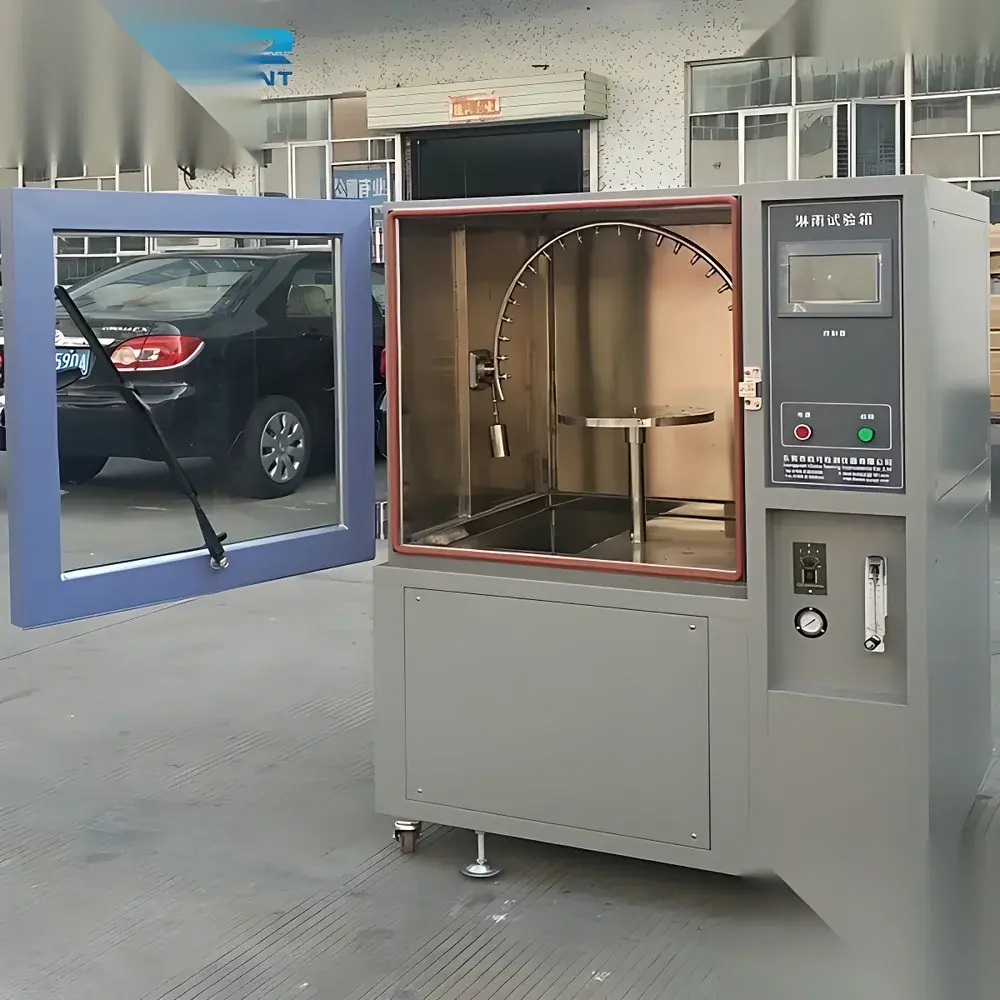

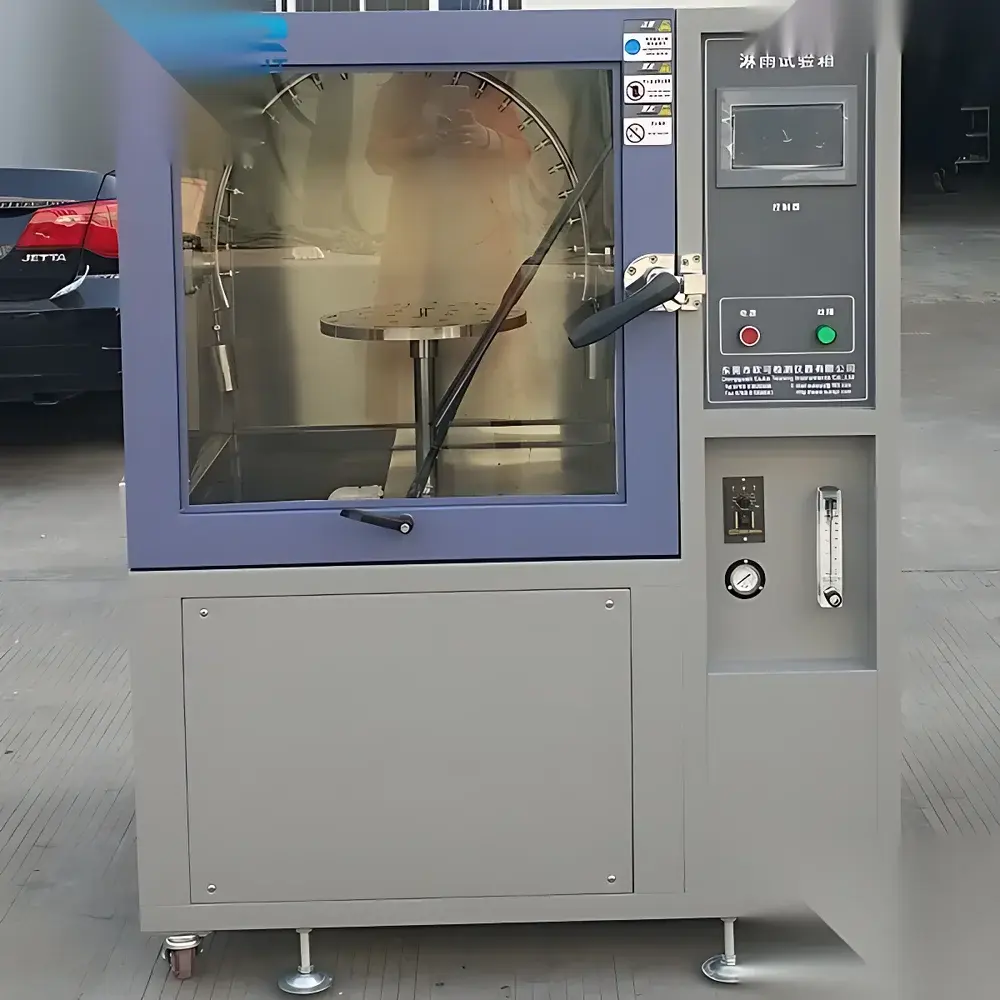

High-Pressure Jet Rain Test Chamber

Overview

The High-Pressure Jet Rain Test Chamber is an engineered environmental simulation system designed to evaluate the ingress protection (IP) performance of electrical and electronic enclosures under controlled, repeatable rain exposure conditions. It operates on the principle of calibrated high-velocity water jet impingement—mimicking real-world exposure to heavy rainfall, wind-driven rain, splashing, and directed spray—as defined in international standards including IEC 60529 (IPX1–IPX6), ISO 20653, SAE J2796, and GB/T 4208. Unlike static drip or low-pressure shower methods, this chamber employs a dynamically oscillating spray ring combined with a motorized rotating test platform to ensure comprehensive, three-dimensional wetting coverage across all surfaces of the specimen. Its structural integrity, pressure-regulated flow delivery, and programmable motion control enable rigorous validation of sealing effectiveness, gasket resilience, housing integrity, and drainage design—critical for automotive ECUs, outdoor lighting fixtures, industrial control panels, and telecommunications infrastructure.

Key Features

• Robust chamber construction using welded channel steel frame and brushed stainless-steel exterior cladding (AISI 304), ensuring long-term corrosion resistance and mechanical stability.
• Motorized turntable with precise 1 rpm rotational speed (inverter-controlled for optional infinitely variable speed adjustment), supporting specimens up to 100 kg and accommodating irregular geometries.
• Dual-radius spray ring assembly (400 mm and 500 mm configurations) equipped with uniformly spaced nozzles (φ0.4 mm diameter, 50 mm center-to-center spacing) fabricated from corrosion-resistant brass or stainless steel.
• Frequency-controlled oscillation mechanism enabling programmable swing angles (±45°, ±60°, ±90°, ±180°) and adjustable oscillation frequency—ensuring compliance with multiple test profiles within a single setup.
• Integrated water filtration system (5 µm nominal rating) upstream of all nozzles to prevent clogging and maintain consistent flow dynamics over extended test cycles.
• PLC-based control interface with embedded programmable timer, real-time pressure monitoring via calibrated flow meter, and digital setpoint regulation for spray duration, rotation interval, and oscillation sequence.

Sample Compatibility & Compliance

The chamber accommodates test specimens up to 100 × 100 × 100 cm in external dimensions, with full access through a front-mounted, silicone-gasketed double-door system. Specimen mounting utilizes a central threaded hub compatible with standard ISO 228/1 adapters and custom fixture plates. The system meets functional requirements for IPX3 (oscillating shower), IPX4 (splashing), IPX5 (water jet), and IPX6 (powerful water jet) per IEC 60529; it also supports non-standard protocols such as ECE R10.06 (automotive EMC enclosure testing) and MIL-STD-810H Method 506.6 (rain and blowing rain). All operational parameters—including water pressure (regulated between 80–150 kPa), flow rate (measured and logged per nozzle group), and dwell time per angular segment—are traceable and auditable, supporting GLP-compliant documentation workflows.

Software & Data Management

The integrated PLC controller records timestamped operational logs—including turntable position, spray ring angle, cumulative runtime, and pressure deviation alerts—with export capability via USB or RS-485 to CSV or XML formats. Optional Ethernet connectivity enables remote supervision and integration into centralized laboratory information management systems (LIMS). Audit trails comply with FDA 21 CFR Part 11 requirements when paired with user-authenticated login modules and electronic signature validation. Calibration certificates for flow meters and pressure transducers are provided with NIST-traceable documentation upon commissioning.

Applications

This chamber is routinely deployed in quality assurance laboratories for pre-certification validation of IP-rated enclosures, development-stage waterproofing verification of consumer electronics housings, durability assessment of marine-grade connectors, and qualification testing of solar inverter cabinets exposed to tropical monsoon climates. It serves R&D teams validating conformal coating efficacy, sealant adhesion under thermal cycling + rain exposure, and condensation management strategies in sealed optoelectronic assemblies. Automotive Tier-1 suppliers utilize it for component-level rain intrusion testing prior to vehicle-level validation under ISO 16750-4.

FAQ

What standards does this rain test chamber support?
It is configured to execute test procedures aligned with IEC 60529 (IPX3–IPX6), ISO 20653, SAE J2796, and GB/T 4208. Custom test sequences can be programmed to match internal OEM specifications.
Is water temperature control available?
Standard configuration delivers ambient-temperature deionized or filtered municipal water. An optional chiller/heater module (±2 °C stability) can be integrated for thermal-rain cycling per ISO 16750-4 Annex D.
Can the chamber operate continuously for extended duration tests?
Yes—the system includes automatic water level replenishment, thermal overload protection, and duty-cycle optimized motor drives permitting unattended operation up to 96 hours with scheduled maintenance intervals.
How is calibration maintained over time?
Each unit ships with factory calibration reports for flow meters and pressure sensors. Annual recalibration services—including nozzle flow uniformity mapping and angular encoder verification—are available under service contract.
Is installation support provided internationally?
Technical commissioning assistance—including site preparation checklist, electrical and plumbing interface guidance, and operator training—is included for all export deliveries. Local service partners are coordinated through regional distributor networks.
