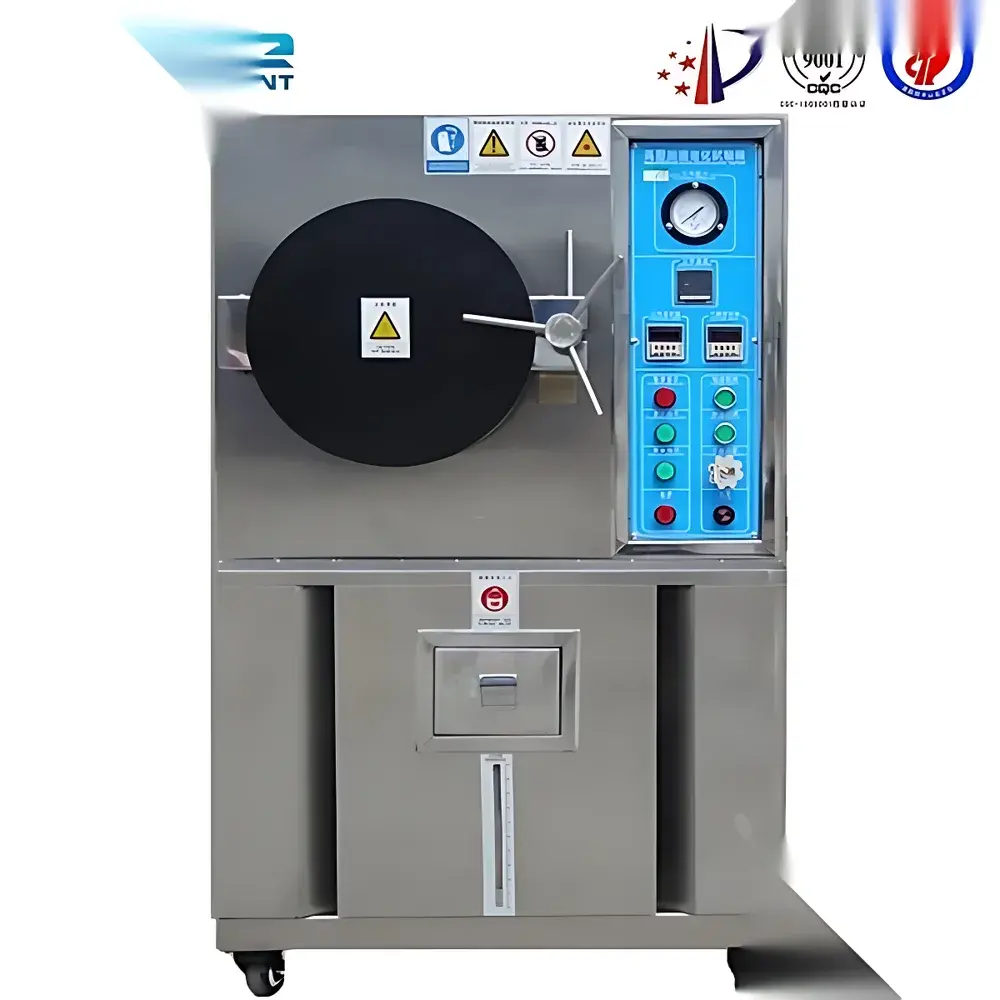

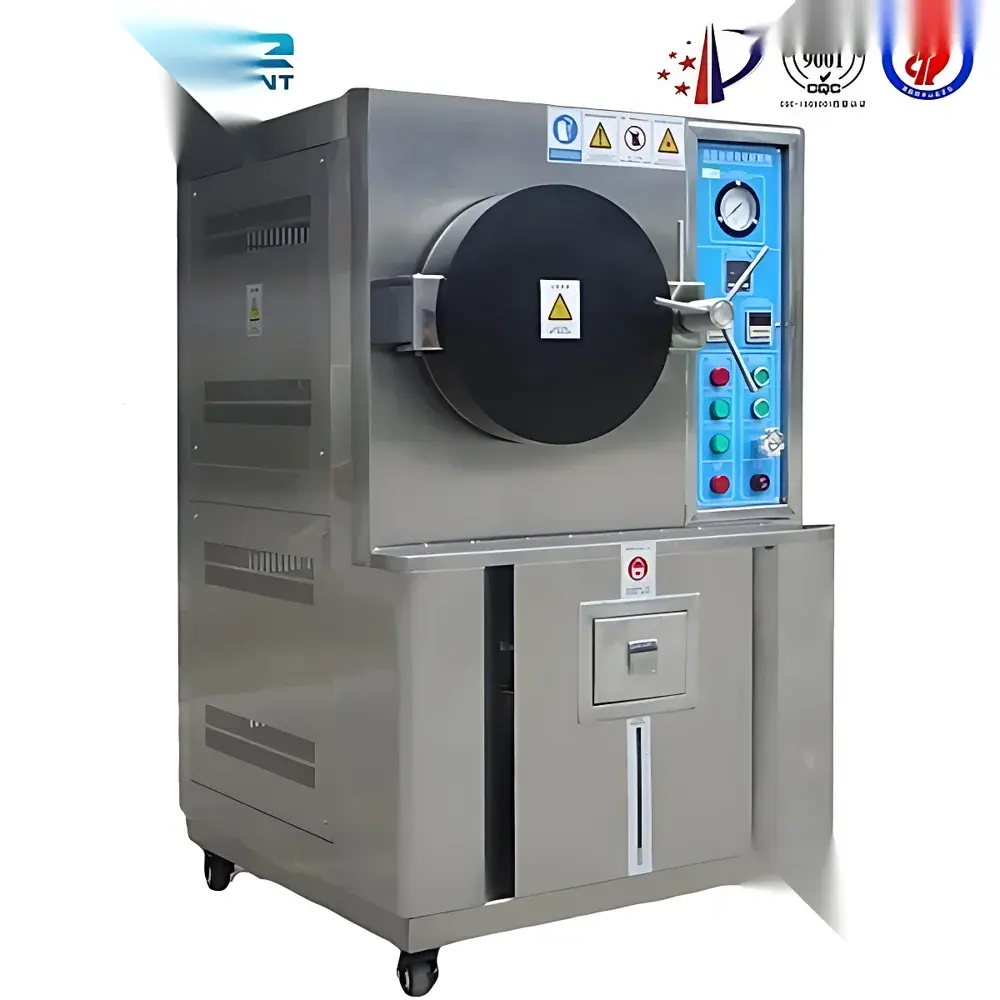

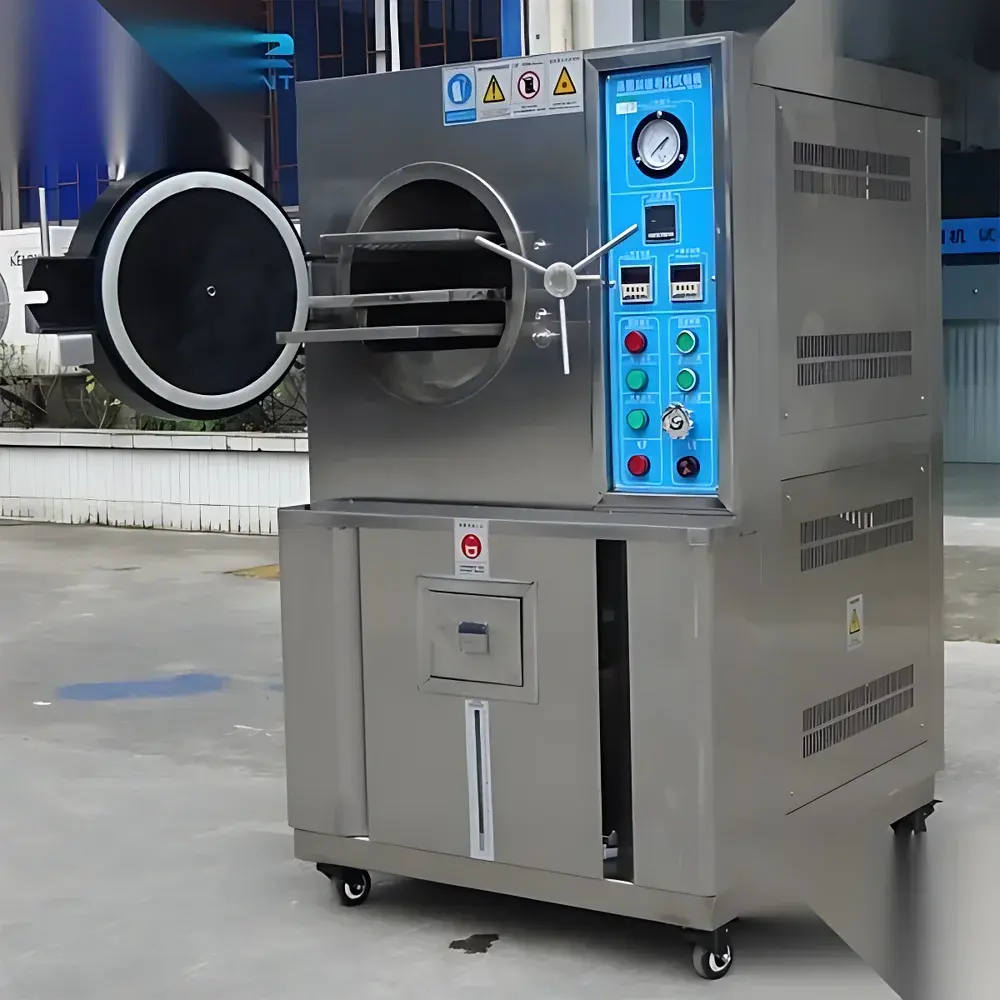

High-Pressure Steam Aging Test Chamber – In Stock for Immediate Delivery
| Key | Brand: Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Price | USD 13,800 (FOB) |
| Internal Dimensions (Ø×H) | Φ250×300 mm to Φ650×600 mm |
| External Dimensions (W×H×D) | 500×500×700 mm to 950×900×1100 mm |
| Operating Temperature Range | 105–135 °C (143 °C optional) |
| Relative Humidity Range | 70–100 % RH |
| Steam Pressure Range | 0.0–2.0 kg/cm² (gauge) above ambient (3.0 kg/cm² optional) |
| Heating Supply | AC 220 V / 380 V, 50/60 Hz |
| Safety Systems | Dual overheat protection, mechanical door interlock, pressure relief valve, low-water cutoff, automatic steam purge, auto-fill and manual drain |
Overview
The High-Pressure Steam Aging Test Chamber is a precision-engineered environmental stress screening system designed for accelerated reliability testing of semiconductor devices, LED packages, photovoltaic modules, magnetic components, printed circuit boards (PCBs), and other moisture-sensitive electronic assemblies. It operates on the principle of highly controlled saturated steam exposure under elevated temperature and pressure conditions—commonly referred to as Highly Accelerated Stress Test (HAST) or Pressure Cooker Test (PCT)—to induce latent failure mechanisms such as wire bond corrosion, die attach delamination, solder joint degradation, and intermetallic growth. Unlike conventional temperature-humidity chambers, this chamber maintains thermodynamic equilibrium between steam pressure and temperature, enabling rapid diffusion of moisture into encapsulants and interfaces without condensation-related artifacts. The chamber complies with industry-standard test protocols including JEDEC JESD22-A110 (HAST), JESD22-A102 (PCT), MIL-STD-202 Method 108, and IPC-TM-650 2.6.25.
Key Features
- Automated water replenishment system with level-sensing probes ensures uninterrupted operation during extended test cycles; activates only when water volume falls below the minimum operational threshold.
- Digital LED temperature controller with ±0.5 °C accuracy and PID-based regulation enables precise setpoint management across the full operating range (105–135 °C).
- Steam-synchronized digital timer initiates countdown only after chamber temperature and pressure stabilize at target values—eliminating timing drift due to thermal lag.
- Calibrated dual-scale pressure/temperature gauge provides real-time verification of saturated steam conditions per ASME B16.5 and IEC 60068-2-66 compliance requirements.
- Forced-convection steam circulation via stainless-steel impeller and optimized duct geometry ensures uniform vapor distribution (±2 °C spatial uniformity per IEC 60068-3-5).
- One-piece molded silicone door gasket offers >10,000-cycle sealing integrity with resistance to hydrolytic degradation at 135 °C/2.0 kg/cm².
- Electropolished 316L stainless-steel interior chamber surface minimizes particulate retention and facilitates ISO Class 5 cleanroom-compatible maintenance.
- Interlocked safety architecture: motorized door latch prevents pressurization unless fully engaged; microswitch feedback is hardwired to main contactor.
- ASME-certified spring-loaded pressure relief valve (PRV) rated at 2.5 kg/cm² opens automatically upon exceeding maximum allowable working pressure (MAWP).
- Dual independent overtemperature cutouts (bimetallic + solid-state) trigger audible alarm and immediate heater de-energization if internal temperature exceeds setpoint by >5 °C.
- Thermally insulated ABS outer door panel limits external surface temperature to <45 °C during operation—meeting EN 61000-3-2 touch-safety criteria.
Sample Compatibility & Compliance
This chamber accommodates standard JEDEC trays (JEDEC MO-178), 2-inch/4-inch wafer carriers, and custom fixtures up to Ø650 mm × 600 mm height. All models are CE-marked and conform to IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions). Optional validation packages include IQ/OQ documentation aligned with ISO/IEC 17025 and FDA 21 CFR Part 11 requirements for audit-ready electronic records. Calibration certificates traceable to NIST standards are available upon request. The system supports GLP/GMP-compliant test execution through configurable user access levels and tamper-evident audit logs.
Software & Data Management
While the base configuration features standalone analog/digital controls, an optional Ethernet-enabled data logger (model OK-DL-HAST) provides continuous acquisition of temperature, pressure, and runtime at 1-second intervals. Logged data exports to CSV or Excel-compatible formats with embedded timestamps and cycle identification tags. The software supports automated report generation compliant with ASTM E2928-22 (Standard Practice for Reporting Environmental Test Data) and includes pass/fail flagging based on user-defined tolerance bands. All firmware updates are delivered via secure HTTPS channel with SHA-256 signature verification.
Applications
- Qualification of new IC packaging materials (EMC, mold compounds, underfills) against moisture-induced popcorning and cracking.
- Lot acceptance testing for automotive-grade AEC-Q200 passive components subjected to high-humidity service environments.
- Reliability benchmarking of GaN and SiC power modules in renewable energy inverters.
- Failure analysis root-cause correlation between HAST-induced defects and field return data.
- Process optimization of conformal coating adhesion strength under cyclic steam exposure.
- Accelerated life modeling for medical electronics certified under ISO 13485 and IEC 62304.
FAQ
What standards does this chamber support for qualification testing?
It meets JEDEC JESD22-A110 (Unbiased HAST), JESD22-A102 (Biased HAST), and IPC-TM-650 2.6.25. Custom protocol implementation (e.g., Telcordia GR-468-CORE) is supported via parameter programming.
Can the chamber operate continuously for 96+ hours without operator intervention?
Yes—provided the water reservoir is filled to capacity and ambient supply voltage remains within ±5% of rated input. Auto-fill functionality maintains minimum water level throughout multi-day cycles.
Is third-party calibration and validation assistance available?
Yes. We partner with ISO/IEC 17025-accredited laboratories to deliver on-site IQ/OQ/PQ services, including temperature-pressure mapping, leak rate verification (<1.0 Pa·m³/s helium), and uncertainty budgeting per GUM (JCGM 100:2008).
What electrical infrastructure is required for the OK-HAST-65 model?
The OK-HAST-65 requires a dedicated 380 V, 3-phase, 50/60 Hz supply with minimum 32 A circuit breaker and TN-S earthing. Voltage imbalance must not exceed 2% across phases.
How is steam quality verified during operation?
The integrated steam purge system removes non-condensable gases before test initiation, ensuring >99.5% saturated vapor fraction. Optional inline conductivity sensor (OK-SC-01) monitors dissolved solids concentration in real time to prevent scaling-related thermal instability.
