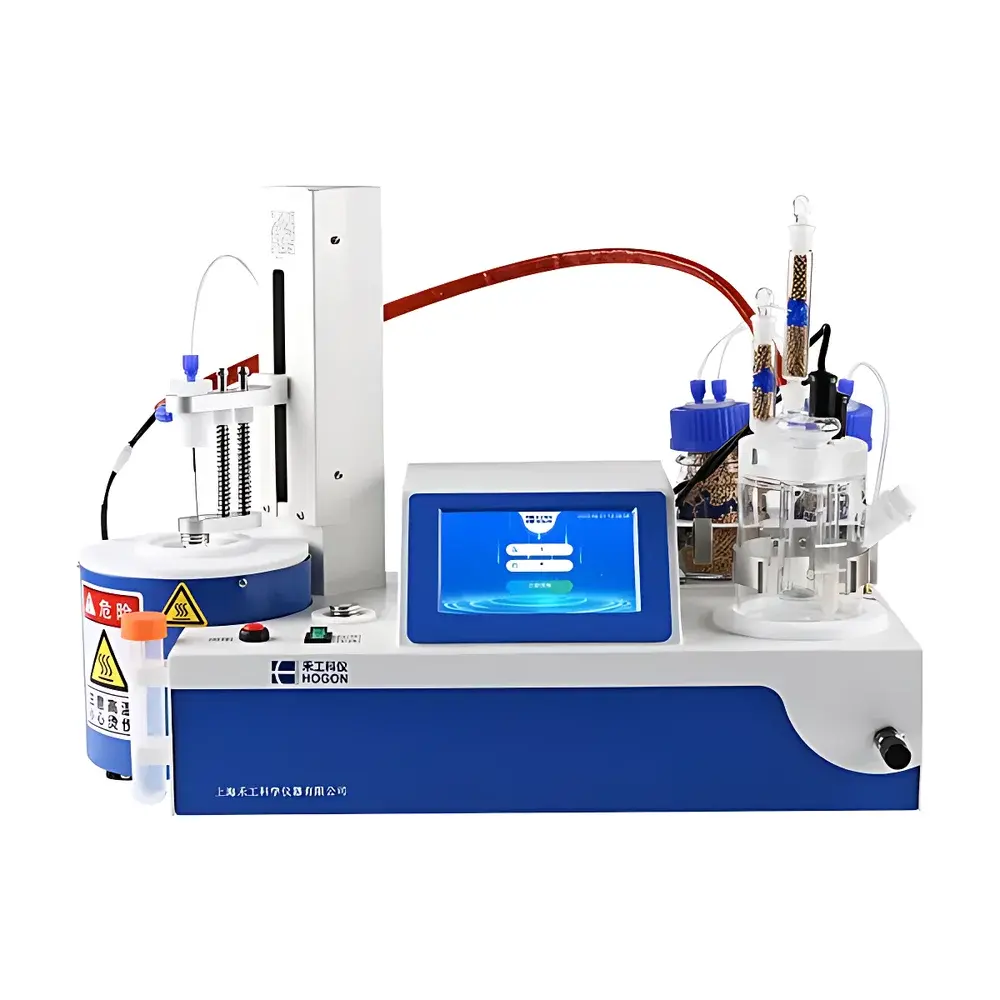

HOGON AKF-CH6 Coulometric Karl Fischer Moisture Titrator

Overview

The HOGON AKF-CH6 Coulometric Karl Fischer Moisture Titrator is a fully integrated, benchtop coulometric moisture determination system engineered for high-precision quantification of trace water content (down to 0.01 µg) in challenging solid, semi-solid, and thermally labile samples. Unlike conventional two-unit configurations—where a standalone Karl Fischer titrator is coupled externally with a separate oven or heating module—the AKF-CH6 embeds the sample evaporation unit directly into the instrument architecture. This monolithic design eliminates inter-unit gas transfer losses, minimizes dead volume, and ensures quantitative transport of evolved water vapor from the sealed headspace vial to the electrolytic titration cell via dry carrier gas (N₂ or air). The system operates on the fundamental stoichiometry of the Karl Fischer reaction: I₂ + SO₂ + 2H₂O → 2HI + H₂SO₄, where iodine is generated electrochemically *in situ* at the anode of the dual-platinum electrode cell. Coulometric generation enables absolute quantification without reagent standardization, delivering trace-level accuracy compliant with ASTM E203, ISO 760, and USP .

Key Features

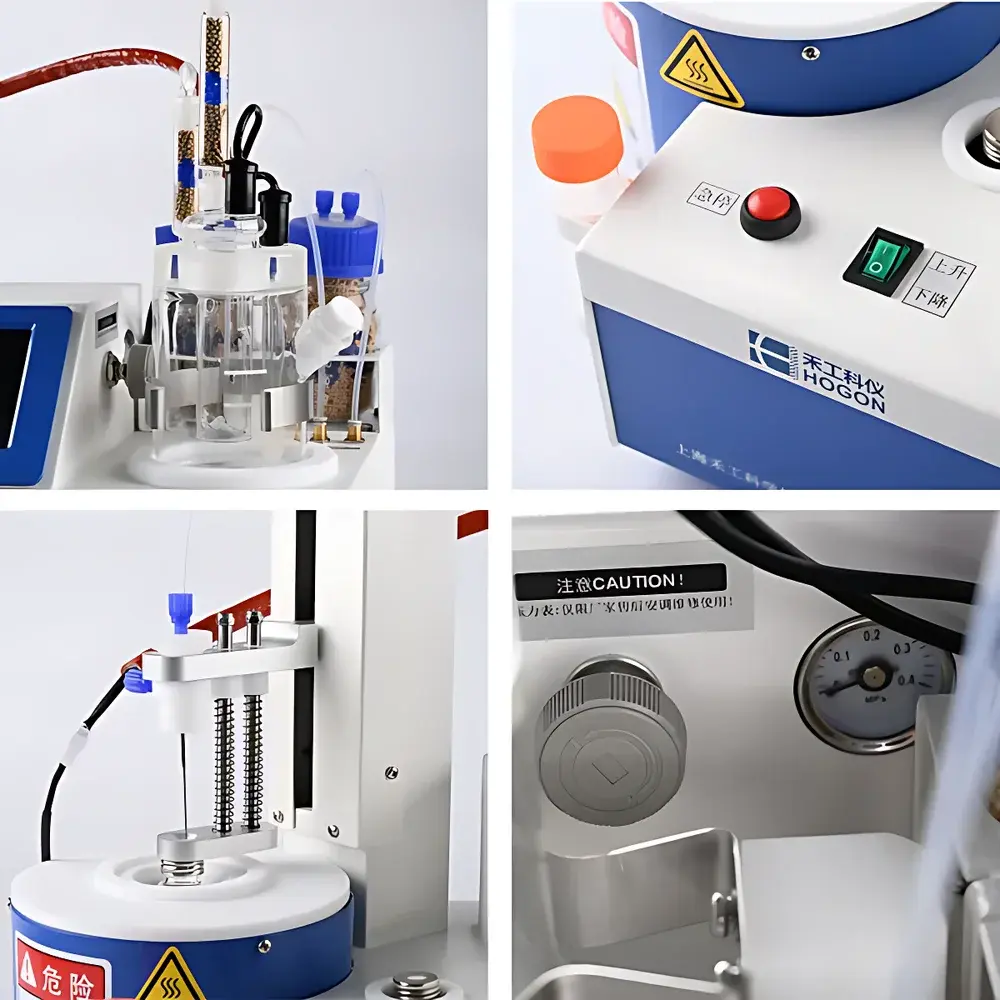

• Integrated headspace evaporation module with programmable temperature control (ambient to 250 °C), featuring ramp-and-hold profiles, overtemperature cutoff, and real-time thermal stability monitoring.
• Dual-mode automated sample introduction: motorized needle-puncture for septum-sealed vials and rotary cap-tightening for crimp-top vials—configurable per SOP requirements.
• Electronically regulated carrier gas flow (5–100 mL/min), with digital display and active compensation for ambient pressure and humidity drift.
• Heated carrier gas transfer line (adjustable 40–120 °C) to prevent condensation and ensure quantitative water vapor delivery to the titration cell.
• Color capacitive touchscreen interface with full numeric keypad, one-touch method launch, and context-sensitive soft keys for rapid parameter navigation.
• HOGON Smart Detection Algorithm: continuously monitors baseline drift, auto-adjusts electrolysis current thresholds, and compensates for environmental humidity fluctuations to maintain measurement repeatability (RSD < 0.5% at 10 µg H₂O).
• Enhanced electrolytic cell control supporting wide-range KF reagent compatibility—including low-conductivity and stabilized pyridine-free electrolytes—enabling stable operation across diverse sample matrices.

Sample Compatibility & Compliance

The AKF-CH6 accommodates liquids, powders, films, gels, lyophilized biologics (e.g., serum proteins, retinol-binding protein, API freeze-dried powders), battery cathode materials, polymers, and pharmaceutical excipients. Its headspace evaporation protocol avoids direct contact between sample residue and the titration cell, eliminating cross-contamination and electrode fouling. Method validation supports compliance with ICH Q5C (stability testing), FDA 21 CFR Part 11 (electronic records/signatures), and GLP/GMP audit trails via user role-based access control (administrator, analyst, reviewer). All calibration, method execution, and maintenance logs are timestamped, immutable, and exportable in CSV/PDF format.

Software & Data Management

The embedded firmware includes a multi-user management system with configurable permission levels (view-only, method edit, result approve, admin). Up to 100 customizable methods can be stored onboard—each defining temperature ramp, carrier flow, endpoint sensitivity, and post-analysis hold time. Real-time moisture evolution curves (µg H₂O vs. time) are rendered graphically during analysis; endpoint detection uses dynamic current decay thresholding with dual confirmation logic. Audit-ready reports include raw current/time data, calibration history, reagent lot tracking, and operator ID—fully traceable to ALCOA+ principles.

Applications

• Lyophilized biopharmaceuticals: quantification of residual moisture in freeze-dried monoclonal antibodies, vaccines, and diagnostic reagents (e.g., CEPA-AC-RC, serum-derived RBP standards).
• Lithium-ion battery materials: moisture analysis in cathode precursors (NMC, LFP), anode graphite, and separator films—critical for cell safety and cycle life.
• Pharmaceutical APIs and excipients: verification of drying endpoints per USP and EP 2.5.12.
• High-performance polymers: moisture assessment prior to extrusion or injection molding to prevent hydrolytic degradation.
• Food-grade additives and nutraceuticals: low-level water content verification in hygroscopic powders and encapsulated actives.

FAQ

What is the detection limit and typical precision for the AKF-CH6?
The system achieves a minimum detectable water mass of 0.01 µg, with intra-day repeatability (n=6) ≤0.5% RSD at 10–100 µg H₂O levels.
Does the AKF-CH6 support automated calibration and reagent validation?
Yes—built-in water standard injection routines (using certified 1.00 mg/g and 10.00 mg/g standards) verify coulombic efficiency and cell response prior to sample analysis.
Can the instrument be integrated into a nitrogen-purged glovebox environment?
Yes—the compact footprint (W360 × D380 × H420 mm) and front-accessible vial loading make it suitable for glovebox installation; optional inert-gas purge port is available.
Is method transfer possible from legacy HOGON or other brand KF systems?
Method parameters (temperature, flow, endpoint criteria) are exportable as XML templates and can be imported into compatible platforms; however, coulometric cell geometry differences require empirical re-optimization.
What maintenance intervals are recommended for long-term reliability?
Daily: electrode cleaning with methanol; weekly: desiccant replacement in gas dryer; quarterly: cell membrane inspection and reagent replacement; annual: full system performance verification per ISO/IEC 17025 guidelines.
