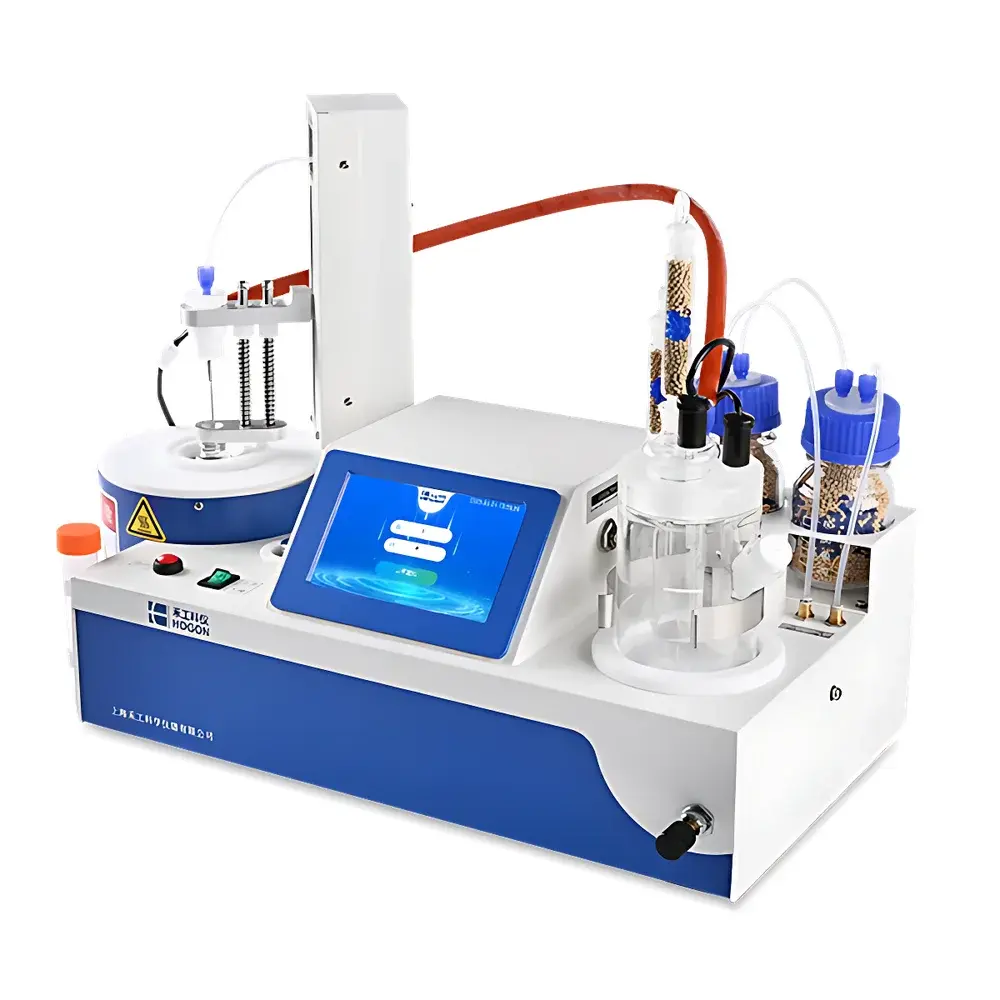

HOGON AKF-CH6 Headspace Sampler Coulometric Karl Fischer Moisture Analyzer

Overview

The HOGON AKF-CH6 Headspace Sampler Coulometric Karl Fischer Moisture Analyzer is a fully integrated analytical system engineered for trace-level water quantification in challenging solid, semi-solid, and volatile liquid samples. Unlike conventional volumetric or direct-injection coulometric analyzers, the AKF-CH6 combines a precision-controlled headspace sampling module with a high-sensitivity coulometric titration cell—enabling reliable moisture determination where direct sample introduction is impractical or chemically incompatible. The instrument operates on the fundamental principle of coulometric Karl Fischer titration: water reacts stoichiometrically with iodine generated electrochemically at the anode (I⁻ → I₂), with the total charge passed (Q = I × t) directly proportional to water mass via Faraday’s law (10.72 C = 1 µg H₂O). Integrated thermal desorption ensures quantitative transfer of evolved water vapor from sealed vials into the titration cell under inert, dry carrier gas flow—eliminating condensation losses and matrix interference.

Key Features

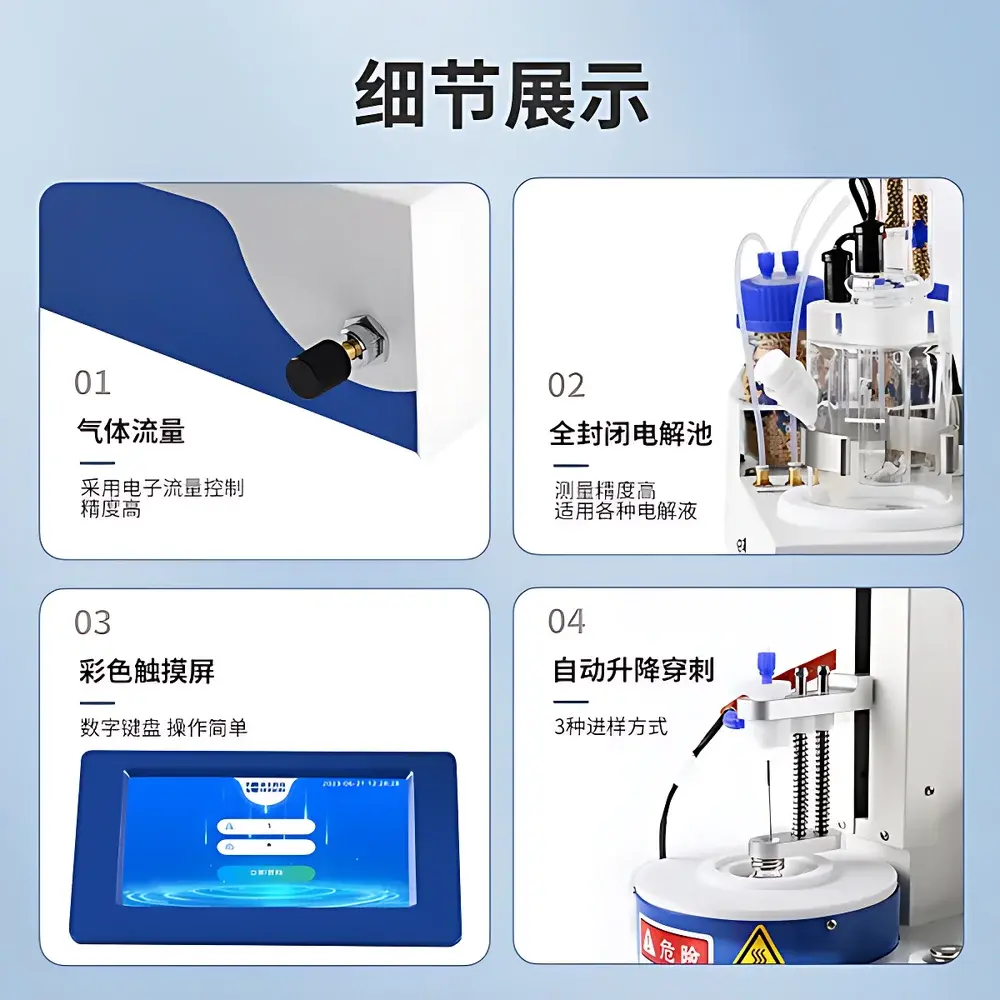

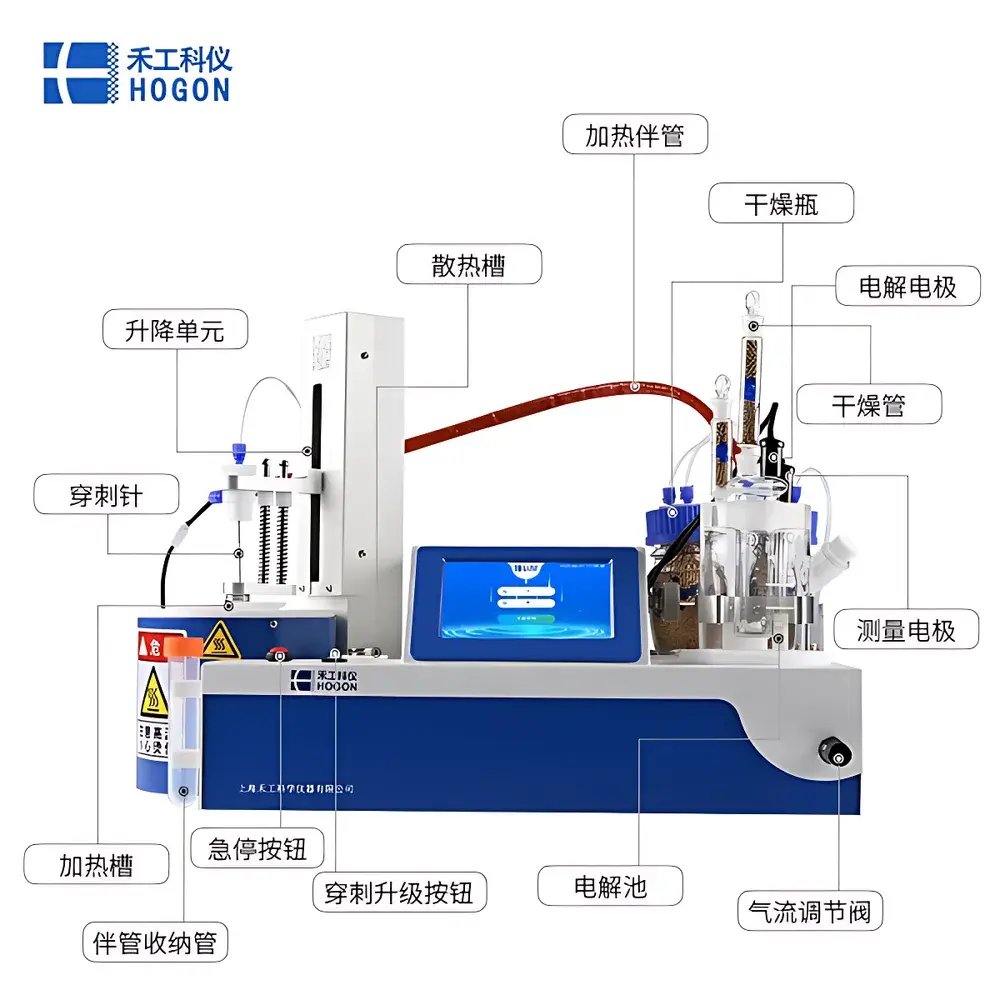

• Fully integrated headspace sampler and coulometric titrator in a single compact chassis—optimized footprint (<600 mm × 450 mm × 400 mm) for benchtop deployment in QC labs and regulated environments.
• 7-inch capacitive color touchscreen with full numeric keypad and context-aware soft keys; supports one-touch method launch and real-time status visualization.
• HOGON Smart Detection Algorithm: continuously monitors baseline drift, electrolyte saturation, and electrode polarization; automatically adjusts current offset and endpoint detection threshold to maintain measurement integrity across ambient humidity fluctuations.
• Advanced electrolytic control circuitry enabling stable micro-current generation (1–200 µA range) with <0.1 µg titrant resolution—critical for sub-10 µg water quantification in pharmaceutical excipients and battery cathode materials.
• Digital carrier gas flowmeter (0–200 mL/min, ±1% FS) with live display and programmable ramp profiles; integrated heated transfer line (ambient to 150 °C, ±0.5 °C) prevents water condensation in tubing.
• Programmable temperature-controlled sample heater (30–250 °C, 0.1 °C resolution) with multi-step ramp/soak capability and active overtemperature cutoff (±2 °C hysteresis).
• Dual-mode autosampler interface: motorized needle penetration + rotary cap sealing for hermetic vial puncture; manual vial loading option available for rapid method development.
• Method library supporting up to 99 user-defined protocols—including customized temperature ramps, gas flow sequences, electrolysis current profiles, and endpoint criteria.
• Comprehensive hardware protection suite: short-circuit detection, open-circuit alert, electrolyte level monitoring, and automatic shutdown upon abnormal thermal or electrical conditions.
• Bilingual GUI (English/Chinese) compliant with ISO/IEC 17025 documentation requirements; supports keyboard navigation and screen reader compatibility for accessibility.

Sample Compatibility & Compliance

The AKF-CH6 accommodates diverse sample matrices without chemical derivatization or solvent extraction: hygroscopic powders (e.g., LiCoO₂, MgSO₄), thermally labile APIs (e.g., monoclonal antibodies, peptides), viscous polymers (e.g., PET, PA6), and volatile solvents (e.g., THF, acetone). Its headspace methodology complies with pharmacopeial and industrial standards including USP , EP 2.5.12, JP 2.05, ASTM E1064, ASTM D6869, ISO 15512, GB/T 6023, GB/T 7376, and SH/T 1551. All firmware and software modules are designed to support GLP/GMP workflows, including electronic signature capability, audit trail logging (per FDA 21 CFR Part 11), and method validation templates aligned with ICH Q2(R2).

Software & Data Management

Embedded firmware (v3.2+) provides full local data handling: raw current-time curves, moisture content vs. time plots, calibration reports, and method execution logs are stored internally (≥10,000 records) and exportable via USB or RS232 to LIMS or ELN systems. Optional PC-based HOGON KF-Studio software enables advanced statistical analysis (RSD, recovery %, linearity regression), automated report generation (PDF/CSV), and remote instrument monitoring. All data files include embedded metadata: operator ID, timestamp, method version, environmental temperature/humidity, and instrument serial number—ensuring full traceability.

Applications

Primary use cases include moisture verification in lithium-ion battery cathode/anode materials (targeting <20 ppm for SEI stability), residual solvent quantification in lyophilized biopharmaceuticals, hydrolytic degradation assessment in engineering plastics, moisture mapping in food packaging films, and trace water detection in petrochemical feedstocks (e.g., ethylene, propylene). The system is routinely deployed in R&D labs, production QA/QC departments, and contract testing facilities serving ISO 13485 and IATF 16949 certified industries.

FAQ

What sample types require headspace analysis instead of direct injection?
Samples that react with KF reagents (e.g., aldehydes, ketones, strong acids/bases), decompose at room temperature, or contain suspended solids that foul electrodes—such as battery slurries, polymer melts, and herbal extracts.
Can the AKF-CH6 validate methods per ICH Q2(R2)?
Yes—the instrument supports system suitability testing (SST), limit of detection (LOD) verification, and robustness evaluation through programmable parameter perturbation (e.g., ±5 °C oven temp, ±10% gas flow).
Is the heated transfer line compatible with corrosive carrier gases?
The stainless-steel-lined PTFE tubing is rated for dry nitrogen and synthetic air only; chlorine or hydrogen sulfide-containing gases are not supported.
How is calibration verified on-site?
Using certified standard water standards (e.g., 0.1 mg/mL, 1.0 mg/mL methanol solutions) traceable to NIST SRM 2890; calibration verification frequency follows internal SOPs or regulatory mandates (e.g., daily pre-analysis check in GMP environments).
Does the system support 21 CFR Part 11 compliance out-of-the-box?
Electronic signatures, role-based access control, and immutable audit trails are enabled via optional KF-Studio Pro license; standalone instrument mode meets ALCOA+ principles but requires supplementary procedural controls for full Part 11 adherence.
