HOGON AKF-CH6 Pharmaceutical Raw Materials Karl Fischer Coulometric Moisture Analyzer

Overview

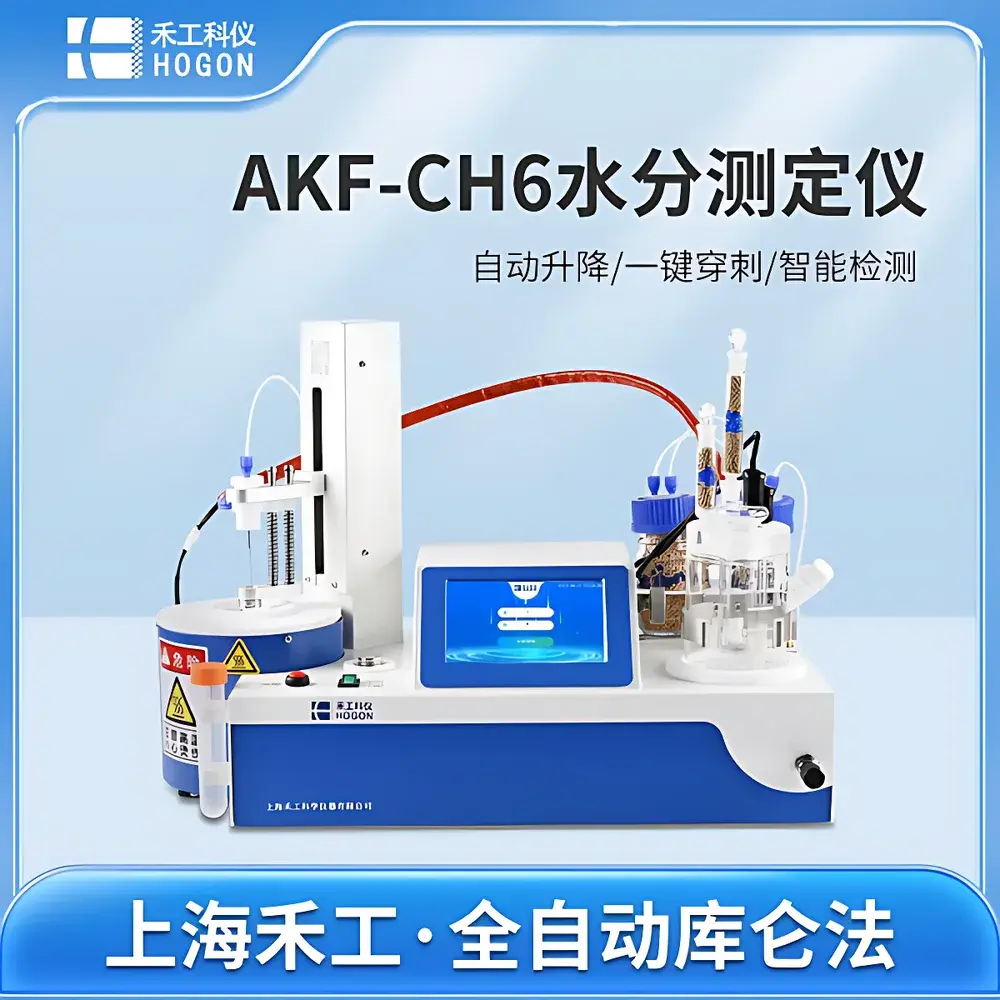

The HOGON AKF-CH6 Pharmaceutical Raw Materials Karl Fischer Coulometric Moisture Analyzer is an integrated, benchtop analytical system engineered specifically for regulated pharmaceutical and biotechnology laboratories. It combines a high-sensitivity coulometric Karl Fischer titration module with a precisely controlled sample heating oven in a single, compact architecture—eliminating the need for external oven coupling and reducing footprint by up to 40% compared to conventional two-unit configurations. The instrument operates on the fundamental stoichiometric principle of the Karl Fischer reaction: I₂ + SO₂ + 2H₂O → 2HI + H₂SO₄, where iodine is generated electrochemically in situ via constant-current electrolysis of the KF reagent. This coulometric approach ensures direct quantification of water mass without volumetric calibration drift, delivering trace-level sensitivity (down to 3 µg absolute water) and exceptional reproducibility across diverse pharmaceutical matrices—including hygroscopic solids, viscous gels, volatile solvents, and thermally labile freeze-dried formulations.

Key Features

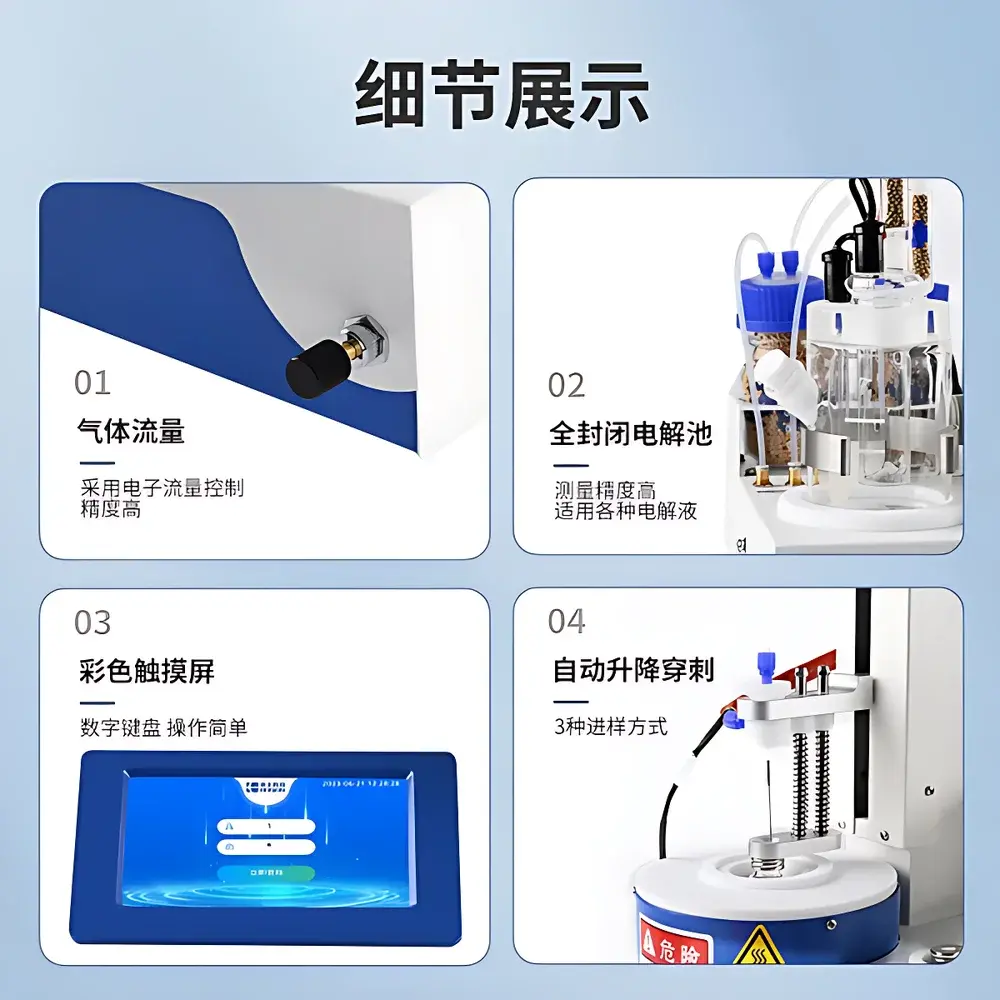

• Integrated heating oven and coulometric titrator in one chassis—optimized for glovebox integration and space-constrained QC labs.
• Dual-mode sample introduction: automated septum-piercing injection and screw-cap vial sealing—enabling flexible handling of volatile, oxygen-sensitive, or particulate-laden samples.
• Intelligent environmental compensation: real-time drift monitoring and adaptive baseline correction to maintain accuracy under variable ambient humidity and temperature conditions.
• High-precision temperature control of the sample evaporator: programmable ramping, isothermal hold, and overtemperature cut-off (±0.1 °C stability) to ensure complete water release without degradation.
• Heated carrier gas line (adjustable 30–120 °C): prevents condensation of evolved moisture in transfer tubing, critical for accurate quantitation of low-water-content solids (e.g., lyophilized proteins, excipients).
• Full-color capacitive touchscreen interface with numeric keypad, one-touch method launch, and intuitive navigation—designed for operator efficiency and minimal training requirements.
• Advanced electrolytic current regulation: dynamically optimized for varying reagent conductivity and cell impedance, supporting extended use with multiple KF reagent formulations (e.g., methanol-based, chloroform-free, aldehyde-compatible).
• Comprehensive hardware diagnostics: real-time status monitoring of electrode potential, cell resistance, gas flow rate (digital display), and titration curve kinetics—facilitating preventive maintenance and audit readiness.

Sample Compatibility & Compliance

The AKF-CH6 is validated for analysis of solid, liquid, and semi-solid pharmaceutical materials per ICH Q5C, USP , EP 2.5.12, and JP 2.05. It accommodates a broad spectrum of regulated samples: active pharmaceutical ingredients (APIs) such as amoxicillin granules and ibuprofen capsules; excipients including lactose, starch, povidone K30, and magnesium chloride hexahydrate; sterile products like ophthalmic solutions and IV admixtures; and advanced biomaterials including PLA/PGA sutures, PVA hydrogels, lyophilized serum, and gadobutrol injectables. Its closed-vial evaporation protocol meets GLP/GMP documentation requirements, with full electronic records of method parameters, raw titration curves, endpoint detection logic, and user authentication logs—supporting 21 CFR Part 11 compliance when deployed with HOGON’s optional audit-trail-enabled software package.

Software & Data Management

The embedded firmware supports up to 100 user-defined methods, each storing complete thermal profiles, carrier gas settings, electrolysis parameters, and post-run calculation algorithms (e.g., %w/w, ppm, µg H₂O/mg sample). All data—including real-time moisture evolution curves, cumulative charge plots, and system diagnostic snapshots—are timestamped and stored locally with automatic backup to USB or network drive. Role-based access control (administrator, analyst, reviewer) enforces workflow segregation, while password-protected method editing and electronic signature capture align with ALCOA+ data integrity principles. Export formats include CSV, PDF reports with digital signatures, and XML for LIMS integration.

Applications

• Quantification of residual moisture in freeze-dried biologics (e.g., monoclonal antibodies, vaccines) to ensure structural stability and shelf-life prediction.
• Release testing of excipients per Ph. Eur. monographs—particularly for hygroscopic compounds like mannitol and sodium chloride.
• Stability-indicating assay of solvent residues (acetonitrile, chloroform, toluene) in API synthesis intermediates.
• Moisture mapping of medical adhesives (cyanoacrylates), surgical meshes, and contact lens solutions to verify packaging integrity.
• Batch-to-batch consistency verification for oral solid dosage forms (tablets, capsules) and transdermal patches.
• Support of extractables & leachables studies by quantifying water content in polymer packaging components prior to extraction.

FAQ

Is the AKF-CH6 compliant with 21 CFR Part 11 for electronic records and signatures?

Yes—when configured with HOGON’s validated software suite and appropriate IT infrastructure controls (e.g., secure login, audit trail, electronic signature), it meets core requirements for record retention, authenticity, and tamper evidence.
Can the instrument analyze samples containing aldehydes or ketones?

Yes—the system supports aldehyde-compatible KF reagents and includes method presets that compensate for side reactions through optimized titration current and endpoint detection algorithms.
What is the maximum operating temperature of the sample evaporator?

The heating block reaches up to 300 °C with ±0.1 °C precision and built-in thermal cutoff protection.
Does the AKF-CH6 support ASTM E203 or ISO 760 methodology?

It implements the core coulometric principles defined in both standards, with traceable calibration using certified water standards (e.g., 1.00 mg H₂O/mL methanol) and documented uncertainty budgets.
How is carryover minimized during high-moisture sample analysis?

The system employs dual-stage drying of the carrier gas, heated transfer lines, and automated post-run purging cycles—validated to reduce carryover to <0.1% between sequential 100 mg H₂O injections.
