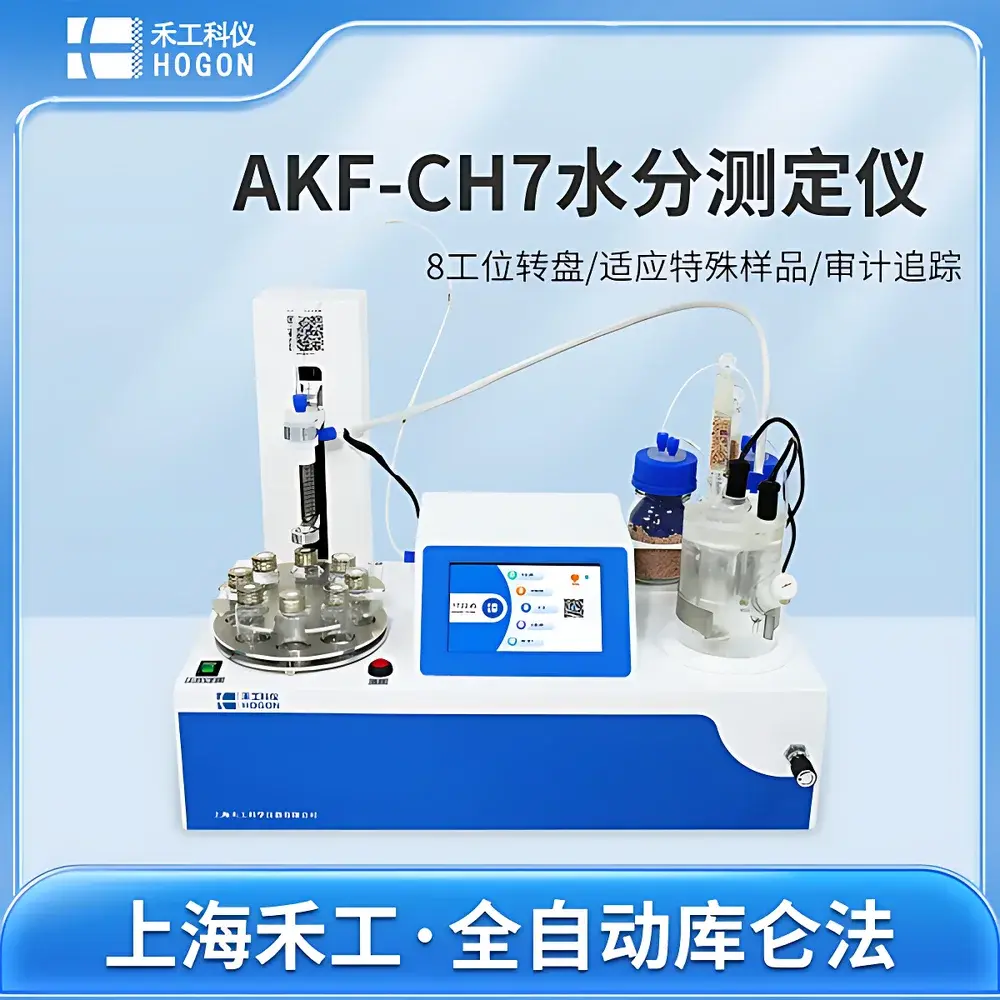

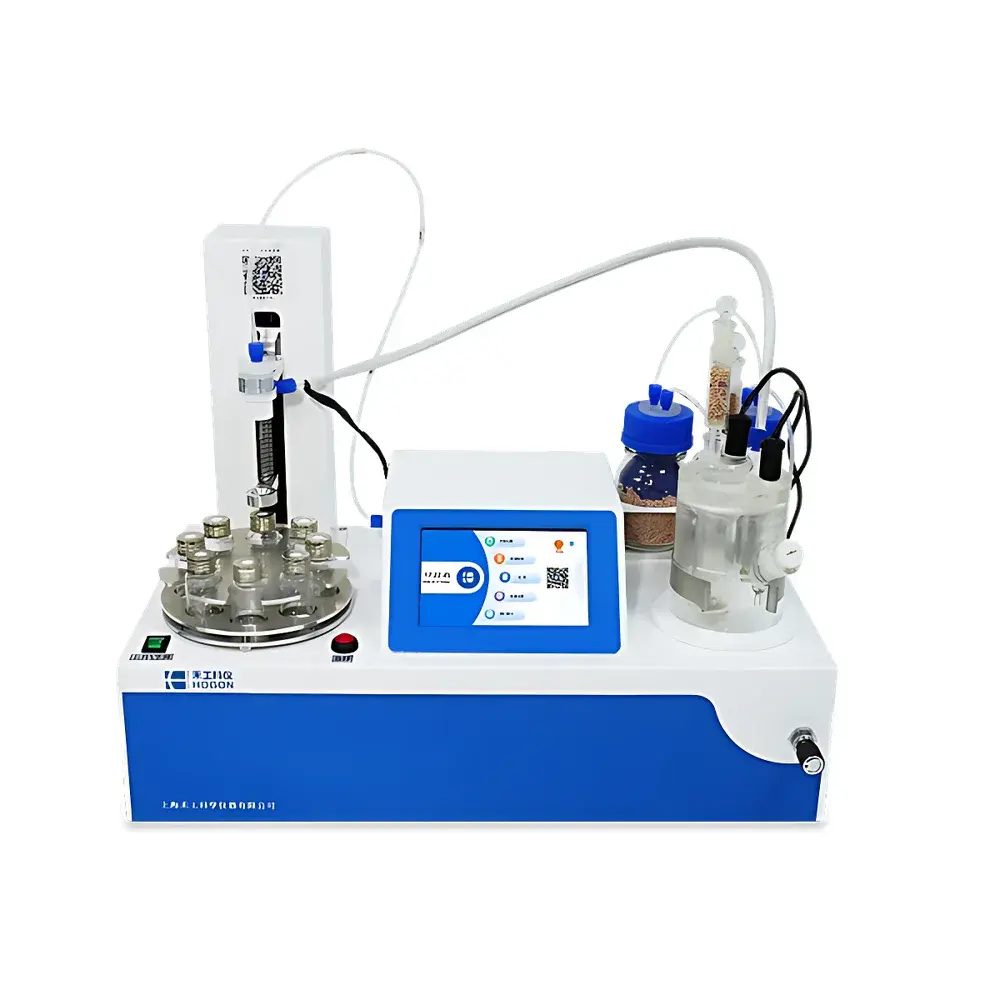

HOGON AKF-CH7 Coulometric Karl Fischer Moisture Titrator for 5-Benzylthiotetrazole in Cephalosporin Analysis

Overview

The HOGON AKF-CH7 is a high-precision coulometric Karl Fischer moisture titrator engineered specifically for trace water quantification in thermally labile and chemically reactive pharmaceutical intermediates—most notably 5-benzylthiotetrazole (5-BTT), a critical building block in cephalosporin antibiotic synthesis. Unlike volumetric KF systems, the AKF-CH7 operates on the coulometric principle: water in the sample reacts stoichiometrically with iodine generated electrochemically at the anode of a dual-platinum electrode cell. The total charge passed (Q, in coulombs) is directly proportional to water mass via Faraday’s law (100% current efficiency assumed), enabling absolute quantification without reagent standardization. This method delivers sub-microgram detection capability and eliminates titrant calibration drift—essential for regulatory-grade analysis under ICH Q5C, USP , and EP 2.5.12. The instrument integrates controlled thermal headspace sampling (up to 110 °C) and carrier gas-assisted volatilization (N₂, 25 mL/min), ensuring complete water release from crystalline or adsorbed states in 5-BTT without decomposition.

Key Features

• Coulometric KF detection with 0.1 µg absolute water detection limit and ≤0.5% RSD across triplicate analyses

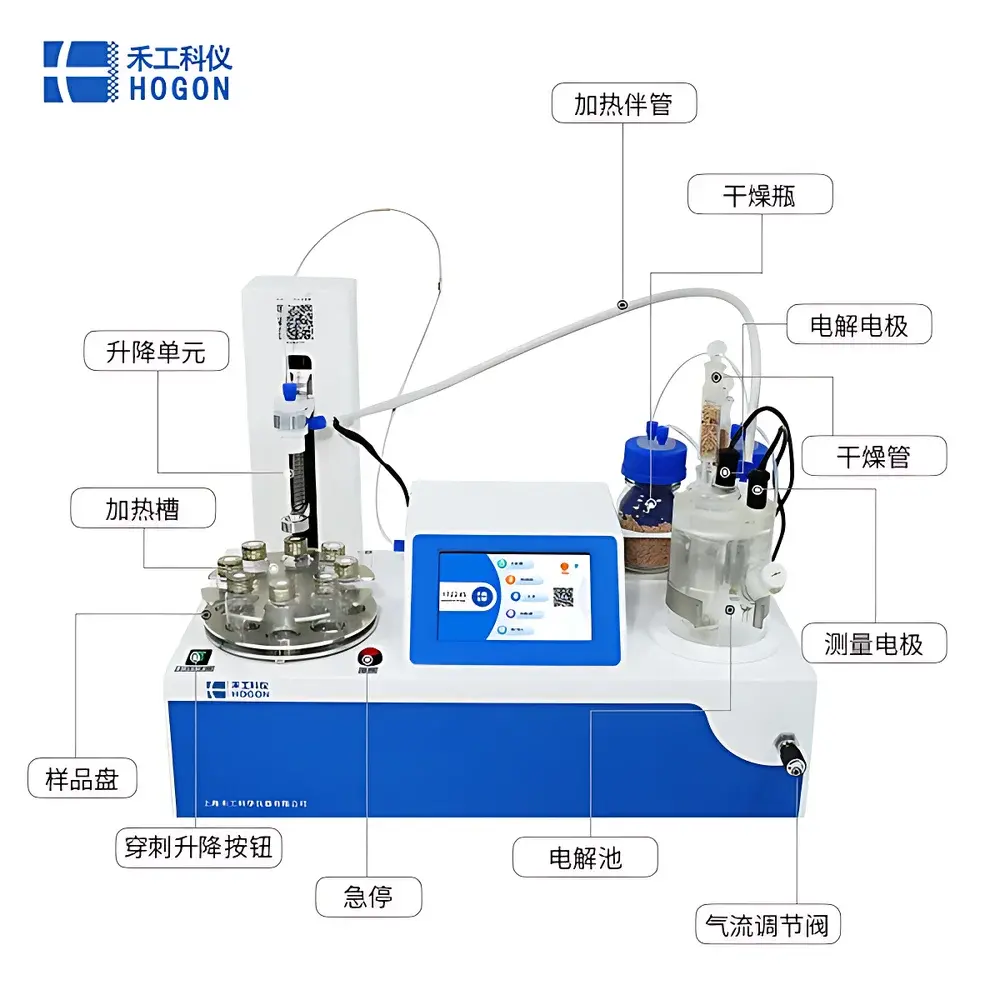

• Integrated heated headspace sampler (adjustable 50–120 °C) with septum-piercing auto-injection for solid/semi-solid samples
• Double-diaphragm electrolytic cell design featuring ion-selective membranes to suppress interference from sulfides, thiols, and polar aprotic solvents (e.g., DMF, acetonitrile)
• Self-balancing titration cell with real-time polarization current monitoring and automatic endpoint recognition (±0.1 µA stability threshold)
• Sealed, inert-gas-purged titration chamber minimizing ambient moisture ingress during operation
• Pre-programmed method templates compliant with ASTM E203 and ISO 760 for pharmaceutical moisture validation

Sample Compatibility & Compliance

The AKF-CH7 is validated for direct analysis of 5-benzylthiotetrazole (CAS 24788-47-4) across typical dosage ranges of 0.04–0.10 g, yielding reproducible results with mean moisture content of 0.506 wt% (n=3, SD <0.0025 wt%). Its robust architecture accommodates hygroscopic, oxidizable, and sulfur-containing compounds common in β-lactam synthesis workflows. All hardware and firmware comply with GLP and GMP requirements per FDA 21 CFR Part 11: electronic signatures, audit trails with immutable timestamps, user access levels (admin/operator), and encrypted data storage are natively supported. Certificate of Conformance includes traceable calibration against NIST-traceable water standards (e.g., sodium tartrate dihydrate, 15.66% w/w).

Software & Data Management

The embedded HOGON MoistureControl™ v3.2 software provides full lifecycle data governance. It supports method creation with parameter locking (temperature, flow rate, titration threshold), automated report generation (PDF/CSV), and batch-level metadata tagging (operator ID, sample ID, lot number, instrument serial). Audit trail logs record every action—including method edits, result overrides, and calibration events—with operator authentication and time stamping. Data export meets ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) and integrates with LIMS via OPC UA or secure FTP. Raw current-time curves and titration profiles are stored alongside final results for forensic review during regulatory inspections.

Applications

• Quantitative moisture determination in cephalosporin intermediates: 5-benzylthiotetrazole, 7-ACA derivatives, and side-chain precursors
• Stability-indicating assay for accelerated aging studies (ICH Q1A)
• In-process control (IPC) during lyophilization cycle development and endpoint verification
• Raw material release testing per pharmacopoeial monographs (USP-NF, Ph. Eur.)
• Residual solvent–water co-determination in API crystallization slurries using dual-solvent KF electrolyte systems
• Validation of desiccant performance in primary packaging integrity assessments

FAQ

What is the minimum detectable water mass for the AKF-CH7?
The system achieves a theoretical lower limit of detection of 0.1 µg water, corresponding to ~1 ppm in a 0.1 g sample.
Can the AKF-CH7 analyze samples containing high concentrations of sulfur compounds?
Yes—the double-diaphragm cell isolates the working electrode from bulk matrix interference; validation data confirm no significant bias for 5-BTT up to 5 wt% total sulfur content.
Is method transfer possible between AKF-CH7 units in multi-site manufacturing?
Yes—method files include all hardware-specific parameters and are portable across identical AKF-CH7 configurations; IQ/OQ documentation kits are provided for site qualification.
Does the system support 21 CFR Part 11 compliance out-of-the-box?
Yes—electronic signature workflows, role-based access control, and tamper-evident audit logs are preconfigured and validated.
How is system suitability verified before daily use?
Built-in system suitability tests include background current stability check (<0.2 µA over 5 min), water standard recovery (99.5–100.5% for 1000 µg standard), and electrode response time (<15 s to 95% of final current).
