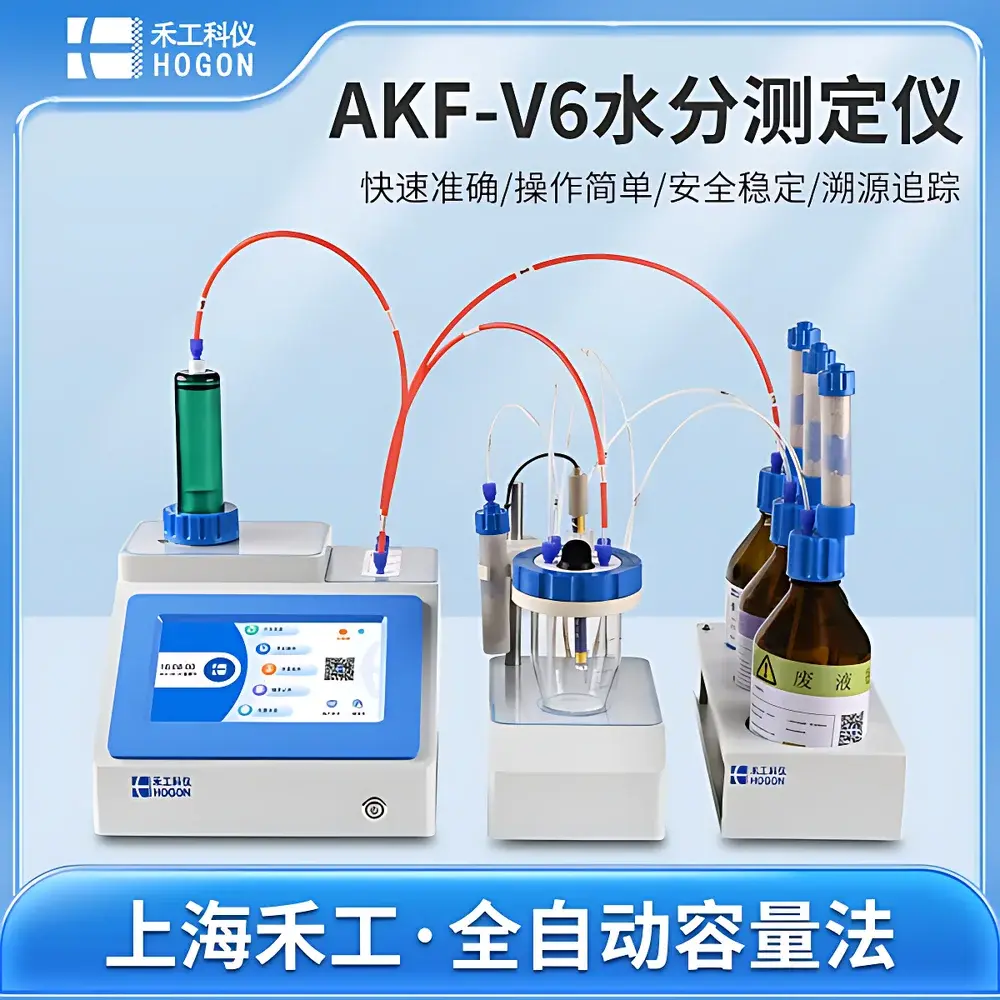

HOGON AKF-V6 Volumetric Karl Fischer Moisture Titrator

Overview

The HOGON AKF-V6 Volumetric Karl Fischer Moisture Titrator is a fully automated, high-precision analytical instrument engineered for quantitative determination of water content in diverse sample matrices—ranging from hygroscopic solids and viscous oils to volatile solvents and thermally labile pharmaceutical intermediates. Based on the classical volumetric Karl Fischer (KF) titration principle—where iodine generated electrochemically or added stoichiometrically reacts quantitatively with water in an anhydrous methanol-based solvent—the AKF-V6 delivers trace-level sensitivity (down to 10 ppm) and full-range linearity across 0.001% to 100% H₂O. Its core architecture integrates a dual-burette delivery system, real-time potentiometric endpoint detection with adjustable polarization voltage (0–120 mV), and adaptive algorithm-driven endpoint recognition that distinguishes true reaction completion from drift or side reactions—ensuring robust performance even with challenging samples such as ketones, aldehydes, or amine-rich compounds known to interfere with conventional KF methods.

Key Features

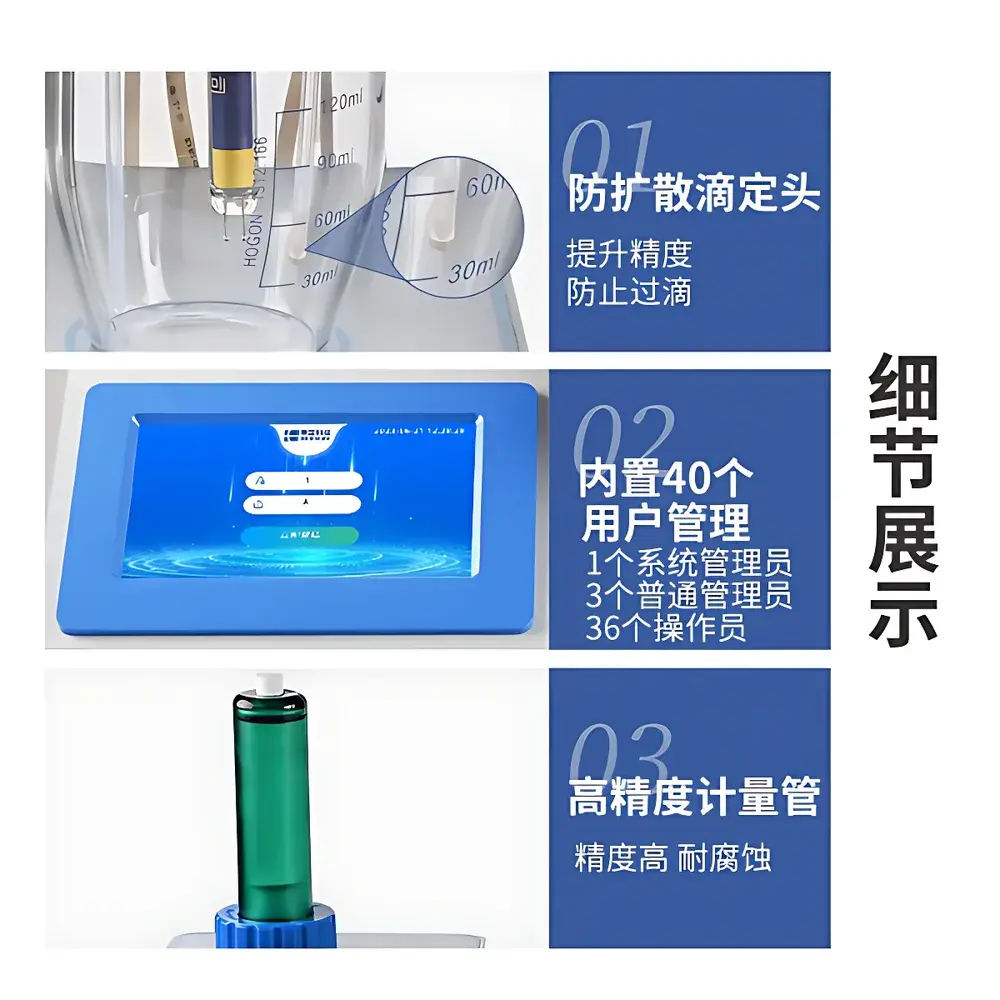

• 7-inch full-color capacitive touchscreen with bilingual (English/Chinese) UI and intuitive workflow navigation—supporting customizable “One-Touch Titration” protocols for routine analysis

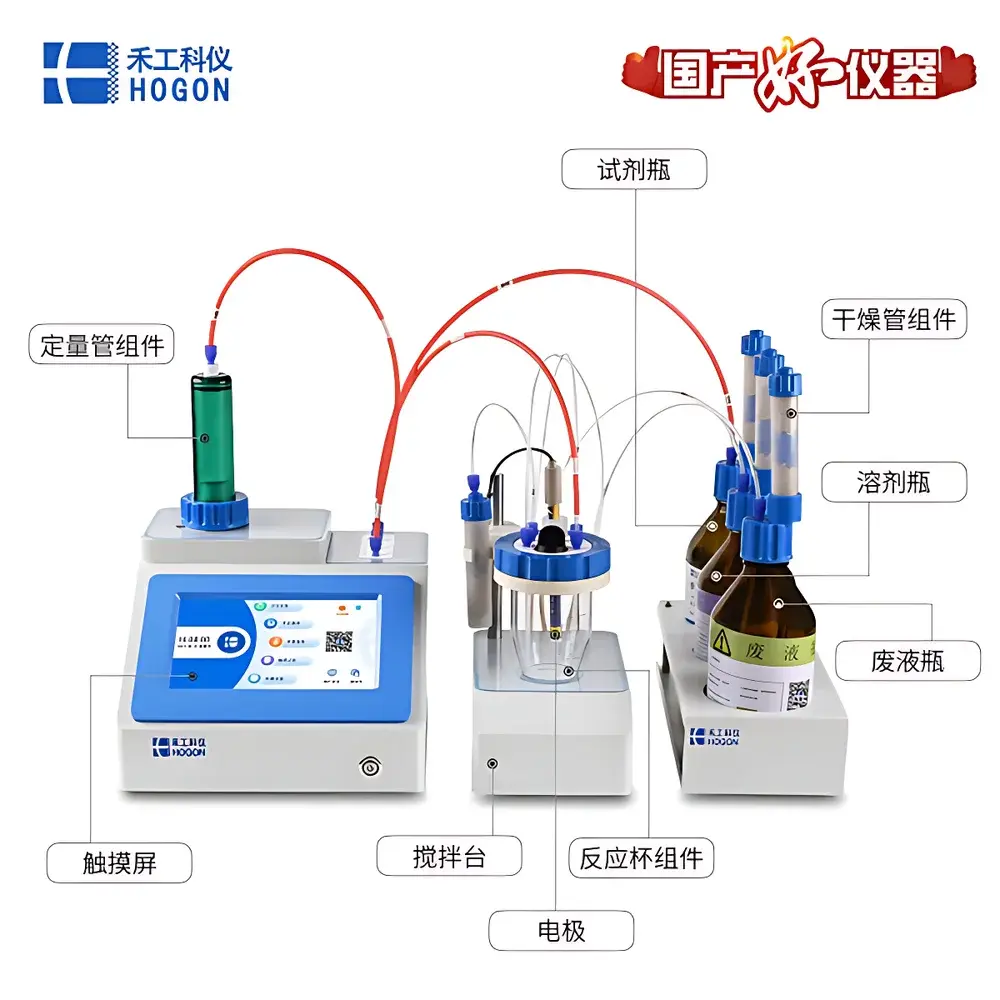

• Hermetically sealed titration system constructed from chemically resistant PTFE, glass, and borosilicate components—minimizing atmospheric moisture ingress and reagent degradation
• HOGON proprietary high-precision burette drive mechanism delivering ±0.5 µL volumetric accuracy with 20 mL burette and 0.5 µL minimum dispensing increment
• Fully automated liquid handling: auto-filling, rinsing, waste evacuation, electrode conditioning (depassivation), and syringe purging—reducing operator dependency and cross-contamination risk
• Multi-mode endpoint detection: fixed potential, dynamic drift compensation, and slope-based algorithms—optimized for low-water-content samples (5%) alike
• Integrated audit trail with time-stamped, user-logged actions—including method edits, calibration events, and result overrides—aligned with ALCOA+ data integrity principles

Sample Compatibility & Compliance

The AKF-V6 accommodates gaseous, liquid, solid, soluble, sparingly soluble, and insoluble samples via optional accessories including headspace samplers (for volatiles), heated stirrer modules (for heterogeneous suspensions), and micro-reaction cells (for <10 mg samples). It complies with internationally recognized standards governing moisture analysis: ASTM E203, ISO 760, USP , EP 2.5.12, and JP 2.05. The system’s three-tier user permission structure (Administrator / Supervisor / Analyst) enforces role-based access control, while its electronic record retention meets FDA 21 CFR Part 11 requirements for electronic signatures and audit trails—making it suitable for GLP- and GMP-regulated environments including pharmaceutical QC labs, polymer R&D centers, and battery electrolyte manufacturing facilities.

Software & Data Management

Embedded firmware supports real-time display of titration curves, raw potential values, derivative plots, and calculated moisture concentration (ppm or % w/w). Each measurement stores metadata—including sample ID, operator name, date/time stamp, reagent batch number, and environmental temperature—within a non-volatile internal memory capable of retaining 200 complete test records. Data export is supported via USB interface in CSV format for LIMS integration or offline statistical review. Optional PC-based software extends functionality with advanced reporting templates, multi-instrument fleet monitoring, and trend analysis tools compliant with ISO/IEC 17025 clause 7.7 on result reporting.

Applications

• Pharmaceuticals: Residual moisture in active pharmaceutical ingredients (APIs), lyophilized powders, and excipients per ICH Q5C guidelines
• Electronics: Water content in lithium-ion battery electrolytes and cathode/anode slurries where trace H₂O induces HF formation
• Polymers: Moisture quantification in PET, PA6, and PC resins prior to extrusion or injection molding to prevent hydrolytic degradation
• Foods & Cosmetics: Water activity correlation studies, emulsion stability assessment, and preservative efficacy validation
• Chemicals: Quality control of solvents (e.g., THF, DMF), catalysts, and organometallic reagents where water compromises reactivity

FAQ

What types of Karl Fischer reagents are compatible with the AKF-V6?
The instrument supports both single-component (iodine-containing) and two-component (iodine + base/solvent) volumetric KF reagents from major suppliers (e.g., Honeywell, Merck, Riedel-de Haën), provided they meet standard methanol-based formulation requirements.
Can the AKF-V6 be validated according to pharmacopeial requirements?
Yes—its configurable parameters, documented firmware versioning, and full audit trail capability support IQ/OQ/PQ execution per USP and Annex 11, including repeatability, intermediate precision, and robustness testing.
Is external sample heating supported?
Yes—via optional KF headspace oven modules (e.g., AKF-CHS series) enabling controlled thermal extraction of bound water from solids without direct contact with the titration cell.
How is reagent consumption monitored and managed?
Real-time reagent volume tracking is displayed on-screen; low-reagent alerts trigger automatic pause, and cumulative usage logs are stored with each analysis record for inventory reconciliation.
Does the system support remote diagnostics or service access?
Remote maintenance is available via secure Ethernet connection under controlled IT governance policies—enabling HOGON-certified engineers to perform firmware updates, calibration verification, and troubleshooting while preserving data security and regulatory compliance.
