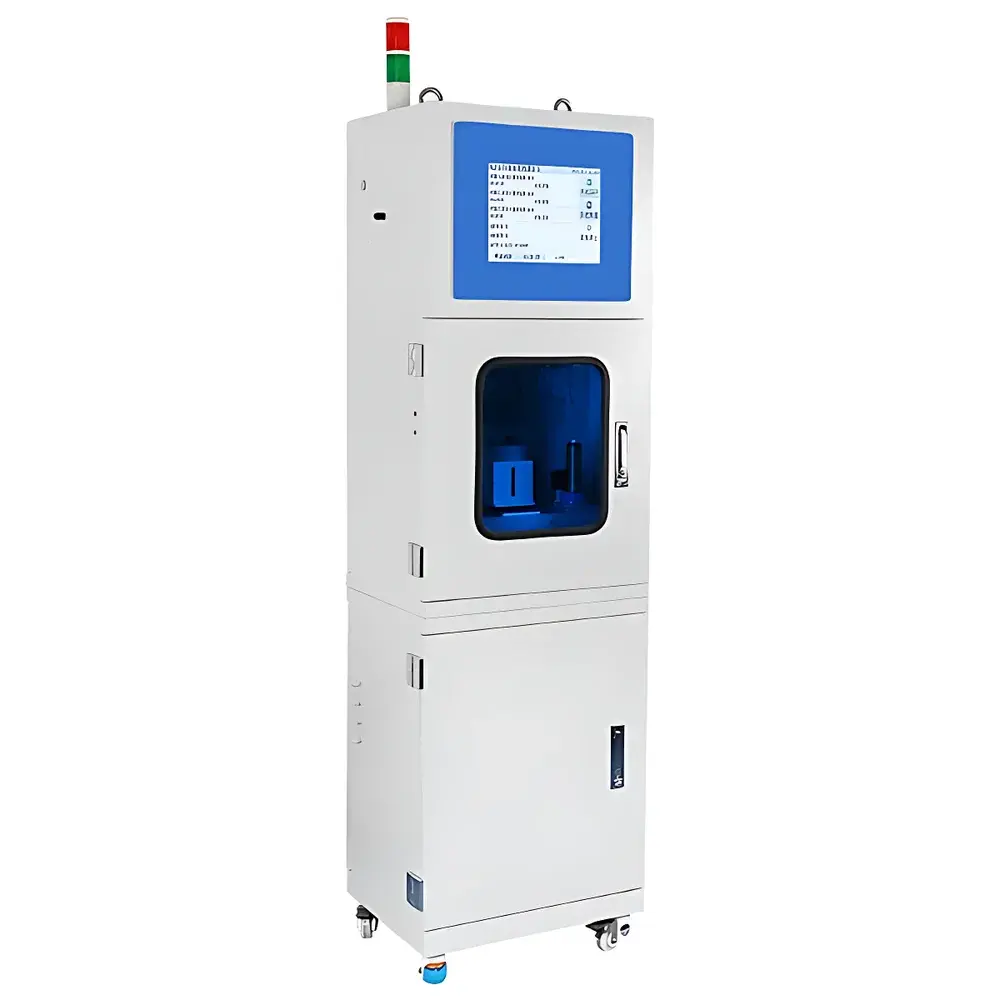

HOGON ALT-1 Online Titration Analyzer for Electroplating Process Control

Overview

The HOGON ALT-1 Online Titration Analyzer is an industrial-grade, fully automated titration system engineered specifically for real-time chemical process control in electroplating and metal surface finishing lines. Unlike laboratory-based titrators, the ALT-1 operates continuously in harsh production environments—integrated directly into plating bath circulation loops—to quantify critical bath constituents including free acid concentration, accelerator (promoter) activity, complexing agent levels, and inhibitor residuals. Its core measurement architecture employs either potentiometric or spectrophotometric endpoint detection, depending on reagent chemistry, ensuring method equivalence to standardized ASTM D1127 (for acid titration) and ISO 14689 (for redox-active species). By replacing manual grab sampling and offline lab analysis, the ALT-1 establishes a closed-loop feedback mechanism between analytical output and chemical dosing actuators—enabling dynamic, data-driven stabilization of bath composition within narrow operational windows essential for uniform deposit morphology, adhesion strength, and corrosion resistance.

Key Features

• Continuous in-line sampling via temperature-compensated peristaltic probe, maintaining representative bath equilibrium during analysis
• Dual-mode titration engine supporting both acid-base and redox titrations with programmable endpoint algorithms (first-derivative, inflection point, fixed-pH)
• Integrated reagent delivery module with calibrated glass burettes (±0.1% volumetric accuracy), PTFE fluid path, and auto-purging valves to prevent cross-contamination
• Real-time dosing logic engine compliant with ISA-88 batch control standards, interfacing seamlessly with PLCs via Modbus TCP or OPC UA
• Self-diagnostic calibration verification using certified reference solutions (NIST-traceable standards) at user-defined intervals
• IP65-rated enclosure with corrosion-resistant 316L stainless steel housing and explosion-proof optional configuration (ATEX Zone 2 / IECEx)

Sample Compatibility & Compliance

The ALT-1 is validated for direct analysis of acidic and alkaline plating baths—including sulfate-based copper, nickel sulfamate, zinc cyanide, and trivalent chromium chemistries—without sample dilution or filtration under normal operating conditions. It accommodates suspended solids up to 50 ppm and chloride concentrations up to 200 g/L. All wetted components meet USP Class VI biocompatibility requirements and are compatible with common plating additives (e.g., PEG, SPS, DPE). The system complies with ISO/IEC 17025 methodology validation guidelines for in-process analyzers and supports full traceability per ISO 9001:2015 clause 8.5.2 (control of production and service provision). Data integrity features include time-stamped audit trails, role-based user authentication, and encrypted database backups aligned with FDA 21 CFR Part 11 Annex 11 principles.

Software & Data Management

The embedded HOGON ProcessLink™ software provides browser-based HMI accessible from Windows, macOS, iOS, and Android devices. It records all titration events—including raw sensor signals, equivalence point calculations, reagent consumption, and dosing actuation timestamps—at configurable intervals (minimum 1-second resolution). Historical datasets are stored in SQL Server-compatible format with automatic partitioning by production batch ID, shift, and line number. The platform exports CSV/Excel reports compliant with ASTM E2500-13 (good practice for pharmaceutical process validation) and integrates with MES/SCADA systems through RESTful APIs. All electronic records retain immutable metadata: operator ID, instrument serial number, calibration certificate ID, and environmental sensor readings (temperature, conductivity).

Applications

• Stabilization of free acid concentration in acid copper plating baths to maintain consistent throwing power and reduce dendritic growth
• Monitoring accelerator depletion in nickel sulfamate electrolytes to prevent brittle deposits and micro-cracking
• Quantifying complexant (e.g., EDTA, citrate) levels in zinc-nickel alloy baths to ensure proper metal ion stability and deposition rate control
• Tracking inhibitor residuals in chromic acid anodizing lines to avoid excessive film porosity and seal quality loss
• Correlating titration-derived parameters with electrochemical impedance spectroscopy (EIS) data for predictive maintenance of rectifier performance

FAQ

What titration methods does the ALT-1 support?
The ALT-1 supports potentiometric titration (pH-stat and redox-stat modes), photometric titration (using 450 nm and 620 nm dual-wavelength detection), and conductometric titration—configurable per application protocol.
Can the ALT-1 interface with existing PLCs or DCS systems?
Yes. Native Modbus TCP, Profibus DP, and OPC UA drivers are included. Custom protocol mapping (e.g., Siemens S7, Rockwell Logix) is available via HOGON’s certified integration partner program.
How often does the system require calibration verification?
Calibration verification using certified standard solutions is recommended every 24 hours for high-precision applications; weekly verification suffices for stable bath chemistries with low additive turnover.
Is remote diagnostics and firmware updates supported?
Yes. Secure SSH/TLS-enabled remote access allows HOGON-certified engineers to perform diagnostic routines, log analysis, and over-the-air firmware upgrades without onsite intervention.
Does the ALT-1 meet environmental compliance requirements for hazardous area installation?
Standard units operate in non-hazardous locations (Class I, Division 2). ATEX/IECEx-certified variants (II 2G Ex db IIB T4 Gb) are available for solvent-rich pre-treatment zones.
