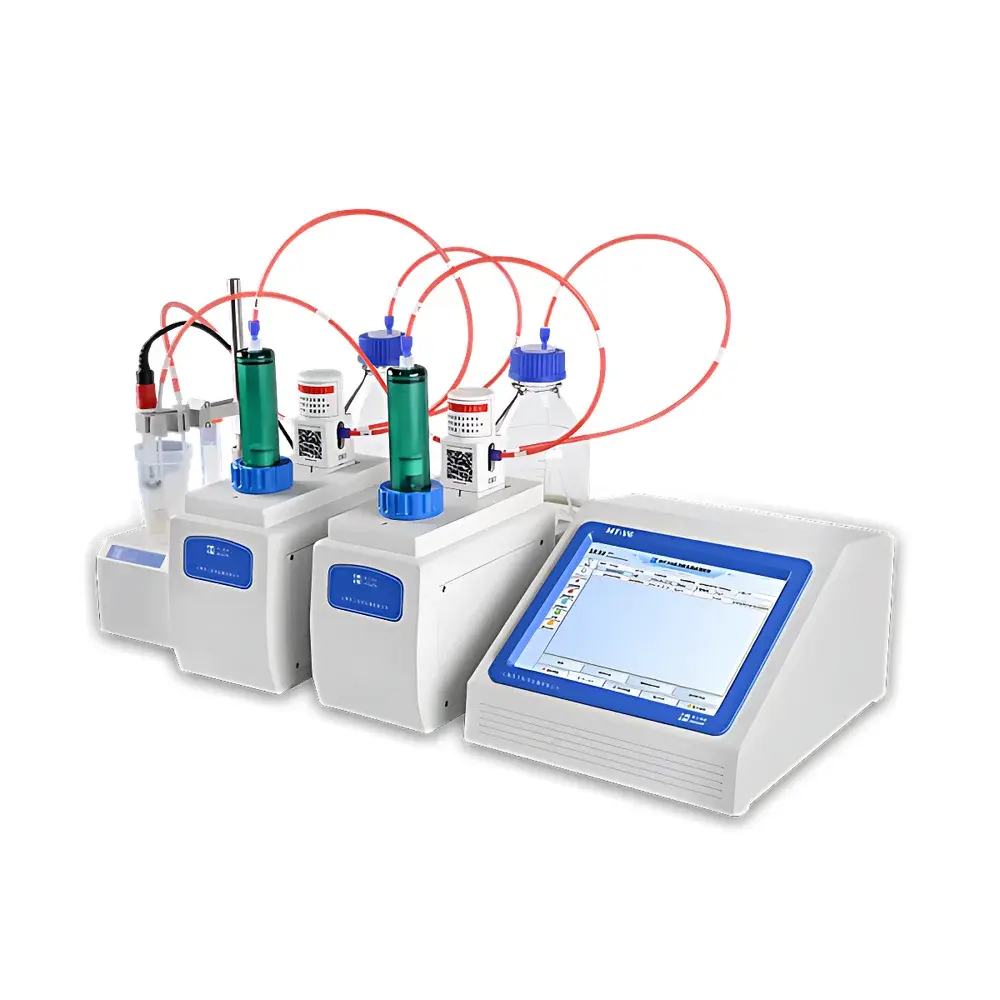

HOGON MT-V6 Automatic Complexometric Potentiometric Titrator

Overview

The HOGON MT-V6 Automatic Complexometric Potentiometric Titrator is a dedicated, high-precision analytical instrument engineered for automated complexometric titrations—primarily targeting quantitative determination of metal cations (e.g., Ca²⁺, Mg²⁺, Cu²⁺, Zn²⁺, Ni²⁺, Pb²⁺) via chelation reactions with standardized ligands such as EDTA, EGTA, or DTPA. It operates on the fundamental principle of potentiometric endpoint detection: a reference electrode and an ion-selective or redox-sensitive indicator electrode continuously monitor the solution potential during titrant addition; the inflection point in the E–V curve (potential vs. titrant volume) corresponds to stoichiometric equivalence. Unlike generic acid-base or redox titrators, the MT-V6 integrates hardware and algorithmic optimizations specifically for slow-equilibrating complexation kinetics, including adaptive addition rate control, extended stabilization windows, and multi-point potential averaging to suppress noise from labile metal–ligand equilibria. Designed for routine QC/QA and regulated research environments, it meets foundational requirements for traceable, auditable electrochemical analysis under GLP and ISO/IEC 17025 frameworks.

Key Features

• Fully automated titration workflow: synchronized motorized burette dispensing, magnetic stirring with speed ramping and torque compensation, real-time potential acquisition at up to 10 Hz sampling rate.
• Dual-burette configuration support: standard 20 mL glass burette (1 µL minimum dispensing increment) and optional 10 mL high-resolution burette (0.5 µL increment) for ultra-trace or high-concentration applications.
• Potentiometric metrology system calibrated to NIST-traceable standards: ±0.1 mV accuracy over ±2000 mV range, 0.001 pH resolution across full 0.000–14.000 scale, with automatic temperature compensation (PT1000 sensor integrated).
• Multi-algorithm endpoint recognition engine: configurable first-derivative (ΔE/ΔV), second-derivative (Δ²E/ΔV²), Gran plot, and dynamic curve-fitting methods—each selectable per method, with user-defined threshold sensitivity and smoothing parameters.
• Modular electrode interface: supports combination pH electrodes, metal-ion selective electrodes (e.g., Cu²⁺, Pb²⁺), redox (Pt) electrodes, and custom reference systems via standardized BNC and mini-DIN connectors with auto-detection and calibration logging.
• Rugged industrial-grade chassis: chemically resistant housing (IP54-rated), corrosion-resistant fluid path materials (PTFE, PEEK, borosilicate glass), and sealed electronics for long-term operation in fume hoods or wet laboratories.

Sample Compatibility & Compliance

The MT-V6 accommodates aqueous and mixed-aqueous samples (e.g., ethanol–water, acetonitrile–buffer) within standard volumetric flasks (25–250 mL) and is compatible with common complexometric matrices—including hard water, pharmaceutical excipients, ore leachates, biological digests, and environmental extracts. It supports sample pretreatment integration (e.g., pH adjustment, masking agent addition, heating via external hotplate). From a regulatory standpoint, the instrument’s firmware implements audit trail functionality (user login, method change history, result modification log), electronic signature support, and data integrity safeguards aligned with FDA 21 CFR Part 11 principles. Calibration records, electrode status logs, and raw titration curves are stored with time-stamped metadata, facilitating ISO 17025 method validation and internal quality audits.

Software & Data Management

The embedded operating system features a 7-inch capacitive color touchscreen with intuitive icon-driven navigation, supporting English, Chinese, and Spanish UI languages. Method development occurs via hierarchical templates: base titration type (complexometric/direct/back-titration), electrode configuration, burette selection, endpoint algorithm, and reporting format. All raw data (E vs. V, dE/dV, d²E/dV²) are saved in open CSV and proprietary .MTD formats. Connectivity includes USB 2.0 host/device ports, Ethernet (TCP/IP), and optional Wi-Fi module—enabling direct export to LIMS, ELN, or third-party statistical software (e.g., JMP, OriginLab). Data encryption (AES-128) and role-based access control (administrator/operator/analyst profiles) ensure secure deployment in shared laboratory networks.

Applications

• Environmental testing: quantification of total hardness (Ca²⁺ + Mg²⁺), heavy metals (Pb²⁺, Cd²⁺, Ni²⁺) in drinking water, wastewater, and soil extracts per ASTM D1126 and ISO 6059.
• Pharmaceutical QC: detection of residual catalyst metals (e.g., Pd, Pt) in active pharmaceutical ingredients (APIs) per ICH Q2(R2) and USP .
• Metallurgical analysis: determination of alloy composition (e.g., Zn in brass, Al in aluminum scrap) and electrolyte bath monitoring in electroplating facilities.
• Food & beverage: calcium and magnesium content in dairy products, fortified beverages, and dietary supplements—validated against AOAC 972.35 and ISO 6496.
• Academic research: kinetic studies of metal–ligand association constants, speciation modeling, and teaching of quantitative analytical chemistry principles.

FAQ

Does the MT-V6 support non-aqueous complexometric titrations, such as in glacial acetic acid?

Yes—the instrument accepts non-aqueous reference electrodes and permits manual override of solvent-specific calibration parameters; however, endpoint sharpness and reproducibility depend on ligand solubility and ion-pair formation kinetics.
Can the system be validated for GMP compliance?

It provides essential features for IQ/OQ documentation (hardware verification, electrode calibration reports, repeatability testing scripts); full PQ requires lab-specific protocol development and periodic performance checks per your SOP.
Is remote monitoring or cloud-based data backup available?

Local network streaming to a designated server is supported; cloud integration requires on-premise middleware (e.g., OPC UA gateway) due to data sovereignty and cybersecurity policies.
What electrode maintenance routines are recommended for long-term stability?

Daily rinsing with deionized water, weekly KCl refilling for double-junction references, and quarterly membrane cleaning with dilute HNO₃ for metal-ion electrodes—log all interventions in the built-in maintenance journal.
How does the MT-V6 handle samples with interfering ions (e.g., Fe³⁺ in Ca²⁺ determination)?

Via programmable masking steps: the software allows timed reagent addition (e.g., triethanolamine for Fe³⁺ suppression) prior to titration start, with separate volume tracking and error propagation in final concentration calculation.
