HORIBA Fluorolog-QM Modular Research-Grade Steady-State and Time-Resolved Fluorescence Spectrometer

Overview

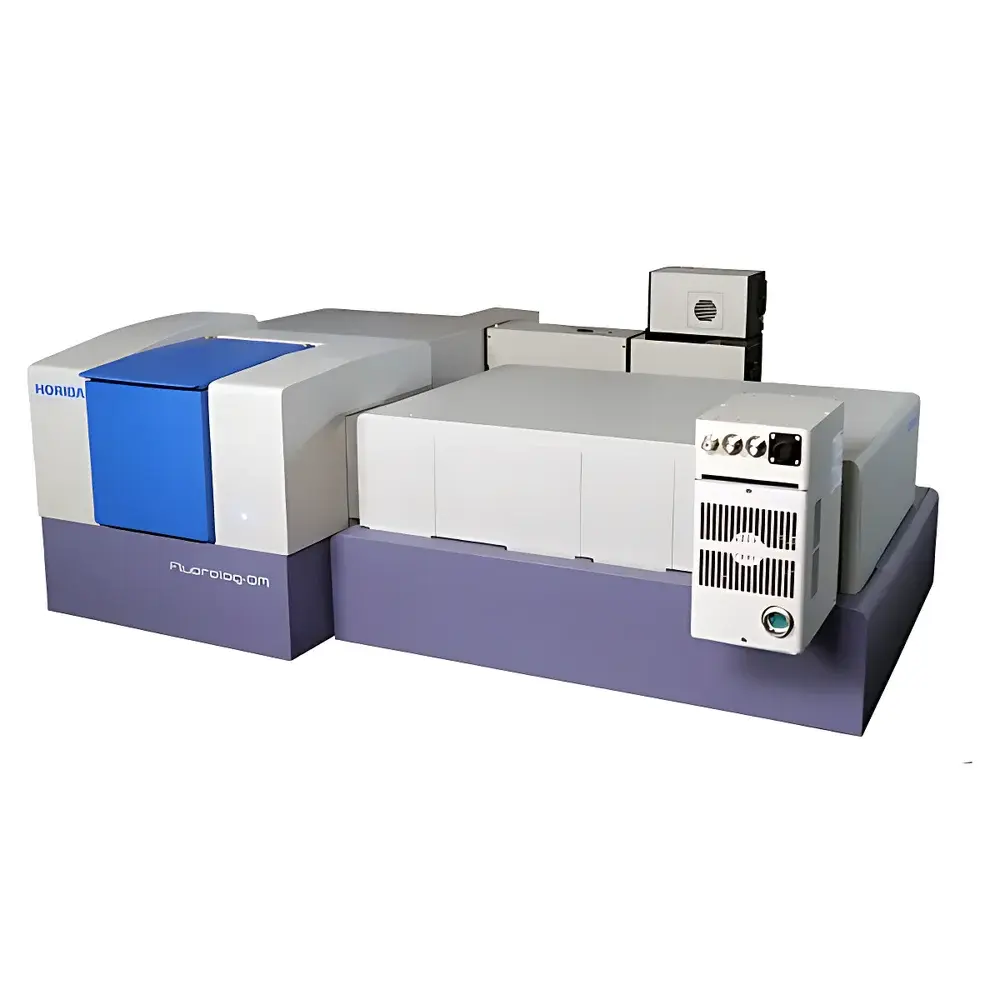

The HORIBA Fluorolog-QM is a fully modular, research-grade fluorescence spectrometer engineered for high-fidelity steady-state, time-resolved, and phosphorescence spectroscopy across an unprecedented spectral range—from deep ultraviolet (180 nm) to mid-infrared (5500 nm). Built upon over five decades of HORIBA’s expertise in photonic instrumentation, the Fluorolog-QM employs an all-reflective optical architecture with aberration-corrected, long-focal-length monochromators (350 mm single-stage or 700 mm dual-stage), eliminating chromatic dispersion and ensuring diffraction-limited focusing across the entire 180–5500 nm range. Its core measurement principles include photon-counting-based time-correlated single-photon counting (TCSPC) for picosecond-to-second luminescence decay analysis, synchroscan-modulated photon accumulation (MCS), and single-shot synchronized transient detection (SSTD) optimized for microsecond-to-second phosphorescence in the near- and mid-infrared. The system is designed for quantitative molecular photophysics—supporting absolute quantum yield, anisotropy, FRET, TRES, and time-resolved emission spectral mapping—under rigorously controlled optical and thermal conditions.

Key Features

• All-reflective Czerny-Turner monochromators with motorized triple-grating turret and precision micrometer-driven slits enabling ≤0.01 nm wavelength stepping and resolution < ±0.1 nm
• Dual-stage optical configuration with software-controlled intermediate slit for stray light rejection up to 1×10⁻¹⁰, critical for low-intensity NIR phosphorescence and long-decay measurements
• Integrated PowerArc™ xenon lamp with ellipsoidal reflector delivering >70% collection efficiency and stable deep-UV output down to 180 nm without ozone generation
• Simultaneous control of up to four excitation sources (continuous Xe, pulsed LEDs, Q-switched lasers, OPOs) and six detectors (R928 PMT, NIR PMTs, InGaAs, InAs, InSb) via unified USB interface
• Native SSTD (Single-Shot Synchronized Transient Detection) mode supporting phosphorescence lifetime acquisition from 1 µs to seconds across 185–5500 nm—compatible with all detector types, including solid-state InSb (1500–5500 nm)
• 100 MHz TCSPC electronics with automated pulse repetition rate optimization, real-time histogramming, and MEM-based lifetime distribution analysis
• Atmosphere-purged optical path (N₂ or dry air) for stable deep-UV throughput and suppression of atmospheric absorption bands in IR regions

Sample Compatibility & Compliance

The Fluorolog-QM accommodates liquid, solid, thin-film, powder, fiber, and microscopic samples through a comprehensive suite of sample-handling accessories—including 360° adjustable solid-sample holders, cryogenic liquid-N₂/He dewars (4–300 K), high-temperature stages (up to 1000 °C), magnetic stirrer temperature-controlled cuvette holders (2-/4-position), and micro-volume cells (250 µL). Its open mechanical architecture supports integration with external platforms such as HPLC flow cells (20 µL), X-ray excitation modules, confocal microscopes, and stopped-flow kinetics systems (Hi-Tech SFA-20). All hardware and software operations comply with GLP/GMP documentation requirements; FelixFL software includes optional 21 CFR Part 11 audit trail, electronic signatures, and role-based access control. Measurement traceability aligns with ISO/IEC 17025 calibration protocols, and quantum yield determinations follow ASTM E2633 and USP guidelines when used with certified integrating spheres.

Software & Data Management

FelixFL v5.x serves as the unified control, acquisition, and analysis environment for all Fluorolog-QM configurations. It provides native support for multi-dimensional data acquisition (λ–τ, λ–θ, λ–T), batch processing of lifetime decays, and advanced modeling including multi-exponential fitting, global analysis, maximum entropy method (MEM) lifetime distributions, and time-resolved anisotropy decay reconstruction. Quantitative modules include absolute quantum yield calculation (with integrated sphere correction), absorption cross-section derivation, FRET efficiency mapping, CIE chromaticity coordinate computation, and single-walled carbon nanotube (SWCNT) chirality assignment via excitonic peak deconvolution. Raw and processed datasets are stored in vendor-neutral HDF5 format with embedded metadata (wavelength calibration, detector gain, integration time, environmental logs), enabling interoperability with Python (h5py), MATLAB, and third-party chemometrics tools. Audit trails, versioned method files, and encrypted project archives ensure full data integrity for regulatory submissions.

Applications

The Fluorolog-QM addresses advanced photophysical characterization needs across academic and industrial R&D domains. In materials science, it enables structure–property correlation of lanthanide-doped nanoparticles, AIEgens, NIR-II bioimaging probes, and perovskite quantum dots via simultaneous steady-state absorption/emission, microsecond phosphorescence mapping, and temperature-dependent quantum yield profiling. In life sciences, its TCSPC + TRES capability supports protein folding dynamics, ligand-binding kinetics, and conformational heterogeneity studies using time-resolved Förster resonance energy transfer. Catalysis researchers employ its in situ variable-temperature quantum yield module to quantify photocatalytic charge recombination pathways. Solid-state lighting developers rely on its CIE color space engine and absolute radiant flux calibration for LED phosphor screening. Additionally, its compatibility with X-ray and synchrotron beamlines facilitates time-resolved luminescence studies under ionizing radiation—critical for scintillator development and radiation dosimetry validation.

FAQ

What is the longest measurable phosphorescence lifetime with SSTD mode?
SSTD supports lifetime acquisition from 1 µs up to several seconds, limited only by detector dark current and signal-to-noise accumulation time—not by electronics gating.
Can the Fluorolog-QM perform absolute quantum yield measurements?
Yes—when equipped with a calibrated integrating sphere accessory and operated under FelixFL’s QY module, it delivers traceable absolute quantum yield values per ASTM E2633 and USP .
Is dual-monochromator configuration necessary for routine UV-Vis work?
No—the single-stage 350 mm monochromator delivers optimal sensitivity and resolution for most 180–1100 nm applications; dual-stage is recommended only for demanding NIR phosphorescence or ultra-low-stray-light requirements.
Does FelixFL support automated method sequencing across multiple samples?
Yes—via the “Batch Acquisition” module, users define parameter sets (excitation λ, emission scan range, integration time, detector HV) and execute unattended runs across racks of cuvettes or temperature-programmed stages.
How is detector selection managed during multi-wavelength lifetime experiments?
FelixFL dynamically switches detectors based on spectral region and signal intensity thresholds, with seamless HV and timing parameter reconfiguration—no manual intervention required.
