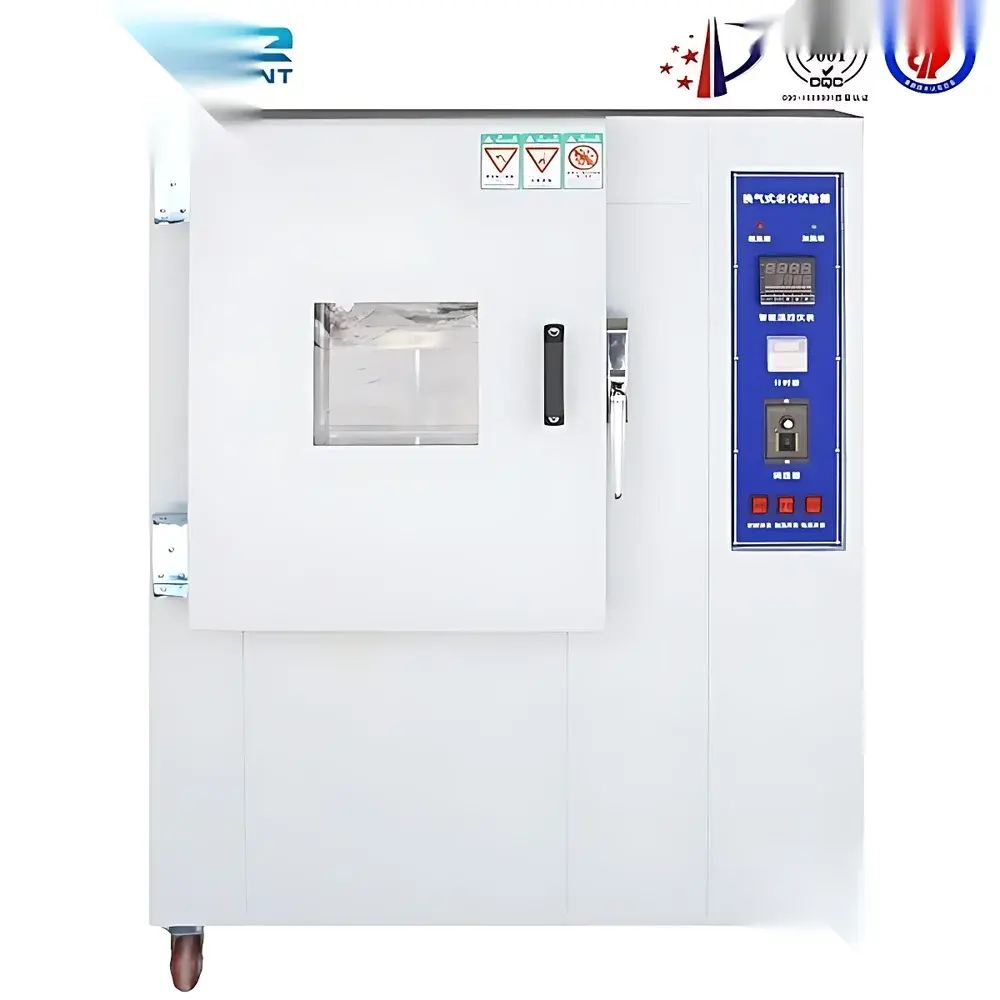

OK-HQ-90 High-Temperature/Low-Temperature Air-Exchange Aging Test Chamber

Overview

The OK-HQ-90 High-Temperature/Low-Temperature Air-Exchange Aging Test Chamber is an engineered environmental simulation system designed for accelerated thermal aging evaluation of polymeric and elastomeric materials under controlled, ventilated atmospheric conditions. Based on the principle of forced convection air exchange within a thermally insulated chamber, it replicates long-term service exposure by subjecting specimens—such as insulated wires, cables, rubber compounds, synthetic leather, textiles, and plastic components—to sustained elevated temperatures while maintaining a defined volumetric air replacement rate. This methodology ensures oxidative degradation kinetics remain representative of real-world aging mechanisms, avoiding stagnation-induced artifacts common in static oven environments. The chamber operates across a validated temperature range from ambient +10°C up to 200°C, with high-stability thermal control enabling reproducible test execution per internationally recognized standards including ASTM D5423-09 (Type II forced-ventilation laboratory ovens) and ASTM D5374-93 (2005) for electrical insulation materials.

Key Features

• Precision-engineered air exchange regulation system with digitally adjustable cycle frequency (2–100 air changes per hour) and programmable interval timing (1 minute to 99 hours), supporting both continuous and pulsed ventilation protocols.
• Robust dual-wall construction: inner chamber lined with electropolished SUS304 stainless steel (mirror finish) and outer shell fabricated from A3 cold-rolled steel with durable epoxy-polyester powder coating.
• Horizontal forced-air circulation architecture featuring high-temperature-rated centrifugal blower and symmetrical airflow baffles, achieving ±2°C temperature uniformity across the working volume per IEC 60068-3-5.
• Intelligent PID-based microprocessor controller with backlit LCD interface, offering 0.1°C setpoint and display resolution, built-in timer (1–9999 minutes), and real-time fault diagnostics for heater, sensor, and fan subsystems.
• Integrated 250 mm diameter low-speed turntable (optional upgrade to 300/400 mm available), ensuring uniform thermal exposure for asymmetric or multi-position samples.
• Thermal insulation composed of 100 mm thick high-density mineral wool (glass fiber) with λ ≤ 0.04 W/m·K, minimizing standby energy consumption and external surface temperature rise.
• Standard 50 mm diameter access port on left side wall (with silicone gasket and brass compression fitting), facilitating external power/signal feedthrough without compromising chamber integrity.

Sample Compatibility & Compliance

The OK-HQ-90 accommodates flat, cylindrical, and irregularly shaped specimens up to 400 mm in height and 20 kg total mass. It supports standardized test configurations for wire insulation (UL 1581 §1060), cable jacketing (IEC 60811-501), automotive elastomers (SAE J2238), and aerospace polymer composites (ASTM D3045). All operational parameters—including air exchange rate, dwell time, and thermal ramp profiles—are traceable and auditable, aligning with GLP and GMP documentation requirements. The controller logs timestamped temperature and airflow data with optional CSV export, satisfying FDA 21 CFR Part 11 compliance when paired with secure user authentication and electronic signature modules.

Software & Data Management

While the base unit features standalone operation via its embedded controller, optional PC connectivity via RS-232 or RS-485 enables remote monitoring and batch parameter upload/download using vendor-supplied configuration software (Windows-compatible). The system records all critical variables—including chamber temperature, elapsed time, air exchange count, and alarm events—with automatic timestamping. Audit trails are retained for ≥30 days in non-volatile memory and support manual export for QA review. Optional firmware upgrades extend functionality to include multi-step program sequencing, deviation alerts with email/SMS notification (via gateway), and integration into LIMS environments via Modbus TCP protocol.

Applications

• Evaluation of thermal oxidative stability in PVC, PE, XLPE, EPDM, silicone, and fluoropolymer insulations per UL 1581 and IEC 60811 series.
• Pre-compliance screening of automotive interior trim materials against SAE J2238 and ISO 188 for heat resistance and discoloration.
• Accelerated aging of medical device polymer housings and tubing per ISO 10993-12 and ASTM F1980.
• Quality assurance testing of textile coatings, synthetic leathers, and adhesives under cyclic thermal stress with oxygen replenishment.
• Research-grade studies on Arrhenius-based lifetime prediction modeling where controlled O₂ partial pressure is essential.

FAQ

What standards does the OK-HQ-90 explicitly comply with?
It meets ASTM D5423-09 (Type II), ASTM D5374-93 (2005), UL 1581, GB/T 2951.12, IEC 60811-501, JIS C 3005, and VDE 0472 for thermal aging of electrical insulating materials.
Can the air exchange rate be verified independently?
Yes—the integrated digital anemometer and calibrated flow path allow users to validate actual air change frequency using tracer gas methods (e.g., CO₂ decay) or thermal mass flow meters connected via the 50 mm port.
Is the controller compatible with laboratory network infrastructure?
Standard RS-232/485 interfaces support connection to SCADA systems or centralized monitoring platforms; optional Ethernet module enables direct TCP/IP integration.
What safety protections are built-in?
Overtemperature cutoff (independent mechanical limiter), motor overcurrent detection, ground-fault interruption, short-circuit protection, and real-time heater element monitoring.
Does the chamber support sub-ambient operation?
No—the OK-HQ-90 is configured for high-temperature aging only (RT+10°C to 200°C); low-temperature variants require separate refrigerated chamber models.
