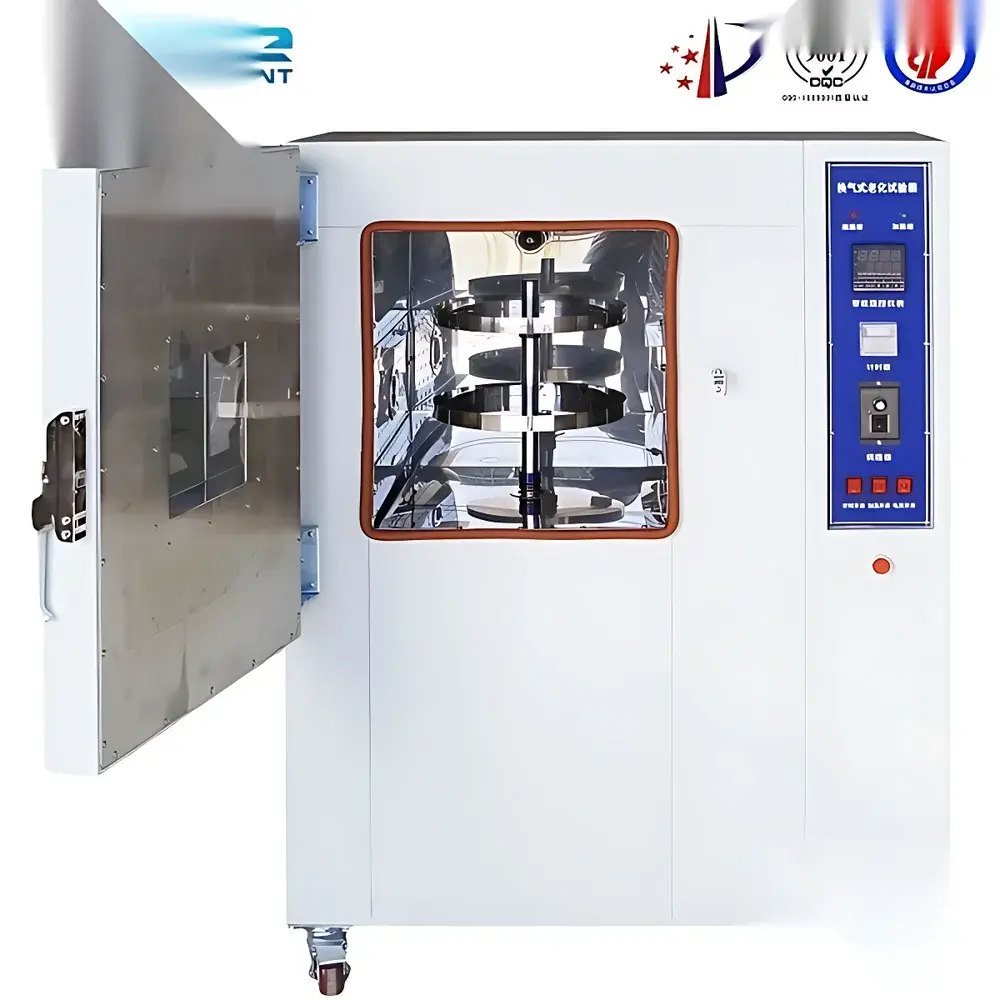

OK-HQ Series Forced-Air Thermal Aging Test Chamber

Overview

The OK-HQ Series Forced-Air Thermal Aging Test Chamber is an engineered environmental test system designed for accelerated thermal aging evaluation of polymeric and elastomeric materials—including wires and cables, rubber compounds, plastics, leather, and textiles—under controlled, ventilated high-temperature conditions. It operates on the principle of forced convection with programmable air exchange, enabling precise simulation of long-term thermal degradation mechanisms such as oxidation, chain scission, and crosslinking. Unlike static ovens, this chamber maintains a defined volumetric air exchange rate (AER) per hour, ensuring consistent oxygen replenishment and removal of volatile decomposition byproducts—critical for replicating real-world service-life conditions in electrical insulation, automotive components, and aerospace sealing systems. Its design conforms to ASTM D5423-09 (Type II laboratory oven specification) and supports standardized aging protocols referenced in UL 1581, IEC 60811-501, and GB/T 2951.12.

Key Features

• High-precision microprocessor-based temperature controller with PID algorithm, 0.1°C resolution for both setpoint and display
• Programmable air exchange rate (2–100 cycles/hour) and exchange interval (1 min – 99 h), independently adjustable via front-panel interface
• Horizontal forced-air circulation system with dual adjustable airflow baffles and high-temperature-rated centrifugal blower, ensuring ±2°C temperature uniformity across working volume
• Stainless steel (SUS304) interior chamber with argon-arc welded seams; A3 steel exterior with electrostatic powder coating for corrosion resistance and cleanroom-compatible surface finish
• Integrated turntable (Φ250–Φ700 mm, depending on model) for uniform exposure of vertically mounted specimens during aging
• Energy-efficient insulation using ultra-fine glass fiber mat (≥100 mm thickness), minimizing thermal loss and improving chamber stability
• Standard 50 mm diameter test port on left sidewall for external power/signal line feed-through, sealed with silicone gasket
• Dual safety protection: over-temperature cut-off, motor overheat detection, short-circuit/leakage current interruption, and real-time heater & sensor fault monitoring

Sample Compatibility & Compliance

The OK-HQ chamber accommodates a broad range of specimen geometries and mounting configurations, including wire spools, molded plaques, extruded profiles, and textile swatches. Its horizontal airflow architecture and internal baffle system prevent localized hot spots and ensure reproducible thermal stress distribution—essential for comparative aging studies under GLP or ISO/IEC 17025-accredited laboratories. The system meets the structural and operational requirements of ASTM D5423-09 (Type II forced-ventilation oven), ASTM D5374-93 (2005) for polymer thermal aging, UL 1581 Section 1060 (wire insulation aging), and multiple national standards including GB/T 2951.12 (Chinese standard for cable insulation), JIS C 3005 (Japanese wire testing), and VDE 0472 Part 801. All models support traceable calibration per ISO/IEC 17025 guidelines and include documentation templates for audit-ready validation (IQ/OQ/PQ).

Software & Data Management

Equipped with an intelligent LCD controller featuring RS-232/RS-485 communication ports, the chamber enables remote parameter setting, real-time data logging, and centralized fleet management via PC-based software. The controller records temperature history at user-defined intervals (1–60 sec), stores up to 100 programmable test profiles, and provides timestamped event logs—including door opening, alarm triggers, and cycle completion. Optional compliance firmware supports FDA 21 CFR Part 11-compliant electronic signatures, audit trails, and role-based access control for regulated environments. Sensor inputs utilize high-stability platinum RTD (PT100) and capacitive humidity sensors (where applicable), with measurement uncertainty ≤±0.3°C over full operating range.

Applications

• Aging evaluation of PVC, PE, XLPE, EPR, and silicone rubber insulation in wire and cable manufacturing
• Thermal stability assessment of automotive gaskets, hoses, and under-hood polymers per SAE J2238
• Pre-qualification testing of aerospace elastomers against MIL-DTL-83528 and AMS specifications
• Comparative lifetime modeling of photovoltaic encapsulants (EVA, POE) per IEC 61215 thermal cycling subroutines
• Accelerated oxidation studies of lubricants, adhesives, and composite matrix resins
• Quality assurance testing for medical device polymers under ISO 10993-12 extraction protocols

FAQ

What standards does the OK-HQ chamber comply with?

It complies with ASTM D5423-09 (Type II), ASTM D5374-93 (2005), UL 1581, IEC 60811-501, GB/T 2951.12, JIS C 3005, and VDE 0472.

Can the air exchange rate be validated and calibrated?

Yes—integrated digital airflow meters and optional external anemometer ports allow direct AER verification per ASTM D5423 Annex A2.

Is the chamber suitable for continuous unattended operation?

Yes—equipped with redundant over-temperature protection, auto-restart after power recovery, and event-logging capability for 30+ days.

What maintenance is required for long-term reliability?

Quarterly inspection of blower bearings, annual recalibration of RTD sensors, and biannual cleaning of air filters and heat exchanger surfaces.

Do you provide IQ/OQ documentation packages?

Yes—factory-verified installation and operational qualification protocols are available upon request, aligned with ISO/IEC 17025 and GMP requirements.
